JLLN-250 - Littelfuse 250 Amp 300V AC Class T Fast Acting Fuse with 20kA Interrupt Rating

JLLN-250

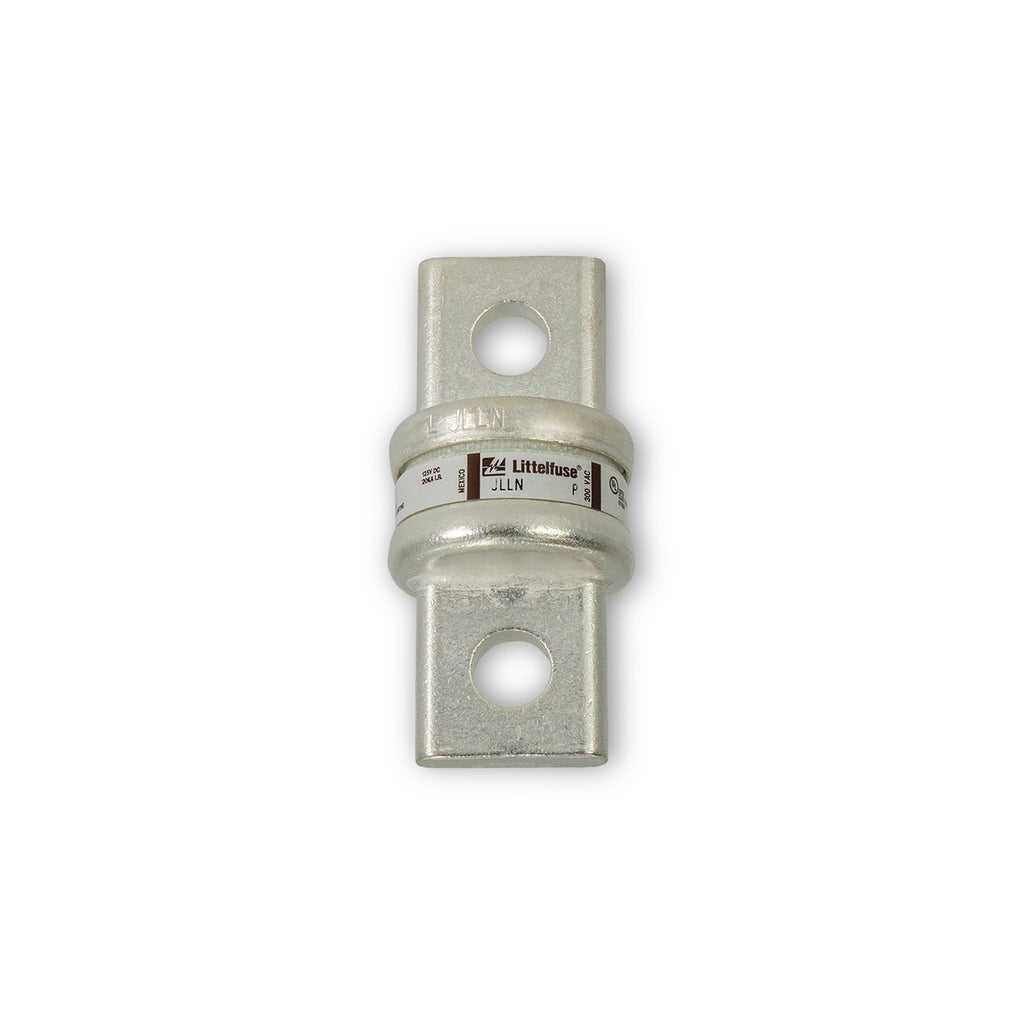

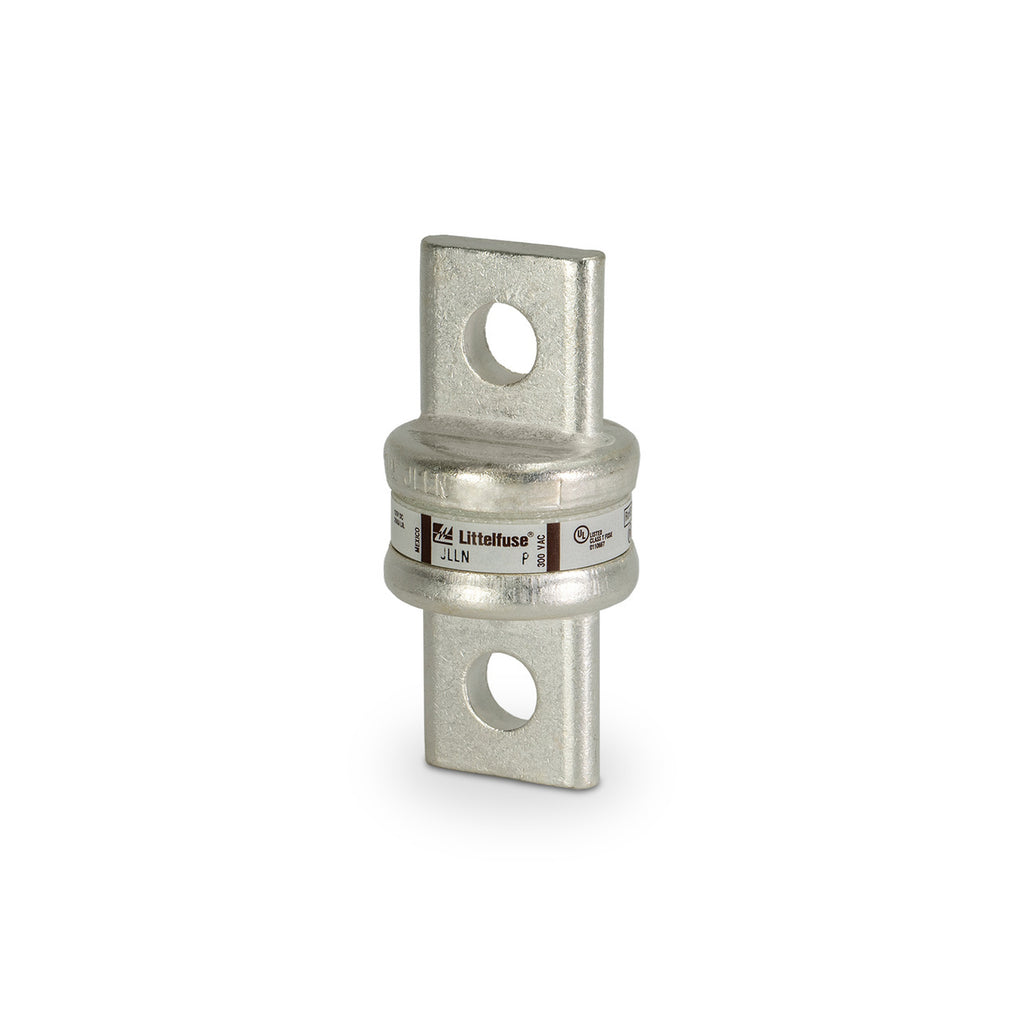

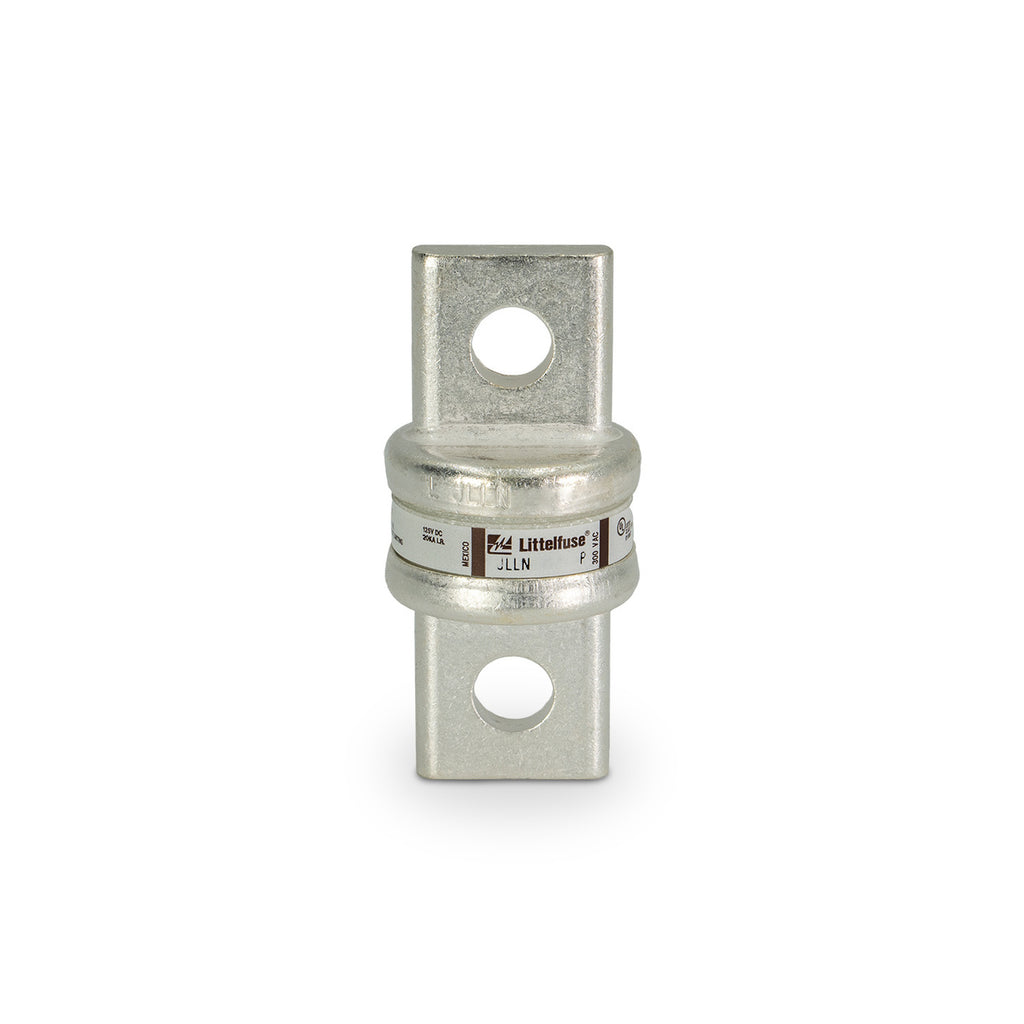

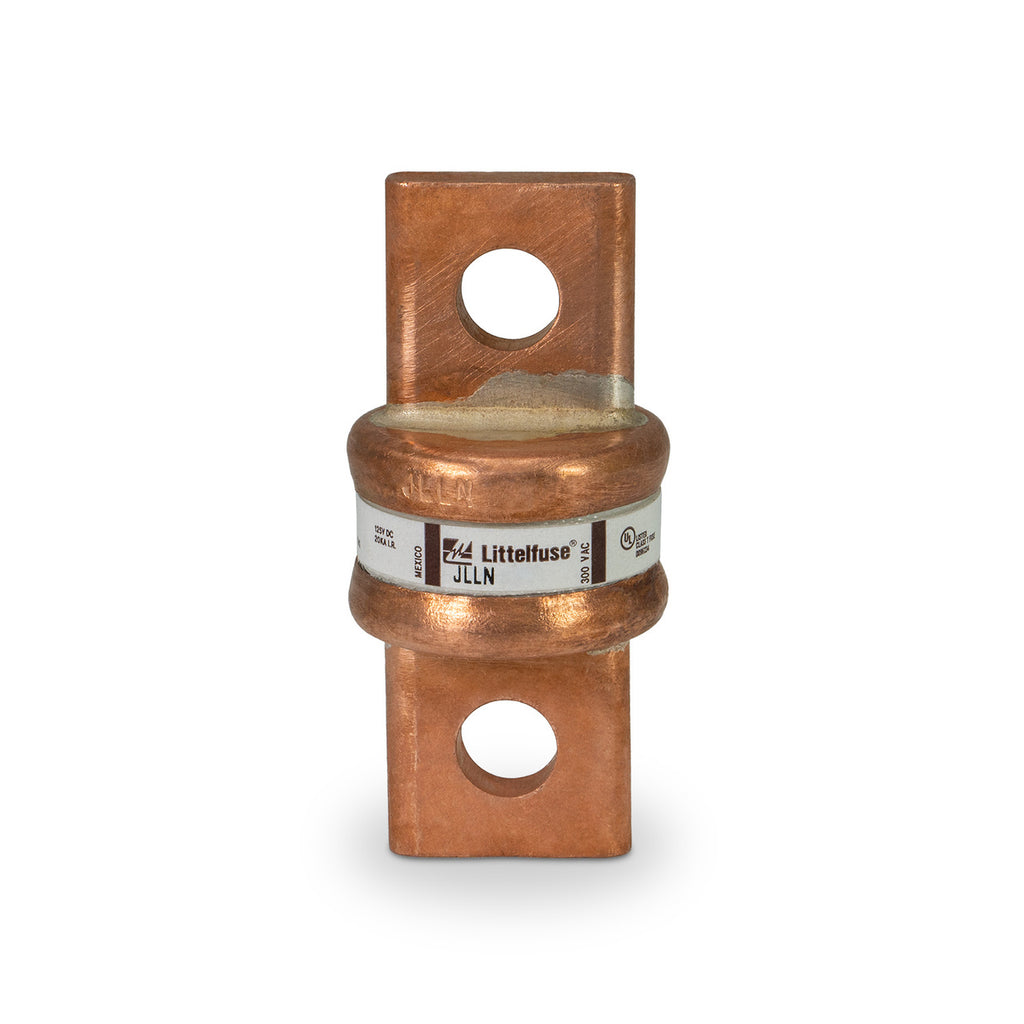

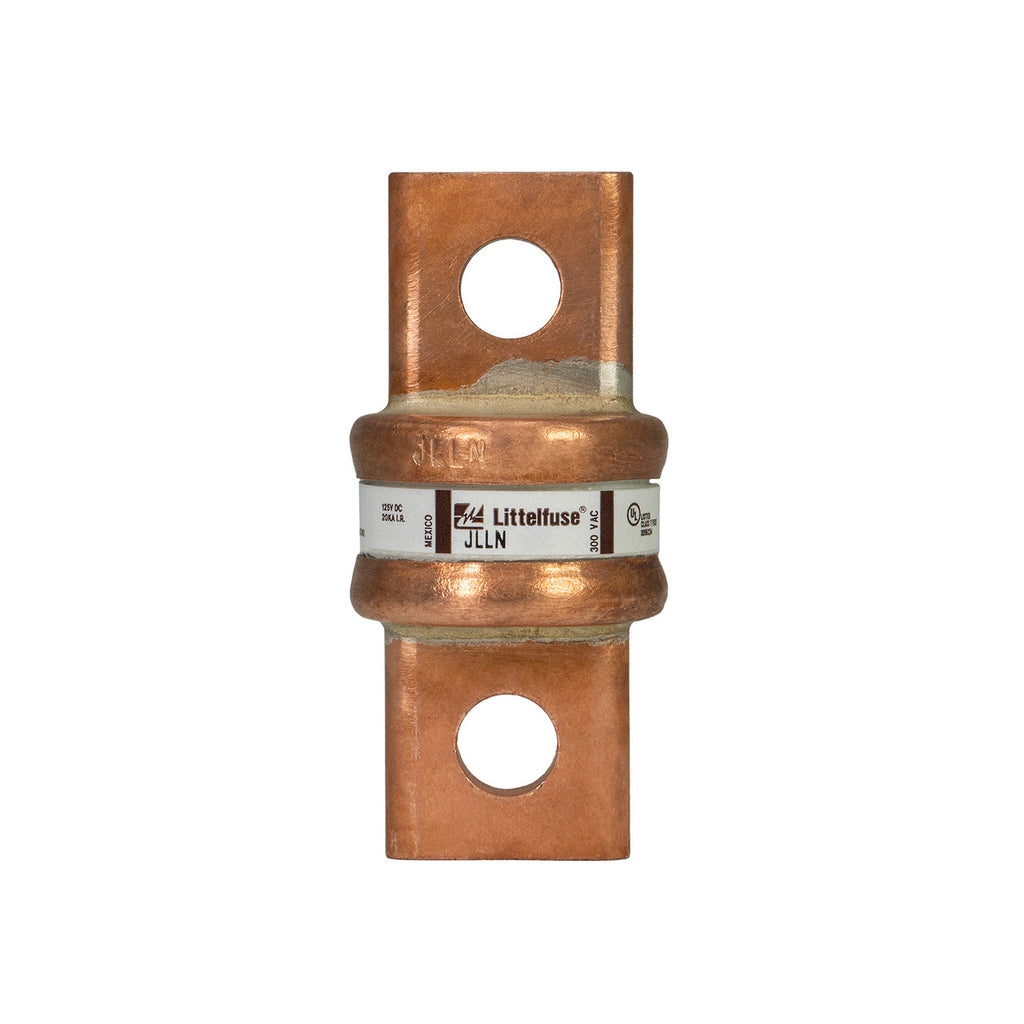

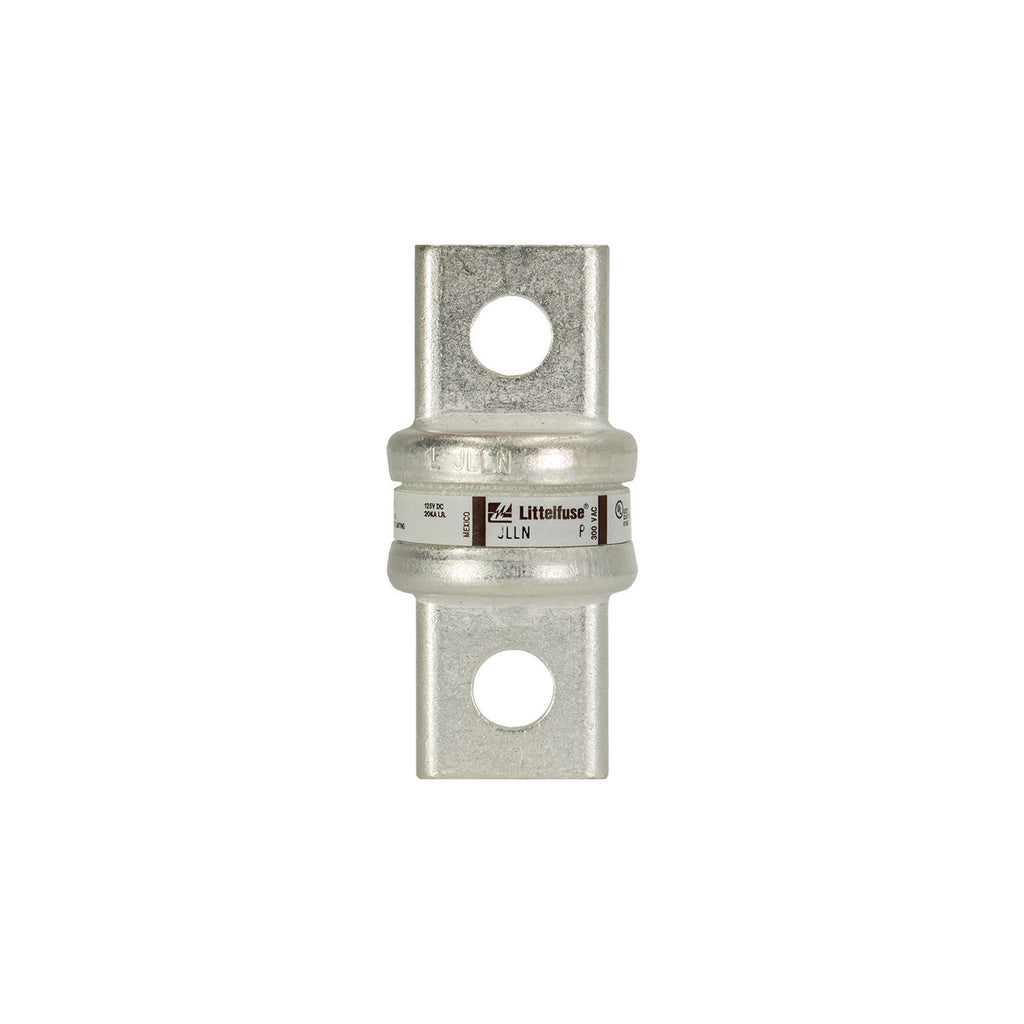

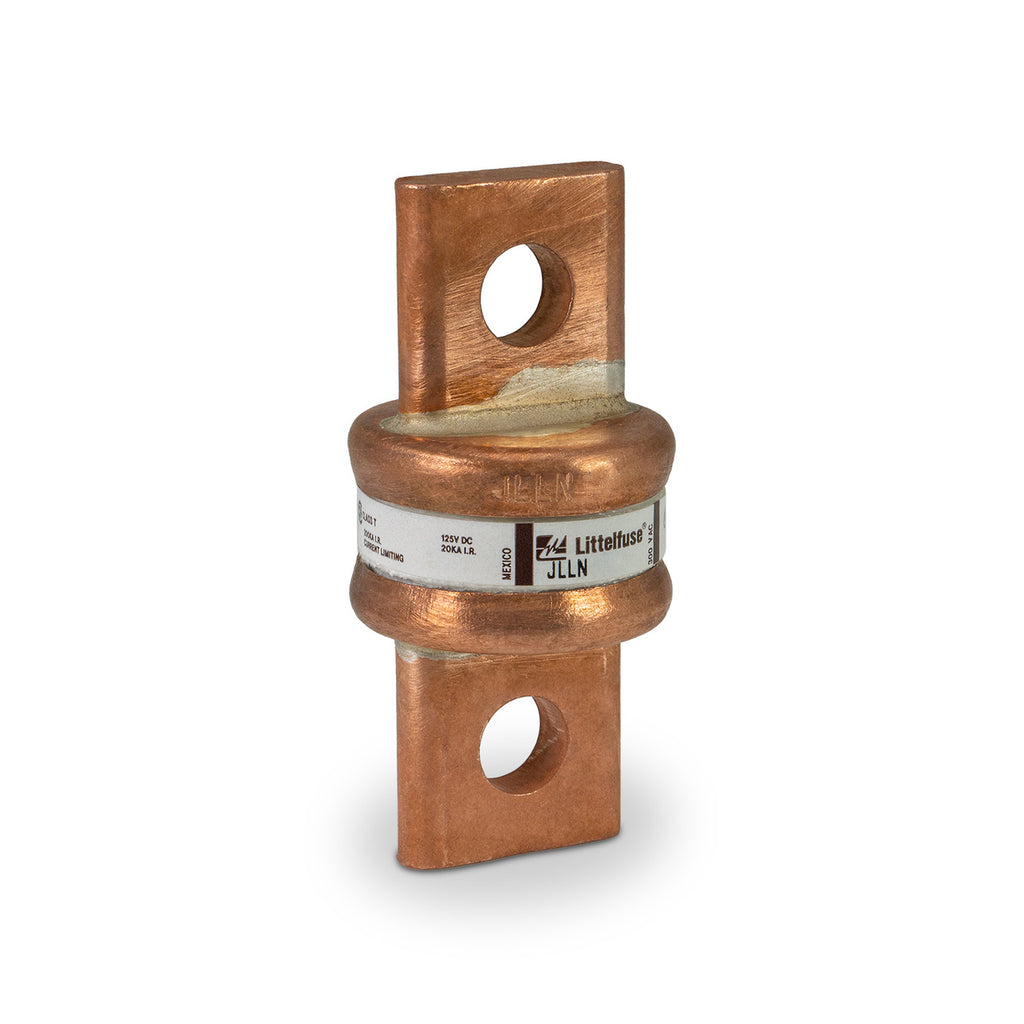

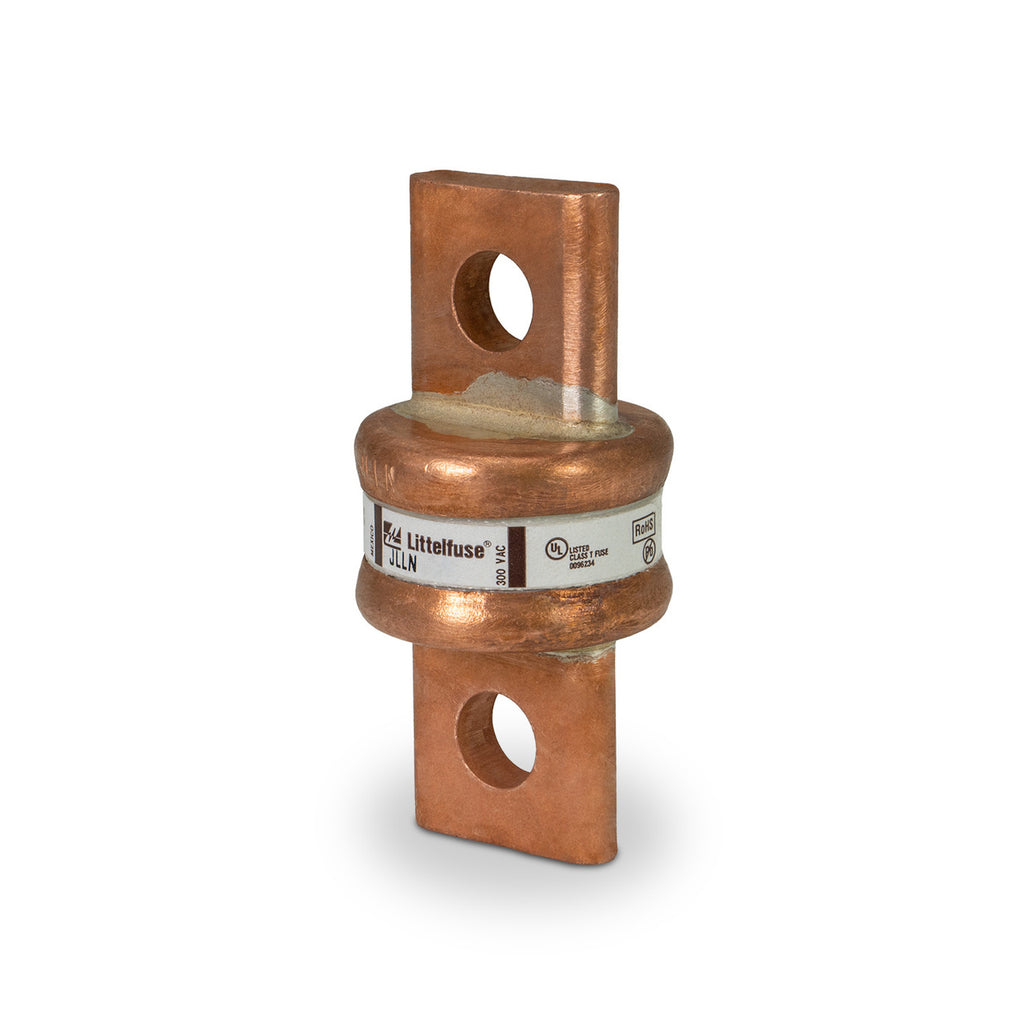

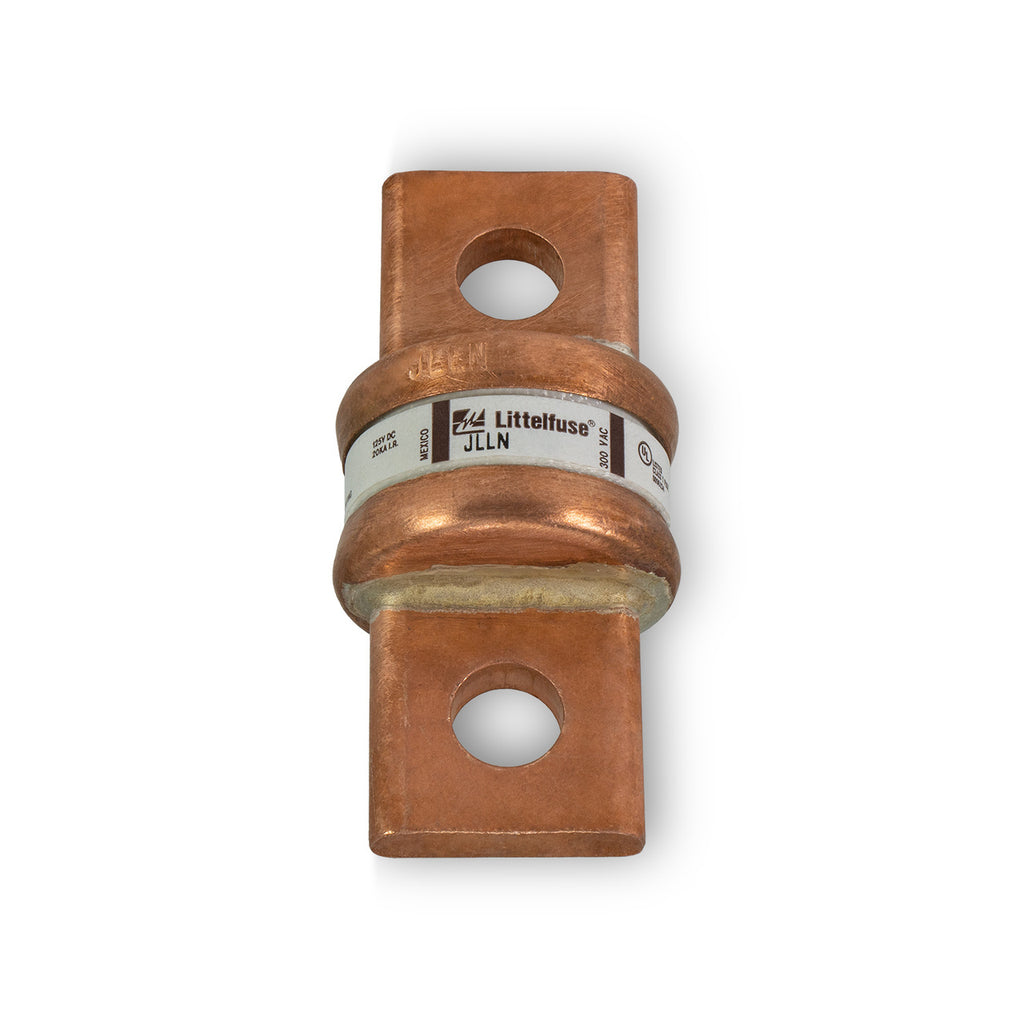

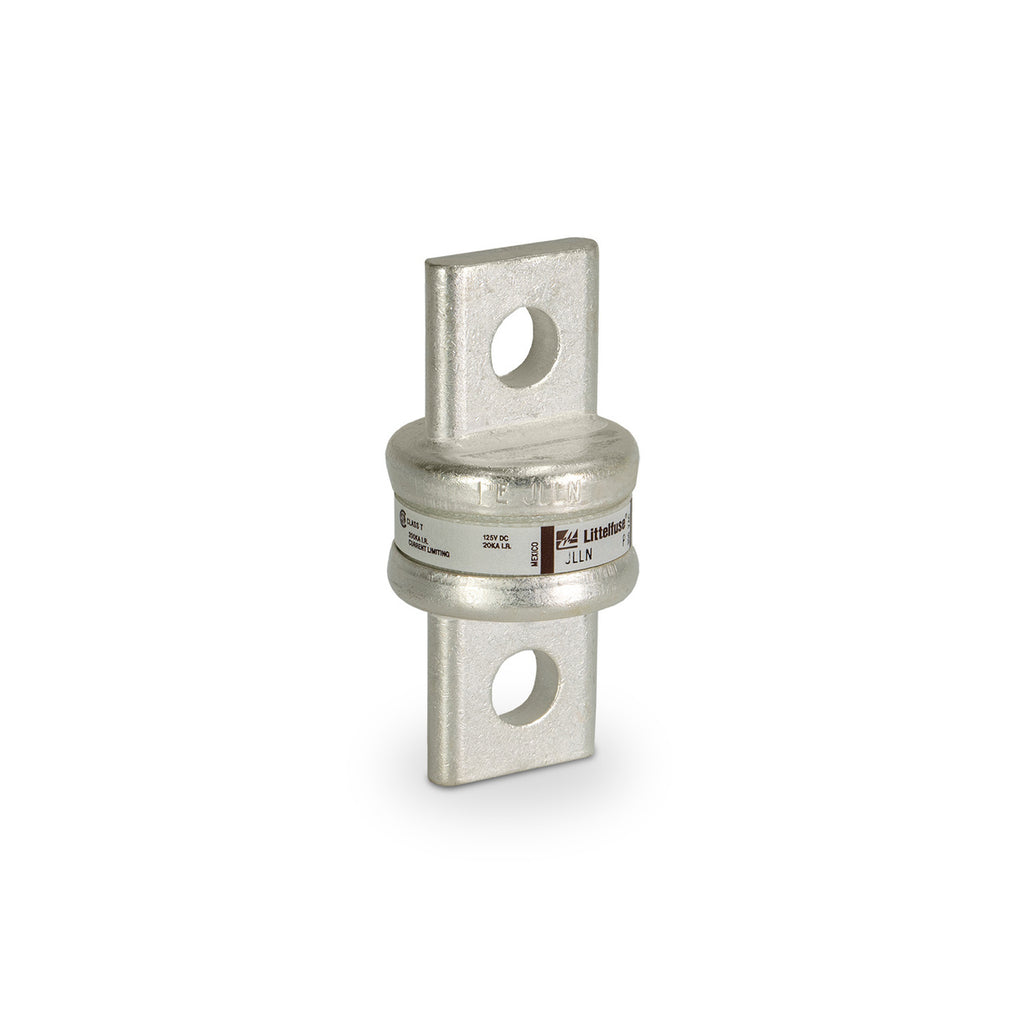

JLLN-250 is a Littelfuse Class T fast-acting fuse rated for 250 amps and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a very fast acting current limiting design ideal for protecting variable speed drives and other sensitive equipment. It has a 200,000 AIC interrupt rating at 300 VAC and 20,000 AIC at 125 VDC, with a compact size of 1 5/16" diameter by 2 3/4" length. The JLLN-250 is UL Listed, CSA Certified, RoHS compliant, and constructed with a melamine body and copper end caps.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 300 V AC / 125 V DC
• Fuse Class: Class T
• Speed: Very Fast Acting
• Interrupting Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 125 VDC
• Dimensions: 1.312" diameter x 2.75" length
• Mounting Type: Blade Terminal
• Material: Melamine body, copper caps
• Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLN-250
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLN
• Voltage : 300
• Amperage : 250
• AIC rating : 200kA@300V
• Diameter : 1.31
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 07945818090
• GTIN : 00079458180909
• Weight : 1.2
