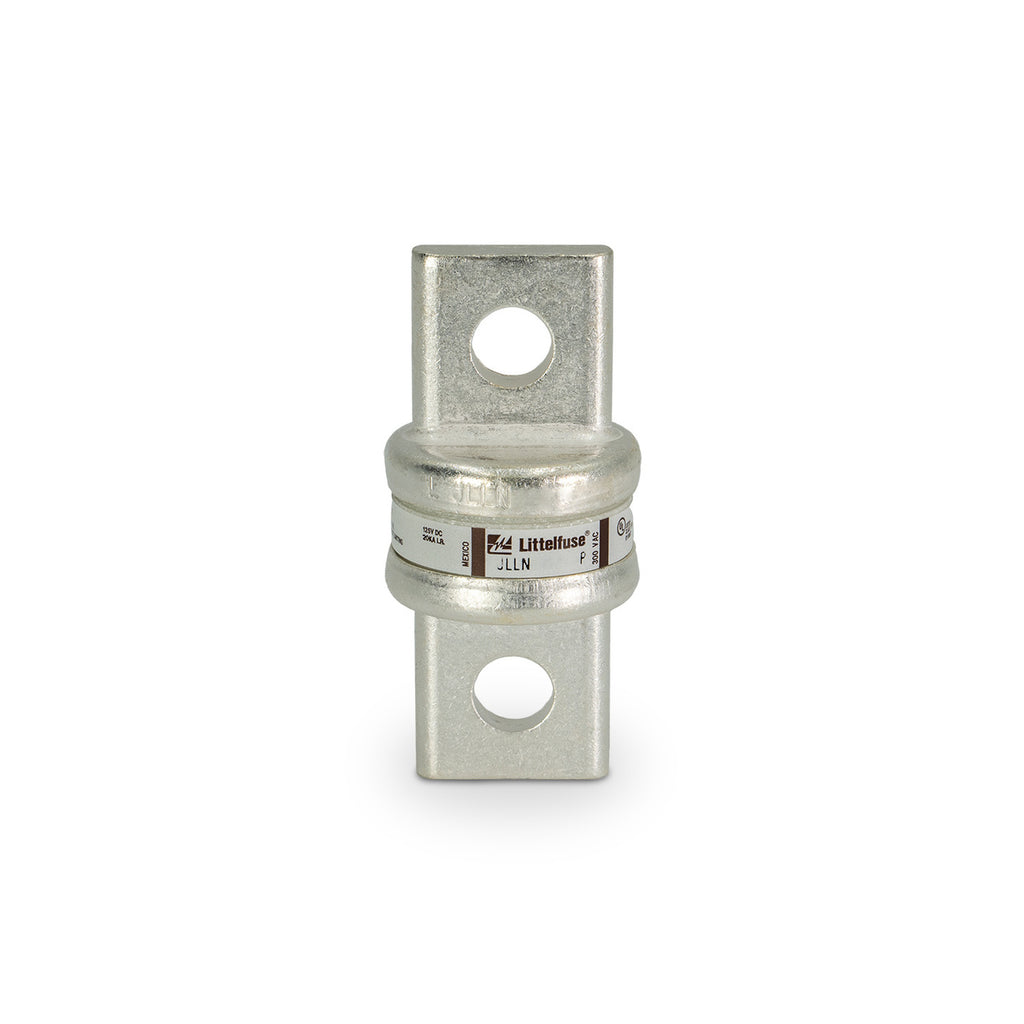

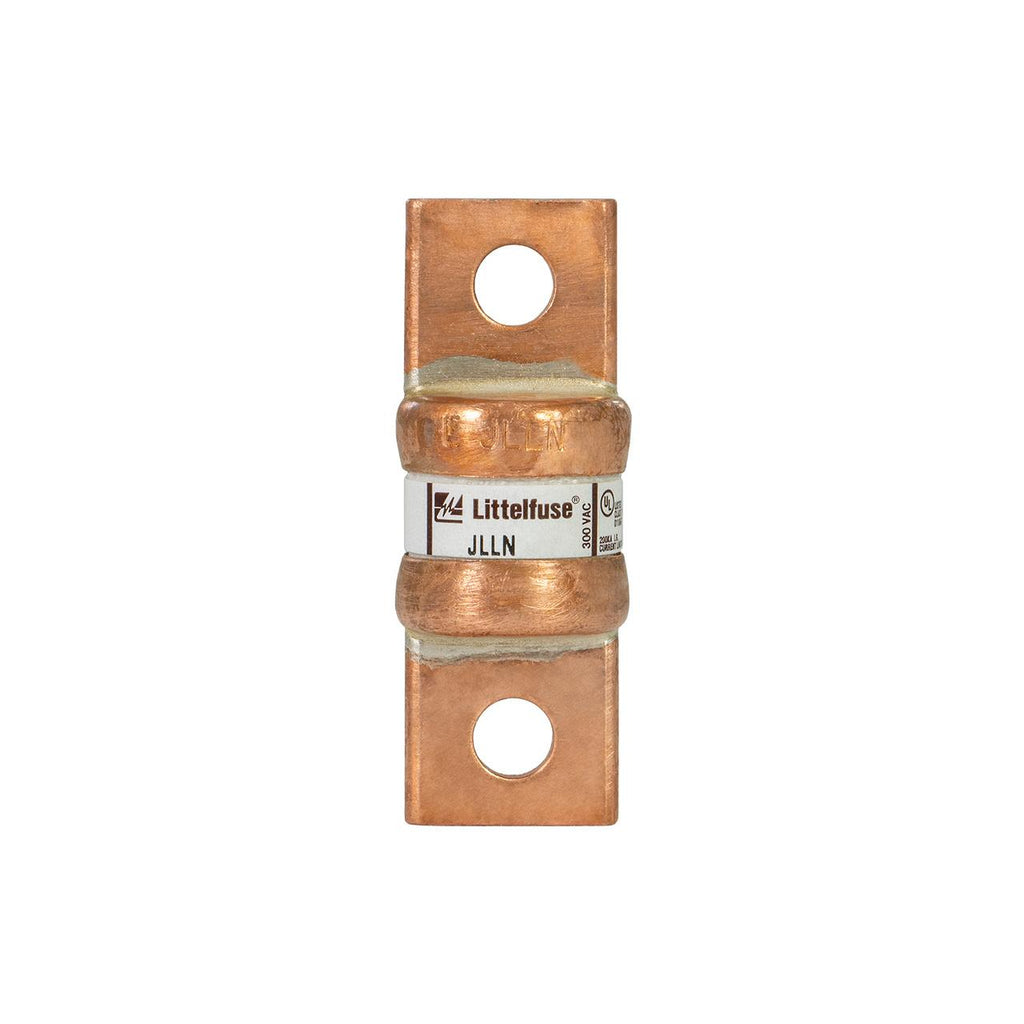

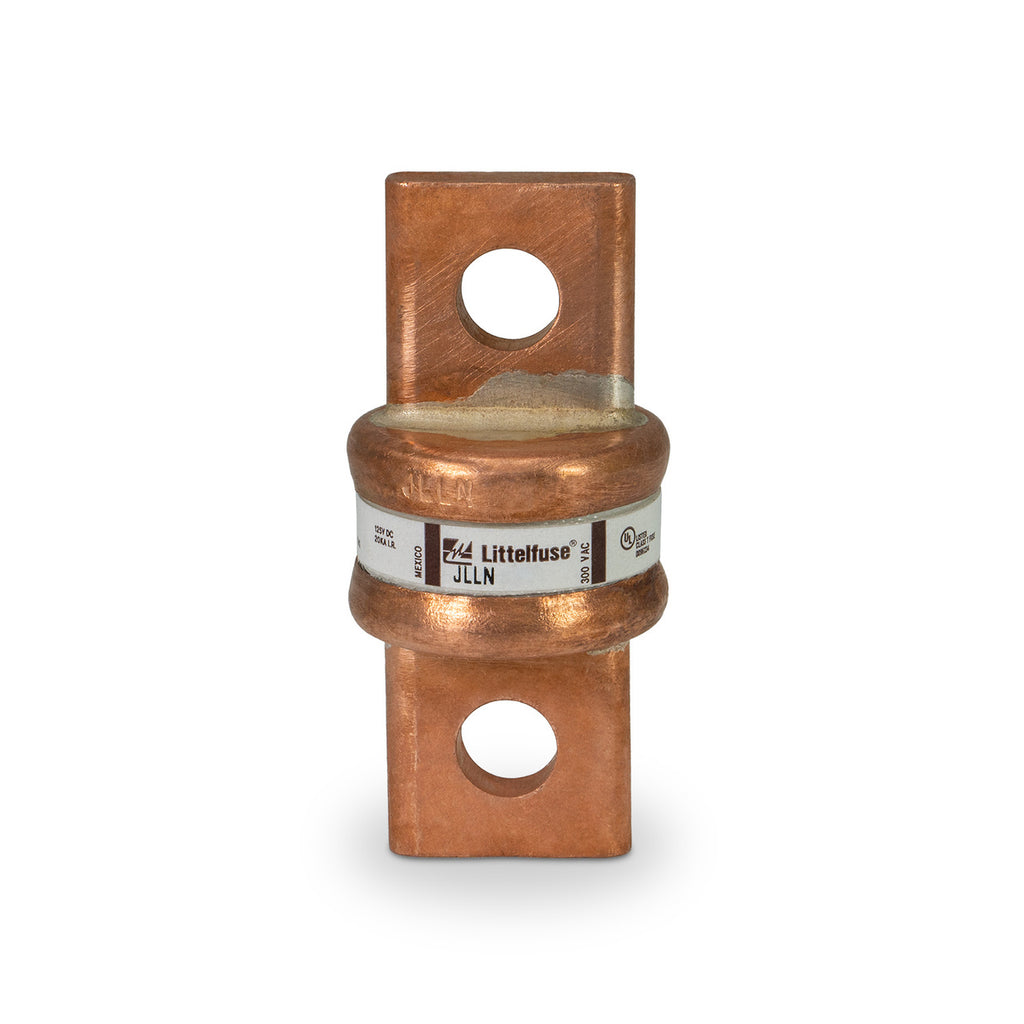

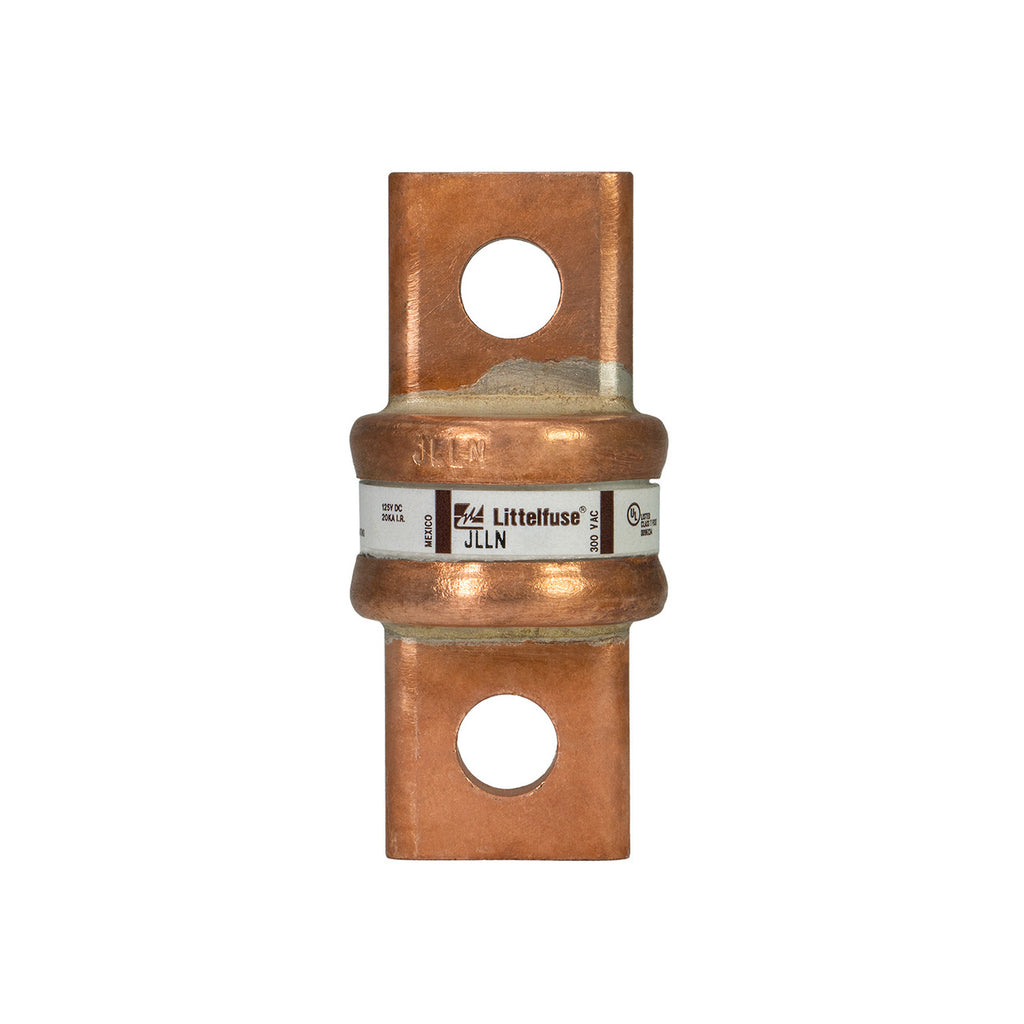

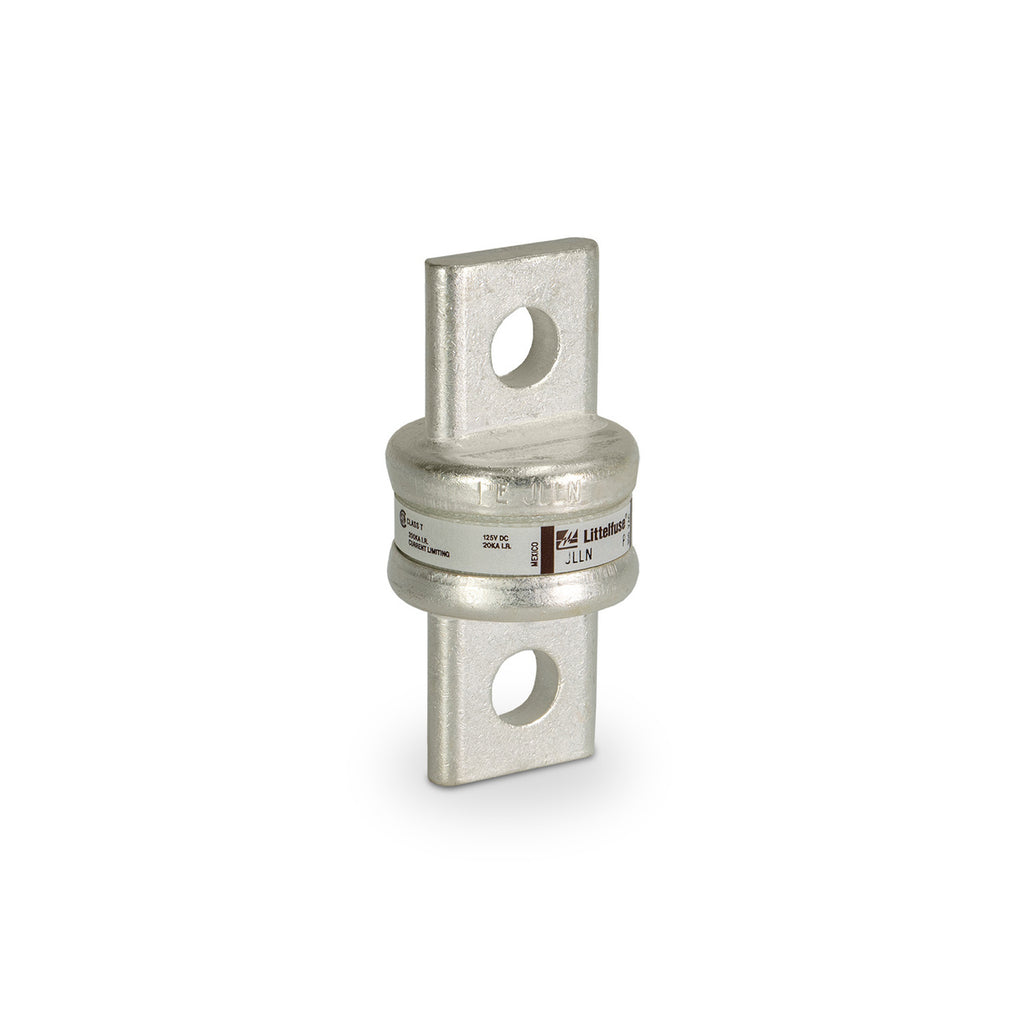

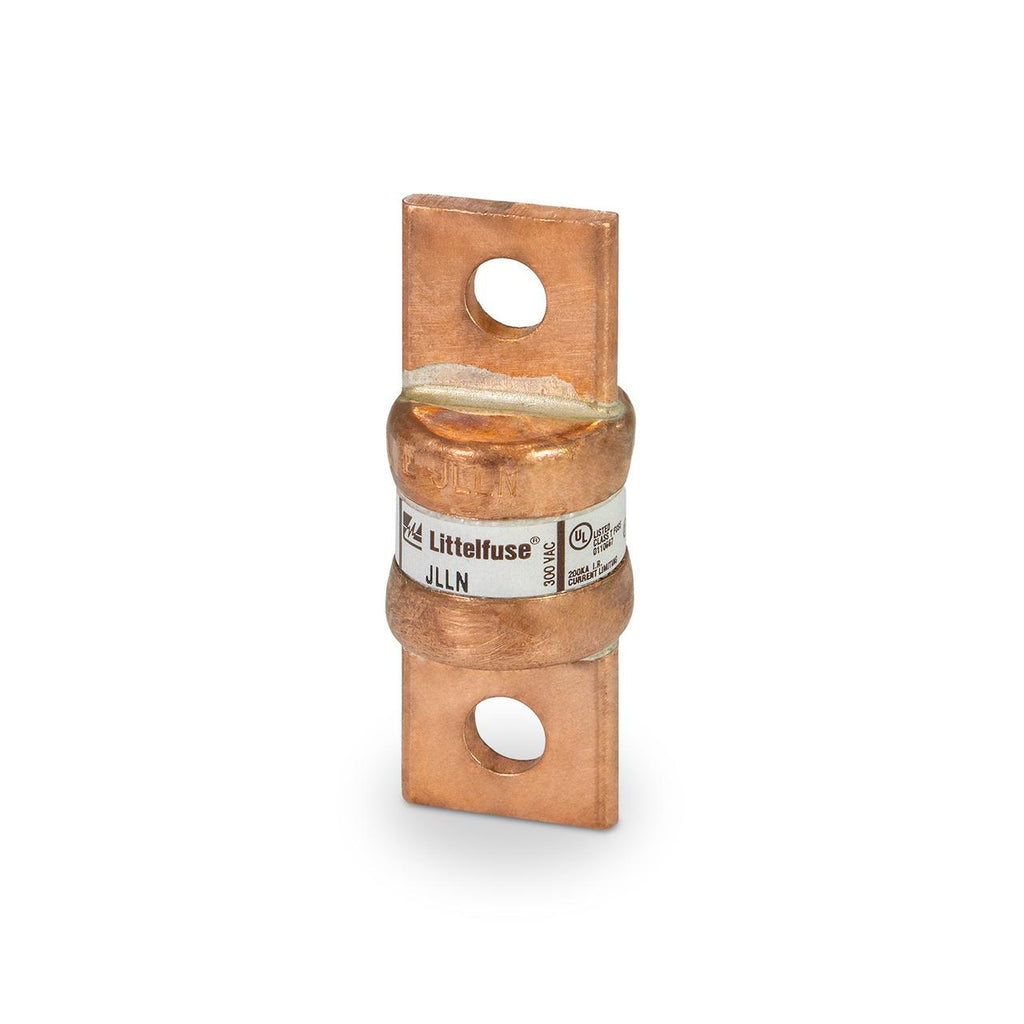

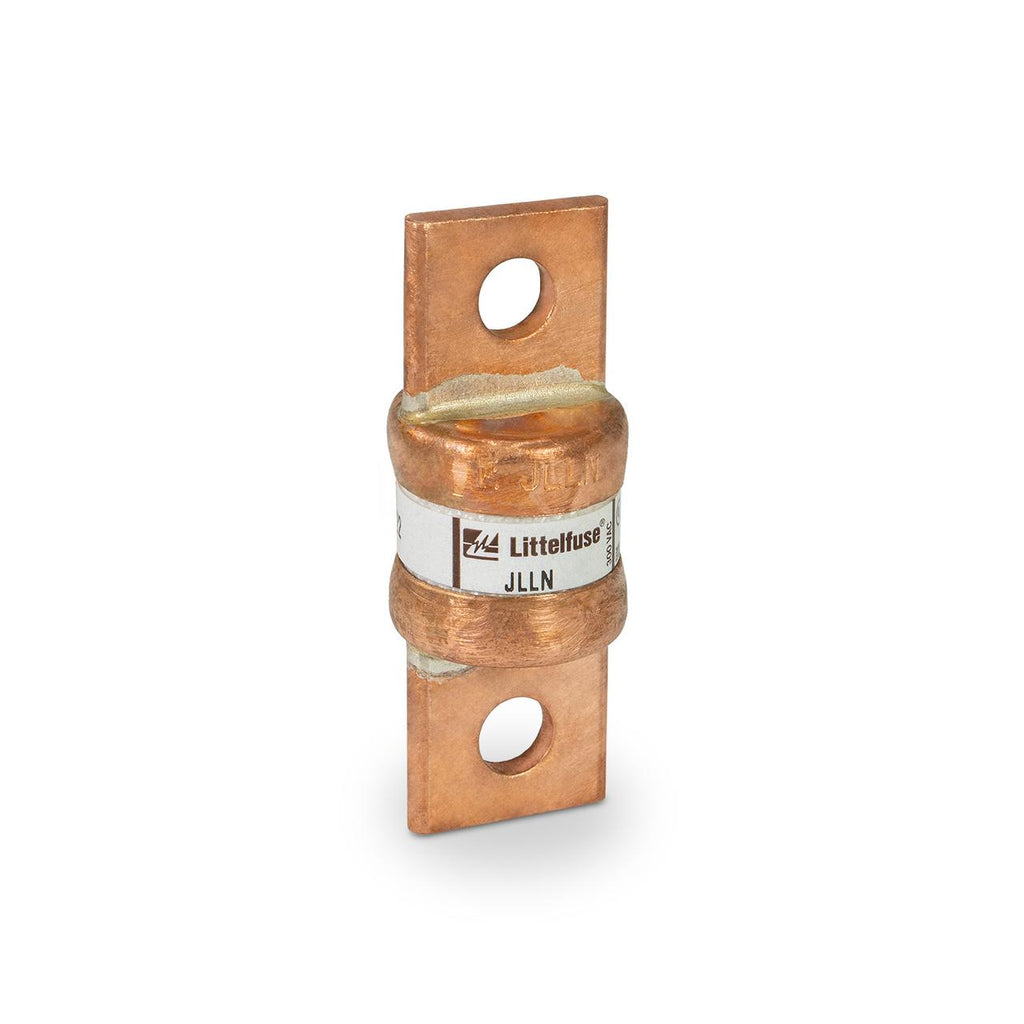

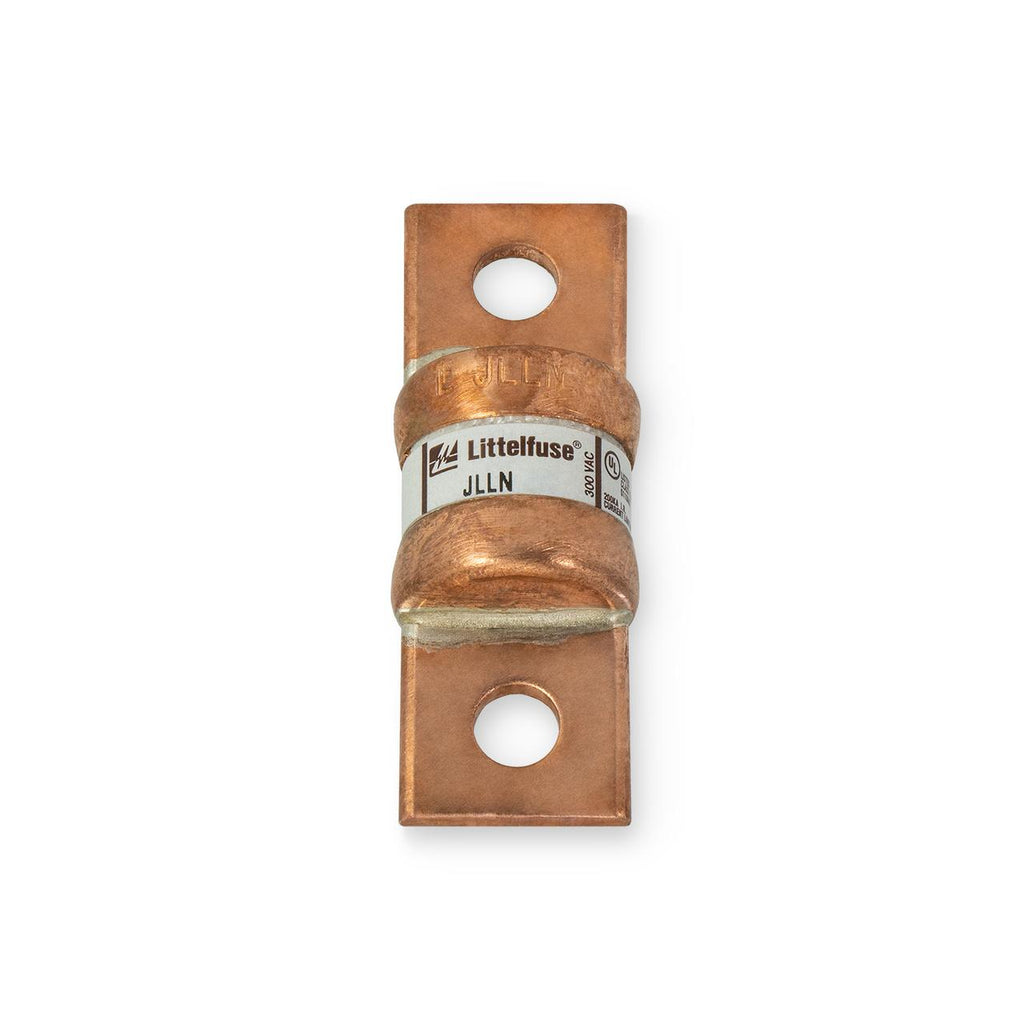

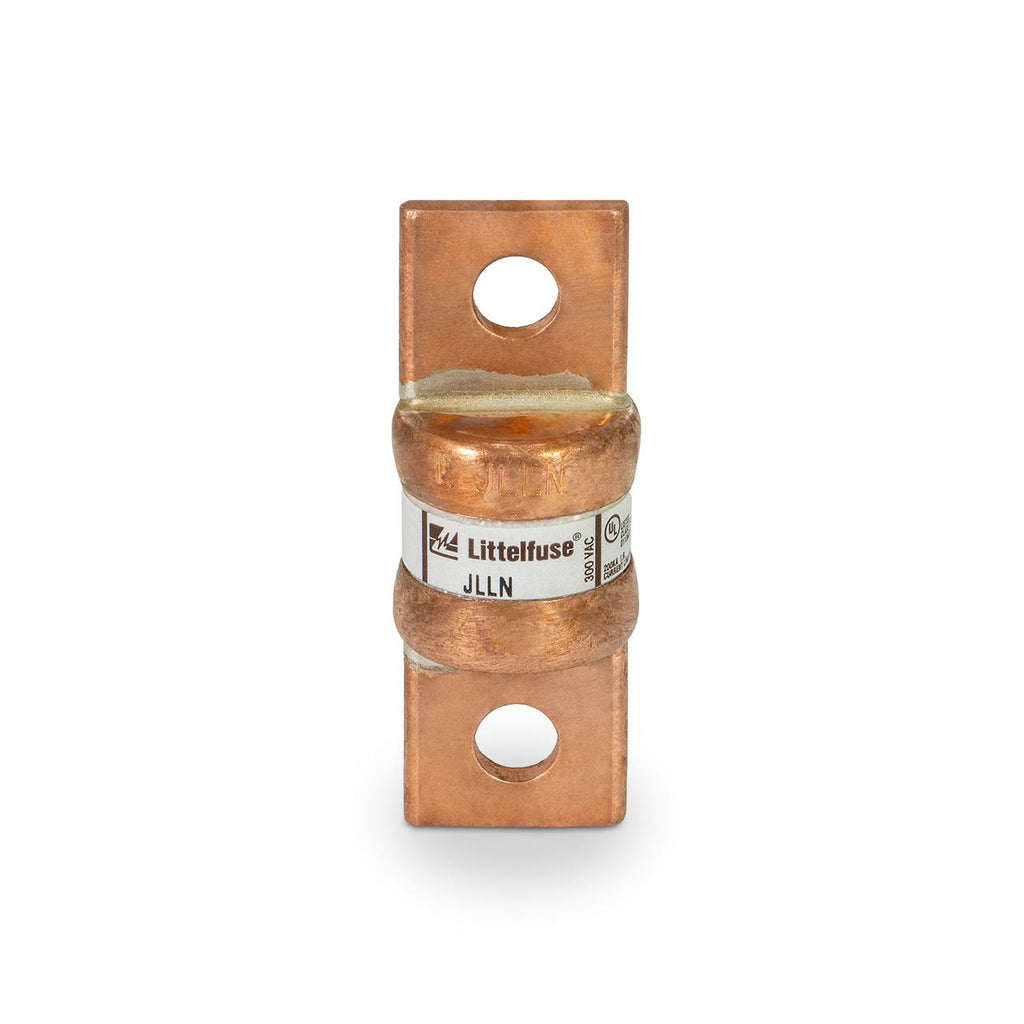

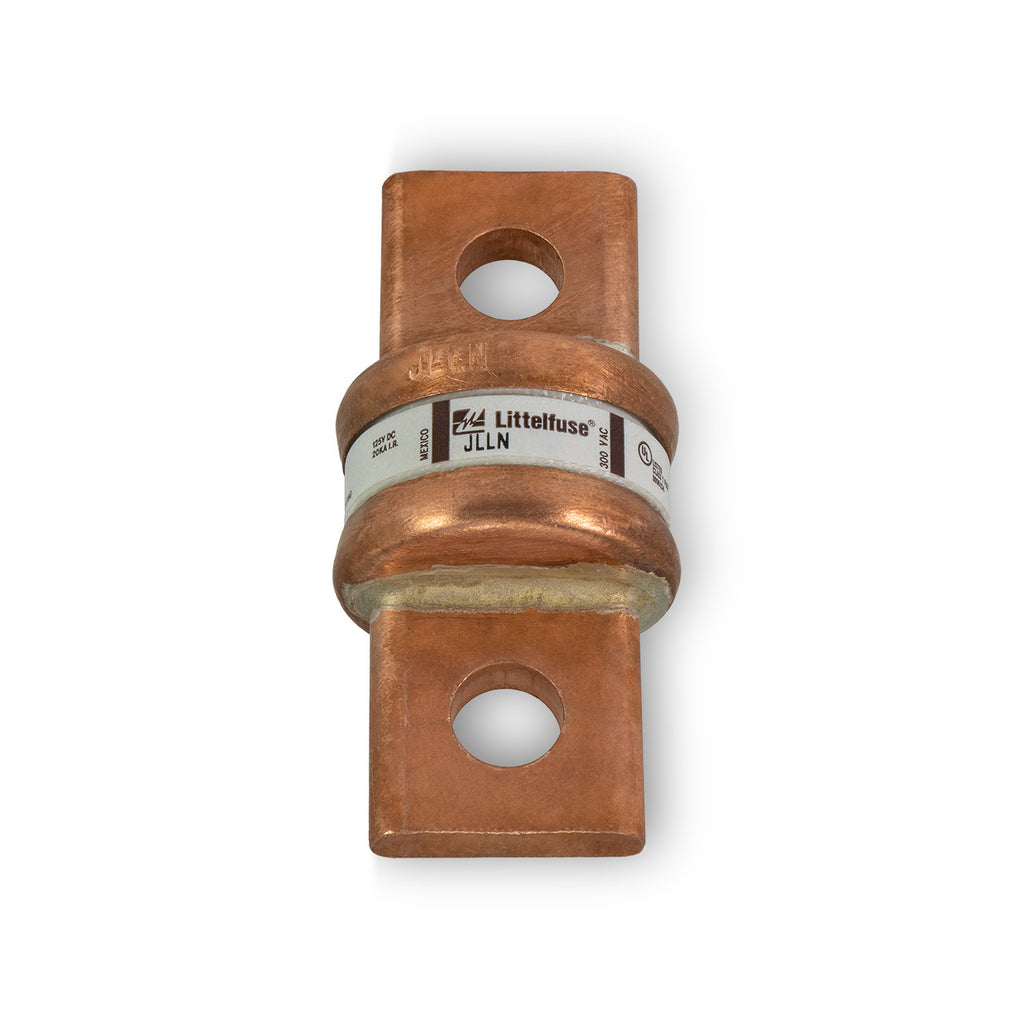

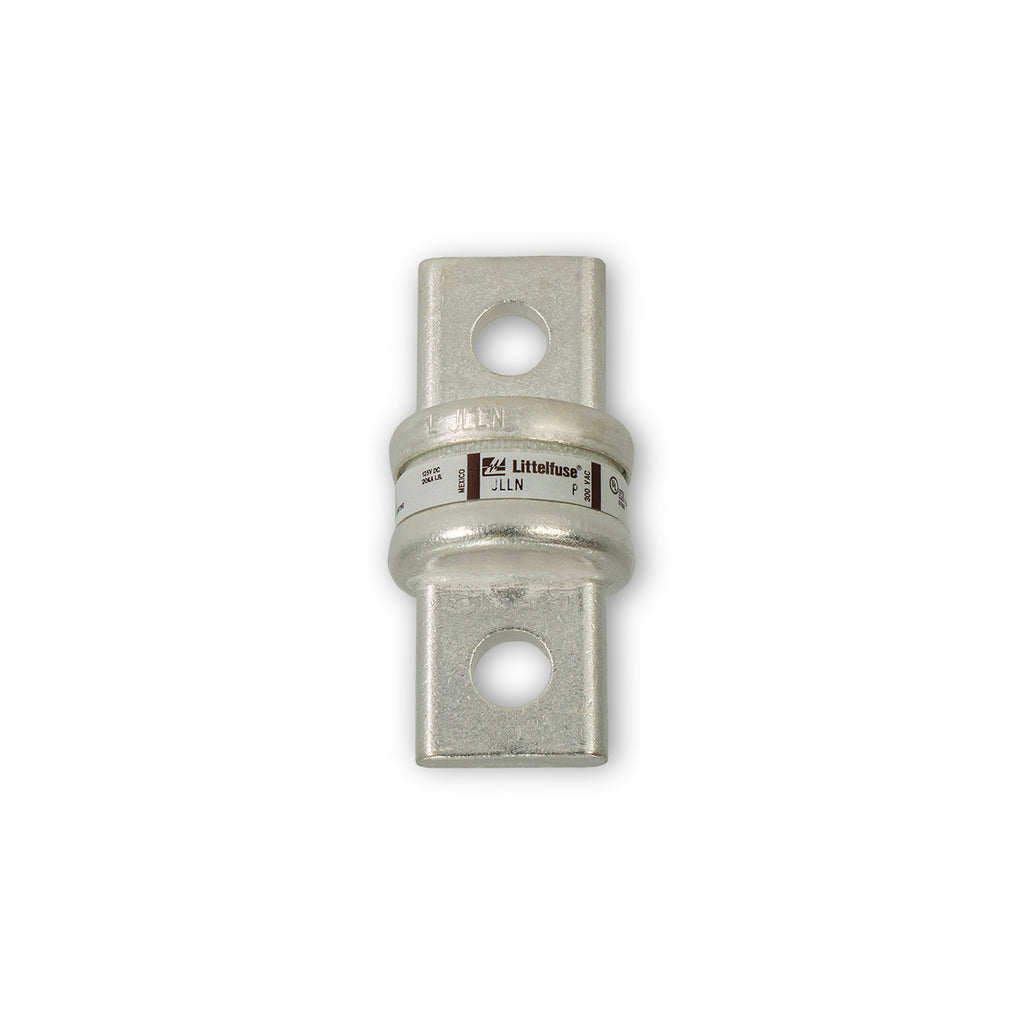

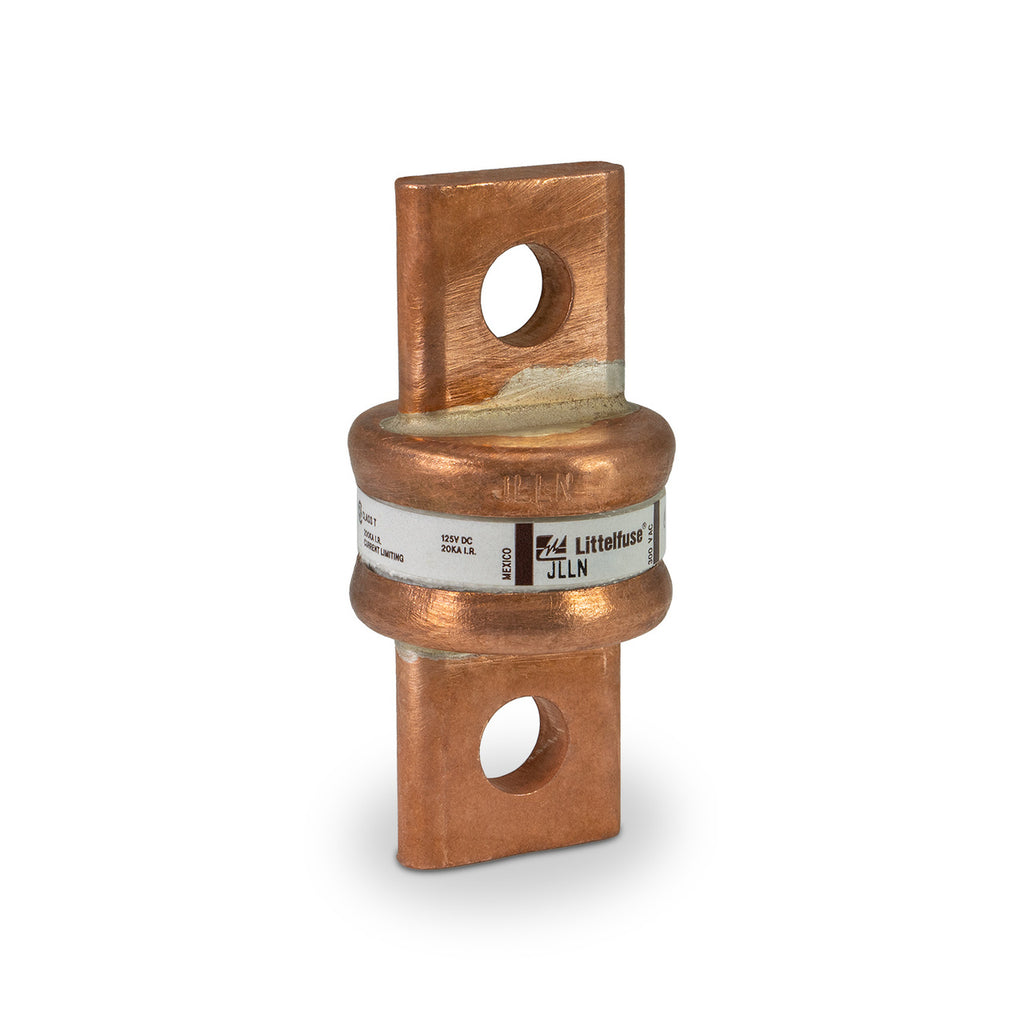

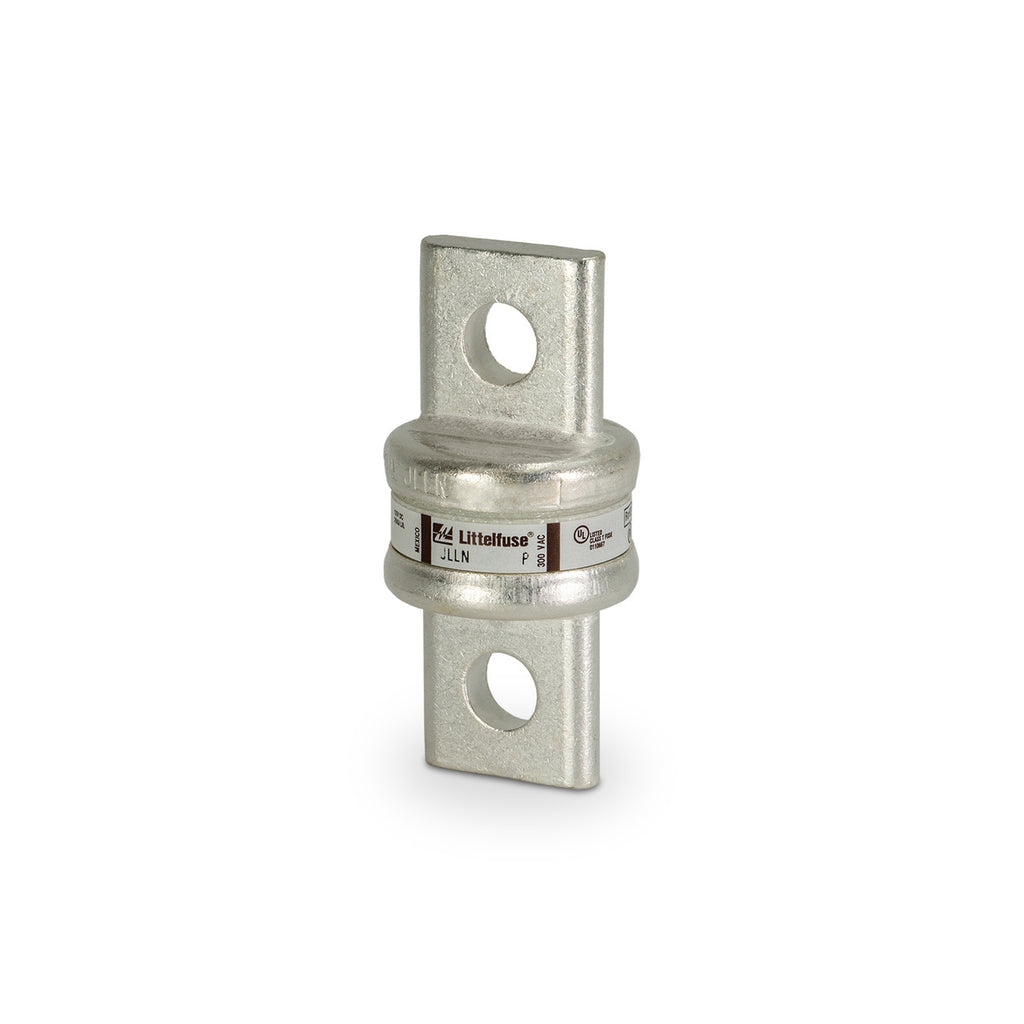

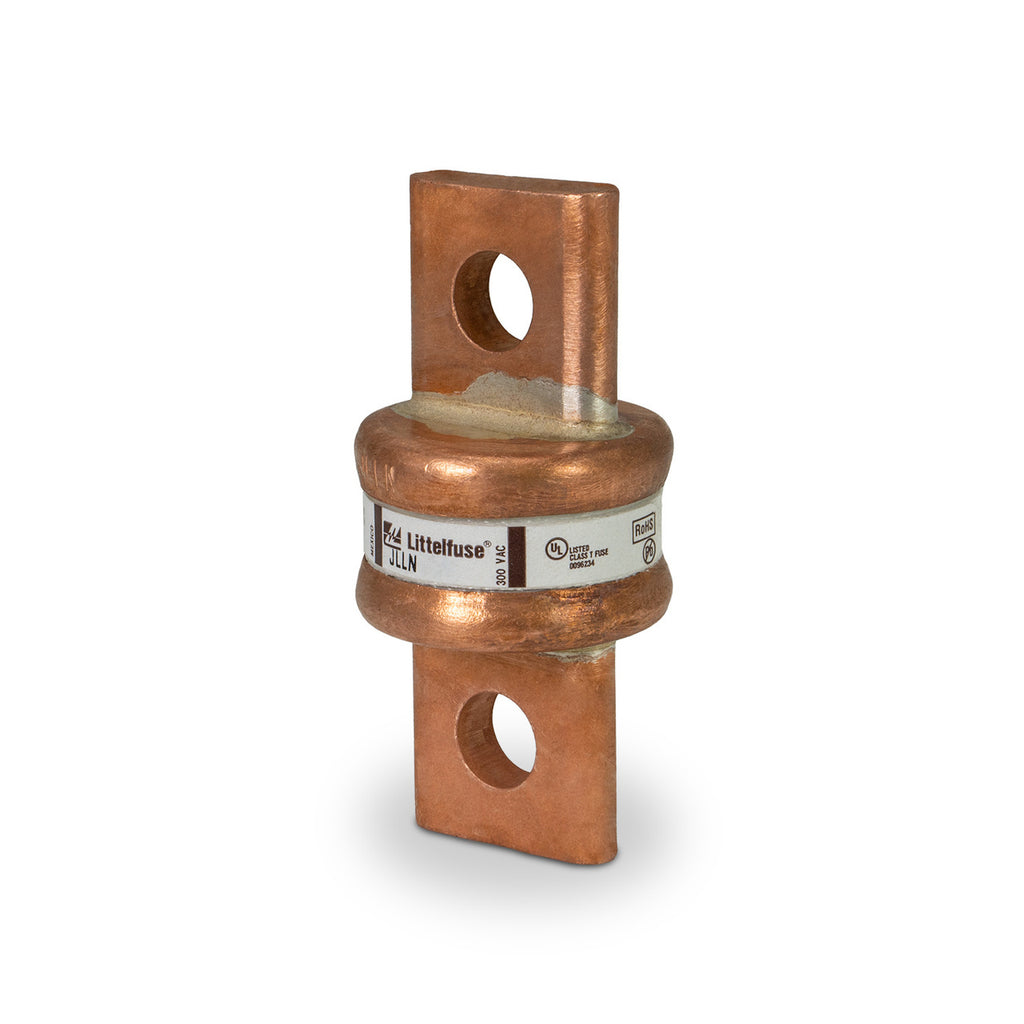

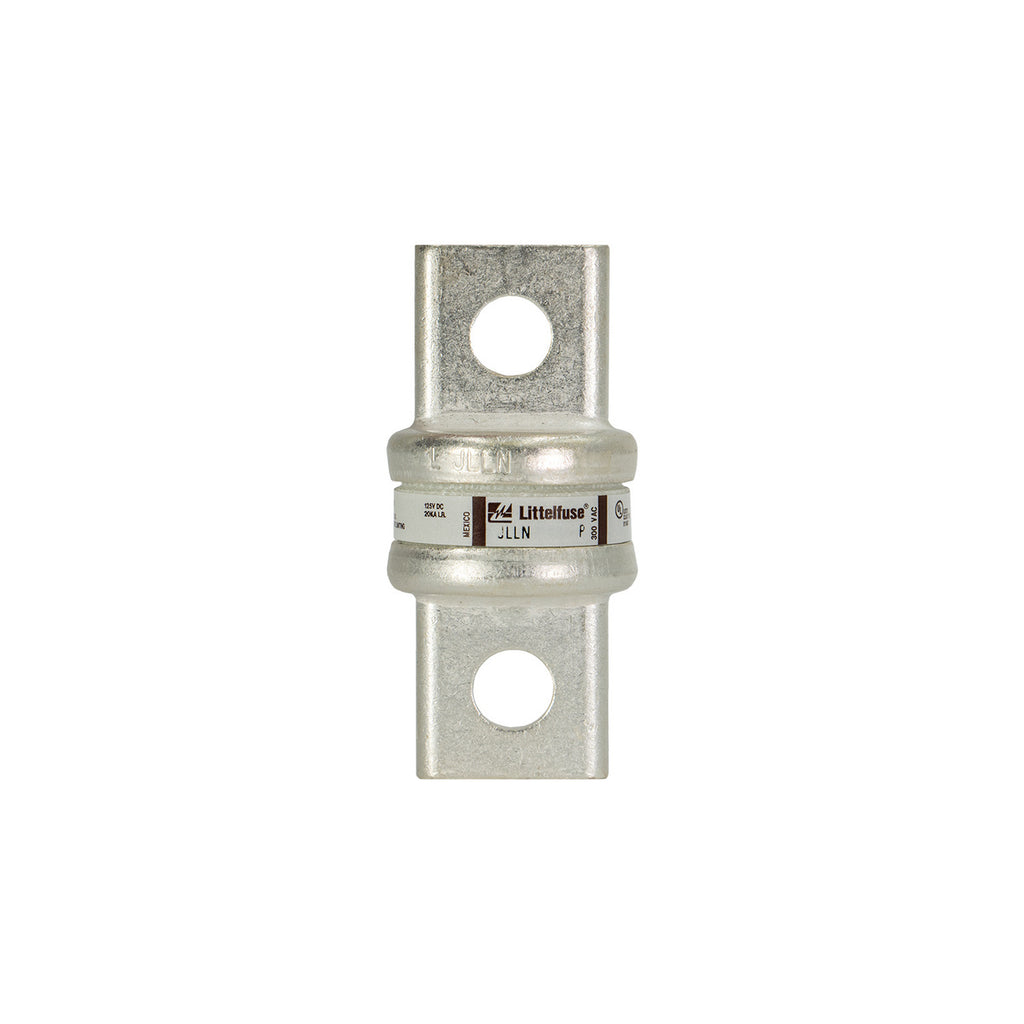

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Series
- Powr-Gard
- Frame
- JLLN
- Rated current
- 400
- Voltage
- 300V
- Interrupting rating
- 200kA@300V
- Class rating
- T
- Barrels
- 1
- Diameter
- 1.31 in
- Country of origin
- Mexico
- UPC
- 07945818093
- GTIN
- 00079458180930
- Weight
- 1.2
Product description & additional details
JLLN-400
JLLN-400 is a Littelfuse Class T fuse rated for 400 amps and 300 volts AC, designed for fast-acting, current-limiting protection.This fuse features a compact design ideal for variable speed drive protection and offers a high interrupting rating for reliable circuit safety.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 300 VAC, 125 VDC
- Fuse Type: Fast Acting, Class T
- Interrupting Rating: 200,000 AIC at 300 VAC, 20,000 AIC at 125 VDC
- Physical Size: 1 5/16" x 2 3/4"
- Mounting Type: Blade
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
- Material: Melamine body with copper caps
- Application: Variable Speed Drive Protection
- Country of Origin: Mexico
Specifications
- Part Number: JLLN-400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 400
- AIC rating : 200kA@300V
- Diameter : 1.31
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818093
- GTIN : 00079458180930
- Country of Origin : Mexico
- Weight : 1.2
