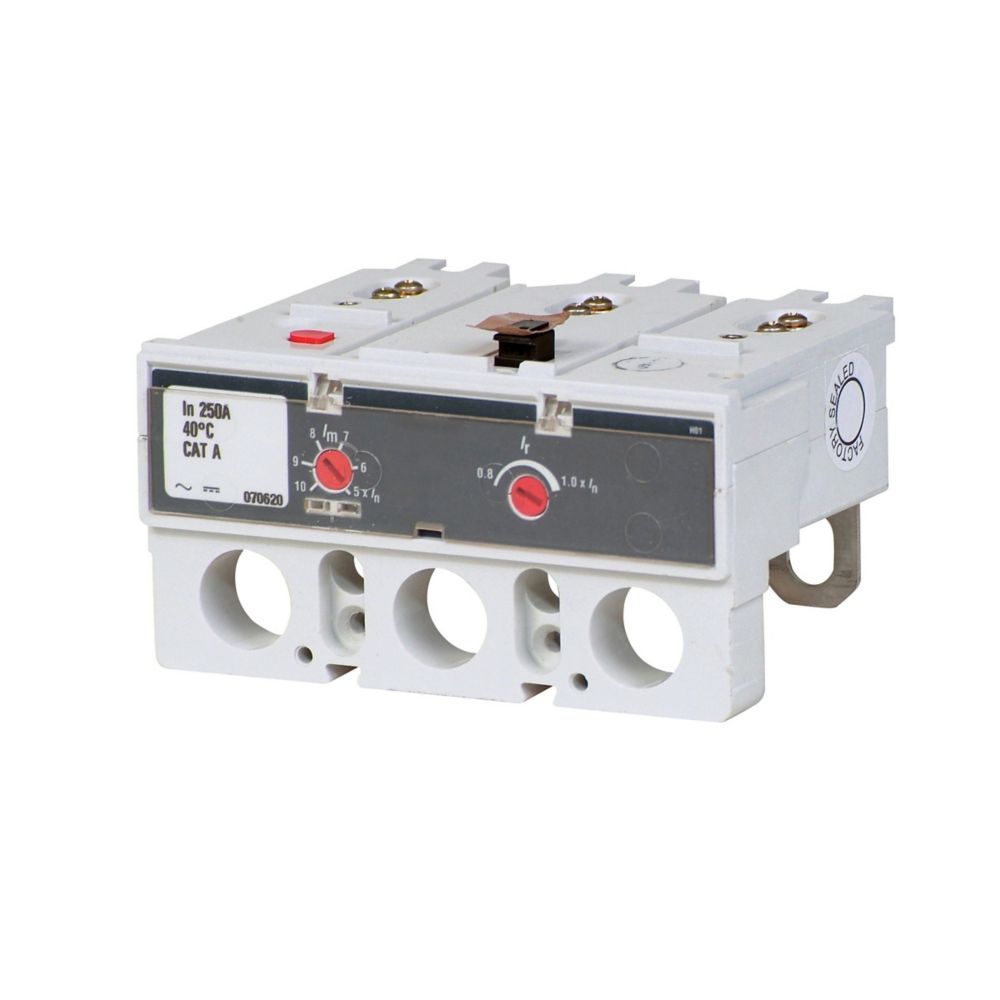

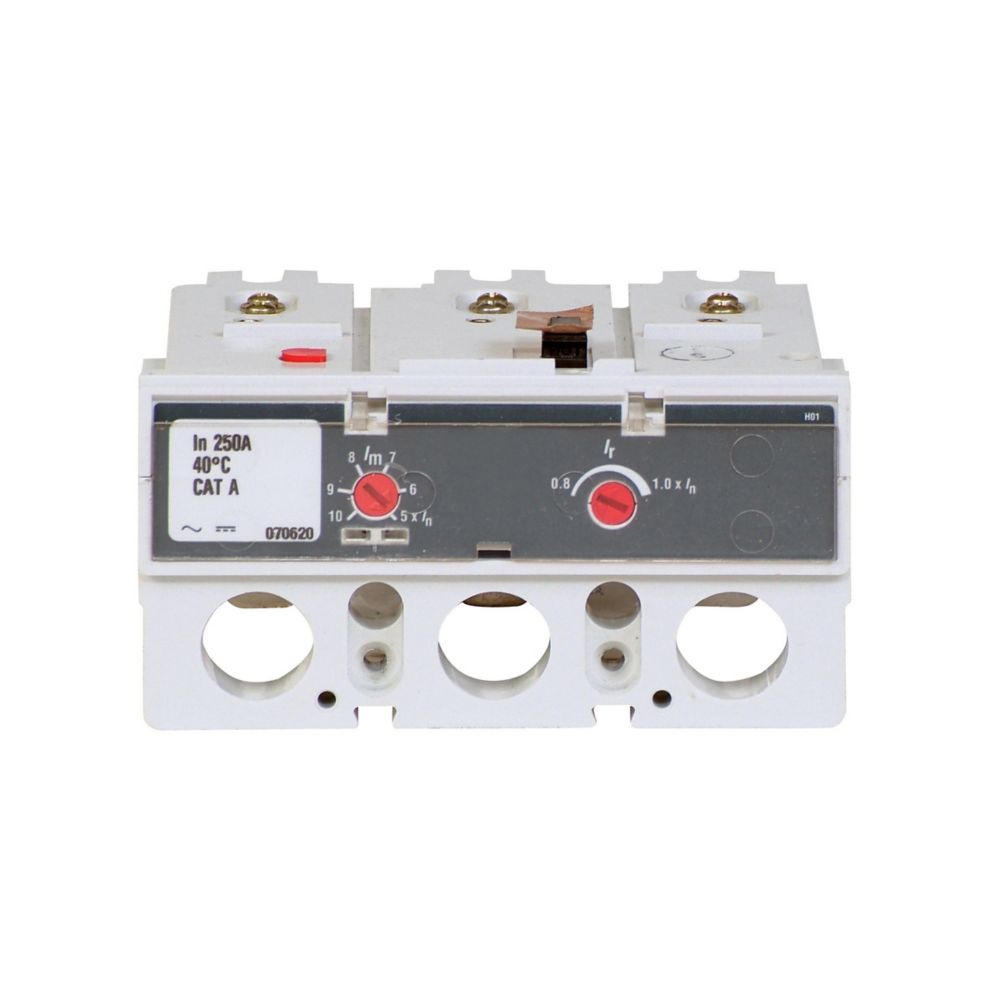

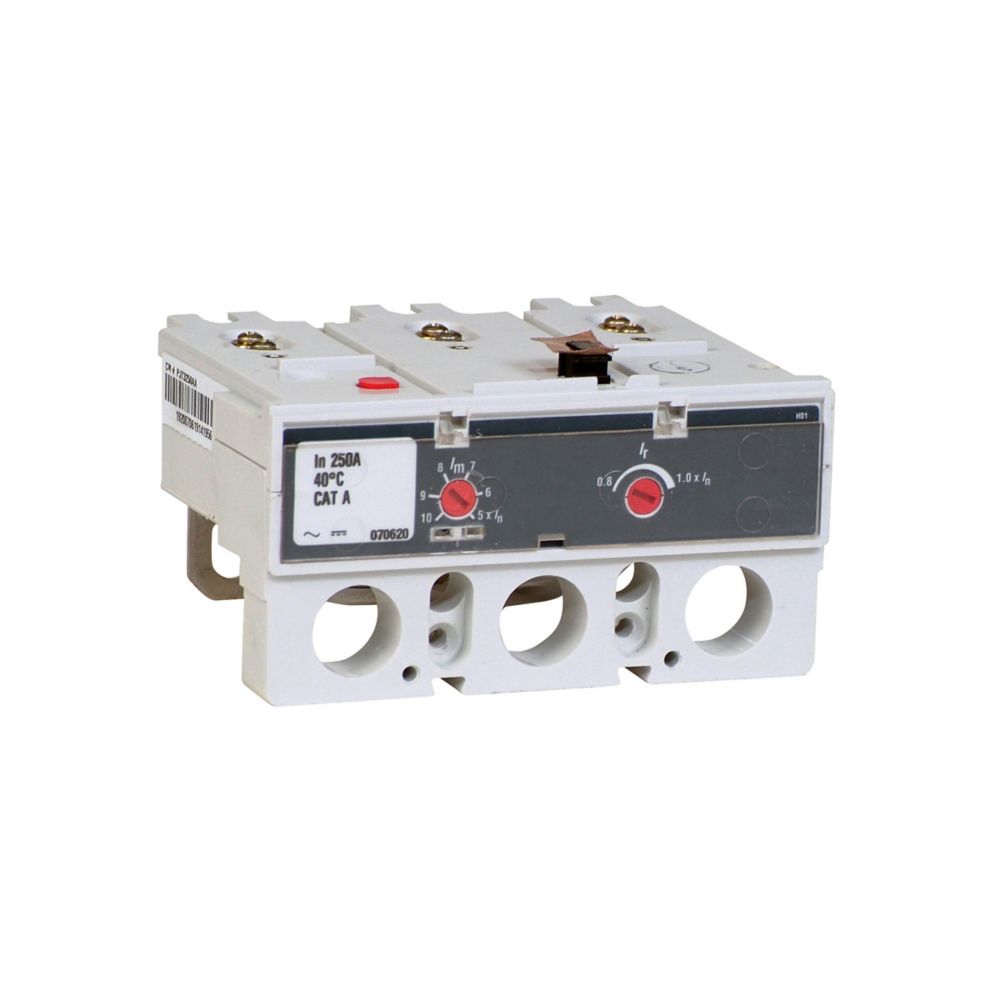

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Trip Units & Programmers
- Series
- Series G
- Frame
- JT
- Rated current
- 200
- Max current rating
- 200
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Trip functions
- LI - Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Country of origin
- Dominican Republic
Show all specifications (7 more)
- Amperage Maximum
- 200
- Compatible Frames
- JG Frame
- UPC
- 786685175508
- GTIN
- 00786685175508
- Dimensions
- 6.5 in x 3.5 in x 4 in (Length/Depth x Height x Width)
- Weight
- 0.5
- Certification
- IEC Rated,UL Listed,CSA Certified,CE Marked
Product description & additional details
JT3200FA

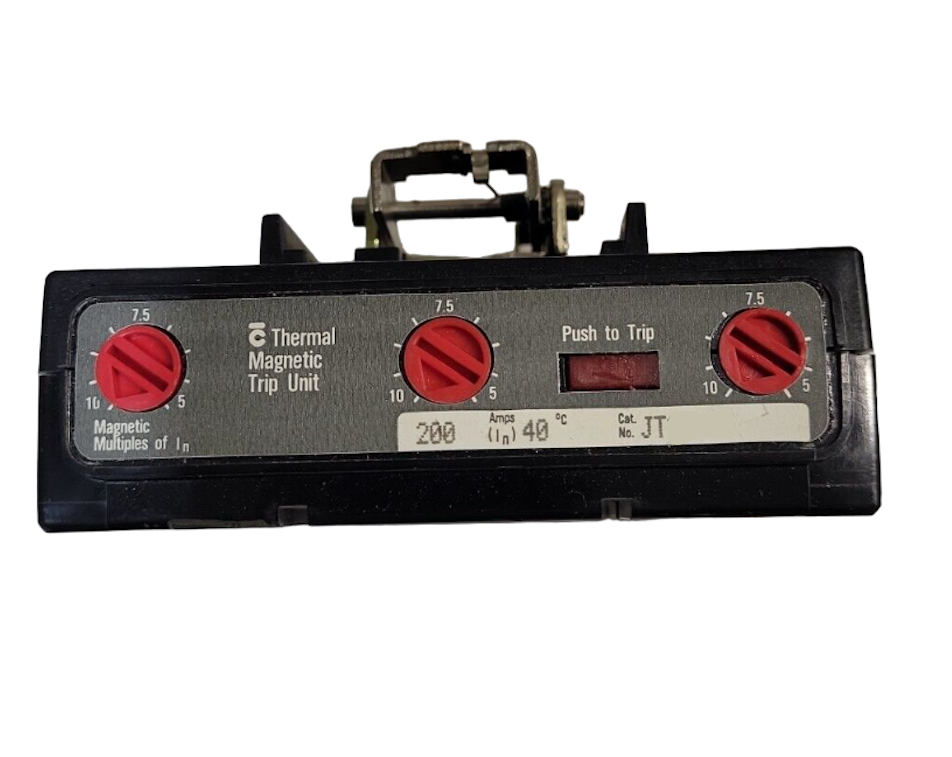

JT3200FA is a Cutler Hammer circuit breaker trip unit designed for reliable thermal magnetic protection.
This trip unit is rated for 200 amps and 600 volts AC, featuring a 3-pole configuration and JT frame type. It provides fixed/adjustable thermal magnetic trip protection suitable for residential, commercial, and industrial applications.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 200A
- Voltage: 600V AC
- Poles: 3
- Frame Type: JT
- Trip Unit Type: Thermal Magnetic
- Mounting Type: Fixed/Adjustable
- Part Number: JT3200FA
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Series G
- Type : JT
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 200
- Protection : Thermal Magnetic
- Compatible Frames : JG Frame
- UPC : 786685175508
- GTIN : 00786685175508
- Country of Origin : Dominican Republic
- Dimensions : 6.5 in x 3.5 in x 4 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : IEC Rated,UL Listed,CSA Certified,CE Marked
