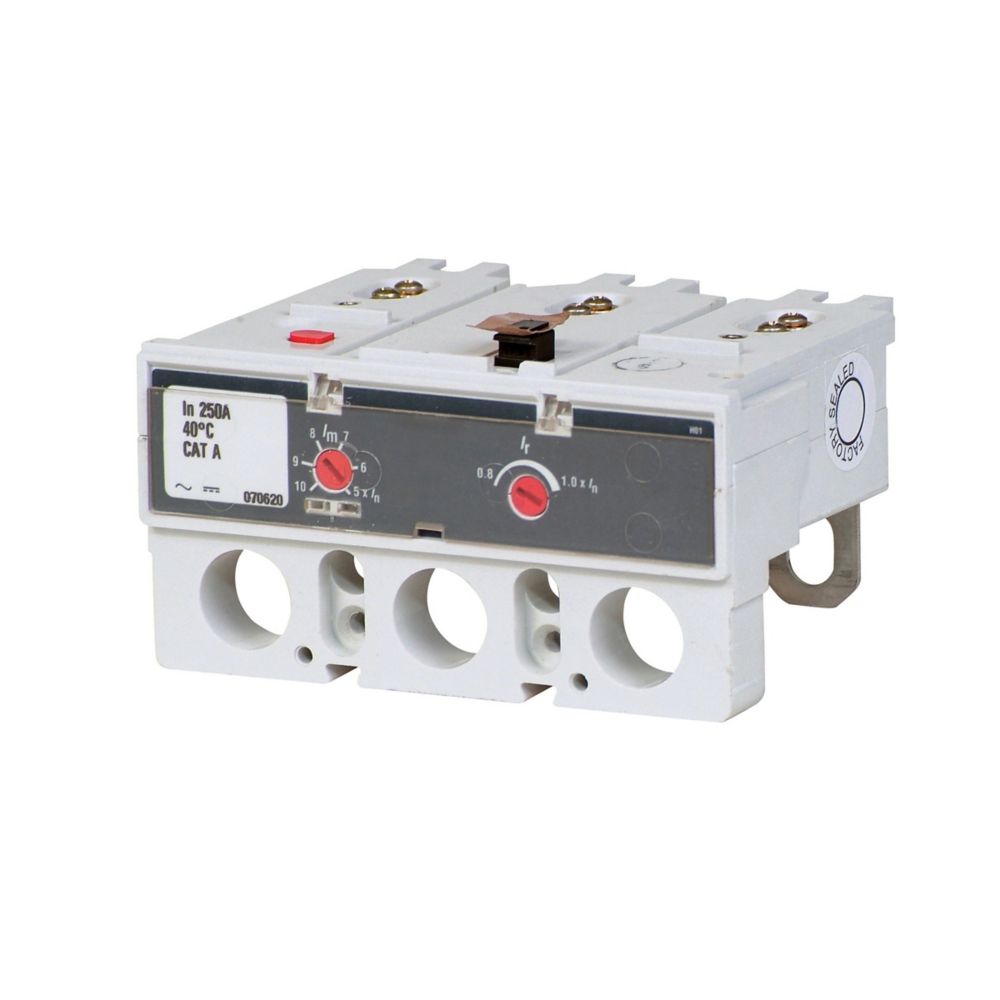

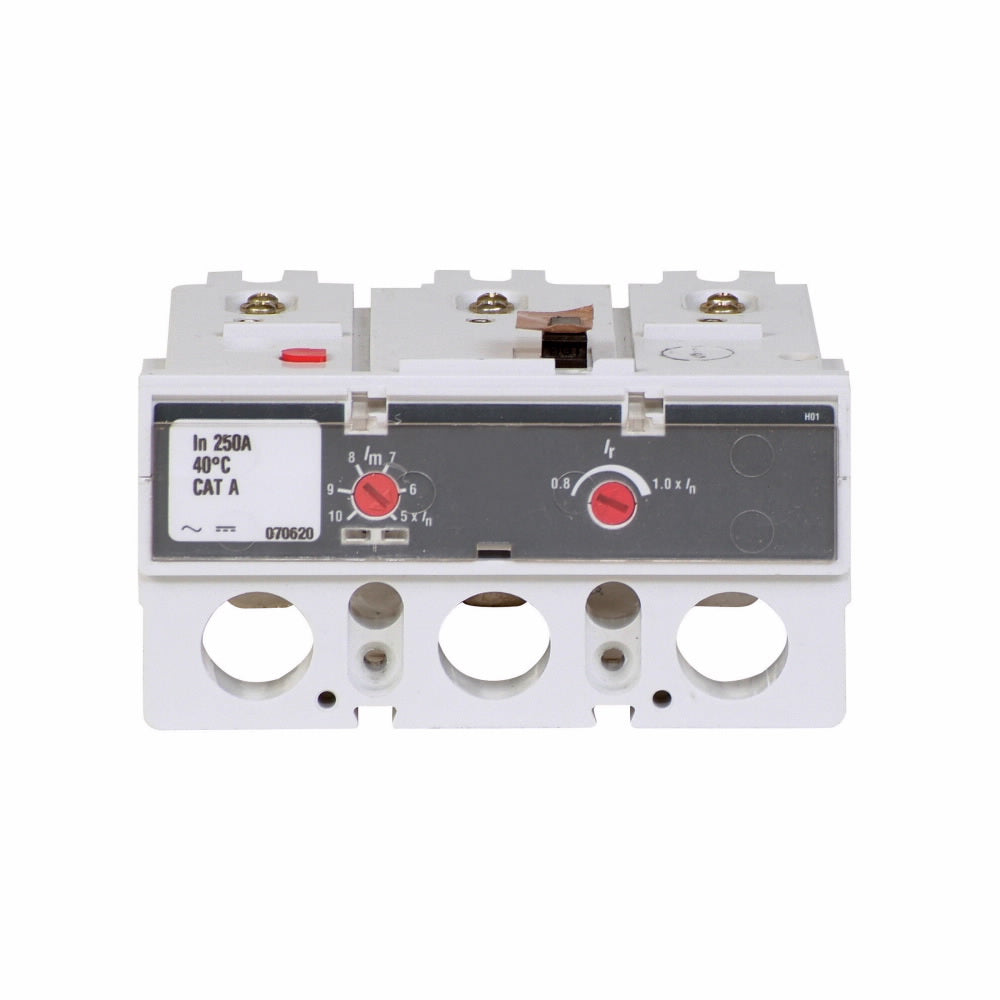

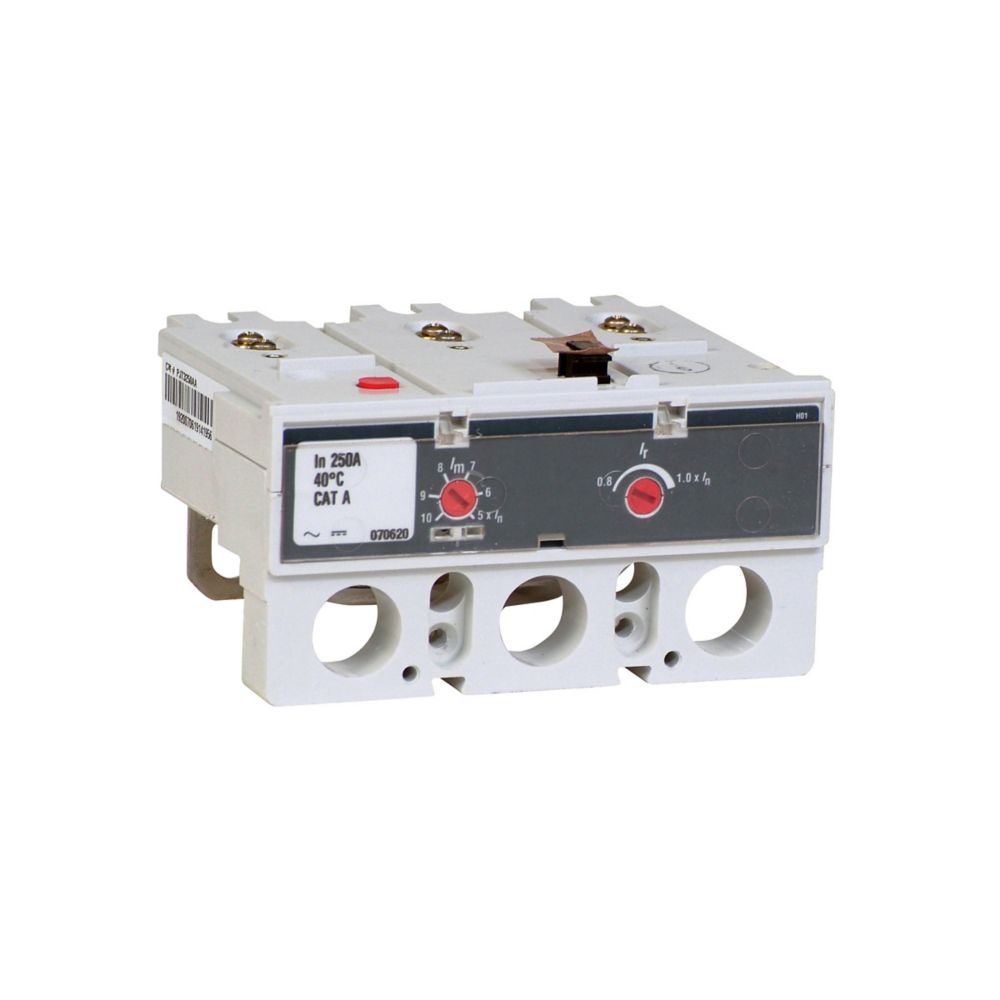

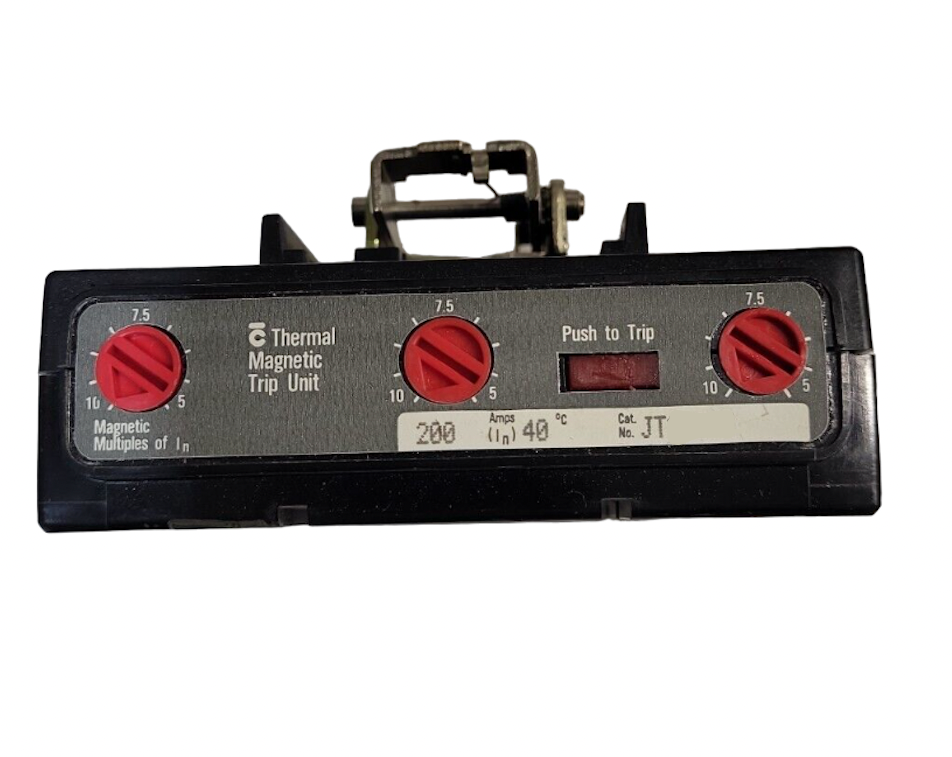

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Trip Units & Programmers
- Series
- Series G
- Frame
- JT
- Rated current
- 225
- Max current rating
- 225
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Trip functions
- LI - Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Country of origin
- Dominican Republic
- Amperage Maximum
- 225
Show all specifications (6 more)
- Compatible Frames
- JG Frame
- UPC
- 786685175515
- GTIN
- 00786685175515
- Dimensions
- 6.5 in x 3.5 in x 4 in (Length/Depth x Height x Width)
- Weight
- 0.6
- Certification
- UL Listed,IEC Rated,CSA Certified,CE Marked
Product description & additional details
JT3225FA
JT3225FA is a Cutler Hammer molded case circuit breaker accessory trip unit designed for JT frame J-K series breakers with a 225 ampere rating.
This trip unit features fixed thermal and adjustable magnetic protection, providing reliable long-time and instantaneous trip functions for enhanced circuit protection. It is a three-pole unit compliant with IEC standards and CE marked for quality assurance.
- Amperage Rating: 225 A
- Number of Poles: Three-pole
- Frame Size: J-K Series
- Trip Unit Type: Thermal Magnetic
- Trip Unit Functions: Fixed Thermal, Adjustable Magnetic
- Circuit Breaker Type: JT
- Certifications: IEC Rated, CE Marked
- Voltage Rating: 600 V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JT3225FA
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Series G
- Type : JT
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 225
- Protection : Thermal Magnetic
- Compatible Frames : JG Frame
Product Data
- UPC : 786685175515
- GTIN : 00786685175515
- Country of Origin : Dominican Republic
- Dimensions : 6.5 in x 3.5 in x 4 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
