Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Littelfuse
- Sub-Category
- Low Voltage Fuse
- Rated current
- 200
- Class rating
- RK5
- Barrels
- 1
- Diameter
- 0.56 in
- Velocity
- TD - Time Delay
- UPC
- 079458023930
- GTIN
- 079458023930
- Weight
- 0.6
Product description & additional details

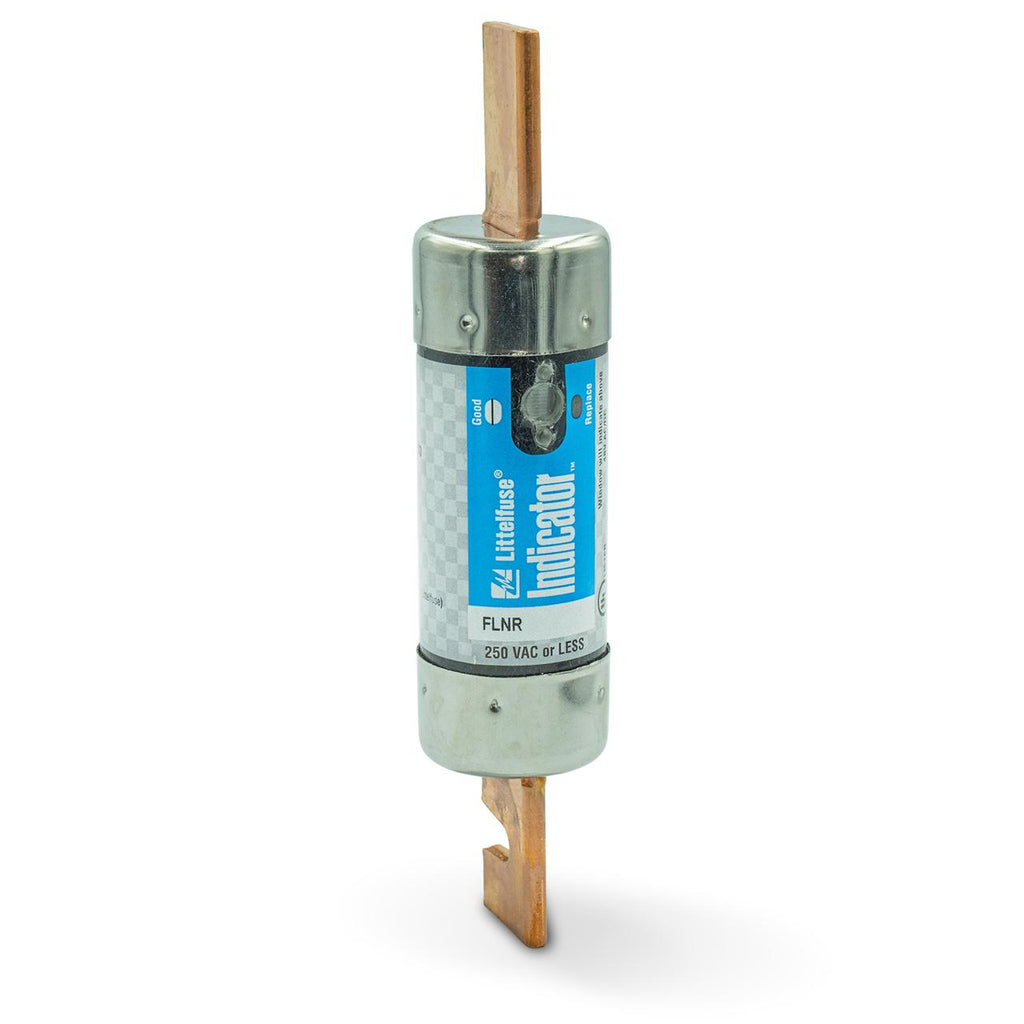

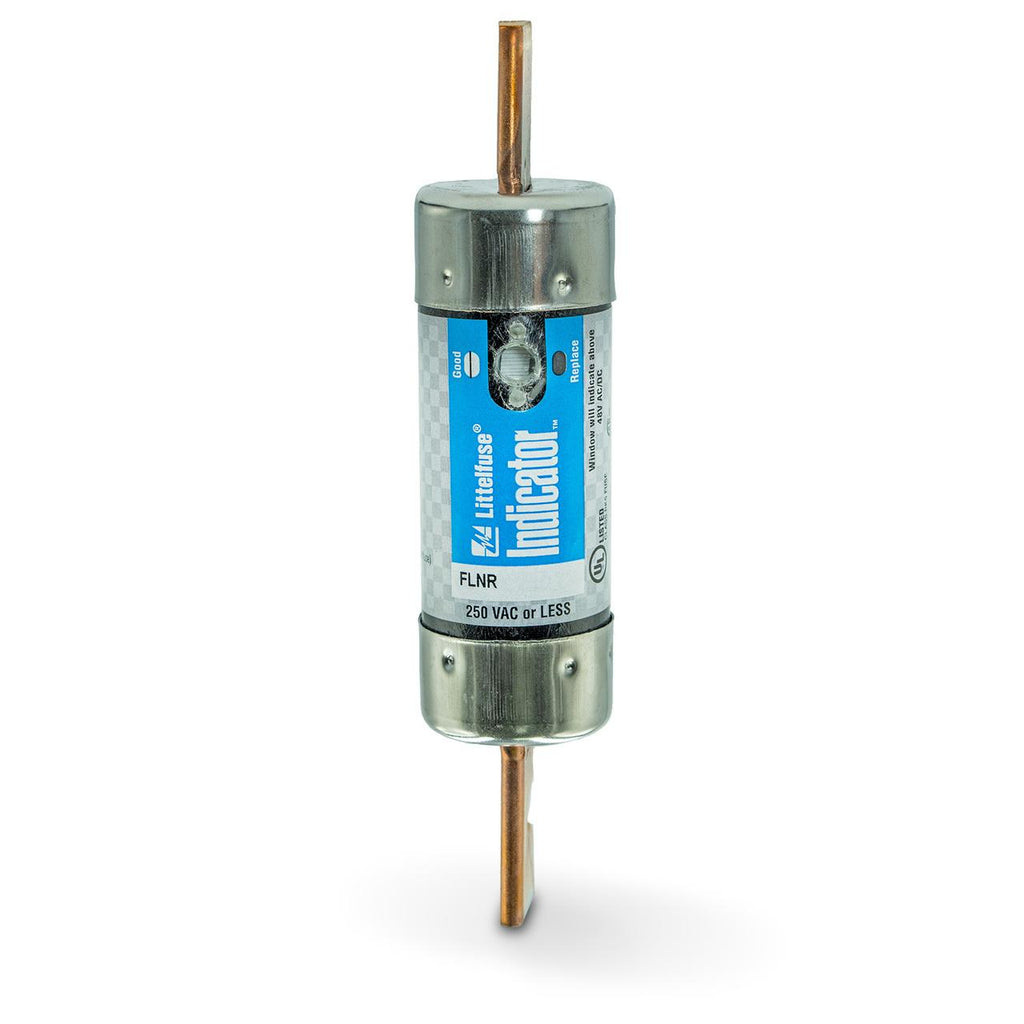

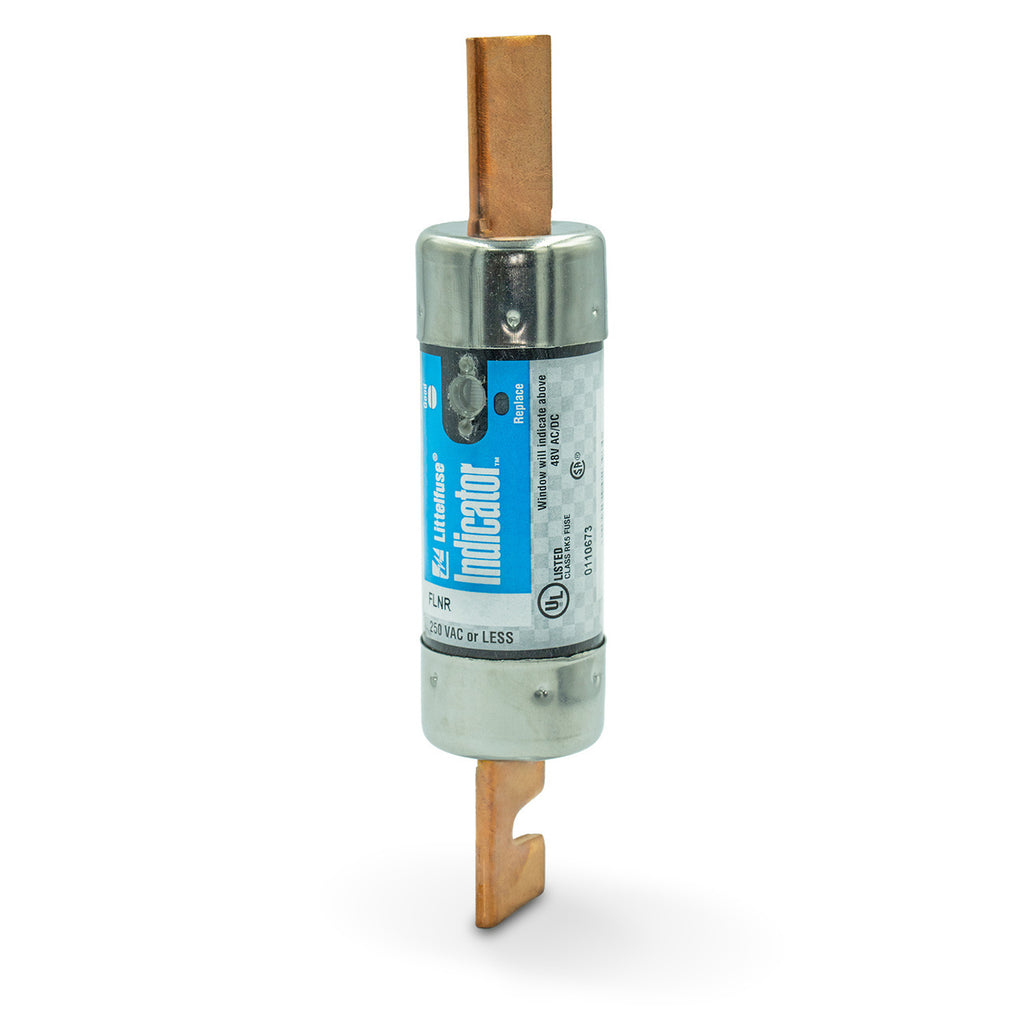

FLNR-200ID
FLNR-200ID is a Littelfuse 200 Amp, 250 VAC/125 VDC Class RK5 indicating time delay fuse designed for general purpose circuit protection.This fuse features a dual-element, current limiting design with a patented solid-state indicator that provides visual blown fuse indication for fast identification. It has a clip mounting type with knife blade terminals and offers an interrupting rating of 300kA at 250VAC and 20kA at 125VDC. The FLNR-200ID is UL listed, CSA certified, and meets UL 248-12 standards.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 250 VAC / 125 VDC
- Class: RK5
- Type: Indicating, Time Delay (Slow Blow)
- Element: Dual Element
- Interrupting Rating: 300kA at 250VAC, 20kA at 125VDC
- Mounting Type: Clip
- Terminal Type: Knife Blade
- Body Style: Cartridge
- Dimensions: 1-19/32 inch diameter, 7-1/8 inch length
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
Specifications
- Part Number: FLNR-200ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Amperage : 200
- Diameter : 0.56
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458023930
- GTIN : 079458023930
- Weight : 0.6
