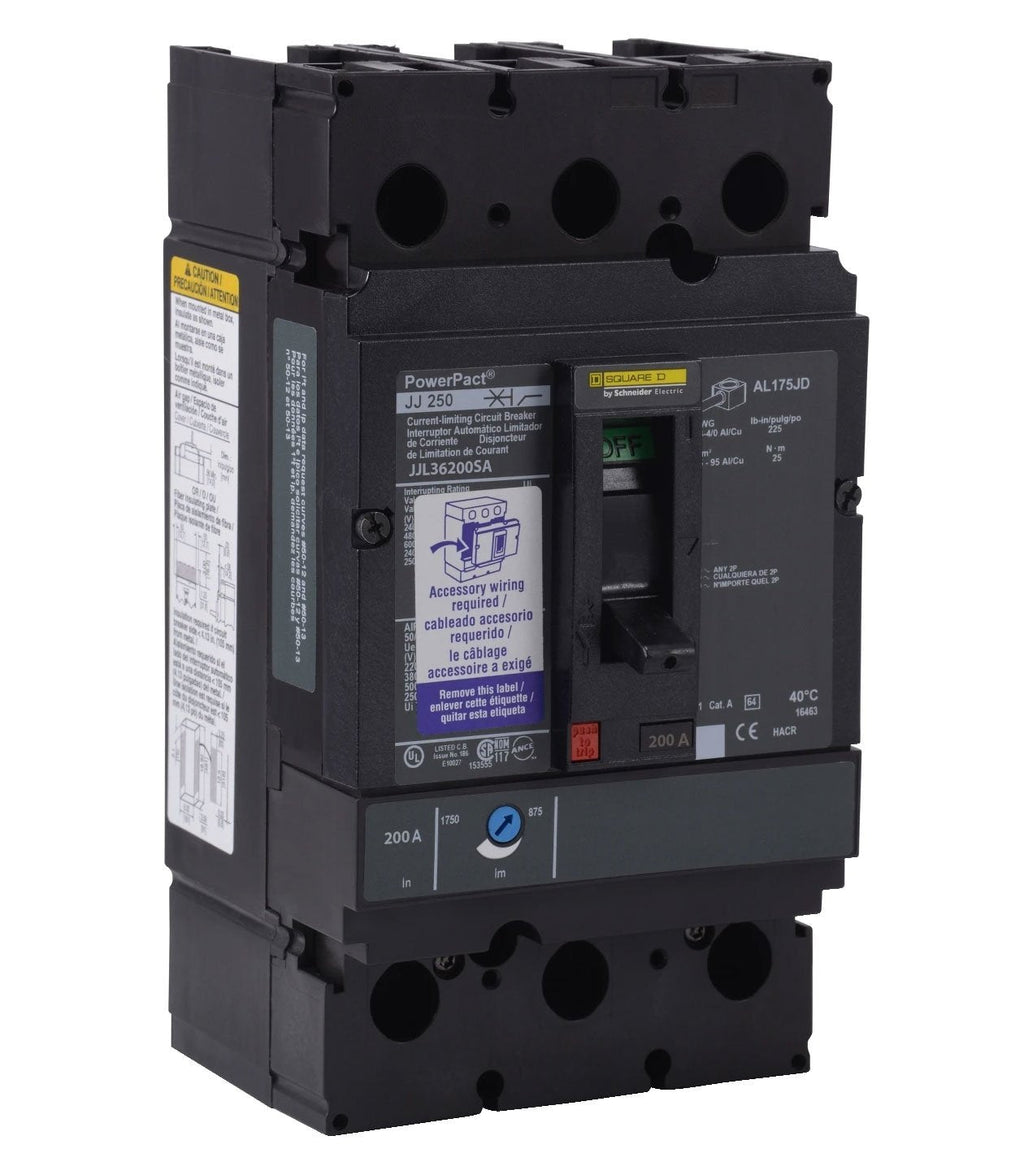

JJL36200SA - Square D J Frame Molded Case Circuit Breaker 200 Amp 600 VAC 3 Pole Unit Mount

JJL36200SA

JJL36200SA is a Square D J Frame molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications. This thermal magnetic, current limiting, adjustable molded case circuit breaker features a 200 amp rating, 600 VAC maximum voltage, and three poles for versatile installation. It is unit mount compatible and meets UL 489 and CSA standards for safety and performance.

• Part Number: JJL36200SA
• Manufacturer: Square D
• Frame Type: J Frame
• Amperage: 200 Amp
• Maximum Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting: Unit Mount
• Interrupt Rating: 25 kA at 600 VAC, 20 kA at 250 VDC
• Trip Unit: Thermal Magnetic, Adjustable
• Standards: UL 489, CSA
• Series: Powerpact
• Application: Commercial, Industrial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110Vac shunt trip

Specifications

• Part Number: JJL36200SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : J Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901583561
• GTIN : 00785901583561
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
