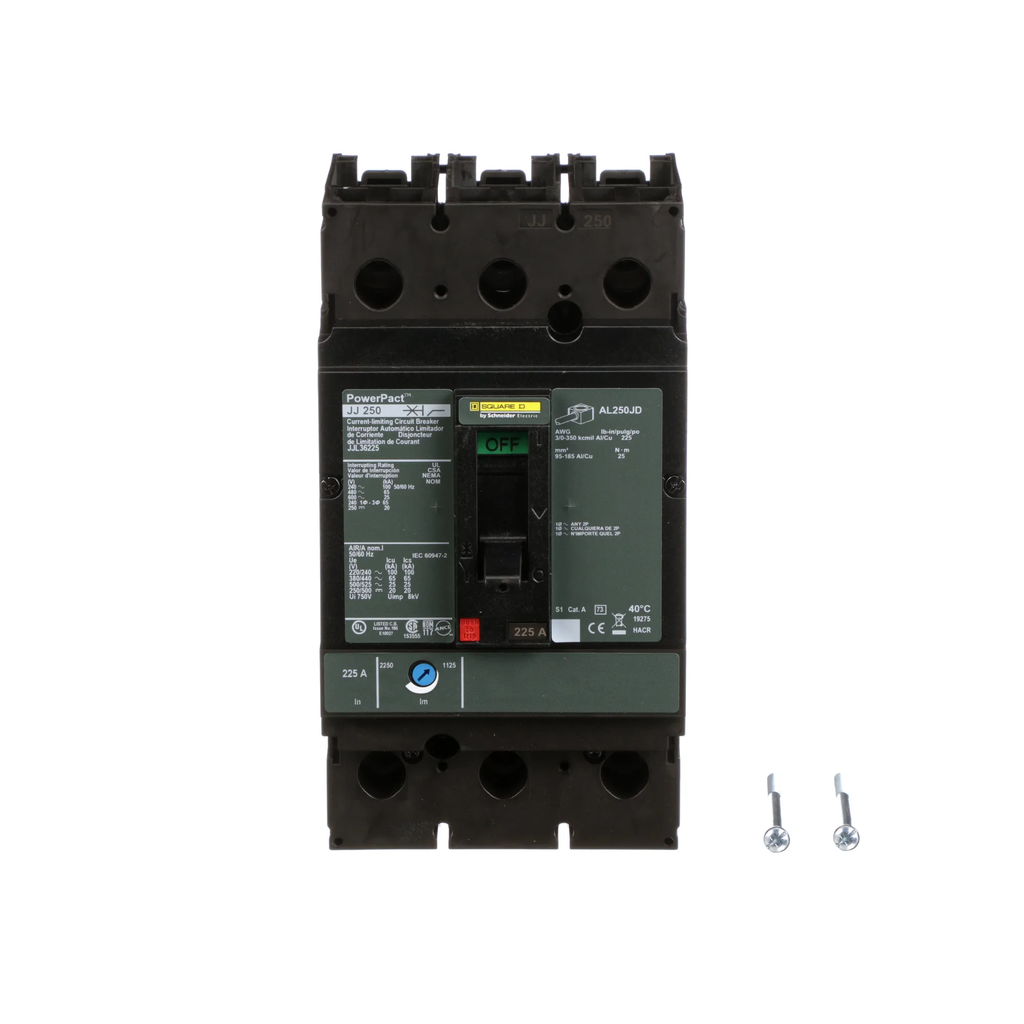

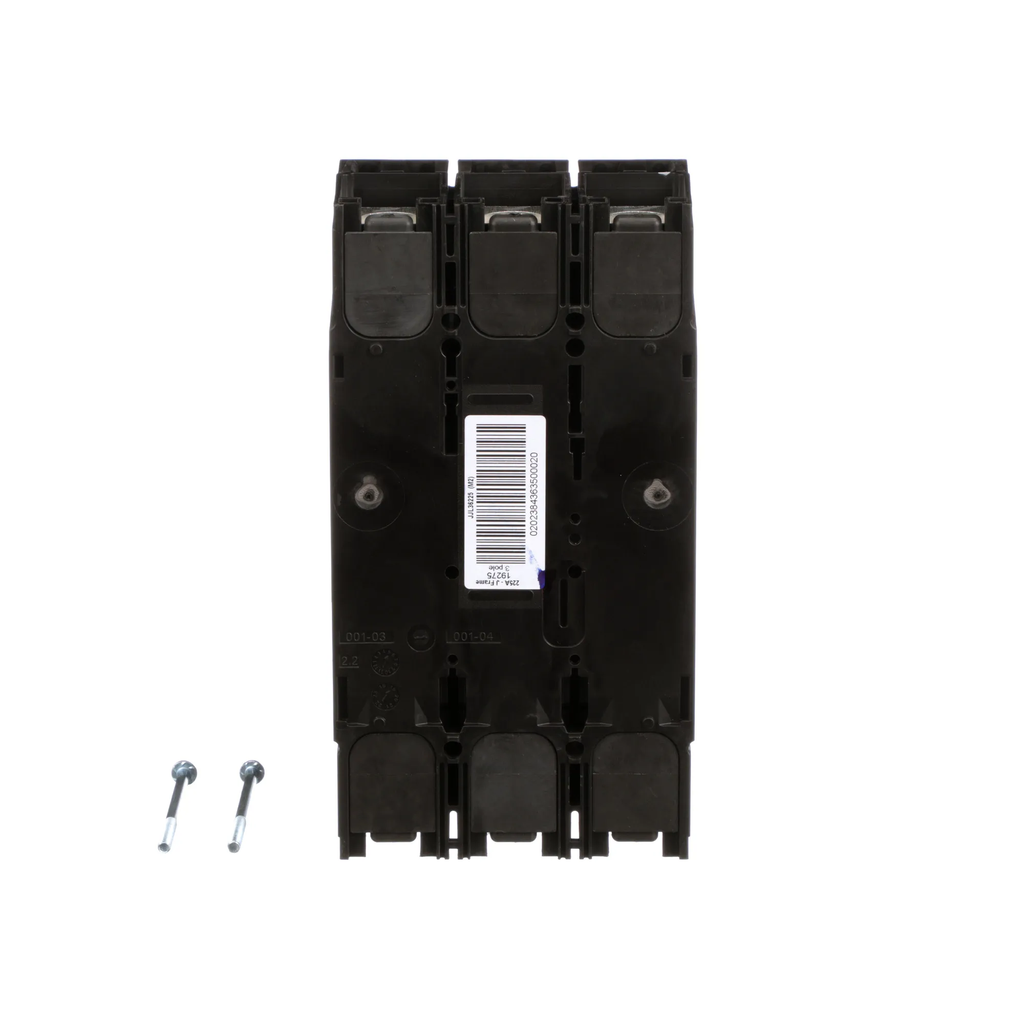

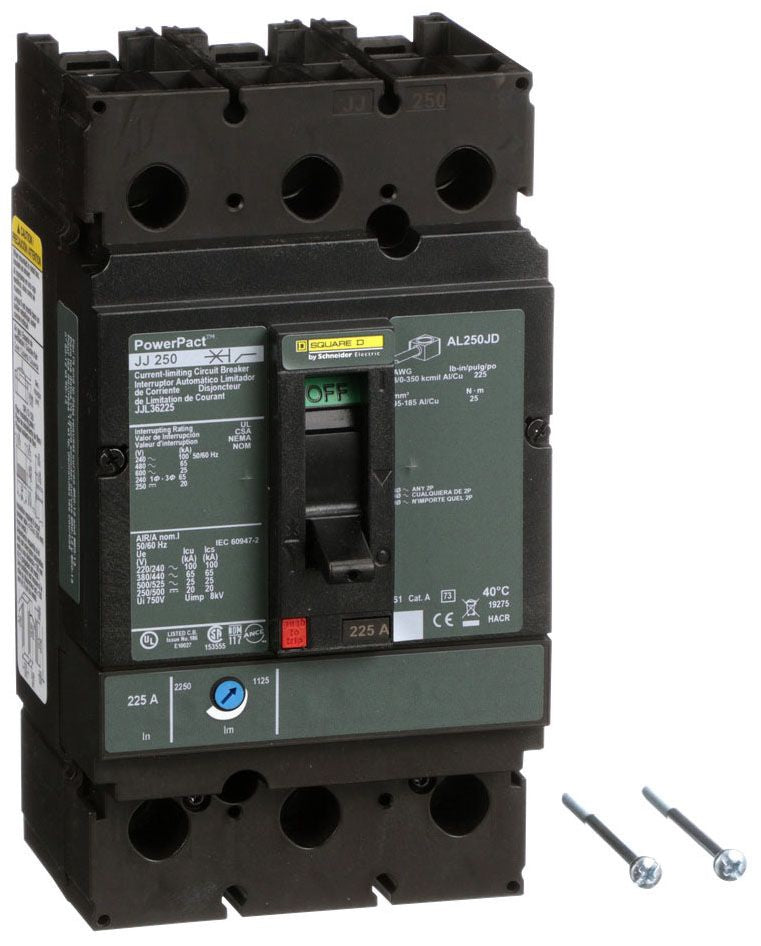

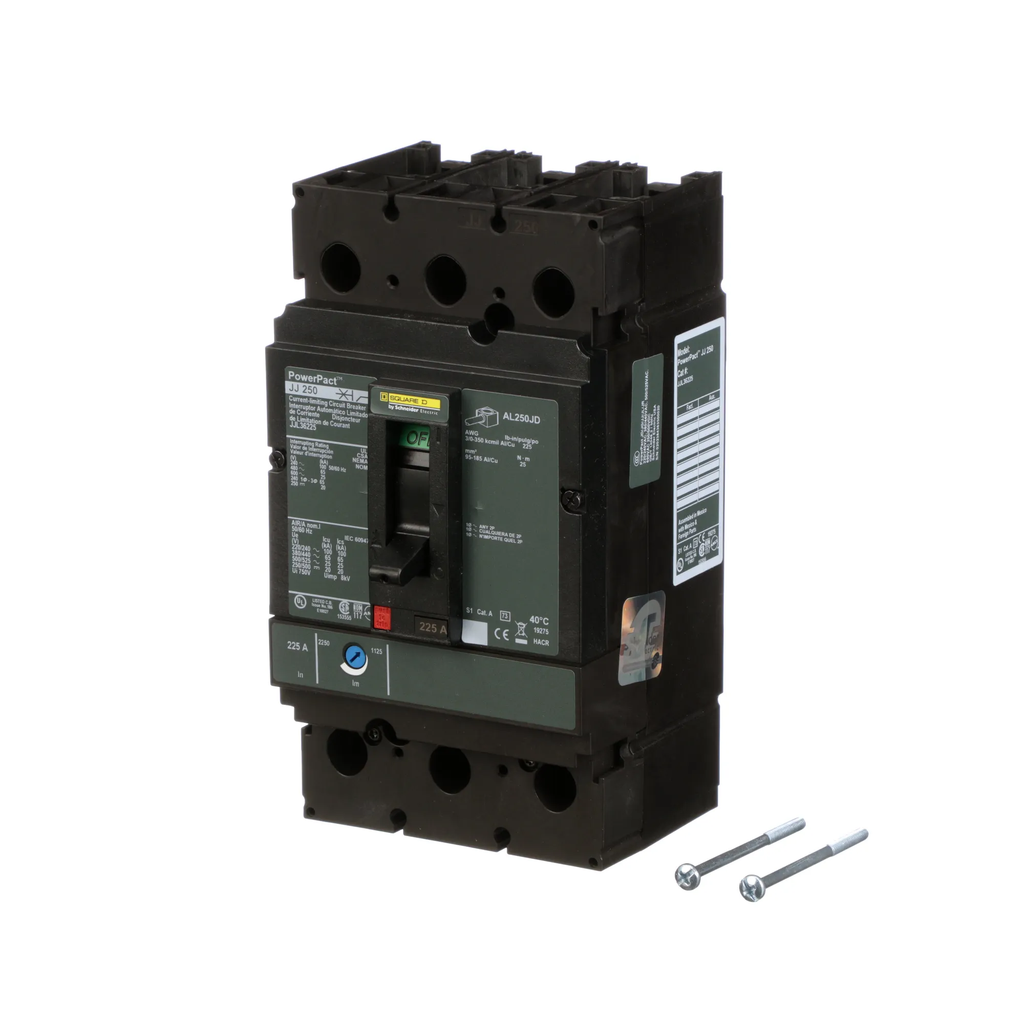

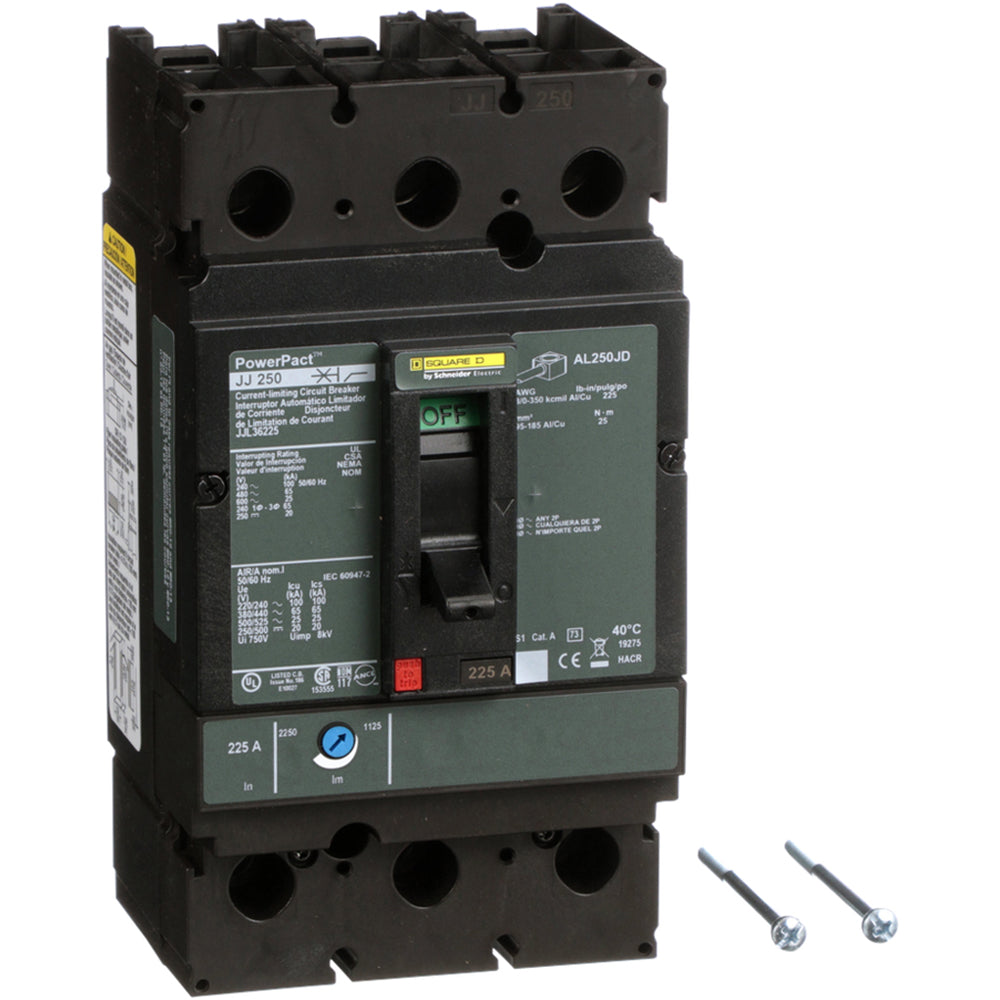

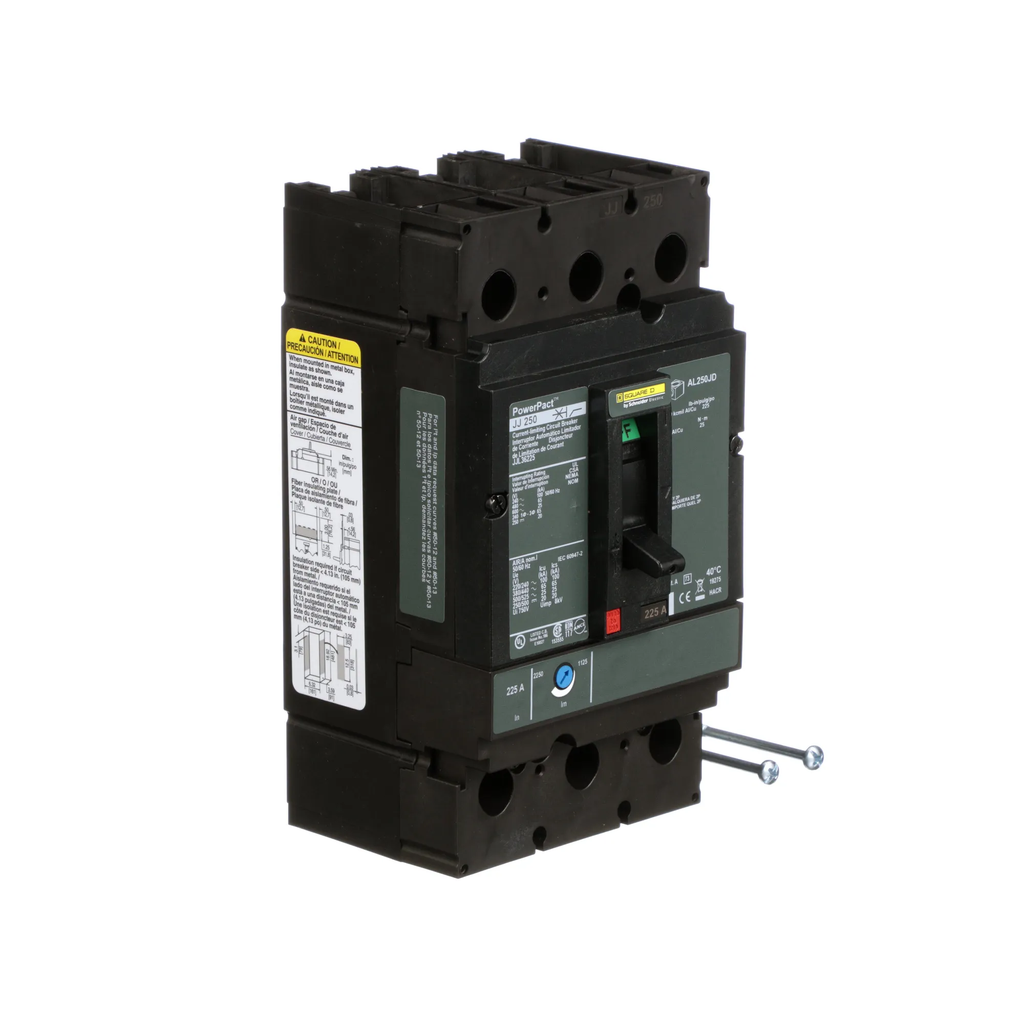

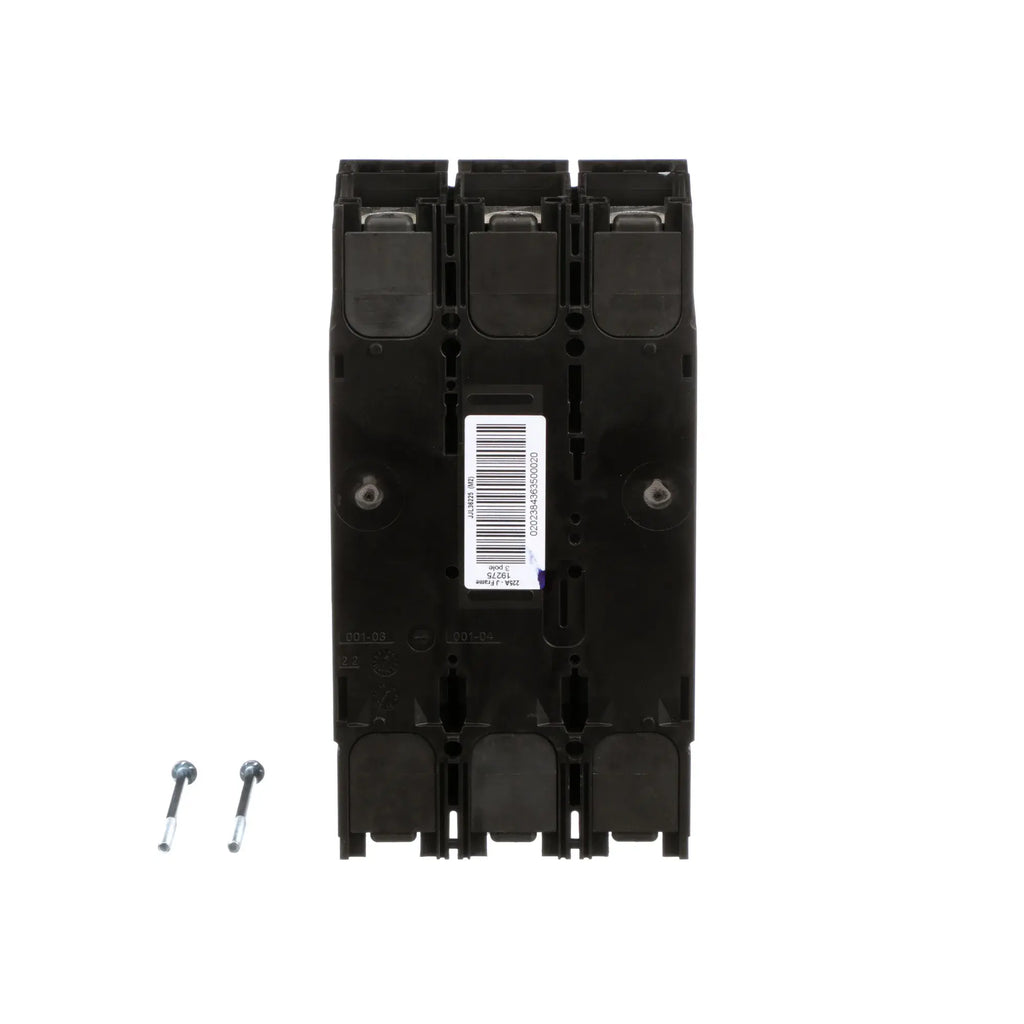

JJL36225 - Square D Powerpact J-Frame 3-Pole 225A 600V Thermal Magnetic Circuit Breaker

JJL36225

JJL36225 is a Square D Powerpact J-Frame molded case circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications. This 3-pole, 225A, 600V circuit breaker features a J-Frame design, thermal magnetic trip unit, and a 65kA interrupt rating at 480V. It is UL 489 listed, current limiting, and suitable for reverse fed applications. The breaker includes line and load side lug terminals and is unit-mount for secure installation.

• Part Number: JJL36225
• Manufacturer: Square D
• Series/Frame: Powerpact J-Frame
• Poles: 3
• Amperage: 225A
• Voltage: 600V
• Interrupt Rating: 65kA @ 480V
• Mounting Type: Unit-Mount Lug
• Connection: Feed-Thru, Line & Load Lugs
• Trip Unit: Thermal Magnetic, LI (Long-Time and Instantaneous)
• Protection: Overload and Short-Circuit
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901839927
• GTIN : 00785901839927
• Country of Origin : Mexico

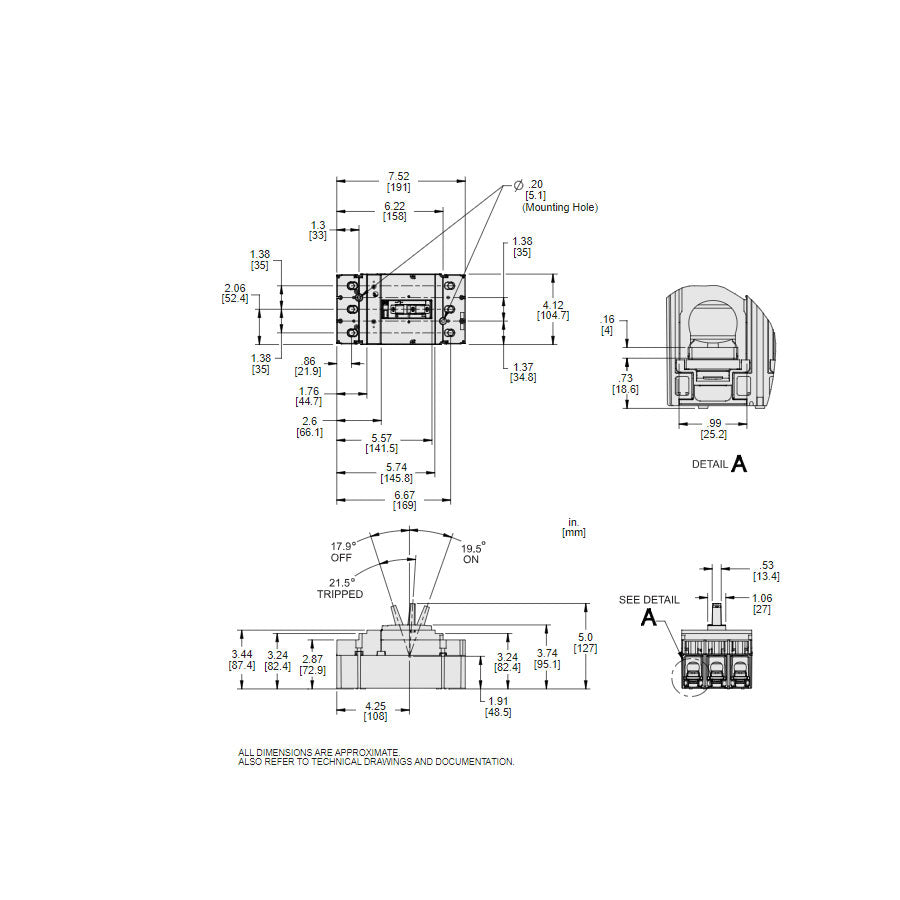

• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.799
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
