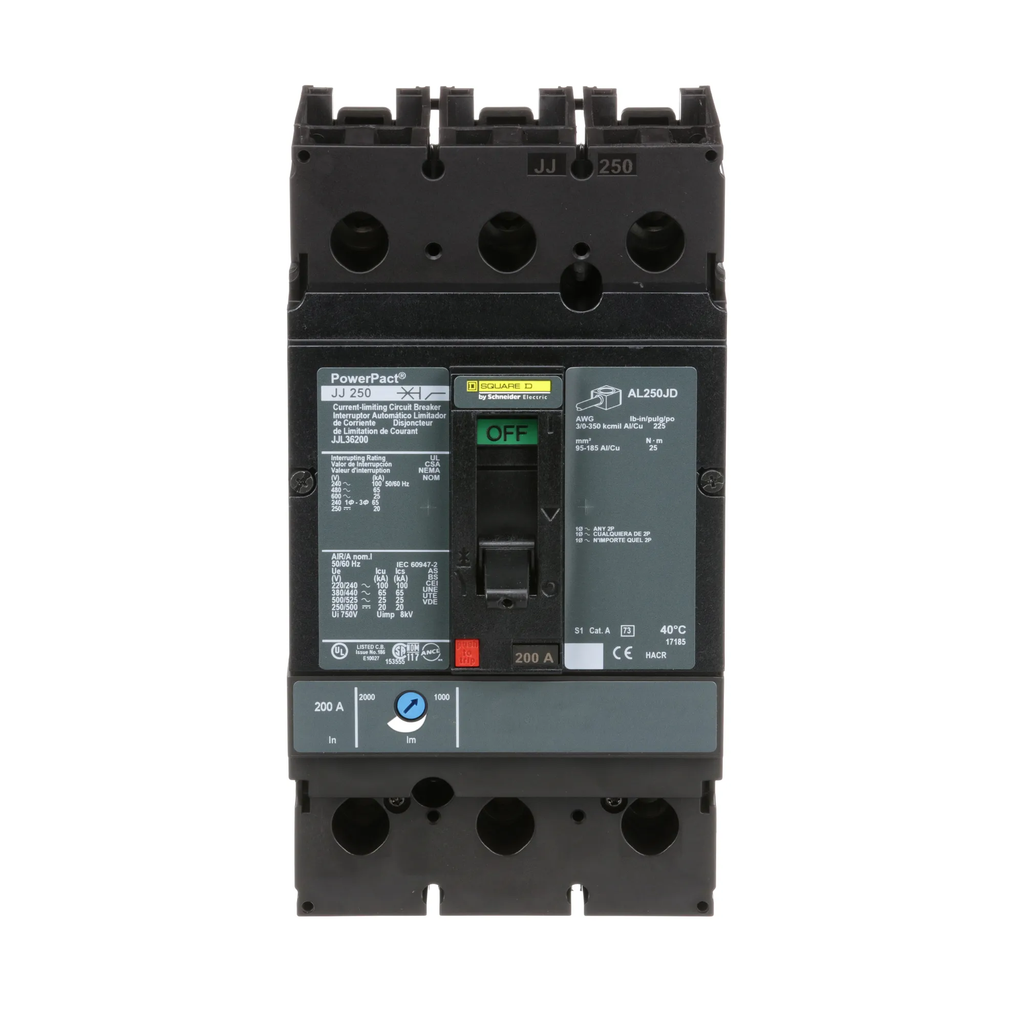

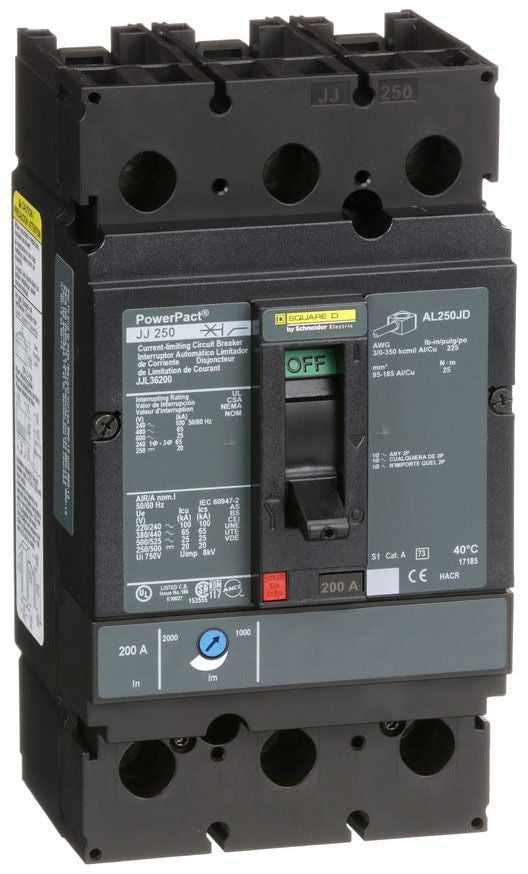

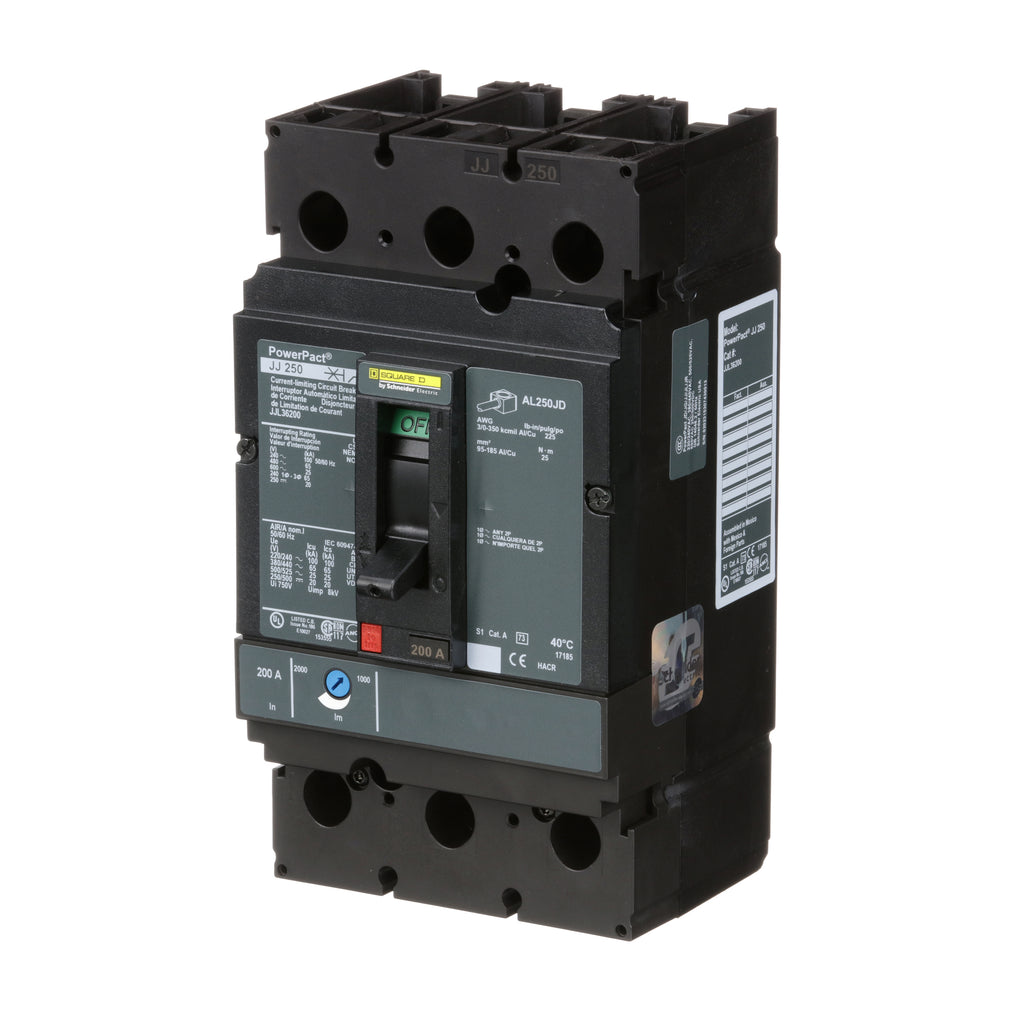

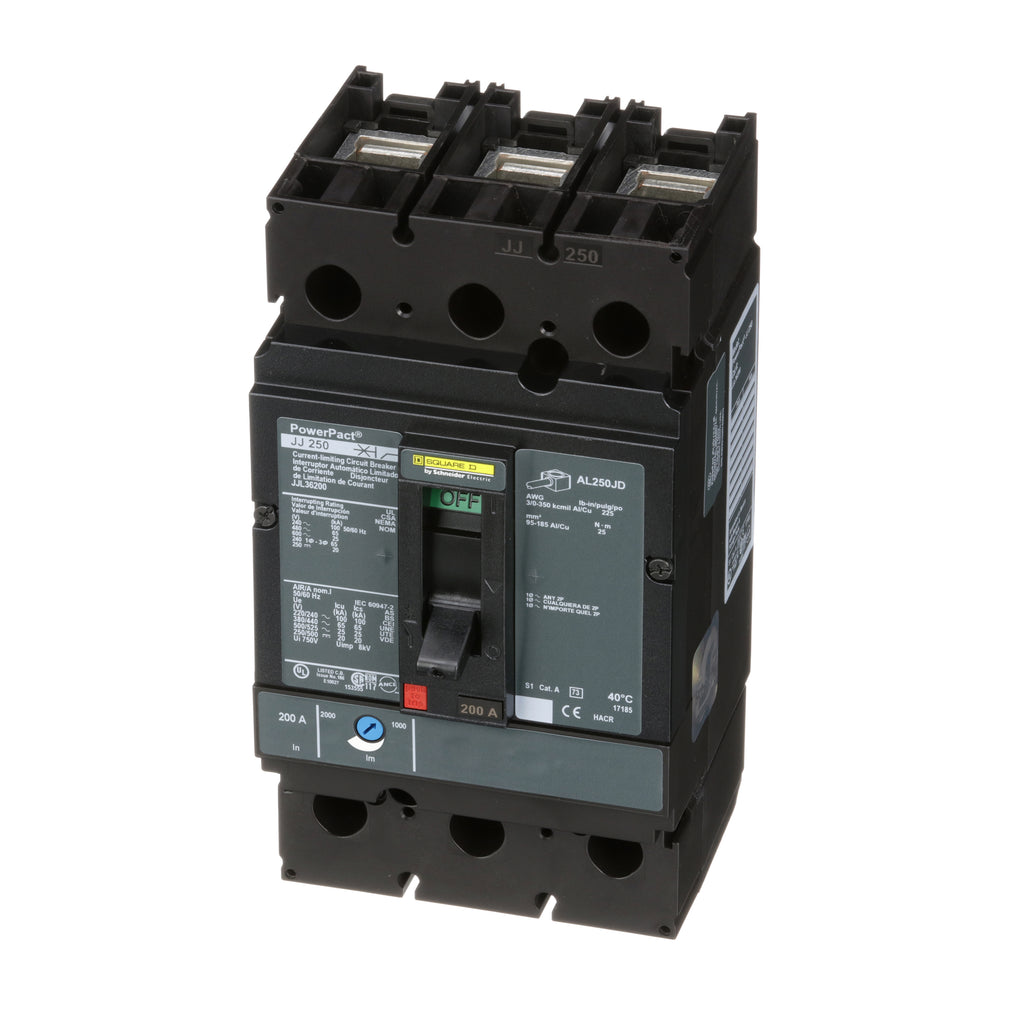

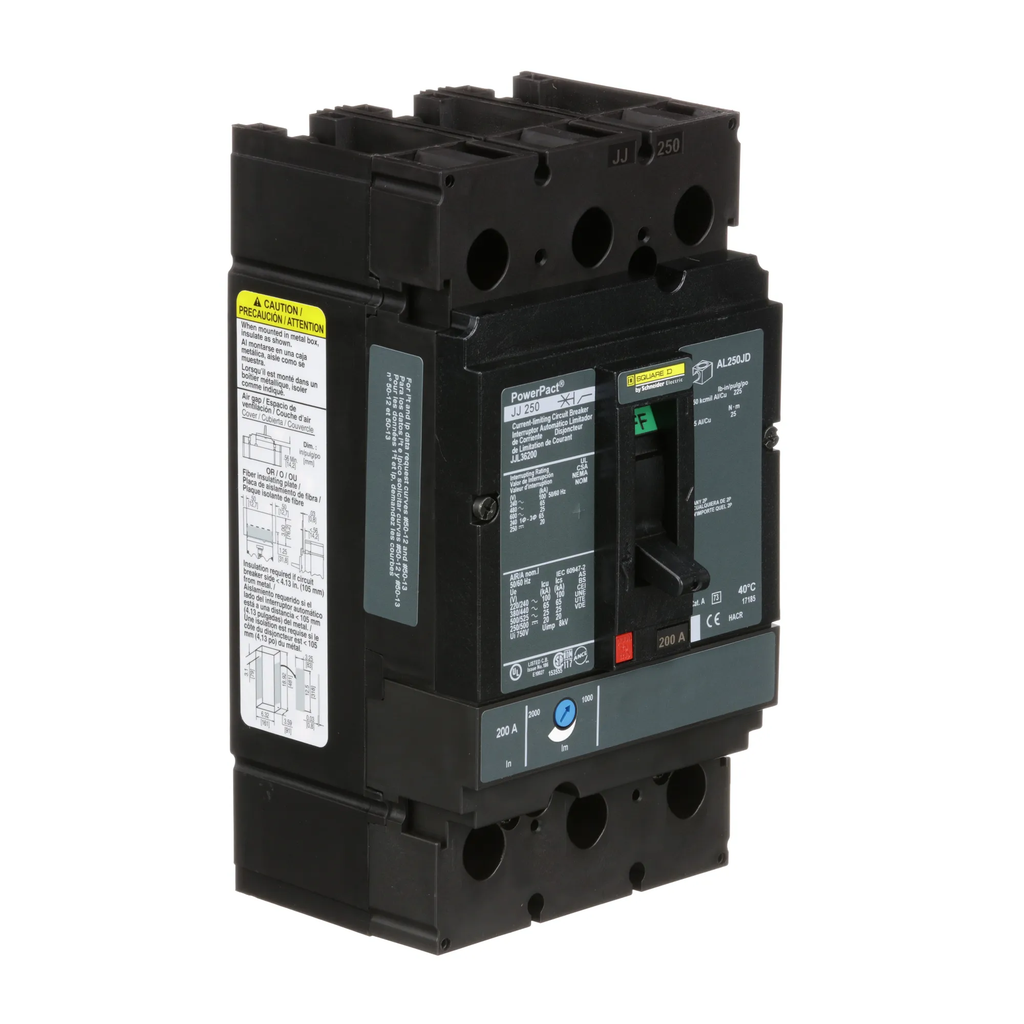

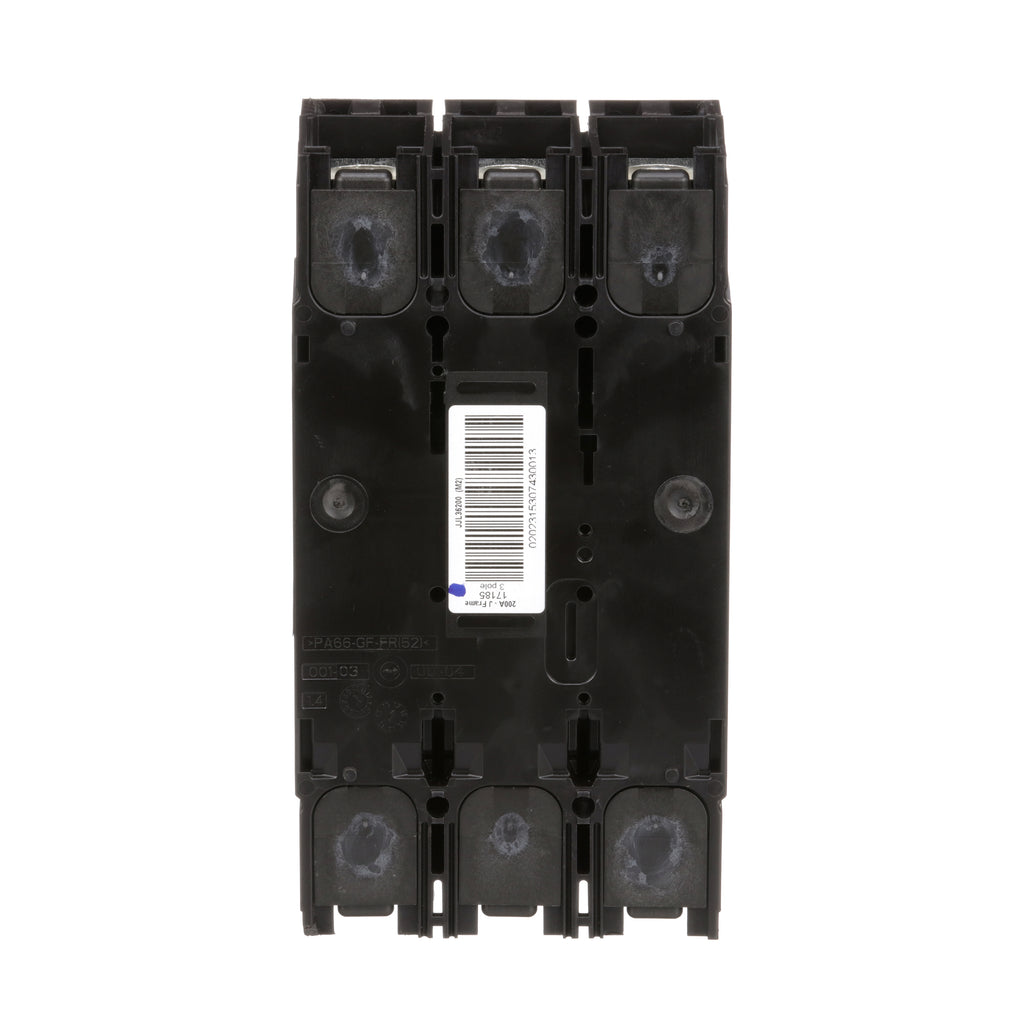

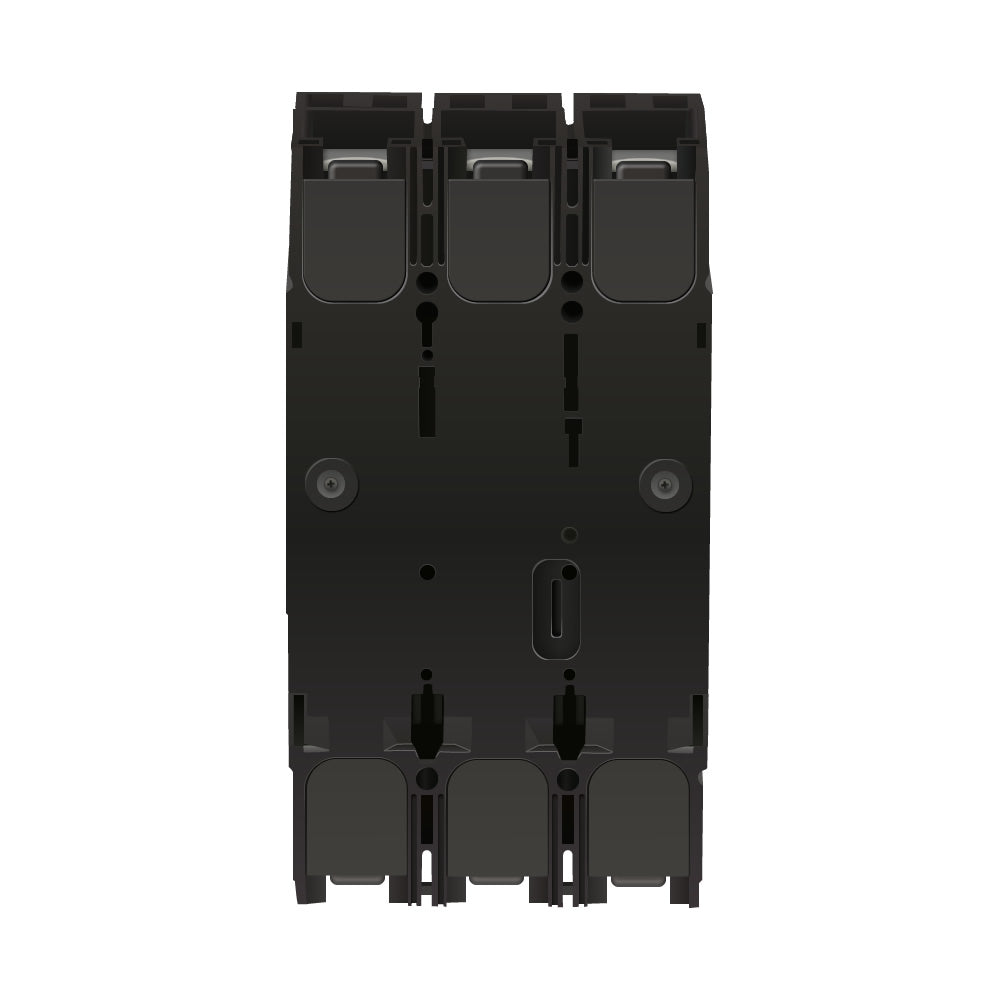

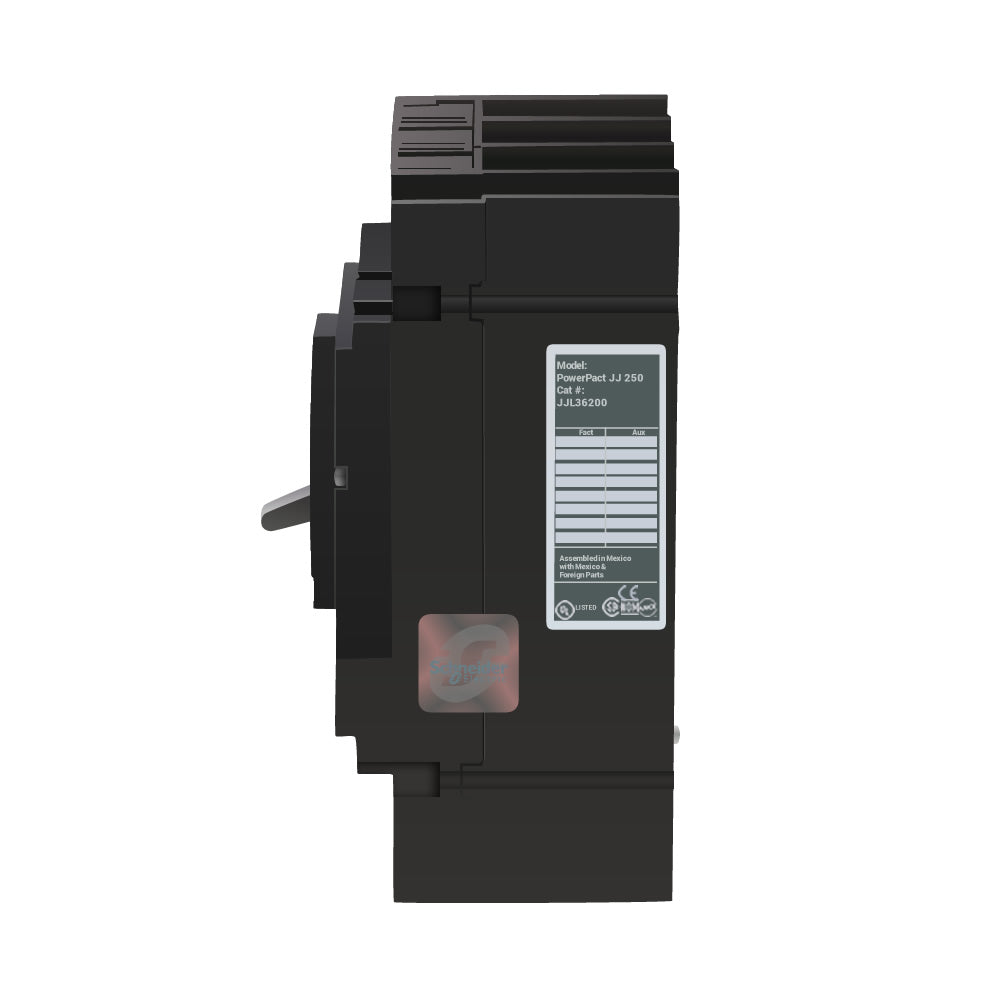

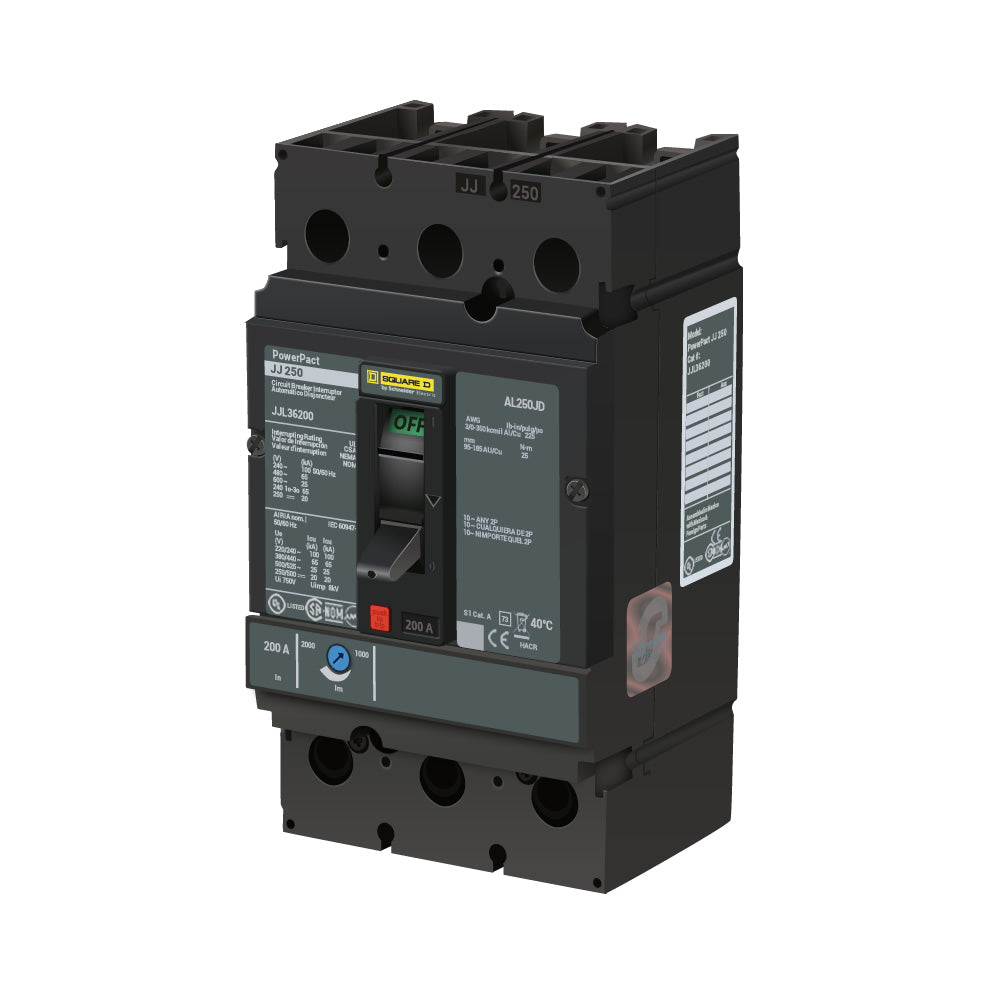

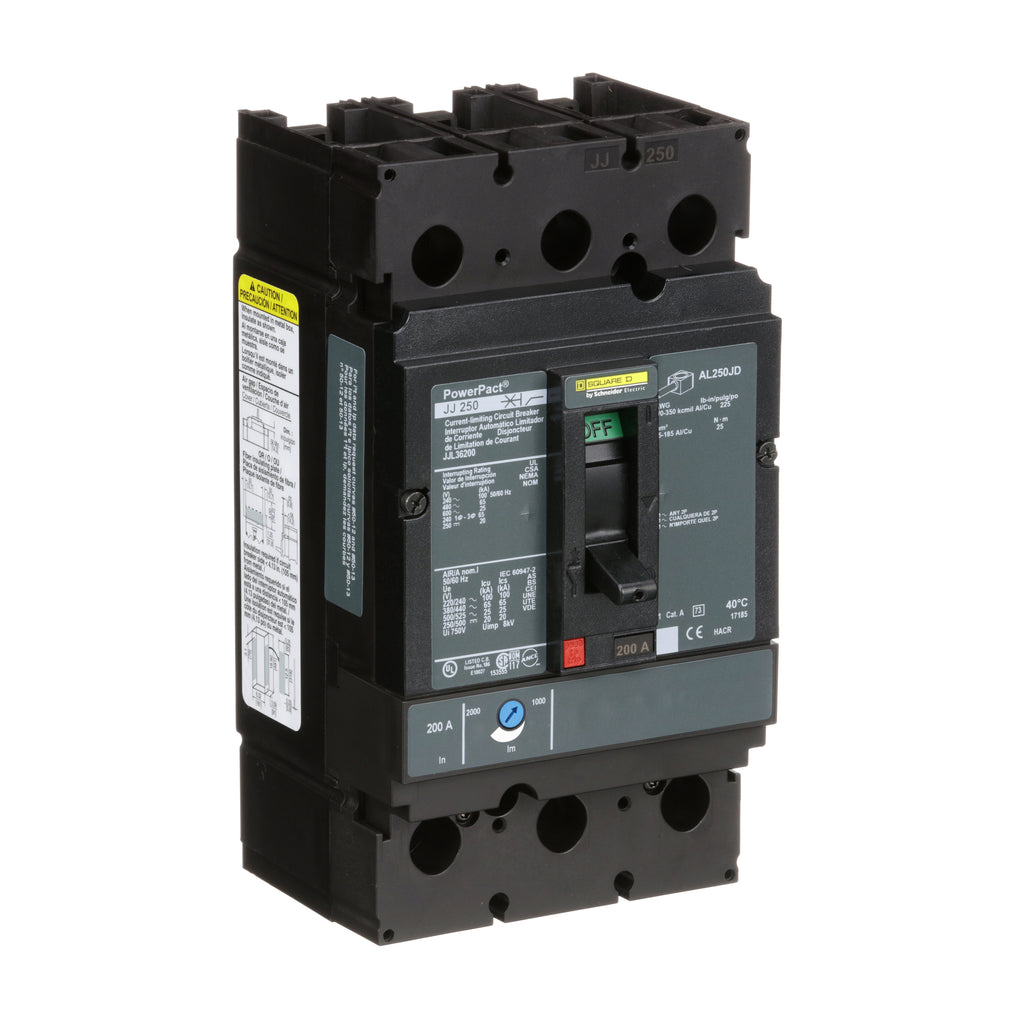

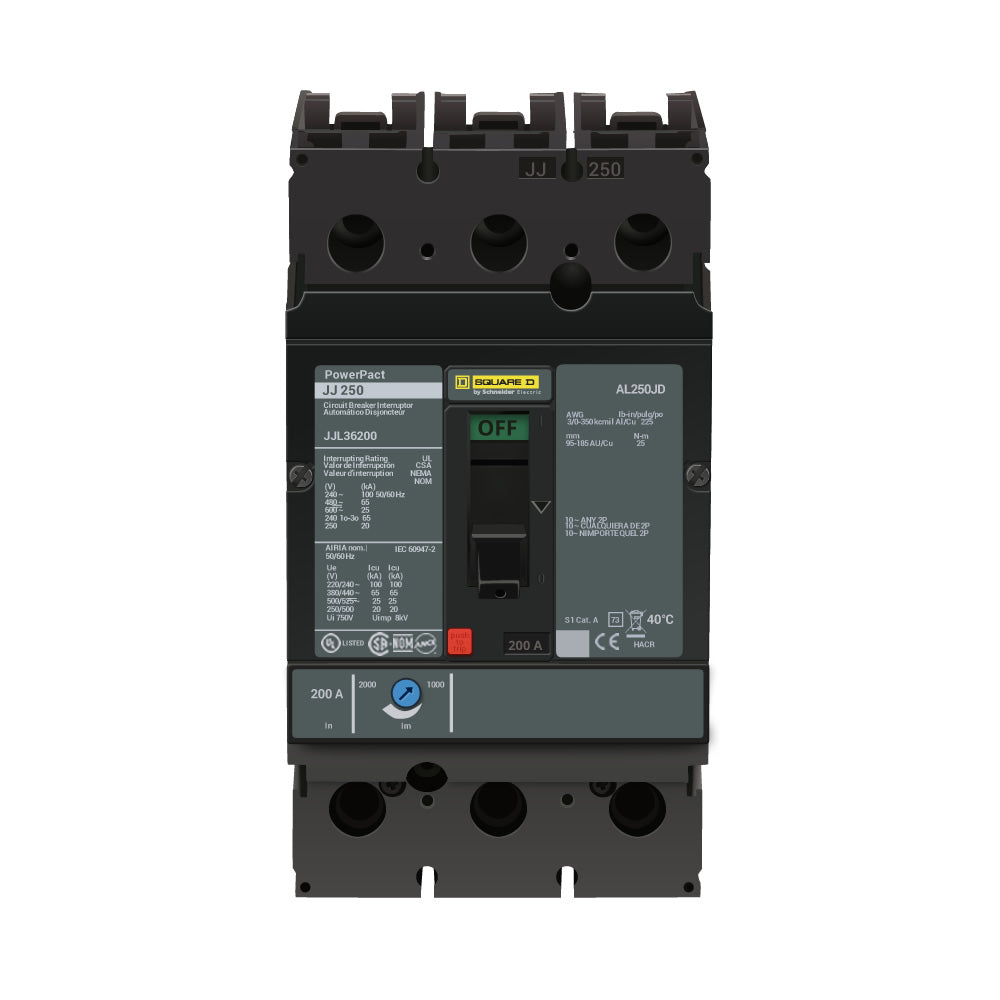

JJL36200
JJL36200 is a Square D PowerPacT J-Frame molded case circuit breaker designed for reliable protection in commercial and industrial applications.
This 3-pole, 200 Amp, 600VAC/250VDC circuit breaker features a thermal magnetic trip unit with long-time and instantaneous (LI) protection, a feed-thru connection, and line/load side lug terminals. It is suitable for reverse fed applications and is current limiting, with a 65kA interrupting rating at 480VAC and 100kA at 240VAC. The JJL36200 is mercury free, PVC free, and complies with multiple international standards.
-
Key Specifications
- Amperage: 200A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Unit-mount lug (plug-on compatible)
- Interrupt Rating: 65kAIC @ 480VAC, 100kAIC @ 240VAC
- Series/Frame: PowerPacT J-Frame (JJL)
- Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
- Certifications: UL, CSA, CE, NEMA, NOM, IEC, RoHS, REACh, HACR
- Connection: Feed-thru, line & load side lugs
- Wire Range: AWG 3/0 to 350 kcmil, aluminum or copper
- Temperature Rating: -25°C to 70°C
- Actuator: Toggle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JJL36200
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : JJL
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : J
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
- Protection : Thermal Magnetic
- Phase Connection : ABC

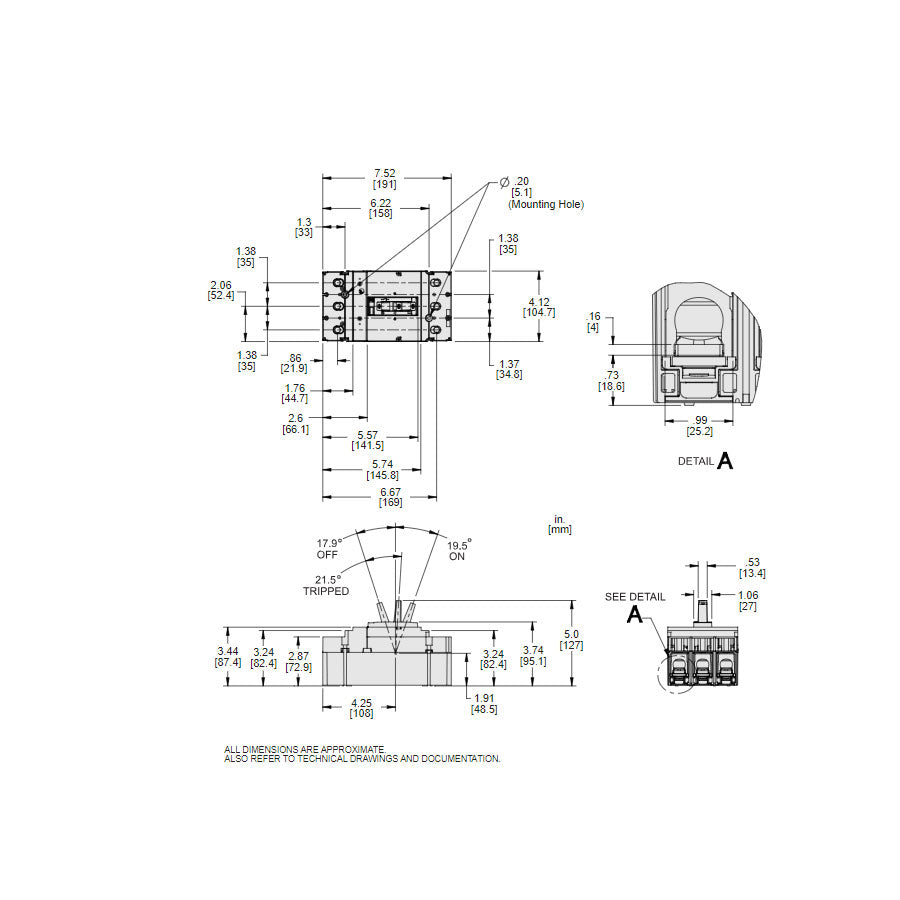

Product Data
- UPC : 785901461937
- GTIN : 00785901461937
- Country of Origin : Mexico
- Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.771
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
