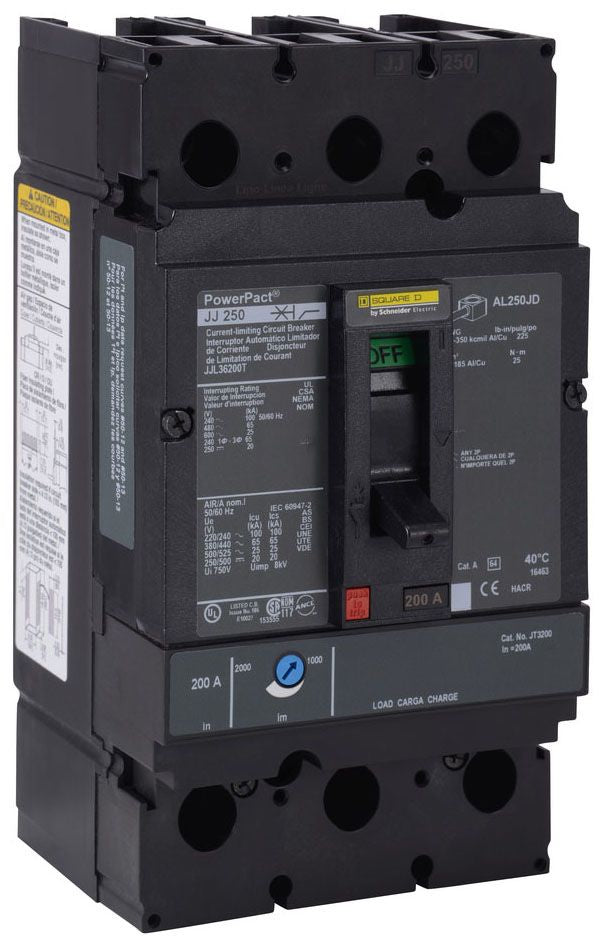

JJL36200T - Square D PowerPact J Frame 200 Amp 3 Pole 600V Thermal Magnetic Circuit Breaker

JJL36200T

JJL36200T is a Square D PowerPact J Frame molded case circuit breaker designed for reliable overload and short-circuit protection.This 3-pole circuit breaker features a 200 Amp line rated current and operates at up to 600 Volts AC. It uses thermal-magnetic trip technology with long-time and instantaneous trip functions, providing effective protection for electrical systems. The breaker has a breaking capacity of 25kA at 600VAC and includes unit-mount lug terminals for line and load connections. It is UL listed and suitable for feed-thru and reverse fed applications, with a continuous current rating of 80%.

• Manufacturer: Square D
• Series/Frame: PowerPact J
• Poles: 3
• Amperage: 200 Amp
• Voltage Rating: 600 VAC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Interrupt Rating: 25kA at 600VAC
• Mounting Type: Unit-Mount Lug
• Continuous Current Rating: 80%
• UL Listed
• Connection Type: Line and Load Side Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JJL36200T
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JJL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901589822
• GTIN : 00785901589822
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
