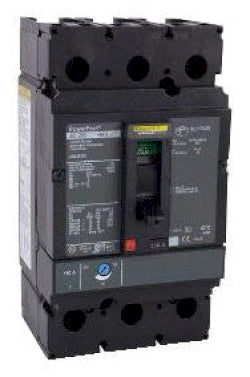

JDM36200 - Square D PowerPact J Molded Case Circuit Breaker 200A 3 Pole 600VAC 14kA Thermal Magnetic

JDM36200

JDM36200 is a Square D PowerPact J molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications. This 200A, 3-pole breaker features a thermal magnetic trip unit and is rated for up to 600VAC with a 14kA interrupt rating at 600VAC. The unit is bolt-on mount and part of the PowerPact J series, offering compatibility with a wide range of accessories and auxiliaries. Engineered for durability and safety, the JDM36200 is UL 489 listed and CSA approved, making it suitable for use in demanding electrical environments. Its compact design and robust interrupt capacity ensure dependable performance in critical power distribution systems.

• Part Number: JDM36200
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage Rating: 200A
• Number of Poles: 3
• Maximum Voltage: 600VAC, 250VDC
• Interrupt Rating: 14kA @ 600VAC, 18kA @ 480VAC, 25kA @ 240VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA
• Frame Size: D
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDM36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDM
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : CBA

Product Data

• UPC : 078590194685
• GTIN : 00785901946854
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.795
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
