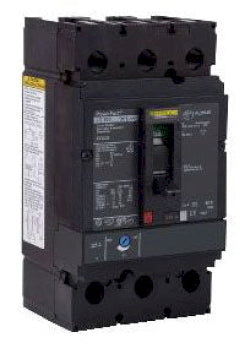

JDF36175 - Square D 175 Amp 600 VAC 3-Pole J Frame Molded Case Circuit Breaker

JDF36175

JDF36175 is a Square D 3-pole molded case circuit breaker designed for reliable power distribution and motor protection.JDF36175 features a 175 ampere rating with a voltage capacity of up to 600 VAC and 250 VDC. It is a J Frame breaker with thermal-magnetic trip unit providing dependable overload and short circuit protection. This unit mount breaker has a D interrupt rating suitable for industrial applications and is UL 489 listed.

• Amperage: 175 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Frame/Series: J Frame
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: D Interrupt
• Mounting Type: Unit Mount
• Certification: UL 489 Listed
• Breaking Capacity: 14 kA @ 600 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDF36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDF
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901834397
• GTIN : 00785901834397
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
