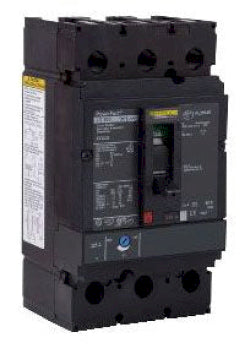

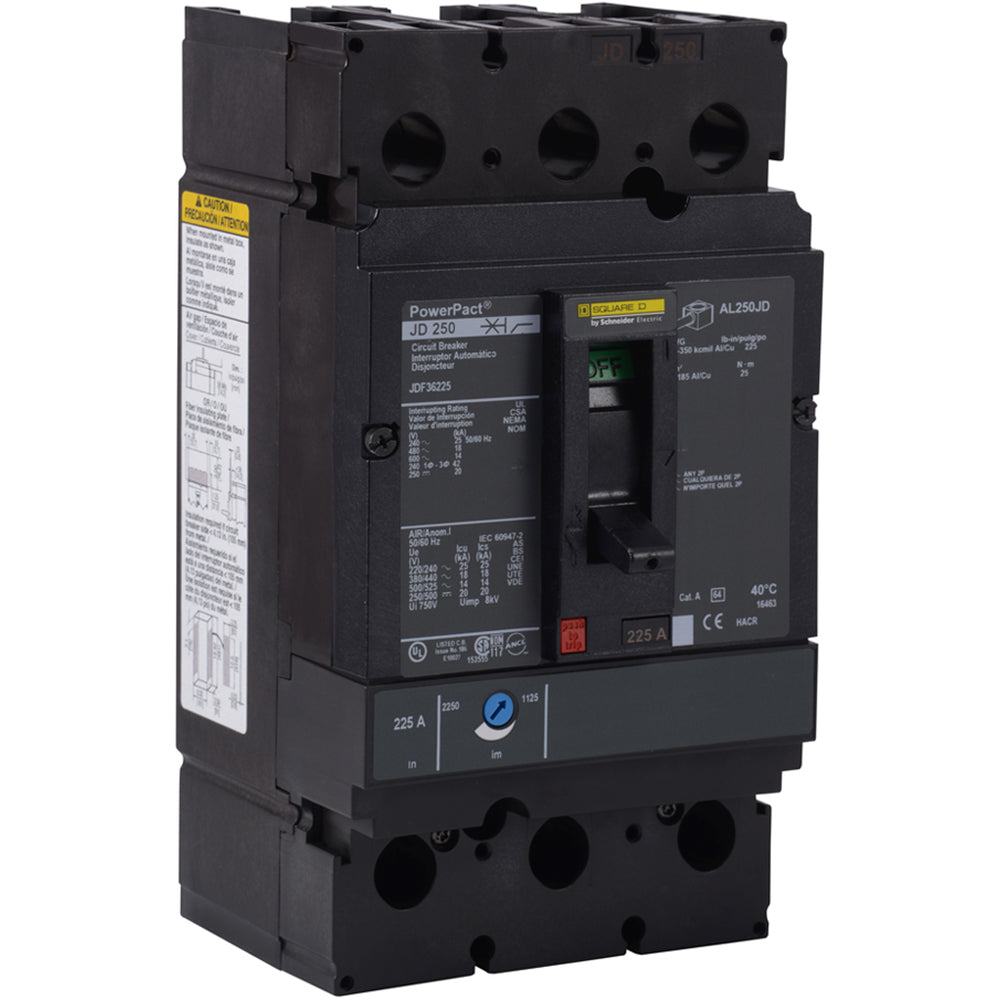

JDF36225 - Square D 225A 600V 3 Pole PowerPact J Frame Molded Case Circuit Breaker

JDF36225

JDF36225 is a Square D PowerPact J Frame molded case circuit breaker rated for 225 amps and 600 volts with a 3-pole configuration.This circuit breaker features a thermal magnetic trip unit and is designed for bolt-on mounting. It has an interrupt rating of 25kA at 240V, 18kA at 480V, and 14kA at 600V, providing reliable protection for electrical distribution systems. The breaker is UL 489 listed and suitable for use in a variety of industrial and commercial applications.

• Amperage: 225A
• Voltage: 600V AC
• Poles: 3
• Frame/Series: PowerPact J Frame
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA @ 240V, 18kA @ 480V, 14kA @ 600V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDF36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDF
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : CA

Product Data

• UPC : 785901995203
• GTIN : 00785901995203
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
