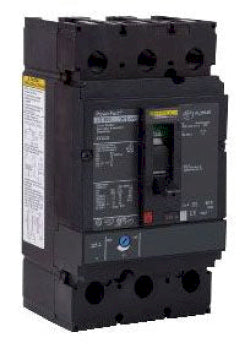

JDF36150 - Square D PowerPact J Frame 150 Amp 3 Pole 600VAC Molded Case Circuit Breaker

JDF36150

JDF36150 is a Square D PowerPact J Frame molded case circuit breaker rated for 150 amperes at 600 volts AC with three poles, designed for panel mount applications with busbar terminal connections. This thermal-magnetic, current-limiting circuit breaker features adjustable trip settings and is UL 489 listed for reliable overcurrent protection in industrial and commercial power distribution systems. The breaker delivers multiple interrupt ratings depending on voltage: 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC, making it suitable for demanding electrical environments.

• Amperage Rating: 150 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Size: J Frame
• Mounting Type: Panel Mount
• Terminal Connection: Busbar
• Trip Mechanism: Thermal-Magnetic
• Current Limiting: Yes
• Interrupt Rating: 14 kA @ 600 VAC
• UL 489 Listed: Yes
• Dimensions: 4.12 in W x 4.36 in D x 6.4 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDF36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDF
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : CB

Product Data

• UPC : 785901906254
• GTIN : 00785901906254
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.37
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
