Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362AWK

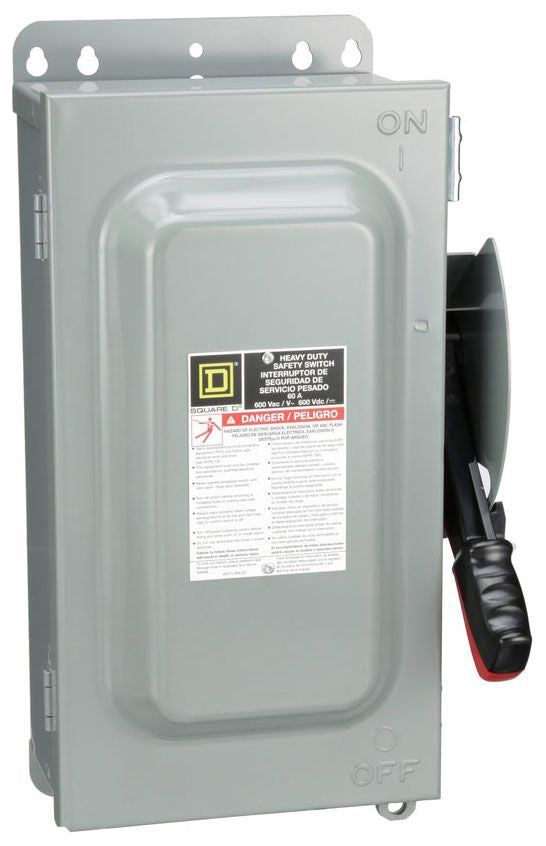

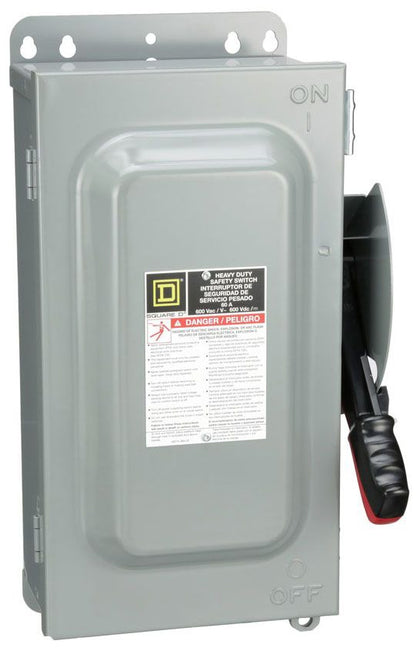

HU362AWK is a Square D Series E heavy duty non-fusible safety and disconnect switch rated for 60A, 600V, 3 pole applications. This switch features a quick make, quick break mechanism and is designed for indoor use with NEMA 3R/12 enclosure protection. The HU362AWK is constructed with a galvannealed steel enclosure and dual cover interlock for added safety. It is suitable for service entrance when equipped with neutral assembly or equipment grounding kit. The switch is non-fusible and provides reliable circuit isolation for industrial and commercial power distribution systems.
- Manufacturer: Square D
- Series/Frame: HU E Series
- Amperage: 60A
- Voltage: 600V AC/DC
- Poles: 3
- Mounting Type: Indoor
- Interrupt Rating: 200kA @ 600V
- Enclosure Rating: NEMA 3R/12
- Fusibility: Non-Fusible
- Operating Mechanism: Quick Make, Quick Break
- Cover Interlock: Dual
- Neutral: Not Installed
Specifications
- Part Number: HU362AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 3R/12
Product Data
- UPC : 785901505075
- GTIN : 00783643151666
- Dimensions : 16.5 in (419.1 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
- Weight : 17.2 lb
