Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
HU362A

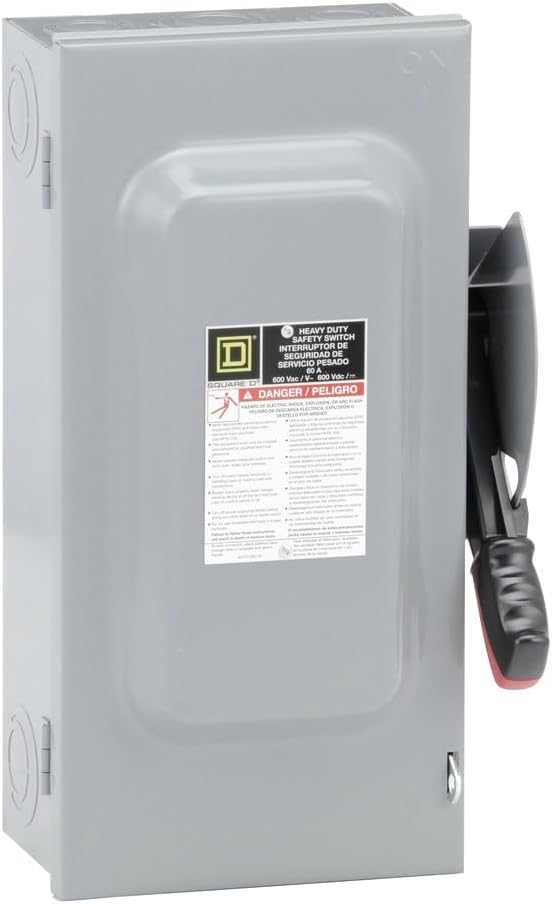

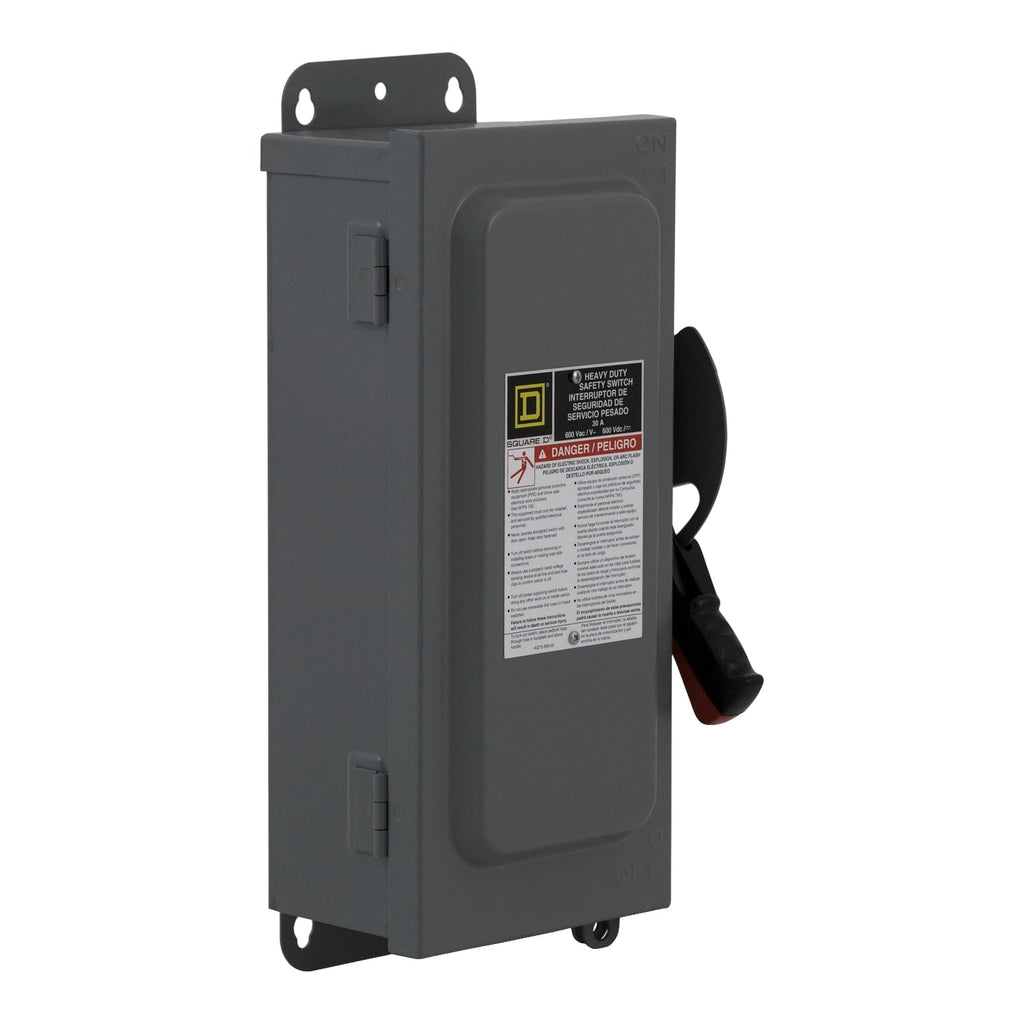

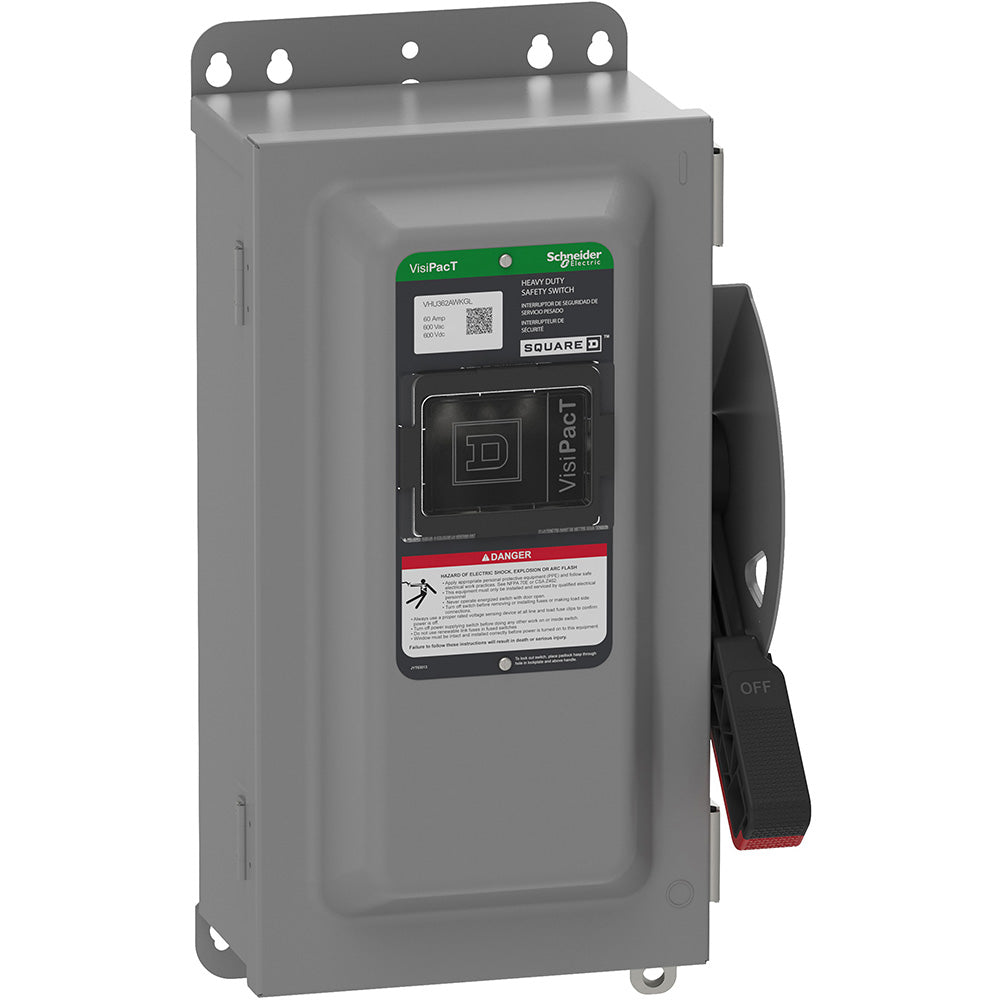

HU362A is a Square D heavy duty safety switch designed for 3-phase electrical systems requiring reliable disconnect capability.
This non-fusible disconnect switch features a 60 ampere rating, 600 volt AC voltage, and 3 poles, making it suitable for industrial and commercial applications. It is constructed with a galvannealed steel body and comes in a NEMA 1 enclosure, providing basic indoor protection. The switch supports wire gauges from AWG 14 to AWG 3 for copper and AWG 12 to AWG 3 for aluminum conductors. It offers a short circuit current rating of 200 kA and is designed for heavy duty use with a single switch configuration.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Type: Non-Fusible
- Mounting: Heavy Duty Safety Switch
- Body Material: Galvannealed Steel
- Enclosure: NEMA 1
- Short Circuit Current Rating: 200 kA
- Wire Gauge: AWG 14-3 Copper, AWG 12-3 Aluminum
- Phase: 3 Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HU362A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 12K
Product Data
- UPC : 078590150505
- GTIN : 00785901483052
- Dimensions : 16.5 in (419.1 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
- Weight : 16.861
