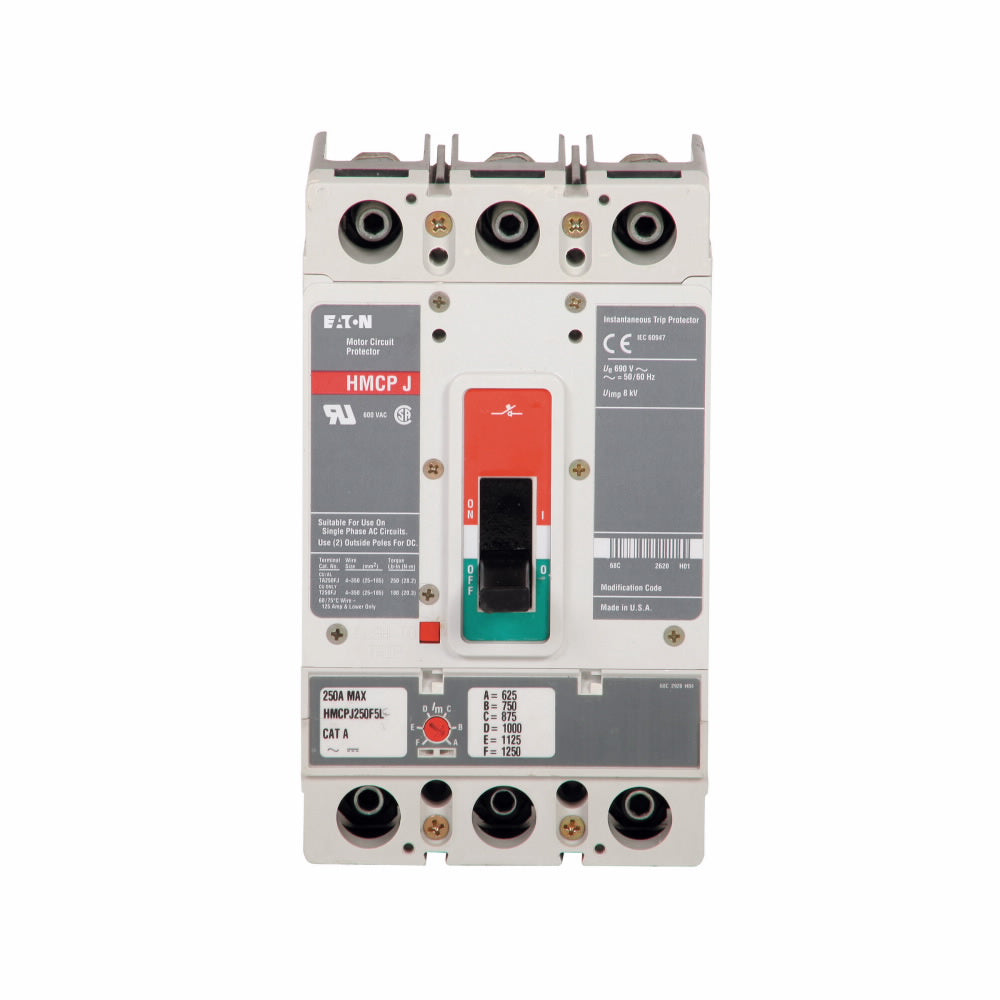

HMCPJ250L5L - Cutler Hammer 250A 600V 3-Pole Motor Circuit Protector JG Frame Magnetic Trip

HMCPJ250L5L

This 3-pole molded case circuit breaker features a 250 ampere rating, 600 VAC and 250 VDC voltage rating, and belongs to the Series G (JG frame). It offers adjustable magnetic trip settings from 1125 to 2250 amps, providing precise motor protection. The breaker uses a feed-thru mounting type and has an interrupt rating suitable for heavy-duty use. It is designed for line and load terminals and provides magnetic-only trip functionality.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame/Series: JG Frame (Series G)
• Trip Unit: Magnetic Only, Adjustable 1125-2250 A
• Mounting Type: Feed-Thru
• Interrupt Rating: High interrupt capacity (typical for Series G)
• Terminals: Line and Load
• Application: Motor Circuit Protection
• Manufacturer: Cutler Hammer (Eaton)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HMCPJ250L5L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : HMCPJ
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 50kA@400V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only



Product Data

• UPC : 782113705590
• GTIN : 00782113705590
• Country of Origin : Dominican Republic
• Dimensions : 9.5 in x 6.5 in x 5 in (Length/Depth x Height x Width)
• Weight : 6
• Certification : UL Listed,CSA Certified
