HMCPJ250G5L - Cutler Hammer 250A 3-Pole 600V Motor Circuit Protector

HMCPJ250G5L

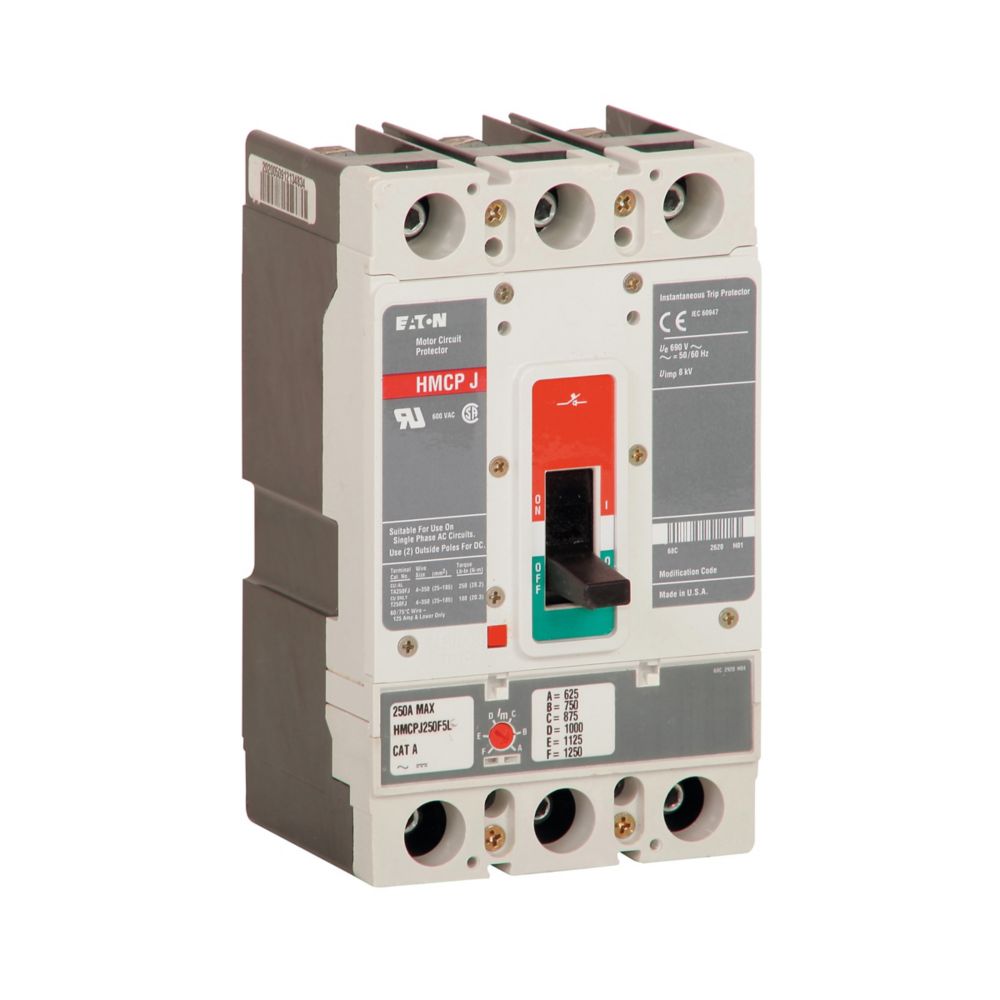

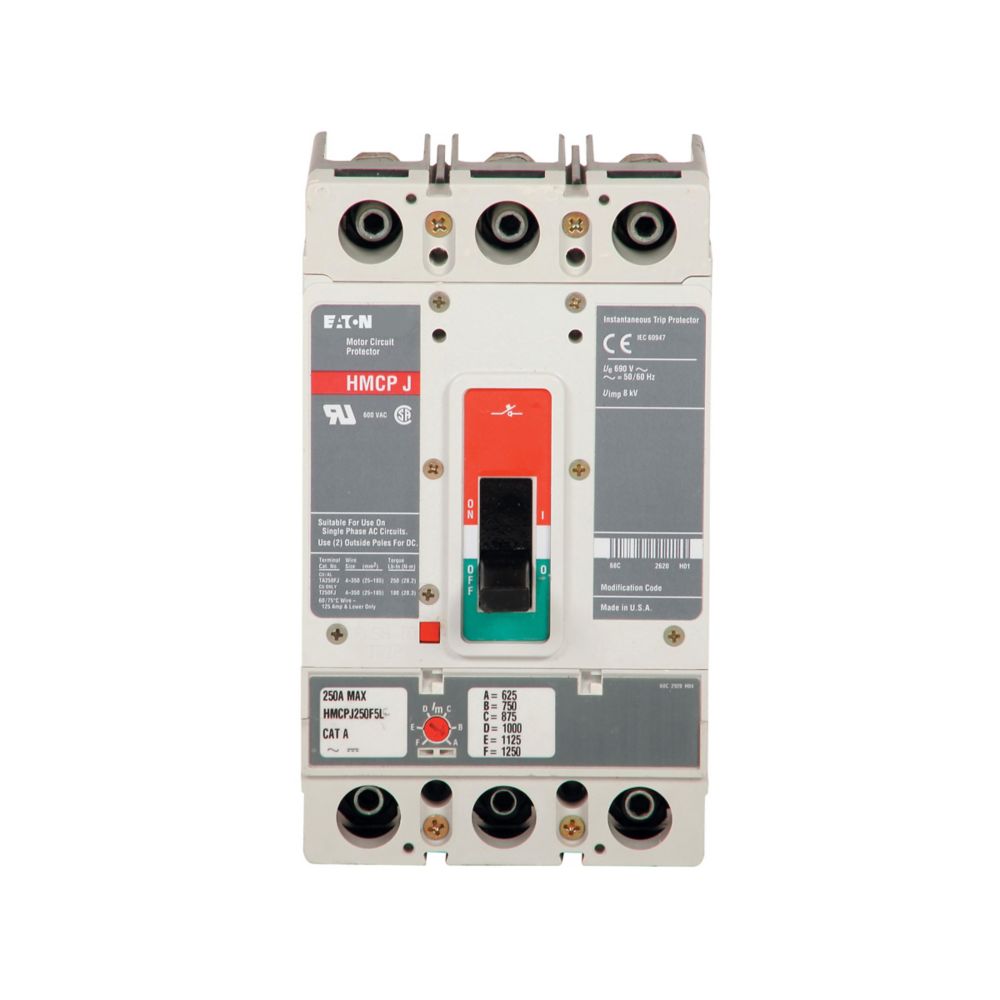

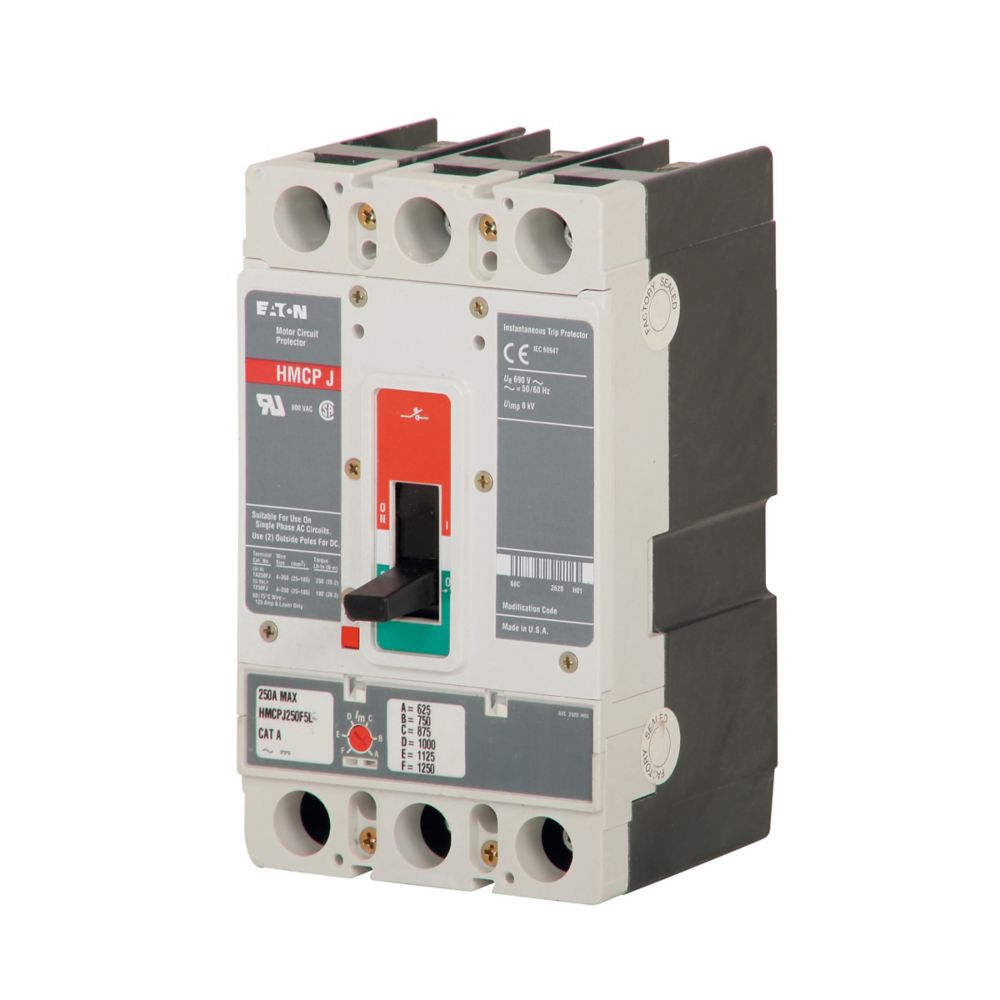

HMCPJ250G5L is a molded case circuit breaker motor circuit protector designed for industrial motor drive and control applications. This three-pole device features adjustable magnetic trip protection with a 750-1500A trip range, making it ideal for motor protection in demanding environments. The G Series frame provides reliable performance in both panel and DIN rail mounting configurations.Key Specifications

• Amperage Rating: 250A
• Number of Poles: 3
• AC Voltage Rating: 600V
• DC Voltage Rating: 250V
• Frame Size: J-K (JG-frame)
• Trip Range: 750-1500A Adjustable Magnetic
• Series: G Series
• Mounting: Panel and DIN Rail
• Terminal Configuration: Line and Load
• Product Type: Motor Circuit Protector

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCPJ250G5L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : HMCPJ
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 50kA@400V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/JG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Magnetic Only
• Phase Connection : ABC

Product Data

• UPC : 782113704197
• GTIN : 00782113704197
• Country of Origin : Dominican Republic
• Dimensions : 3.57 in x 7 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 6
• Panel Type : Eaton Motor Starters, Rockwell Motor Starters
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
