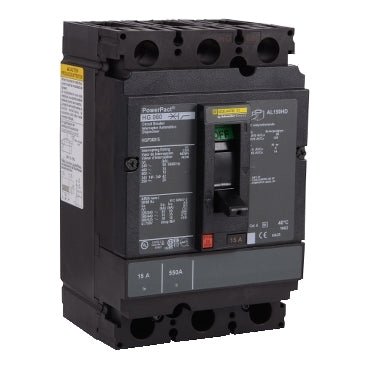

HGP36110 - Square D PowerPact H 110A 3 Pole 600VAC 18kA Thermal Magnetic Circuit Breaker

HGP36110

HGP36110 is a Square D PowerPact H-frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 3-pole configuration, 110A current rating, and a maximum voltage of 600VAC, making it suitable for a wide range of applications requiring robust overcurrent protection. The HGP36110 utilizes a thermal magnetic trip unit for precise overload and short circuit protection. It is rated for an interrupt capacity of 18kA at 600VAC and is designed for bolt-on mounting, ensuring secure installation and easy replacement. The PowerPact H series is known for its durability, high performance, and compliance with major safety standards.

• Part Number: HGP36110
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Poles: 3
• Current Rating: 110A
• Voltage Rating: 600VAC
• Interrupt Rating: 18kA @ 600VAC
• Mounting Type: Bolt-On
• Protection Type: Thermal Magnetic
• Standards: UL 489 Listed, CSA, NEMA, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648611930
• GTIN : 03606486119303
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
