CYA150HD - Square D 150A PowerPact H-Frame Circuit Breaker Compression Lug Kit Copper

CYA150HD

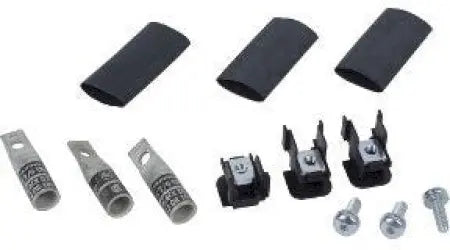

CYA150HD is a Square D compression lug kit designed for PowerPact H-Frame molded case circuit breakers with a 150 amp rating.This lug kit includes three mechanical compression lugs made of copper, suitable for 4 AWG to 2/0 AWG copper conductors. It mounts directly on the breaker and complies with UL and CSA certifications. The kit is intended for use with Square D PowerPact H-Frame circuit breakers and provides reliable, durable connections for high-current applications.

• Brand: Square D
• Part Number: CYA150HD
• Amperage: 150 Amps
• Compatible with PowerPact H-Frame breakers
• Conductor Size Range: 4 AWG to 2/0 AWG copper
• Material: Copper
• Mounting Type: Unit mount on breaker
• Quantity: 3 compression lugs
• Certifications: UL Listed, CSA Certified
• Country of Origin: US
• Type: Mechanical lug kit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CYA150HD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : PowerPacT H
• Amperage : 150
• MCM Size : 133
• Barrels : 1
• Metal Type : Copper
• Compatible Frames : HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK

Product Data

• UPC : 785901017592
• GTIN : 00785901017592
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.53
• Standards : RoHS, REACh
• Certification : UL, CSA
• Wire Size : AWG 4...AWG 2/0 copper
