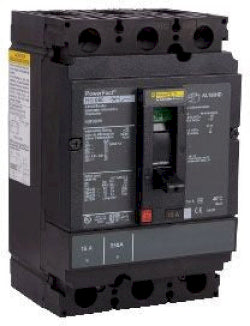

HGP36020 - Square D 20 Amp 600V 3 Pole PowerPact H Frame Circuit Breaker Thermal Magnetic

HGP36020

HGP36020 is a Square D PowerPact H Frame molded case circuit breaker providing 20 Amp, 3 pole thermal magnetic protection rated for up to 600 VAC.This circuit breaker features a unit mount design with a G interrupt rating, suitable for industrial and commercial power distribution applications. It offers a breaking capacity of 18kA at 600 VAC and 65kA at 240 VAC, ensuring reliable short-circuit protection. The breaker complies with UL 489 standards and includes thermal magnetic trip units for dependable overload and short circuit protection.

• Amperage: 20 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA at 600 VAC, 65kA at 240 VAC
• Series/Frame: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489 Listed
• Breaking Capacity Code: G
• Dimensions: Approx. 6.4 in Height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901825098
• GTIN : 00785901825098
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.134
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
