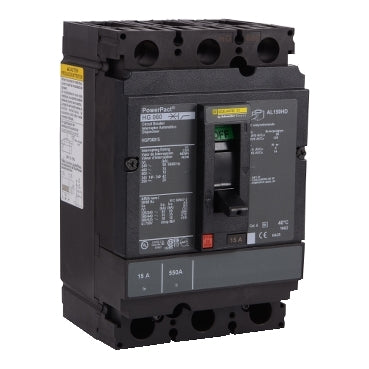

HGP36025 - Square D 25A 600V 3 Pole Bolt-On Thermal Magnetic Circuit Breaker PowerPact H Frame

HGP36025

HGP36025 is a Square D 3 pole, 25 amp, 600 volt bolt-on circuit breaker designed for reliable thermal magnetic protection.This PowerPact H Frame circuit breaker features a thermal magnetic trip unit with LI (Long-Time and Instantaneous) trip functions. It is UL 489 listed and suitable for unit mount applications. The breaker has a high interrupt rating of 35kA at 480V AC, ensuring robust protection for industrial and commercial electrical systems.

Key Specifications
• Manufacturer: Square D
• Part Number: HGP36025
• Amperage: 25 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Mounting Type: Bolt-On (Unit Mount)
• Interrupt Rating: 35kA at 480V AC
• Frame/Series: PowerPact H Frame
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HGP36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78590155305
• GTIN : 00785901553052
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
