HGL36060SA - Square D PowerPact H 60A 3 Pole 600VAC Circuit Breaker Feed-Thru Thermal Magnetic

HGL36060SA

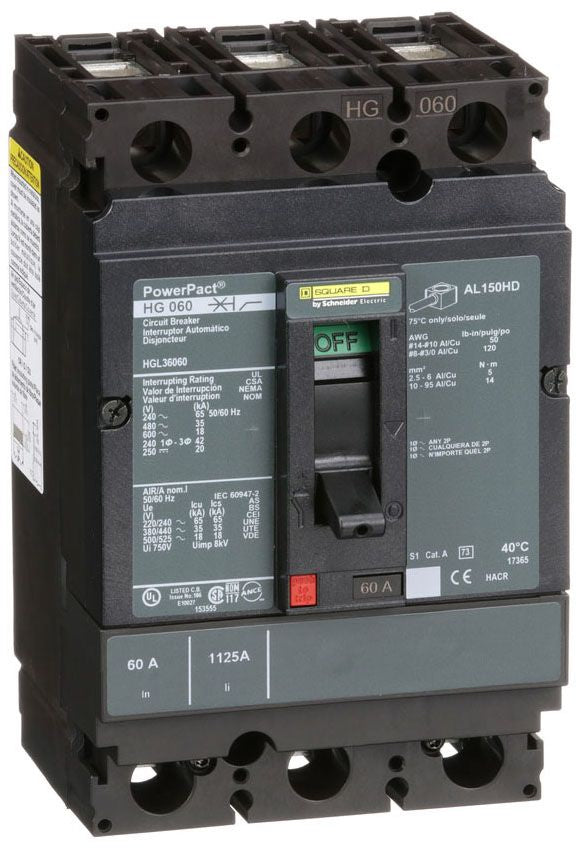

HGL36060SA is a 3 pole, 60 amp, 600VAC thermal magnetic molded case circuit breaker from the Square D PowerPact H series, designed for reliable protection in industrial and commercial power distribution systems. This unit features a feed-thru connection type with line and load side lugs, providing flexibility for installation and maintenance. The breaker is rated for 35kAIC at 480VAC and offers long-time and instantaneous trip functions for robust circuit protection. The HGL36060SA is built for unit mount applications and is part of the widely recognized PowerPact H family, known for durability and compliance with major safety standards. Its compact design and robust construction make it suitable for a variety of demanding environments.

• Part Number: HGL36060SA
• Manufacturer: Square D
• Series: PowerPact H
• Amperage: 60A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 35kAIC at 480VAC
• Frame Type: HGL
• Connection Type: Feed-Thru
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, CE, NEMA, NOM, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110/130Vac shunt trip

Specifications

• Part Number: HGL36060SA
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901598770
• Weight : 5
• Certification : UL
