Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HGL36000S15YE

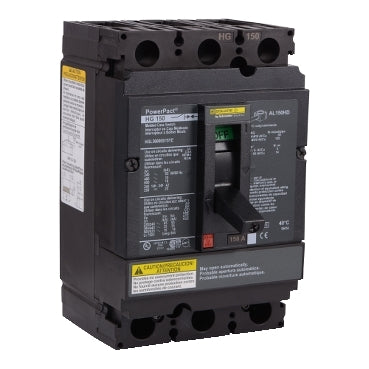

HGL36000S15YE is a 3 pole, 150 amp, 600 volt feed-thru molded case circuit breaker manufactured by Square D.
This circuit breaker features a 35kA interrupting rating at 480 volts and is designed for use in Powerpact H frame applications. It is a non-automatic type breaker with a factory set nonadjustable trip point, suitable for opening and closing circuits under normal operating conditions. The breaker is bolt-on mounted and provides reliable protection in industrial and commercial electrical systems.
- Key Specifications
- Amperage: 150 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3
- Interrupt Rating: 35kA at 480V
- Mounting Type: Feed-Thru / Bolt-On
- Frame/Series: Powerpact H Frame
- Trip Unit: Non-automatic, factory set nonadjustable trip
- Type: Molded Case Circuit Breaker
- Part Number: HGL36000S15YE
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGL
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Frame Size : H Frame
- Protection : Non-Automatic
- Dimensions : 6.4 in (162.6 mm) x 4.12 in (104.65 mm) x 4.36 in (110.74 mm) (Height x Width x Depth)
- Weight : 4.14
- Wire Size : x AWG 14...AWG 3/0 ( aluminium/copper )
