HGL36035 - Square D 35 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker H Frame

HGL36035

HGL36035 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 35 amps and 600 volts AC, designed for reliable circuit protection.This PowerPact H Frame breaker features thermal magnetic trip units with a breaking capacity of 18kA at 600VAC and 250V DC, suitable for panel mounting. It includes dual-break rotating contacts to reduce peak short circuit current and a manual push-to-trip button. The breaker complies with UL, CSA, NOM, IEC standards, and is CE marked.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 18kA at 600VAC
• Frame/Series: PowerPact H Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CE Marked
• Dual-break rotating contacts for reduced peak current
• Manual push-to-trip button included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901598732
• GTIN : 00785901598732
• Country of Origin : Mexico

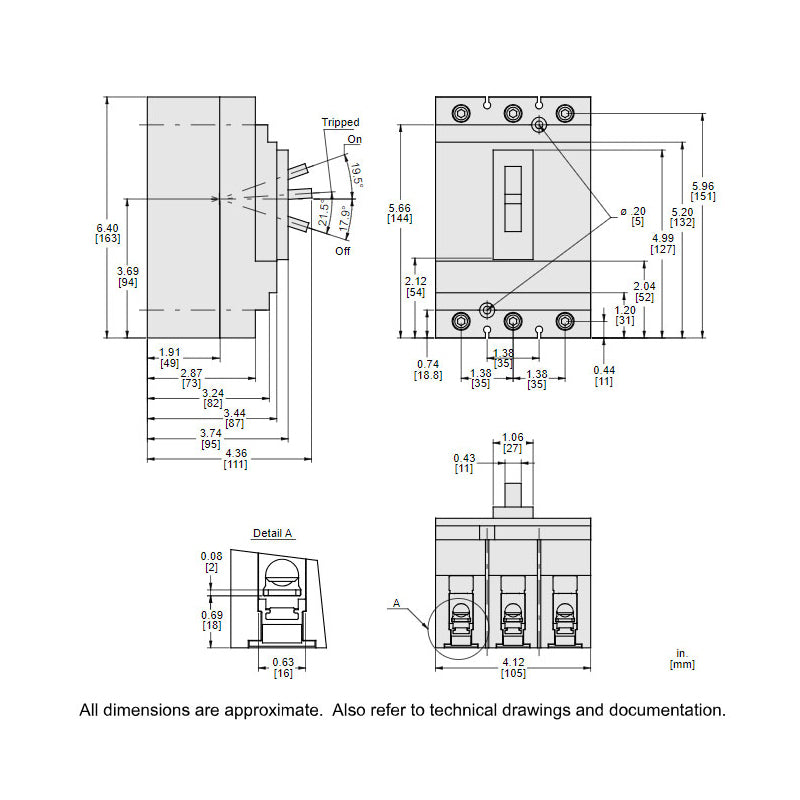

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.22
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
