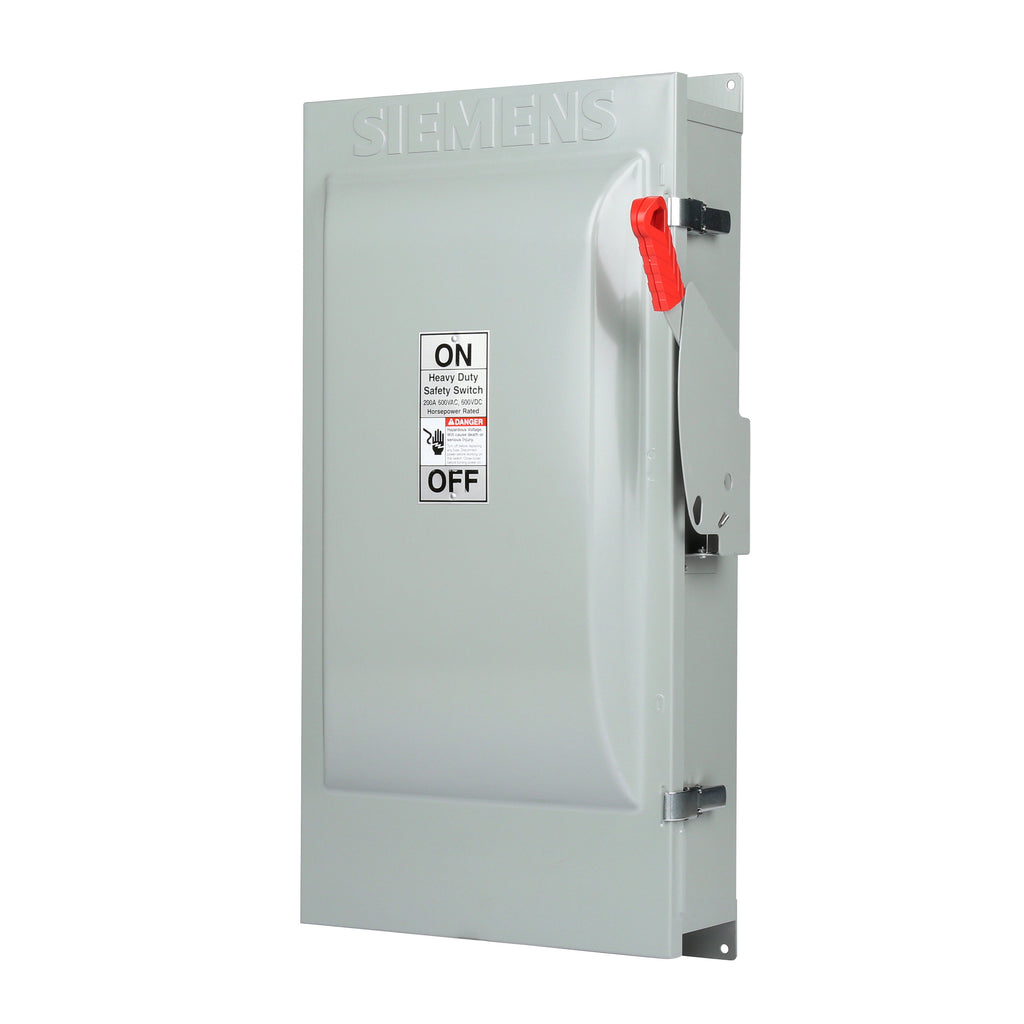

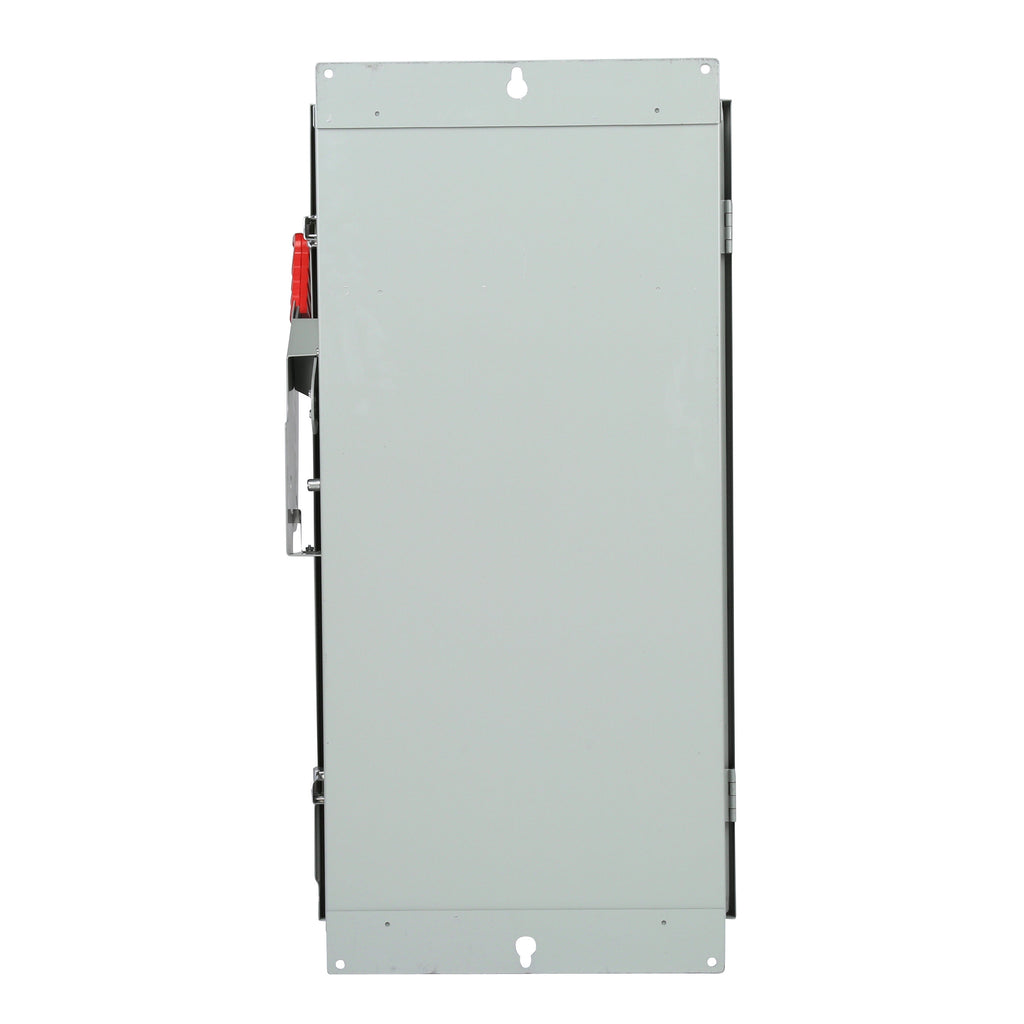

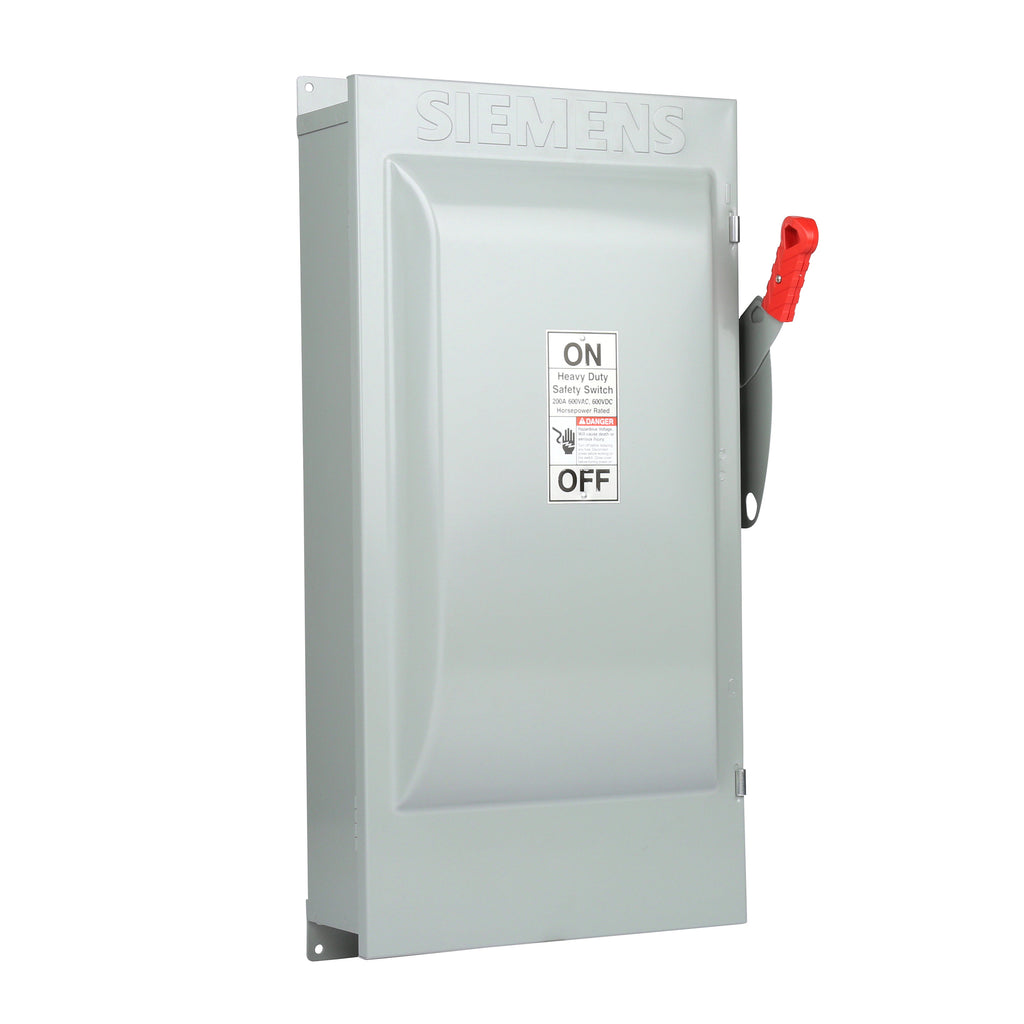

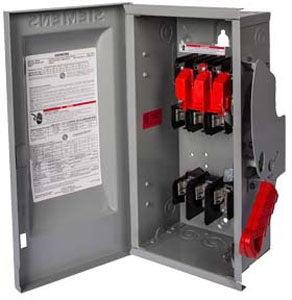

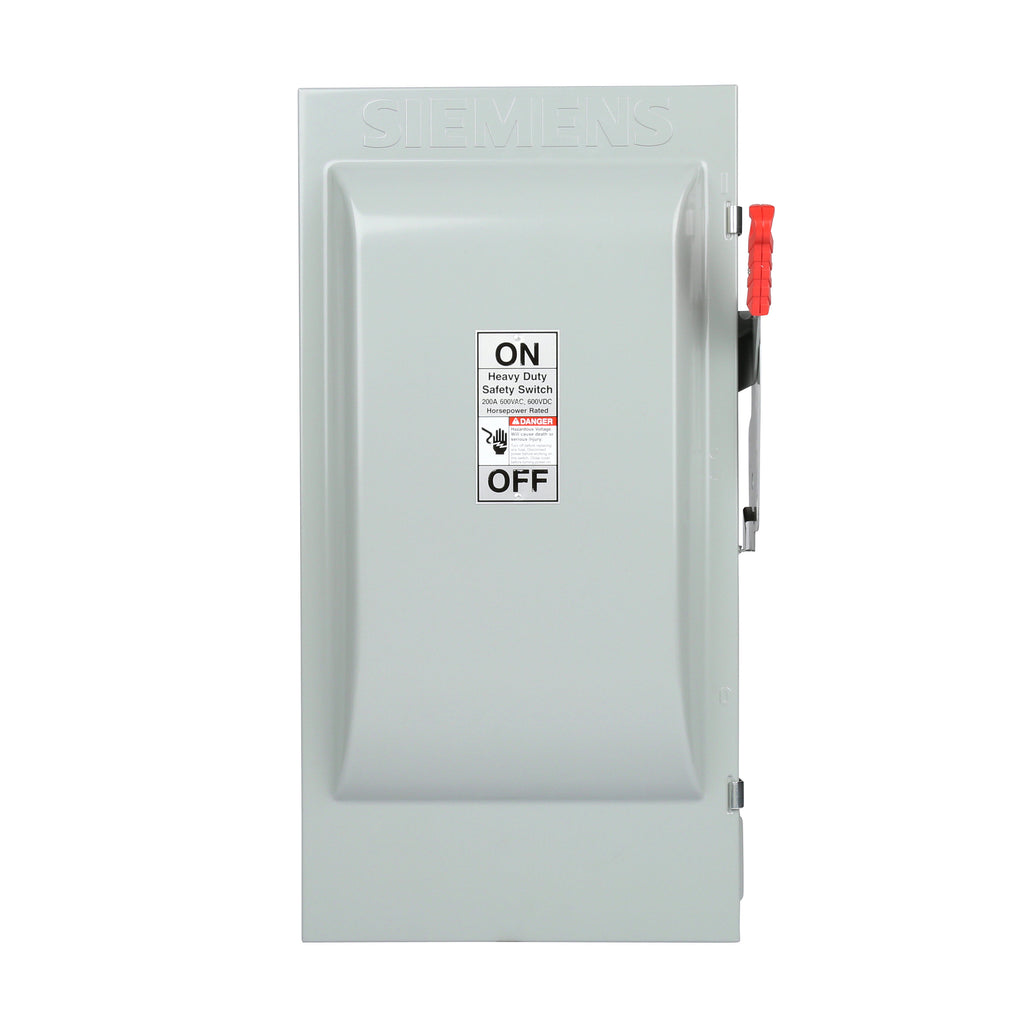

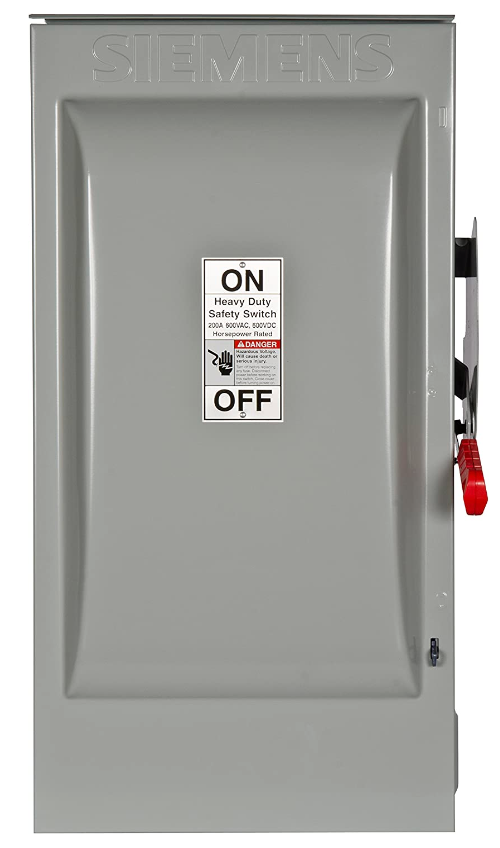

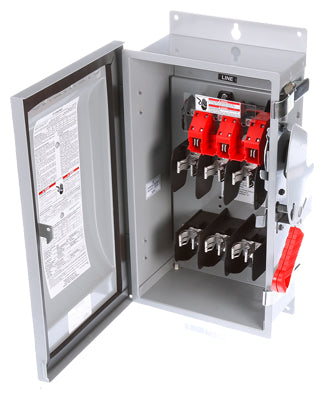

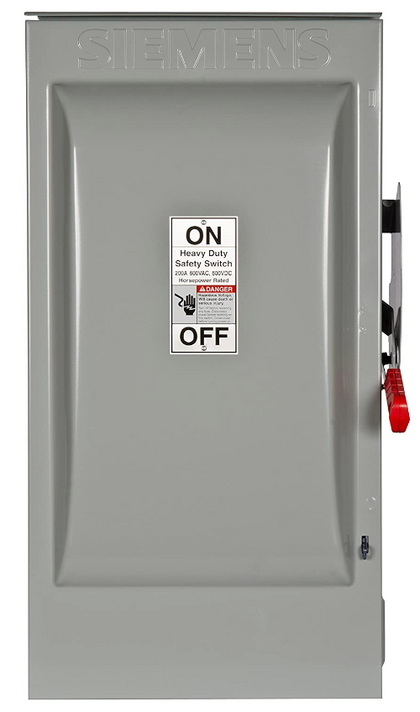

HF364J - Siemens 200A 600VAC 3-Pole Heavy Duty Fusible Safety Switch NEMA 12 Surface Mount

HF364J

HF364J is a Siemens heavy duty fusible safety switch rated for 200 Amps and 600VAC with 3 poles and a NEMA 12 enclosure.This Siemens HF364J safety switch features a 3-pole, 3-wire configuration designed for surface mounting. It has a 200kA interrupting rating at 600V, a galvanized steel body, and quick break/padlocking actuator type. The switch is fusible and UL listed, suitable for heavy duty industrial applications with a temperature rating from -20 to 120ÁF.

Key Specifications
• Amperage: 200A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Surface
• Interrupting Rating: 200kA @ 600V
• Frame Type: HF
• Terminal Connection: Lug
• NEMA Rating: 12
• Standards: UL Listed
• Body Material: Galvanized Steel
• Fusibility: Fusible
• Actuator Type: Quick Break/Padlocking

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HF364J
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12
• Compatible Frames : PGP

Product Data

• UPC : 783643151840
• GTIN : 00783643151840
• Country of Origin : Mexico
• Dimensions : 34.646 x 20.472 x 9.449 inch
• Weight : 48.502 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
