Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Disconnect
- Series
- VBII Series
- Frame
- HF
- Rated current
- 200
- Voltage
- 600 AC AC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@600V
- Configuration
- Single
- Switch style
- Fusible
- NEMA rating
- NEMA 4X
- Country of origin
- Mexico
- Section
- Fusible Disconnect Switch
Show all specifications (7 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- PGP
- UPC
- 783643152007
- GTIN
- 00783643152007
- Dimensions
- 34.646 x 19.291 x 9.449 inch
- Weight
- 52.117 lb
- Certification
- UL listed
Product description & additional details
HF364S

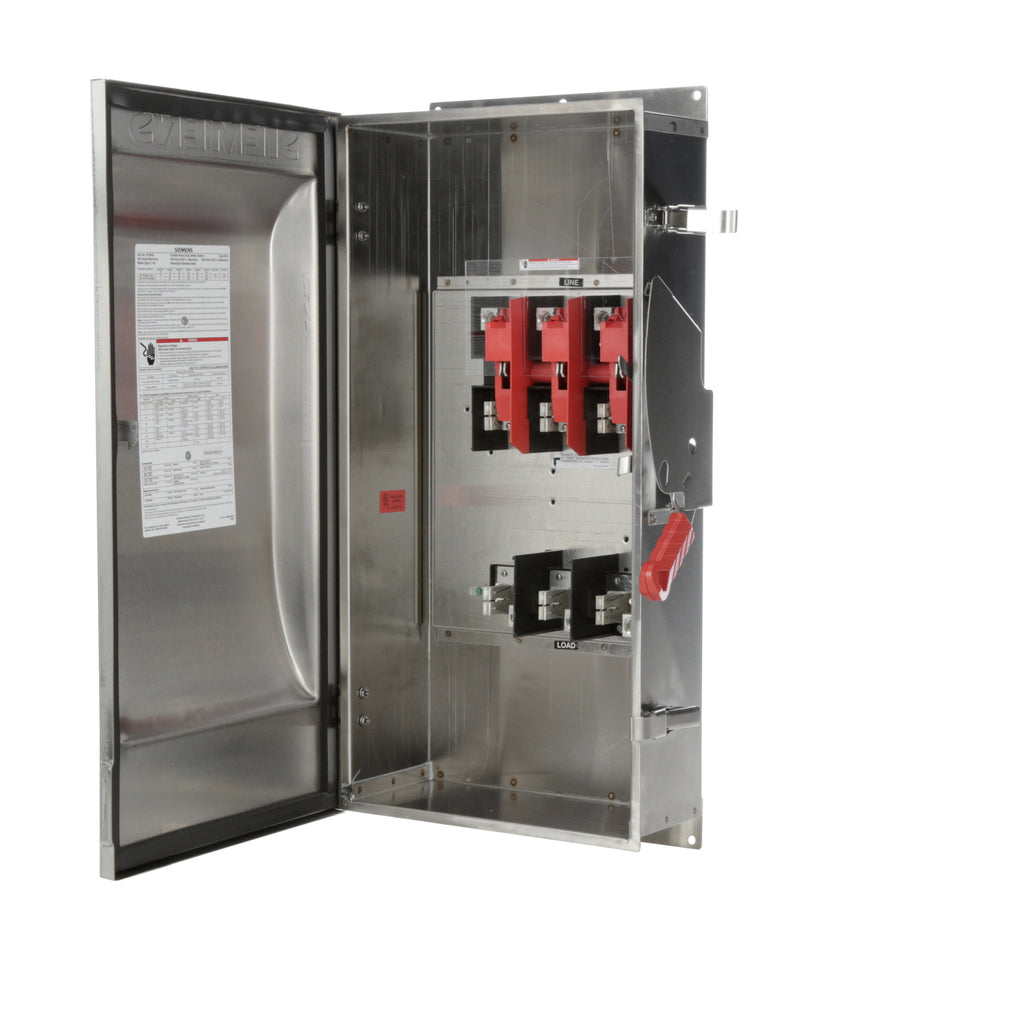

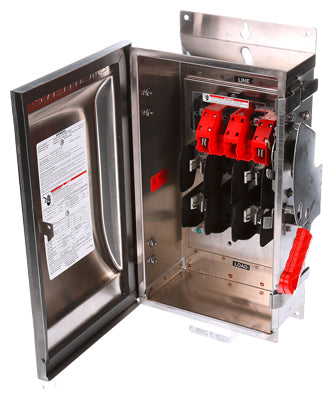

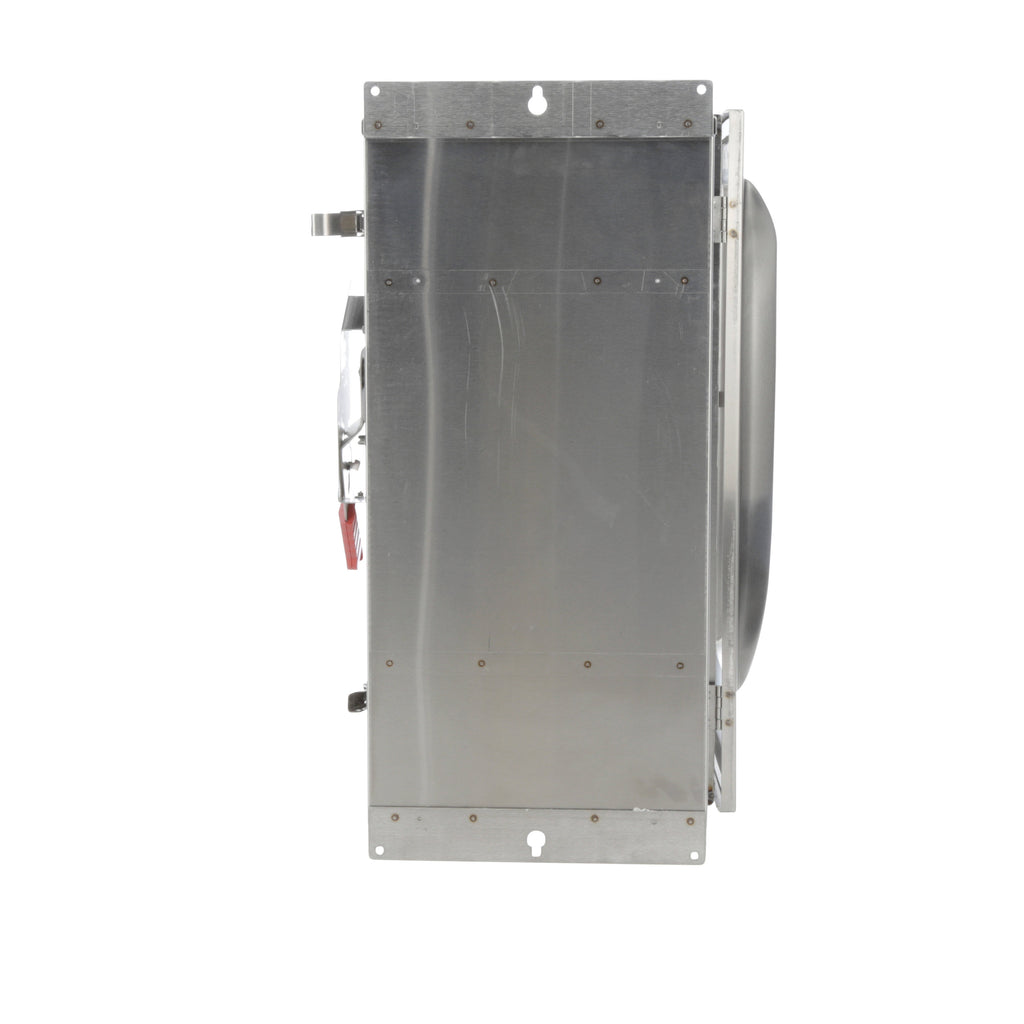

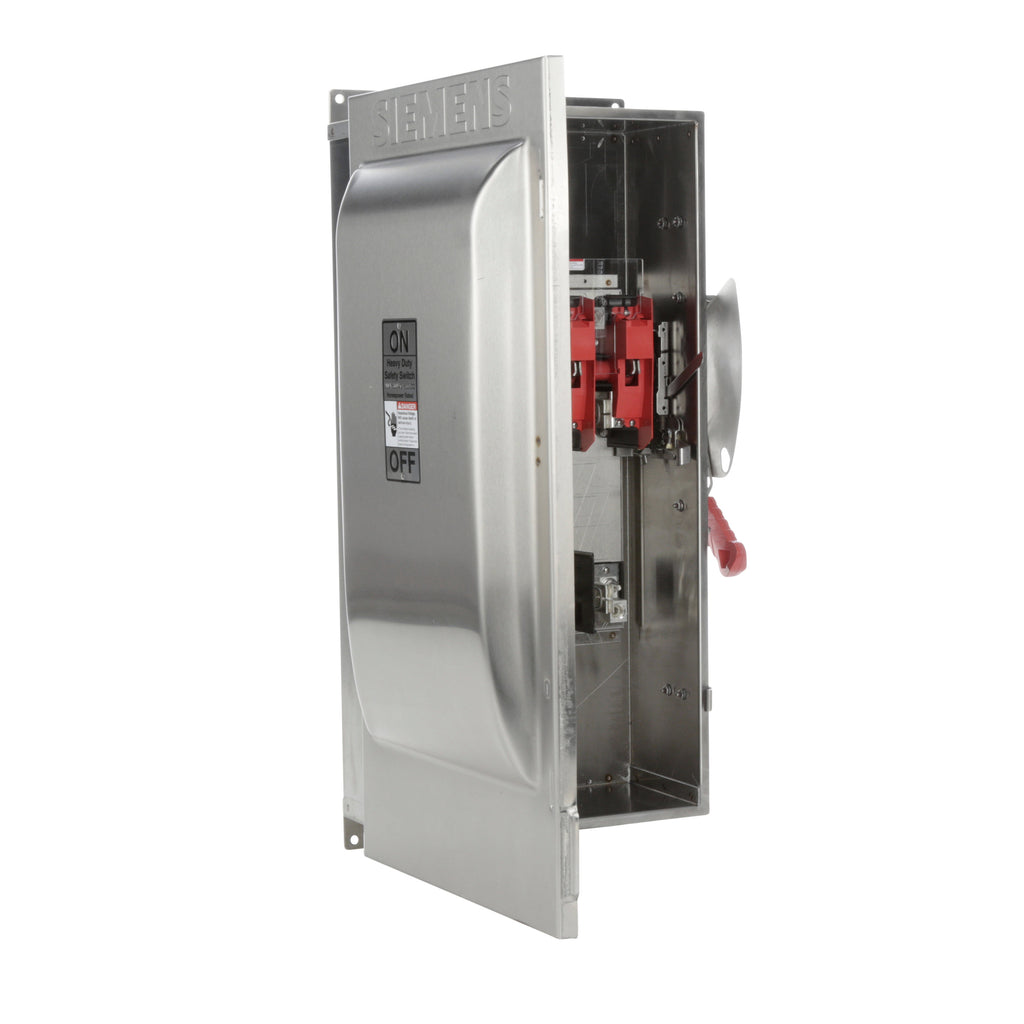

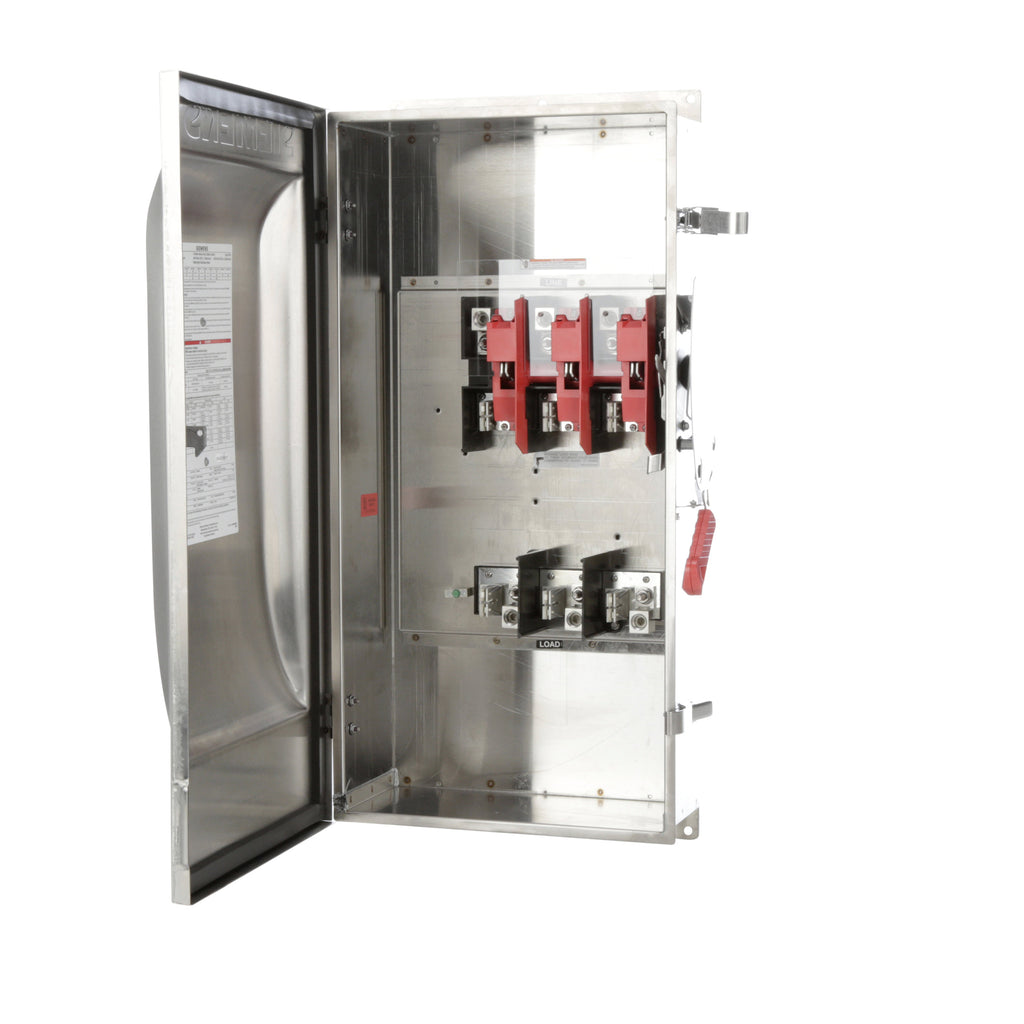

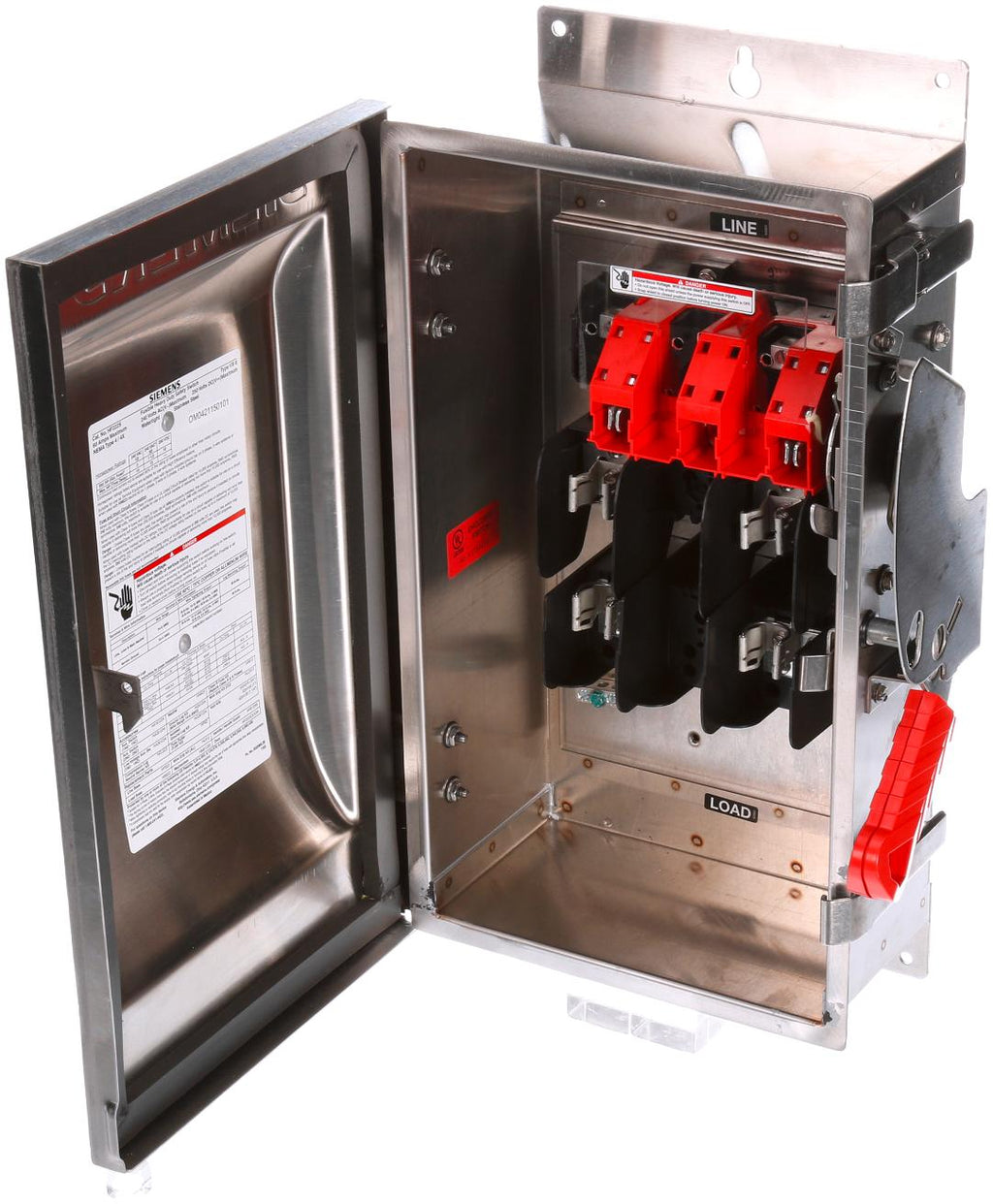

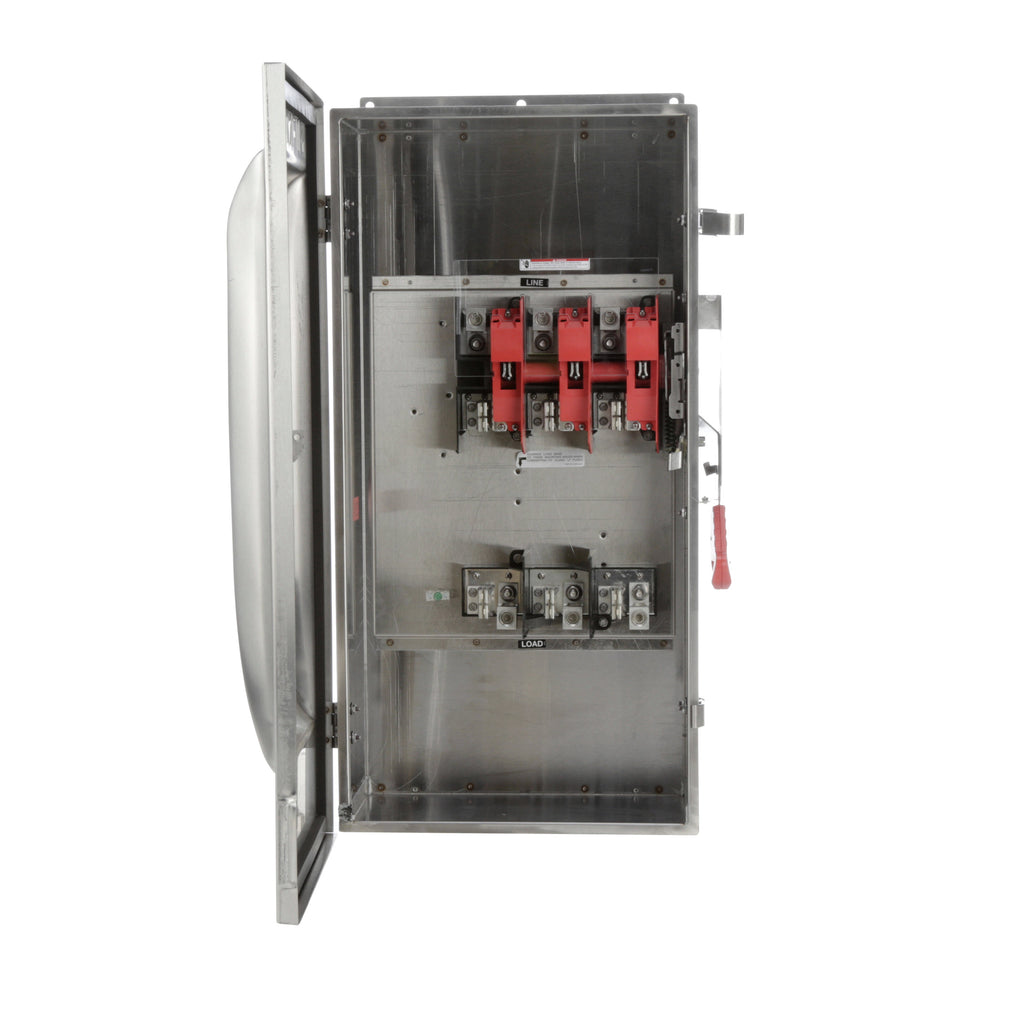

HF364S is a Siemens 200 Amp, 600 VAC, 3-Pole fusible safety switch designed for heavy-duty applications with a NEMA 4X outdoor enclosure.This switch features a 3-wire configuration, Type VBII enclosed fusible design, and is rated for 200 amps and 600 volts AC. It supports horsepower ratings up to 50 hp at 600 VAC and includes a quick-make, quick-break mechanism with visible ON-OFF indication. The NEMA 4X enclosure provides corrosion resistance and suitability for outdoor use. It is CSA certified and designed for use with Class H fuses, suitable for service entrance equipment.
- Key Specifications
- Amperage: 200 Amp
- Voltage: 600 VAC / 250-600 VDC
- Poles: 3
- Wires: 3
- Enclosure: NEMA 4X (Outdoor, Heavy Duty)
- Interrupt Rating: Up to 200,000 AIC with proper fusing
- Horsepower Rating: 50 hp at 600 VAC
- Trip Unit: Fusible (Class H fuses, not included)
- Certifications: CSA Certified
- Mounting Type: Surface mount
- Series/Frame: Type VBII
Specifications
- Part Number: HF364S
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
- Compatible Frames : PGP
Product Data
- UPC : 783643152007
- GTIN : 00783643152007
- Country of Origin : Mexico
- Dimensions : 34.646 x 19.291 x 9.449 inch
- Weight : 52.117 lb
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : UL listed
