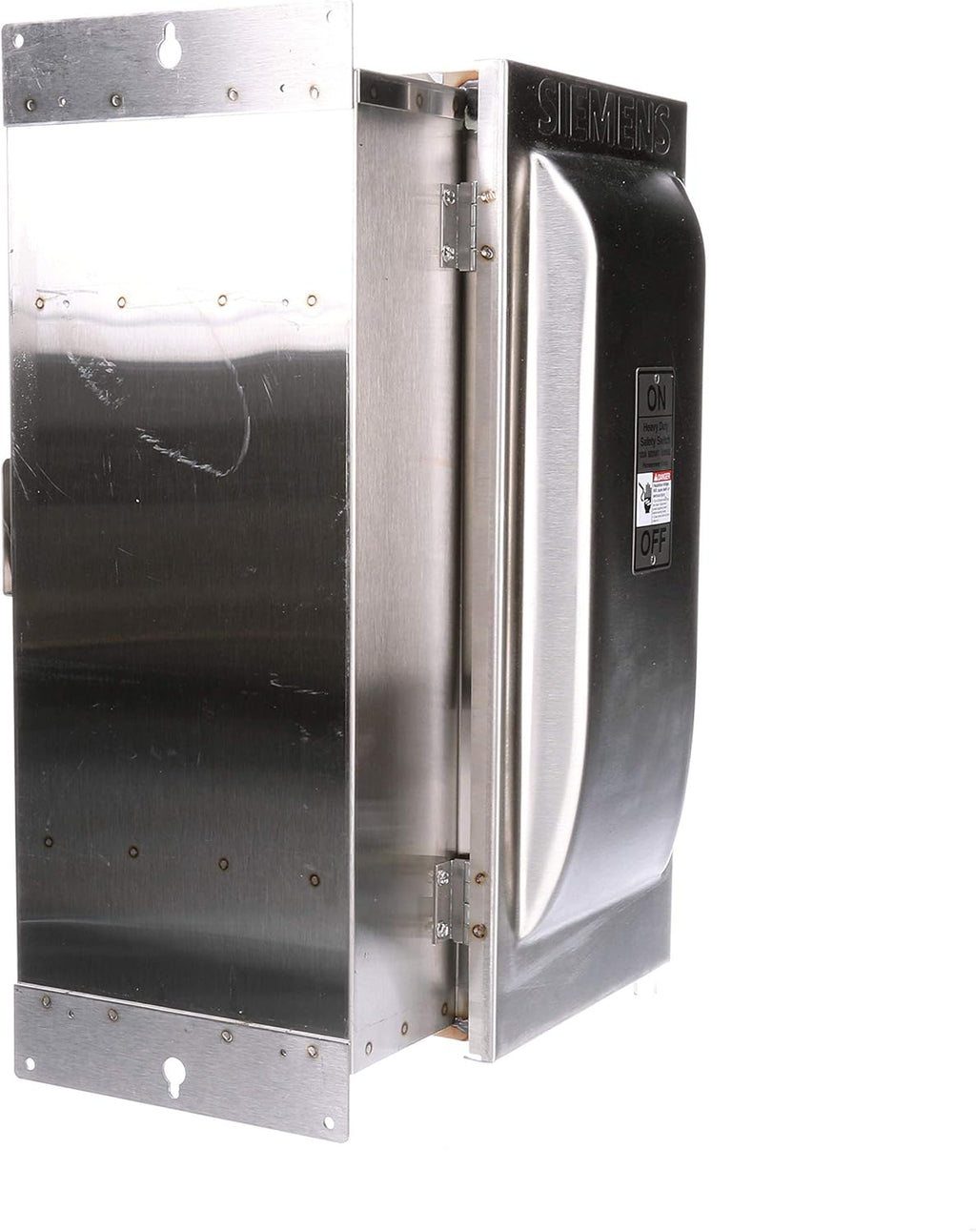

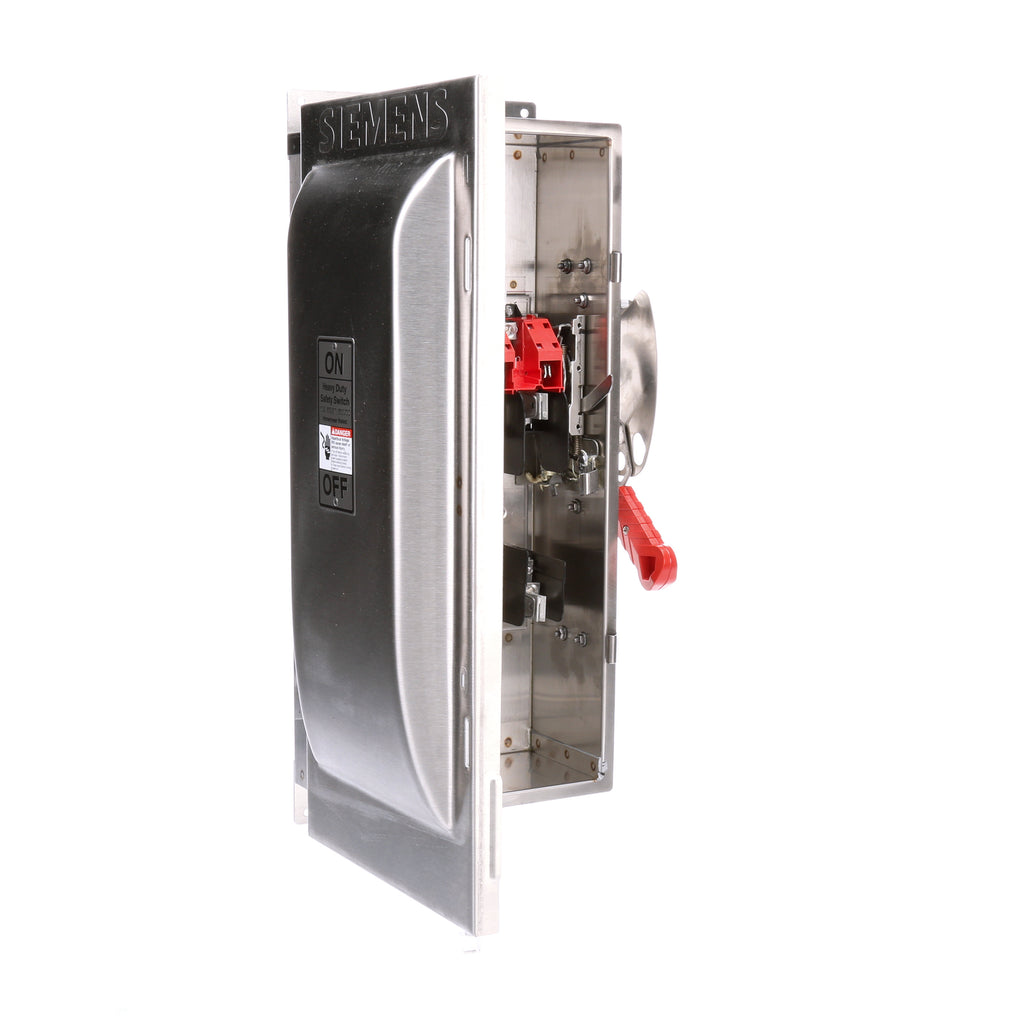

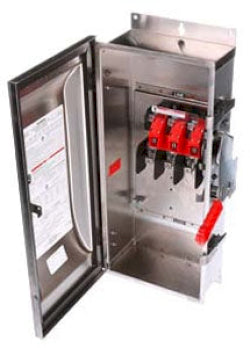

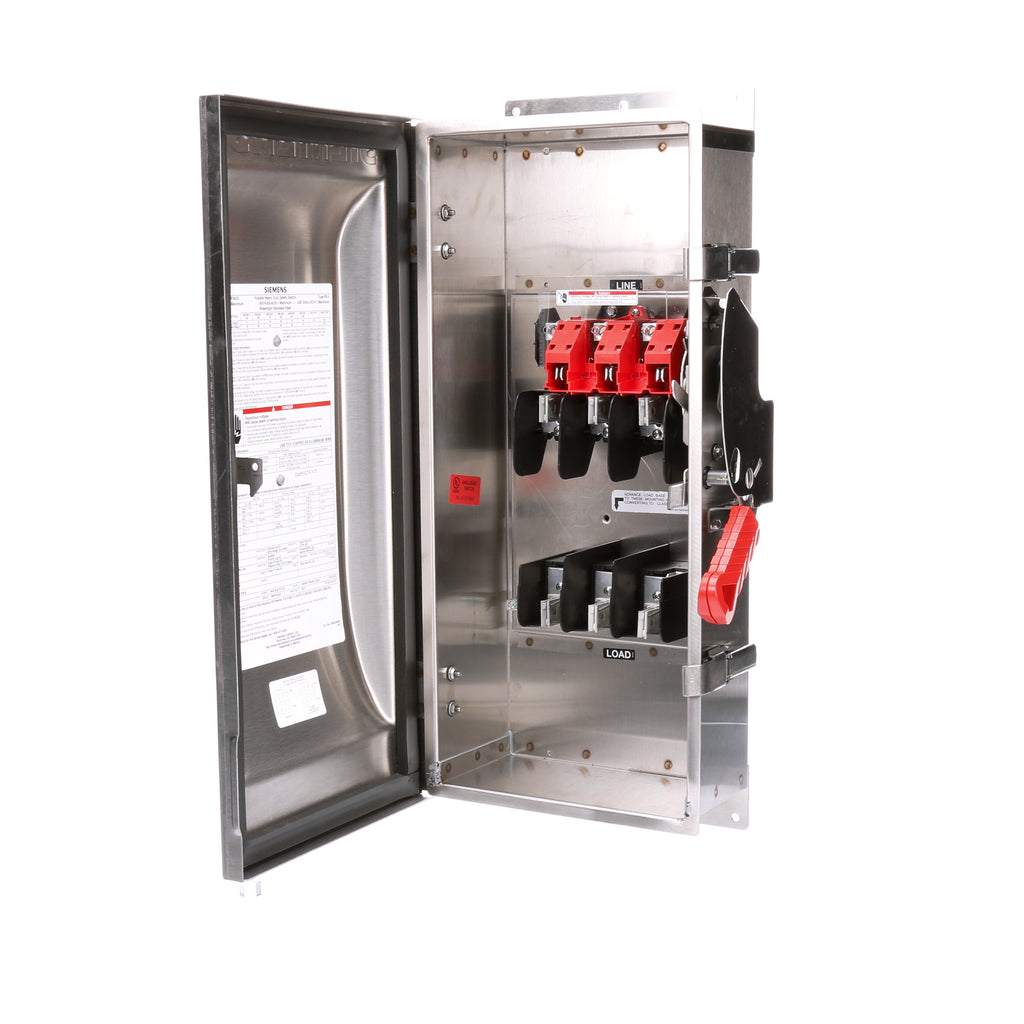

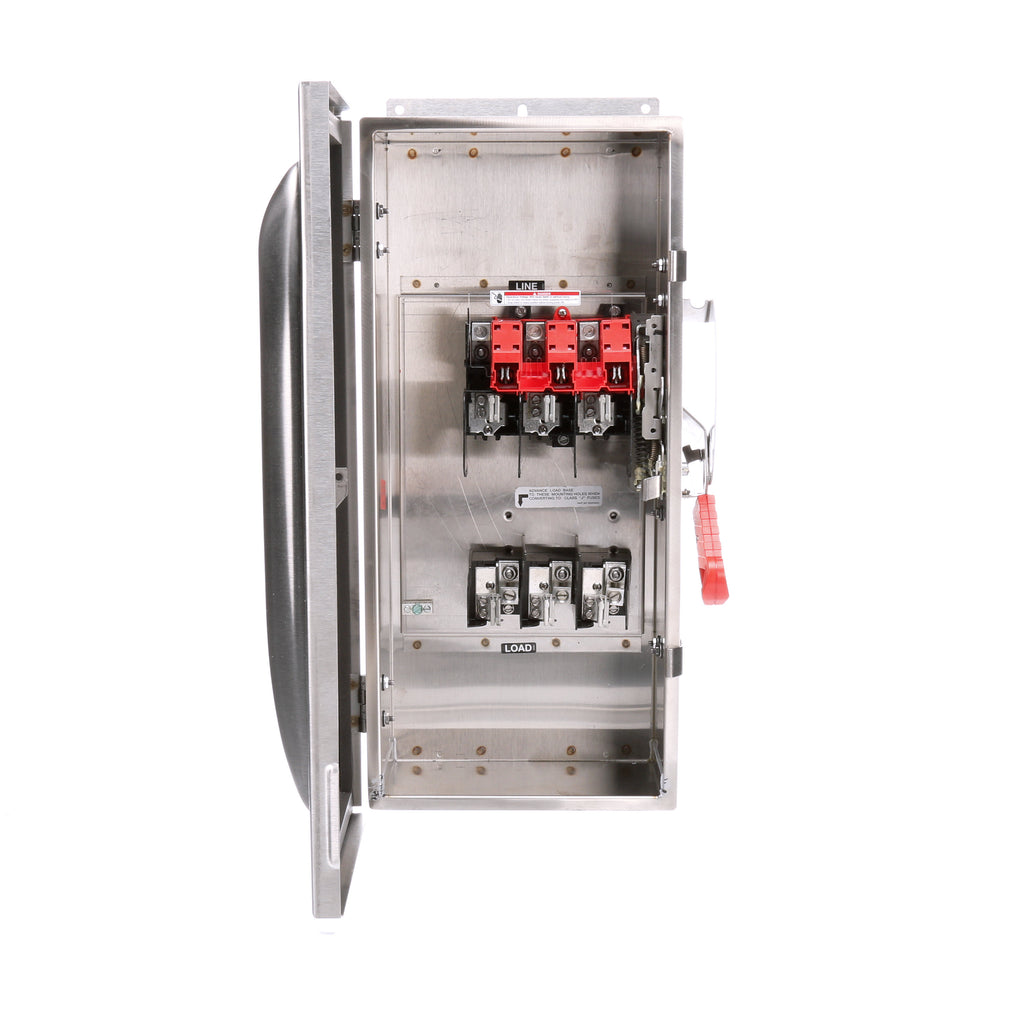

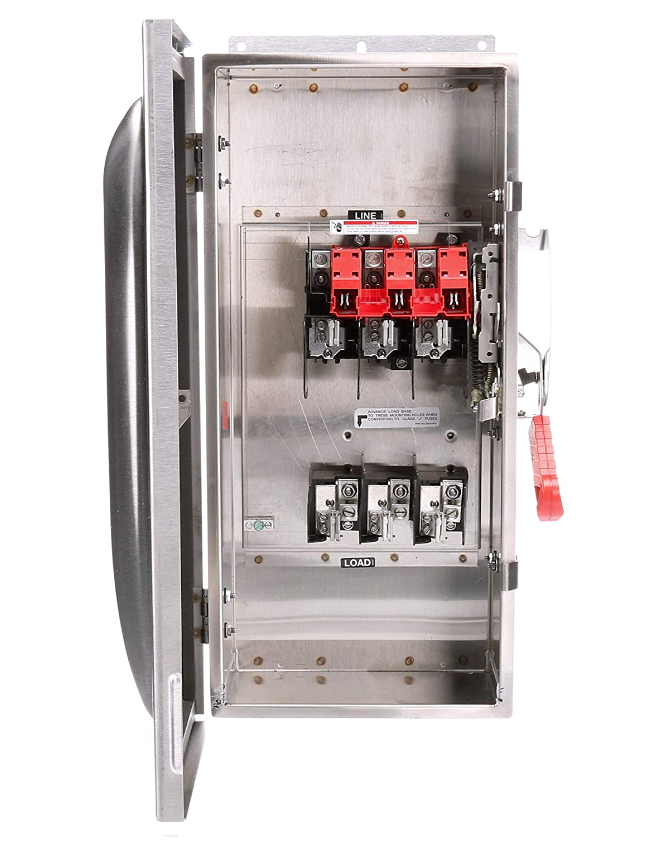

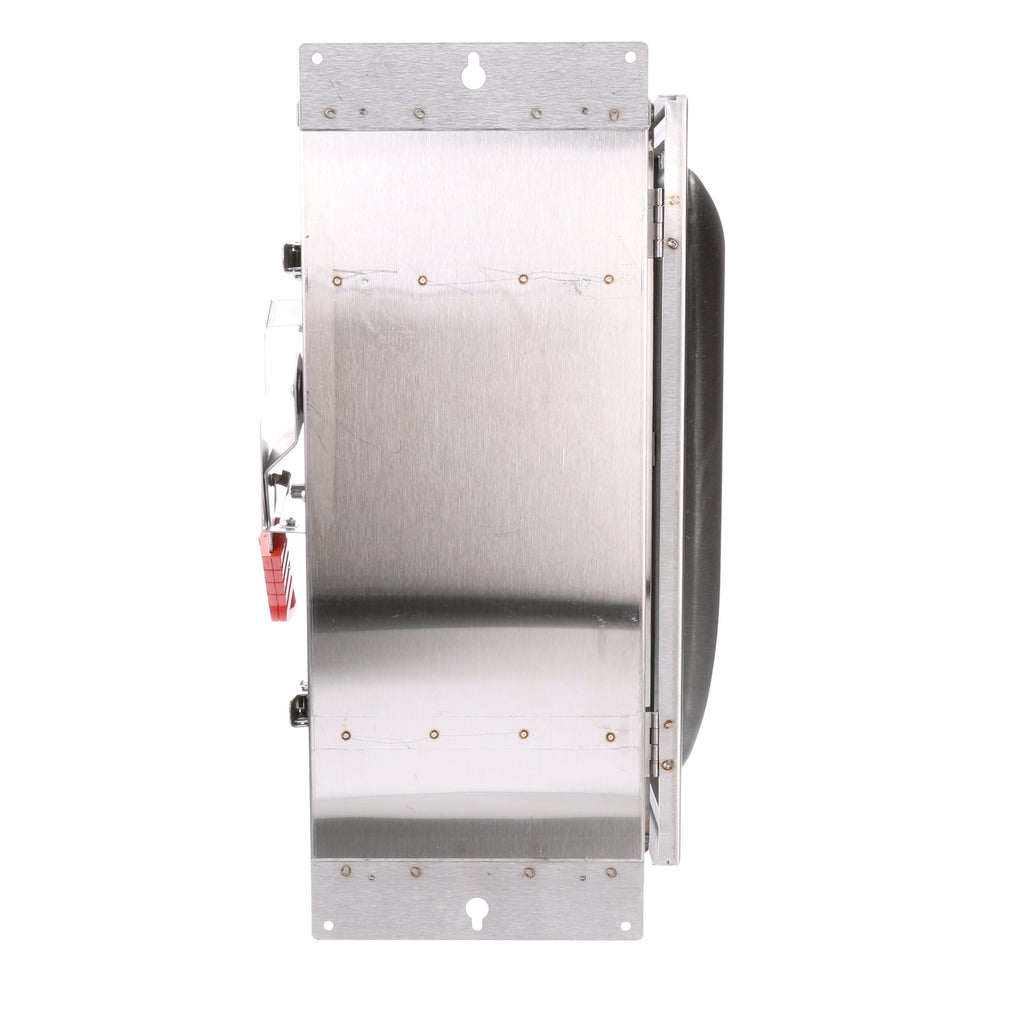

HF363S - Siemens 100A 600V 3-Pole Heavy Duty Fused Safety Switch NEMA 4X Surface Mount

HF363S

HF363S is a Siemens heavy duty fused safety switch rated for 100 amps and 600 volts AC with a 3-pole configuration and NEMA 4X stainless steel enclosure.This Siemens HF363S safety switch features a Type VBII enclosed fusible design with a 200kA interrupt rating at 600V, suitable for heavy duty low voltage applications. It includes a 3-pole, 3-wire setup with a 3PST contact form, surface mounting, and lug terminals. The enclosure is made of 304 stainless steel, rated NEMA 4X for corrosion resistance and durability, and supports horsepower ratings of 25 hp at 600V. It is UL and CSA certified for safety and reliability.

Key Specifications
• Amperage Rating: 100 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 200kA @ 600V
• Enclosure Type: NEMA 4X, 304 Stainless Steel
• Mounting Type: Surface Mount
• Contact Form: 3PST (Triple Pole Single Throw)
• Type: Fusible Heavy Duty Safety Switch
• Horsepower Rating: 25 hp at 600V
• Terminal Type: Lug
• Certifications: UL, CSA
• Dimensions: Approx. 25 in H x 10.43 in W x 10.46 in D<(more...)


  Specifications

  • Part Number: HF363S
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Section : Fusible Disconnect Switch
  • Family : VBII Series
  • Type : HF
  • Voltage : 600 AC AC
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : NEMA 4X
  • Compatible Frames : PGP



  Product Data

  • UPC : 783643151994
  • GTIN : 00783643151994
  • Country of Origin : Mexico
  • Dimensions : 27.953 x 14.567 x 8.268 inch
  • Weight : 28.462 lb
  • Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
  • Certification : UL listed
