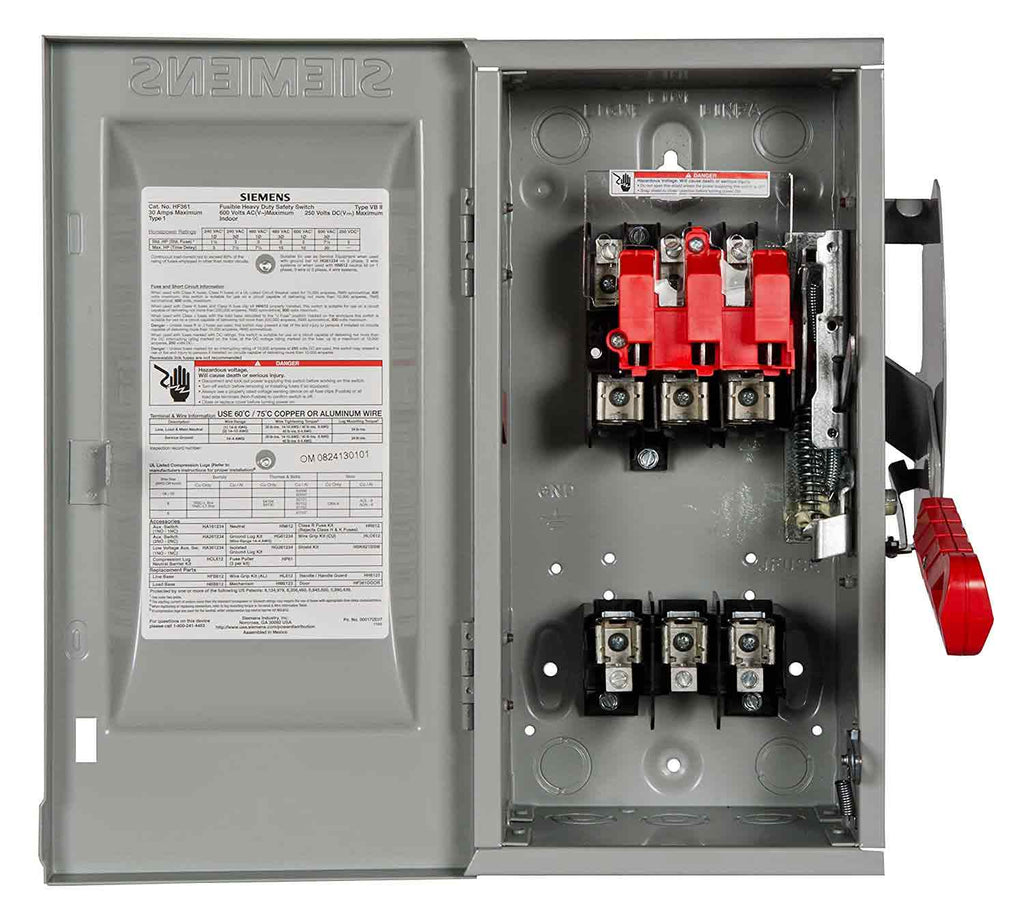

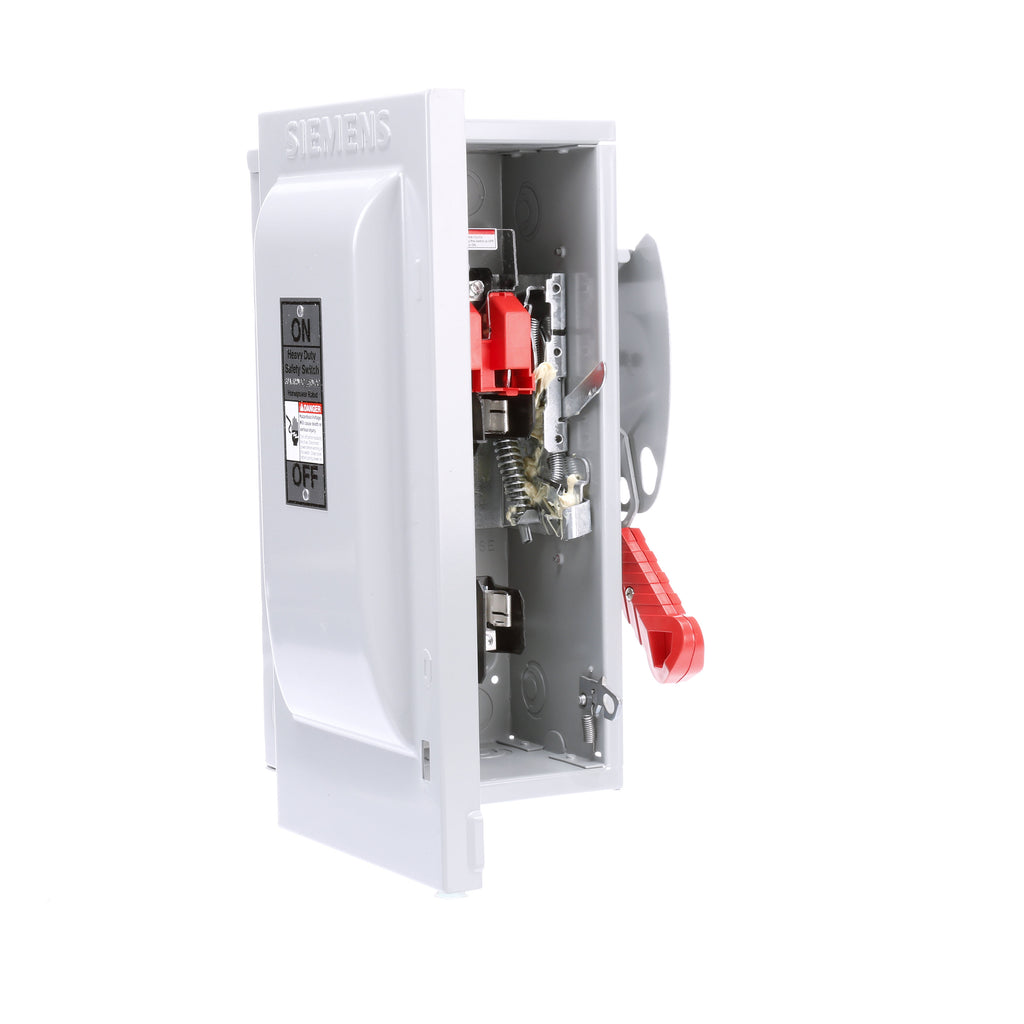

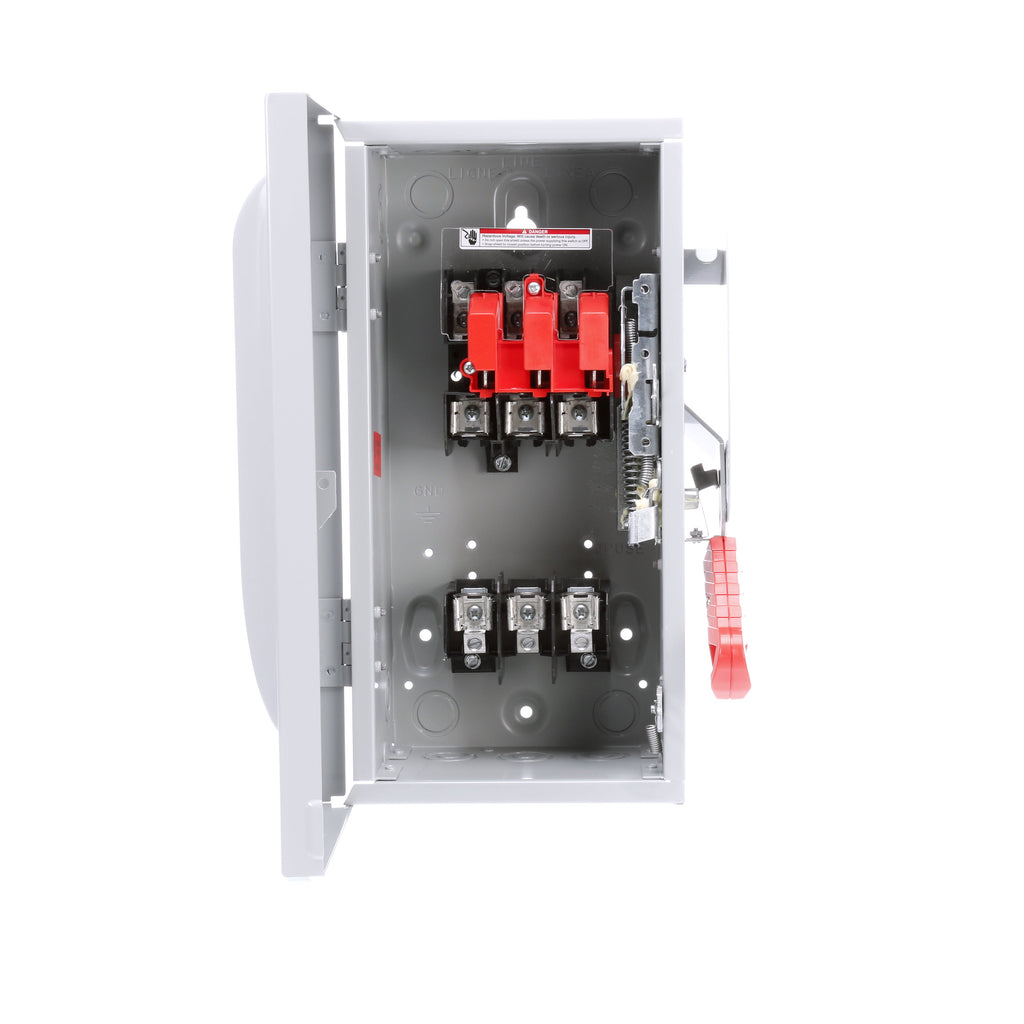

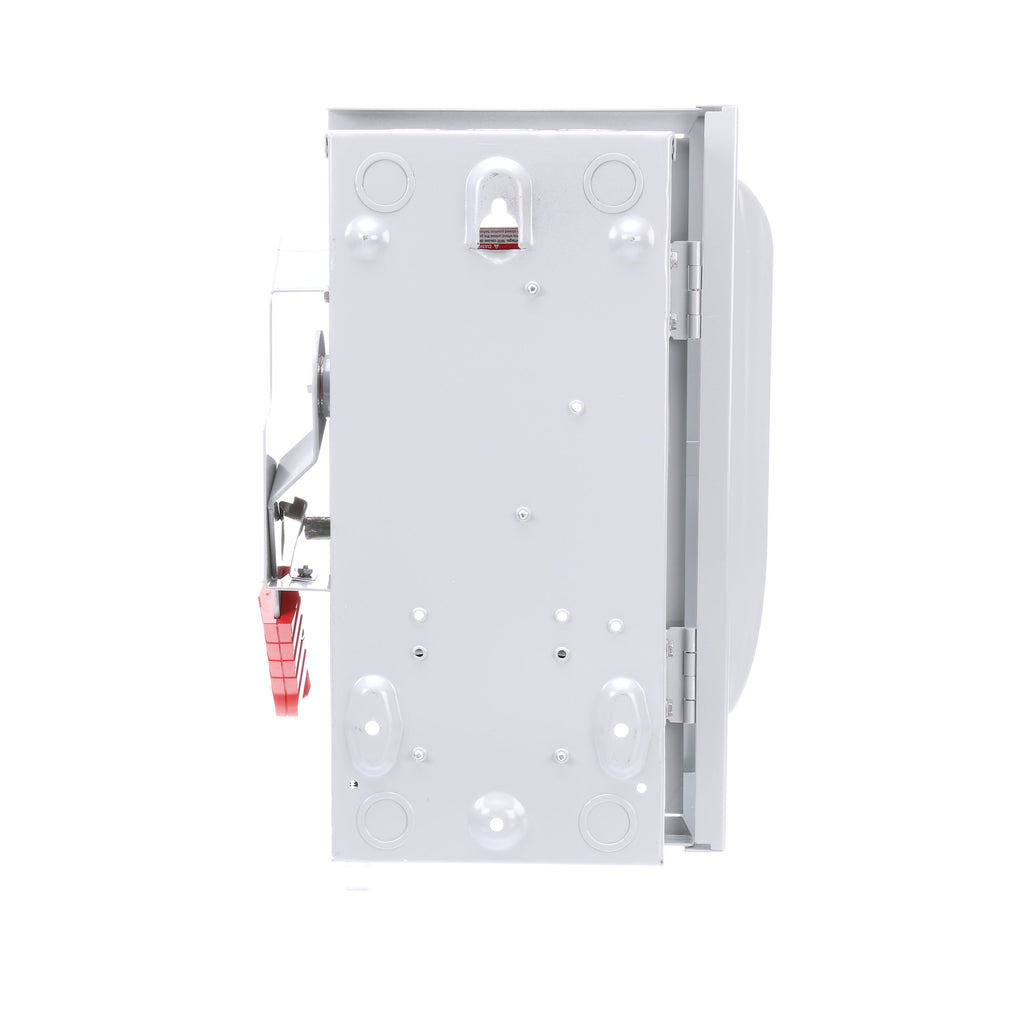

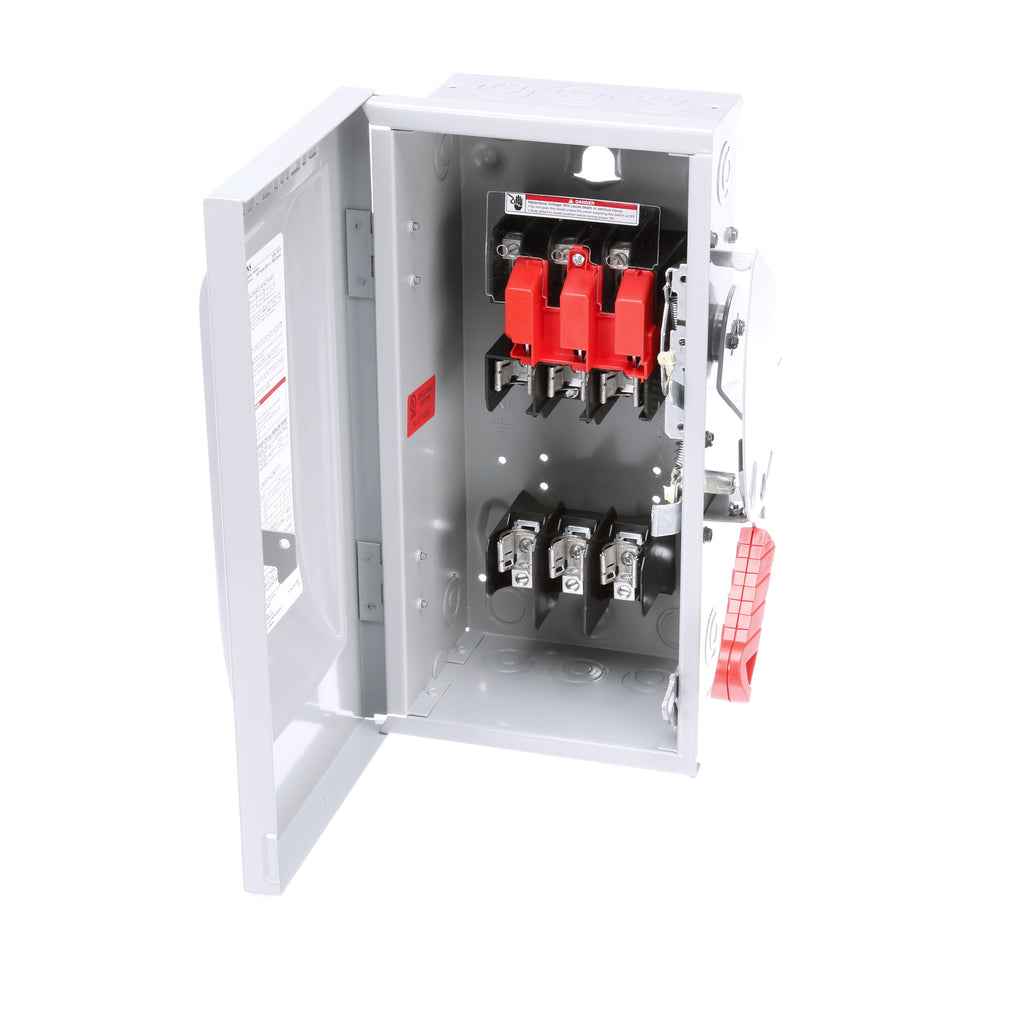

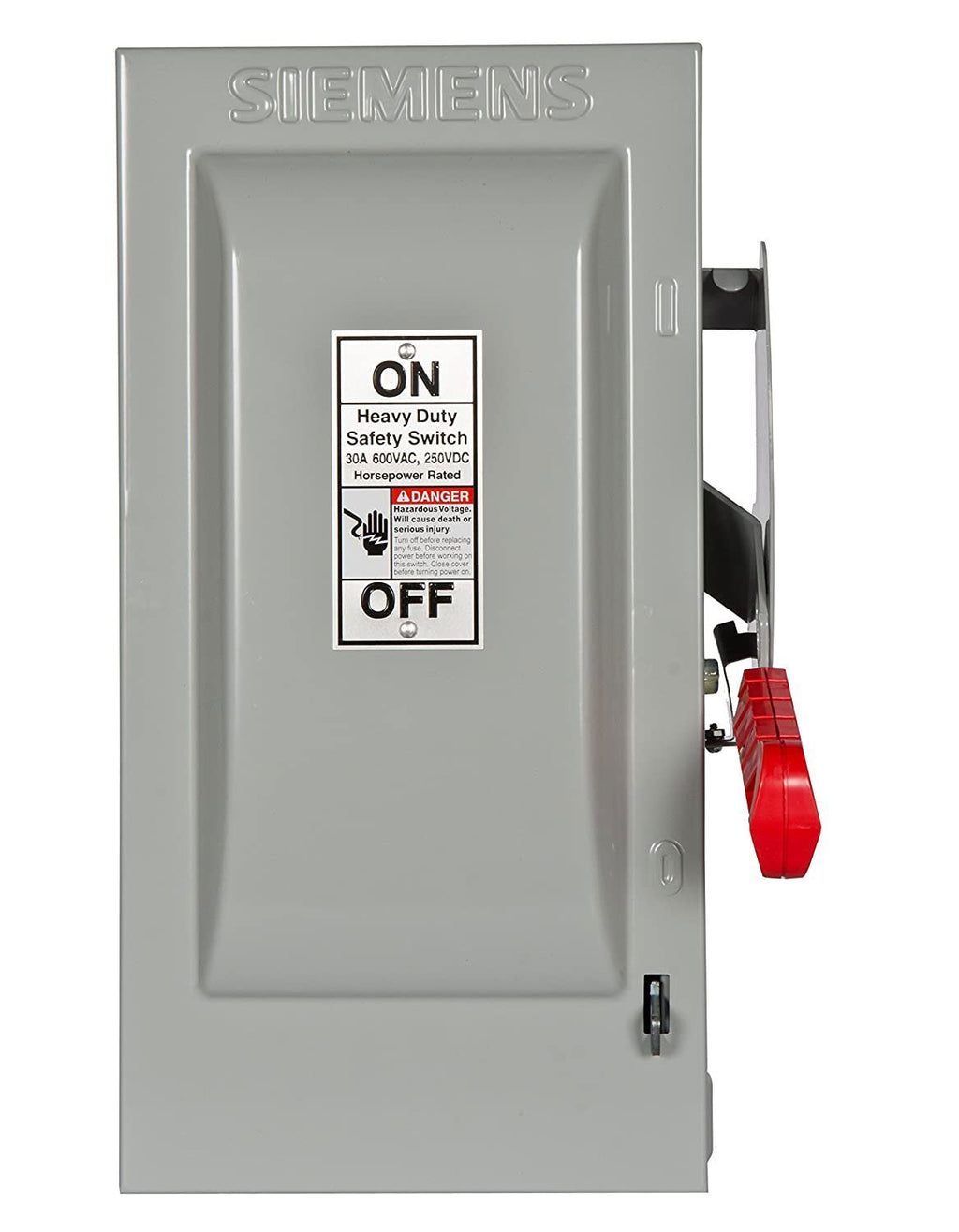

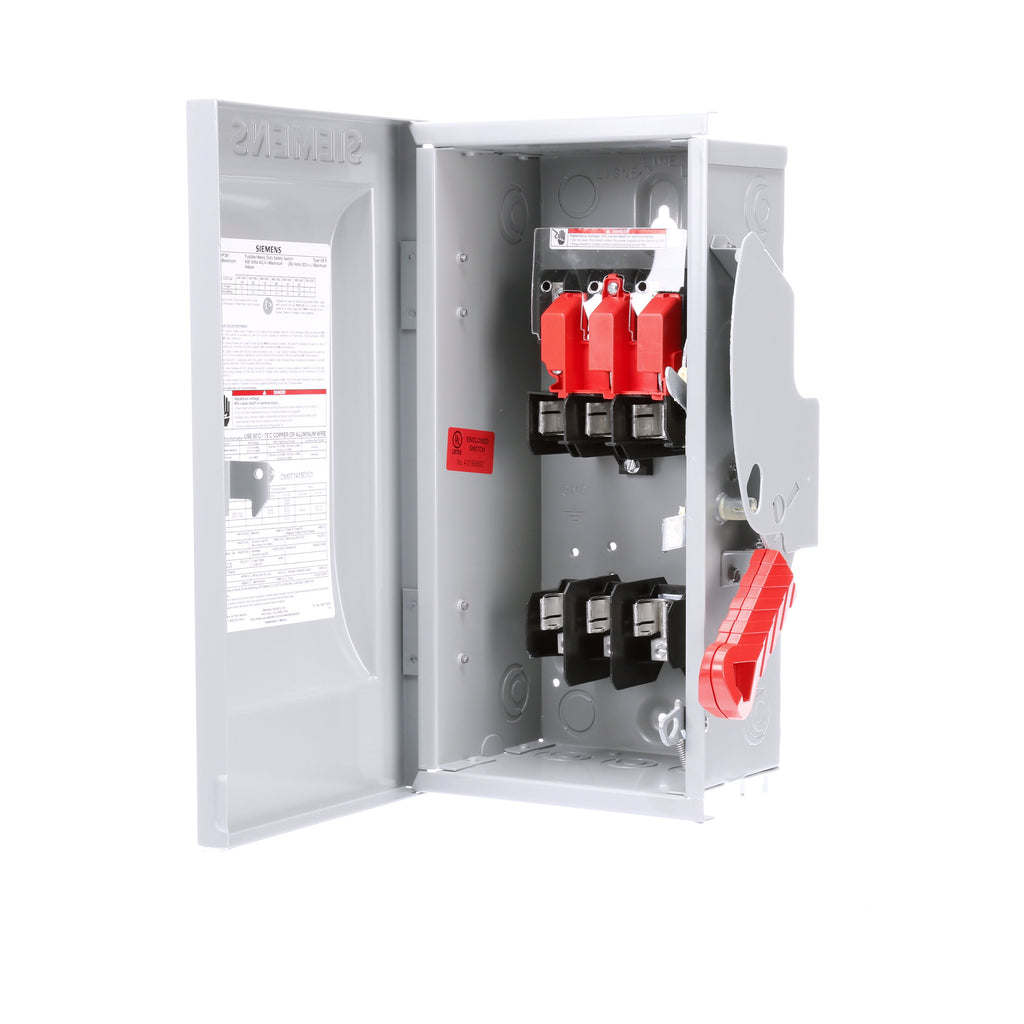

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Disconnect
- Series
- VBII Series
- Frame
- HF
- Rated current
- 30
- Voltage
- 600 AC AC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@600V
- Configuration
- Single
- Switch style
- Fusible
- Fuse class
- R
- NEMA rating
- NEMA 1
- Country of origin
- Mexico
Show all specifications (8 more)
- Section
- Fusible Disconnect Switch
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- PAF
- UPC
- 783643151000
- GTIN
- 00783643151000
- Dimensions
- 14.6 x 7.75 x 8.89 inch
- Weight
- 13.001 lb
- Certification
- UL listed
Product description & additional details
HF361
HF361 is a Siemens enclosed fusible heavy duty low voltage single throw safety switch rated for 600 VAC at 30 amperes with 7-1/2 horsepower at 3 phase operation.
This heavy duty safety switch features a quick-make, quick-break operating mechanism with visible blade and double break switching action. The switch includes arc chutes to dissipate heat and prolong switch life, a highly visible red handle grip designed for hook stick operation, and a defeatable dual cover interlock. The side-hinged door opens 180 degrees for easier wiring, and the enclosure design increases rigidity while protecting conductors and installer hands. Spring reinforced fuse clips assure reliable contact for cool operation, and the door latch securely holds the door closed while allowing cover padlocking. Tangential knockouts through 600 A provide easy conduit lineup.
- Amperage Rating: 30 A
- Voltage Rating: 240/480/600 VAC, 250 VDC
- Number of Poles: 3
- Number of Wires: 3
- Phase: 3
- Horsepower: 7-1/2 hp at 600V 3-phase
- Short Circuit Current Rating: 200 kA
- Enclosure Type: NEMA 1
- Fuse Type: Class H/J/K/R Time Delay
- Contact Form: 3PST
- Terminal Type: Lug
- Operating Cycles: 10,000
- Temperature Rating: -20 to 120 degrees C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HF361
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PAF
Product Data
- UPC : 783643151000
- GTIN : 00783643151000
- Country of Origin : Mexico
- Dimensions : 14.6 x 7.75 x 8.89 inch
- Weight : 13.001 lb
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : UL listed
