HF362R - Siemens 60 Amp 600 Volt 3-Pole Fusible NEMA 3R Heavy Duty Safety Switch

HF362R

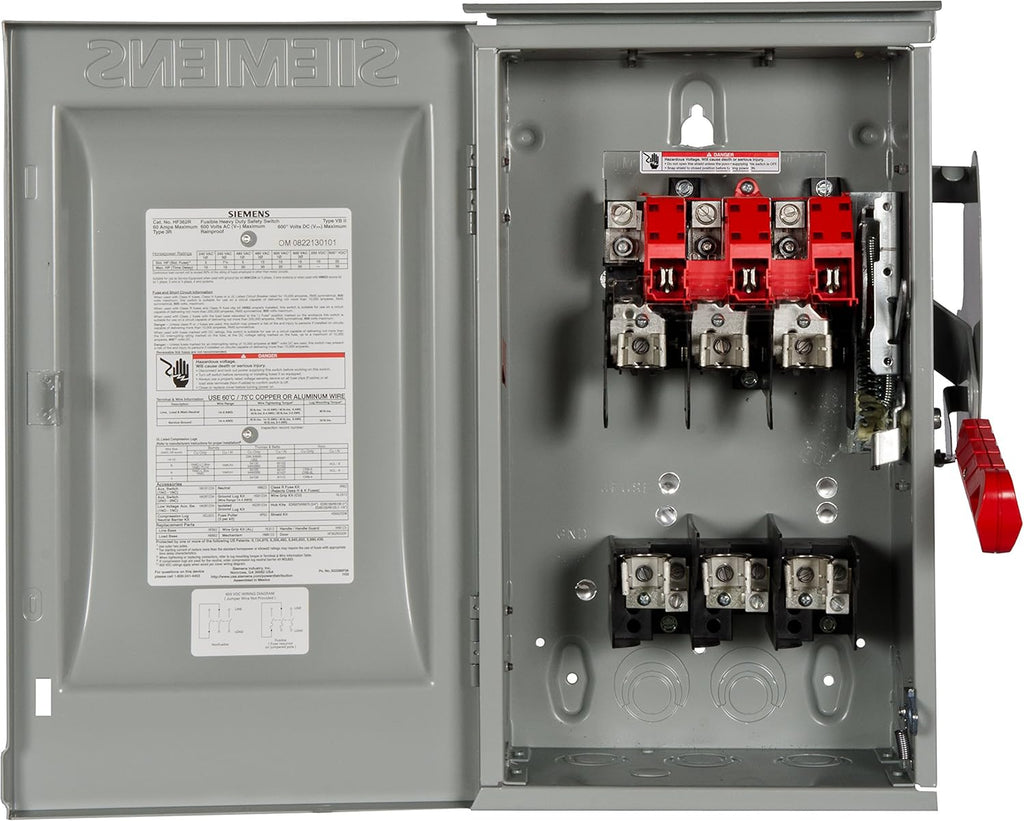

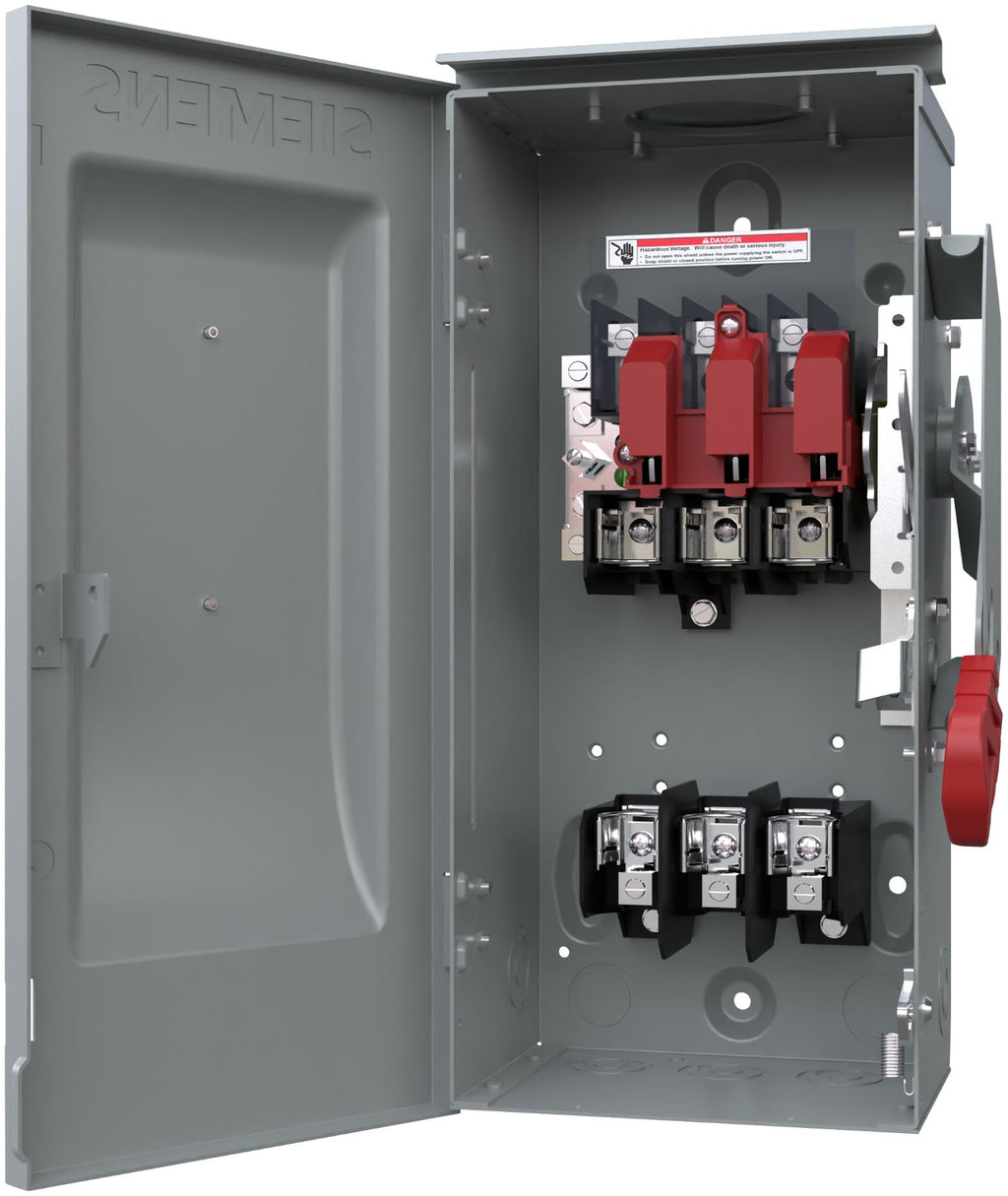

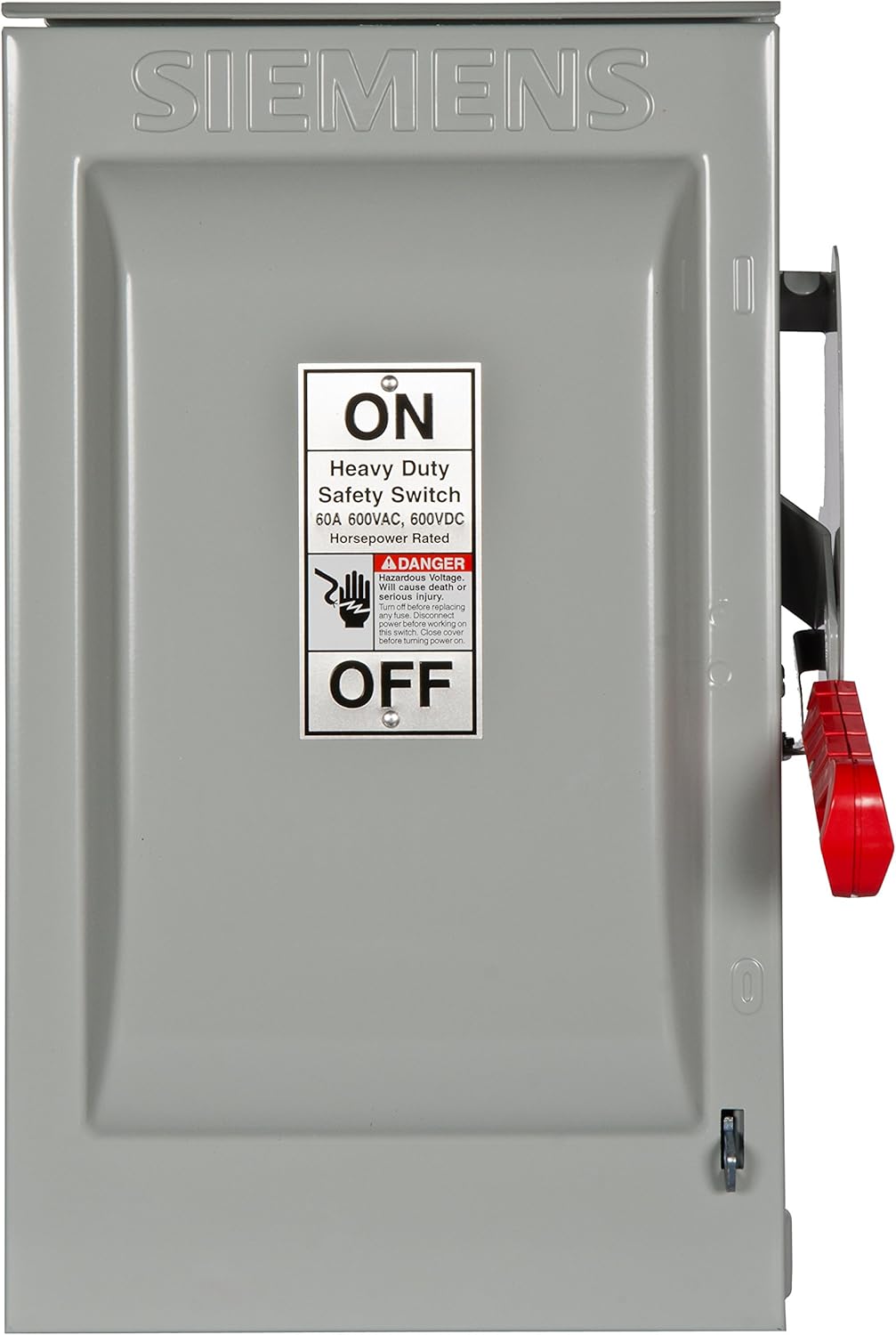

HF362R is a Siemens 60 Amp 600 Volt 3-Pole Fusible Safety Switch designed for heavy-duty applications with NEMA 3R enclosure rating.This switch features a 3-pole, 3-wire configuration with a fusible design, suitable for 480/600 VAC and 250/600 VDC systems. It includes a highly visible red handle actuator and offers a short circuit rating of 200 kA RMS. The enclosure meets NEMA 3R standards for outdoor use, providing robust protection and durability. It is UL listed and meets UL98 and UL50 standards for switches and enclosures.

Key Specifications
• Amperage: 60 Amp
• Voltage: 600 Volt AC/DC
• Poles: 3
• Wires: 3
• Mounting Type: Heavy Duty Fusible Safety Switch
• Interrupt Rating: 200 kA RMS
• Enclosure: NEMA 3R
• Contact Form: 3PST
• Actuator: Highly Visible Red Handle
• Certifications: UL Listed (UL98, UL50)
• Dimensions: Approx. 16.26 in H x 10.43 in W x 10.17 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help yo(more...)

Specifications

• Part Number: HF362R
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible Disconnect Switch
• Family : VBII Series
• Type : HF
• Voltage : 600 AC AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : PGP

Product Data

• UPC : 783643151291
• GTIN : 00783643151291
• Country of Origin : Mexico
• Dimensions : 16.93 x 10.41 x 9.21 inch
• Weight : 18.999 lb
• Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
• Certification : UL listed
