HF361S - Siemens 30 Amp 600 Volt 3-Pole Type 4X Fusible Heavy Duty Safety Switch

HF361S

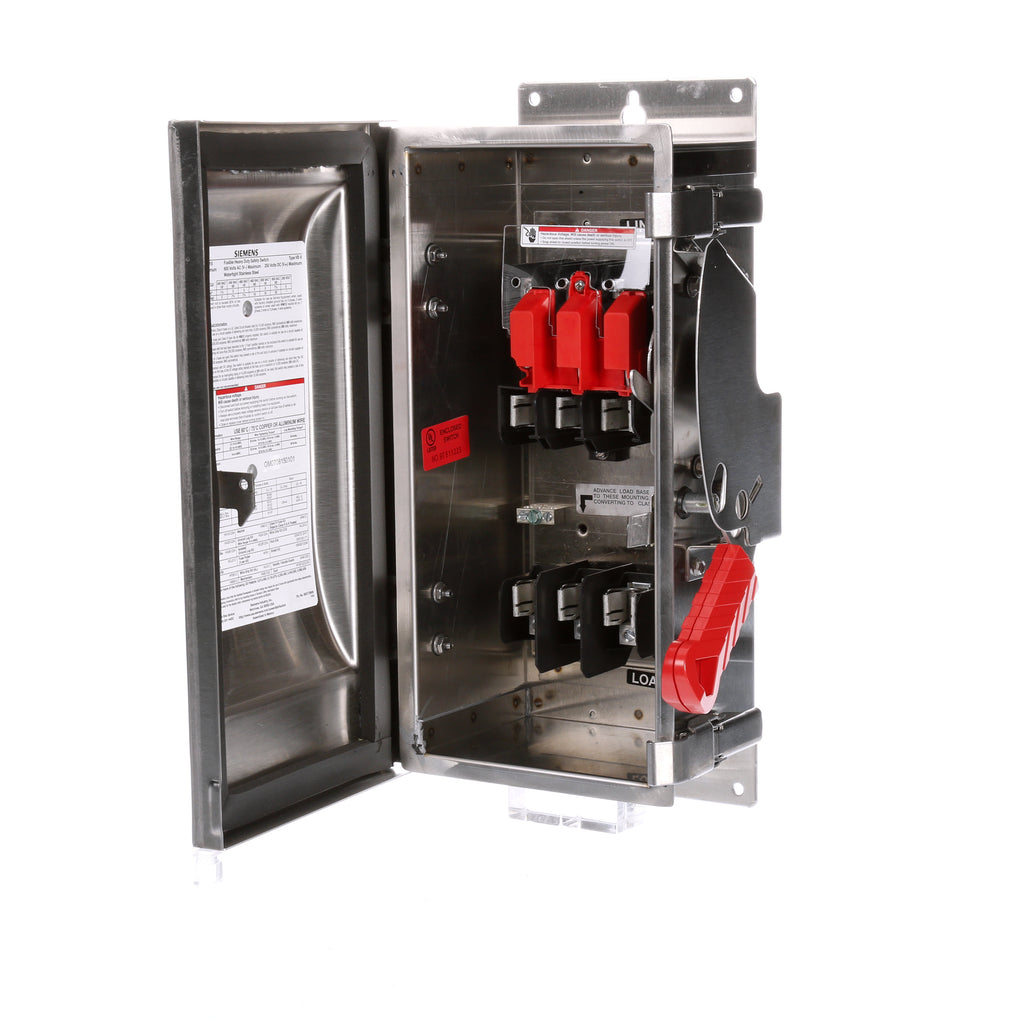

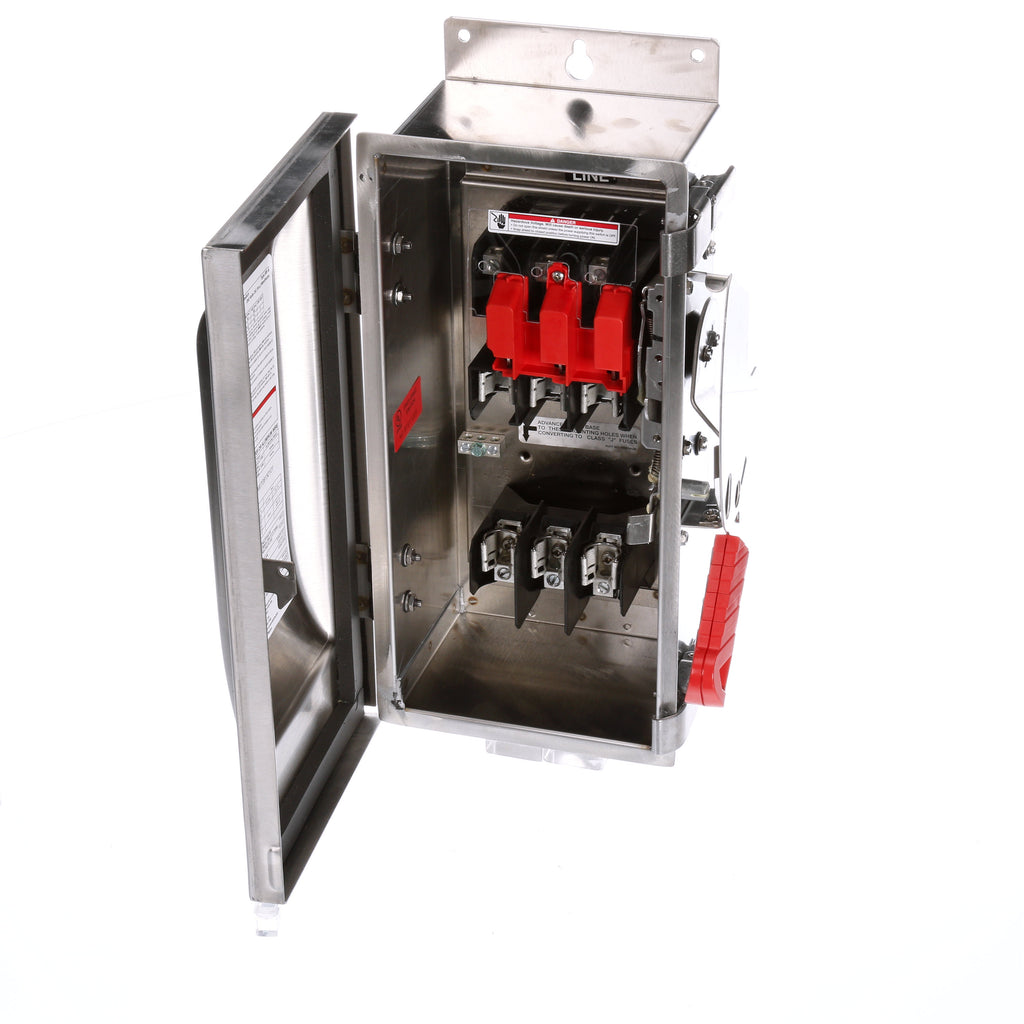

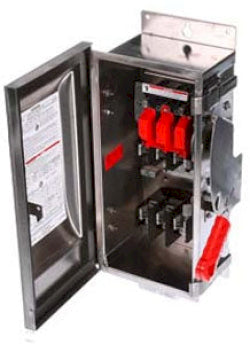

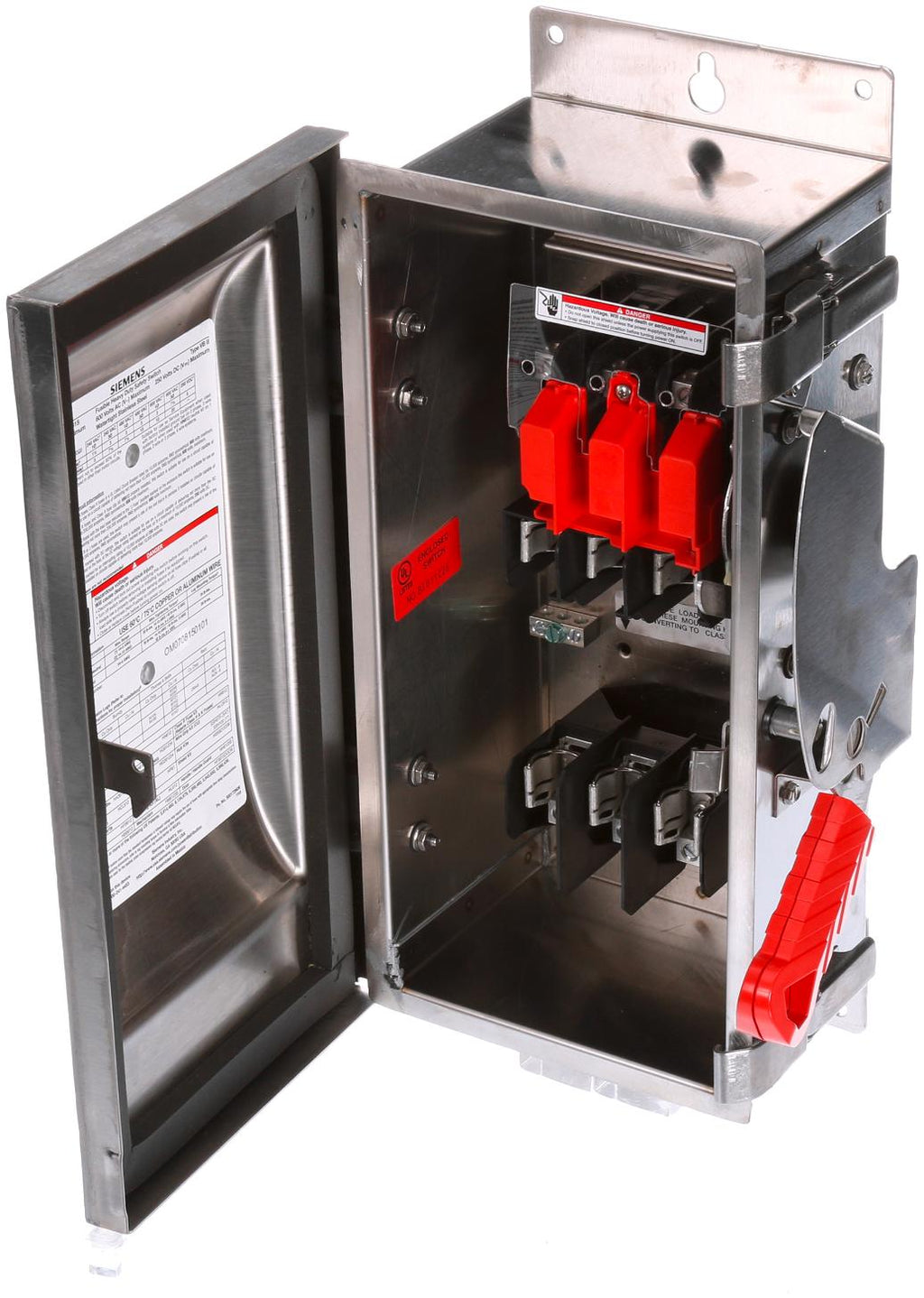

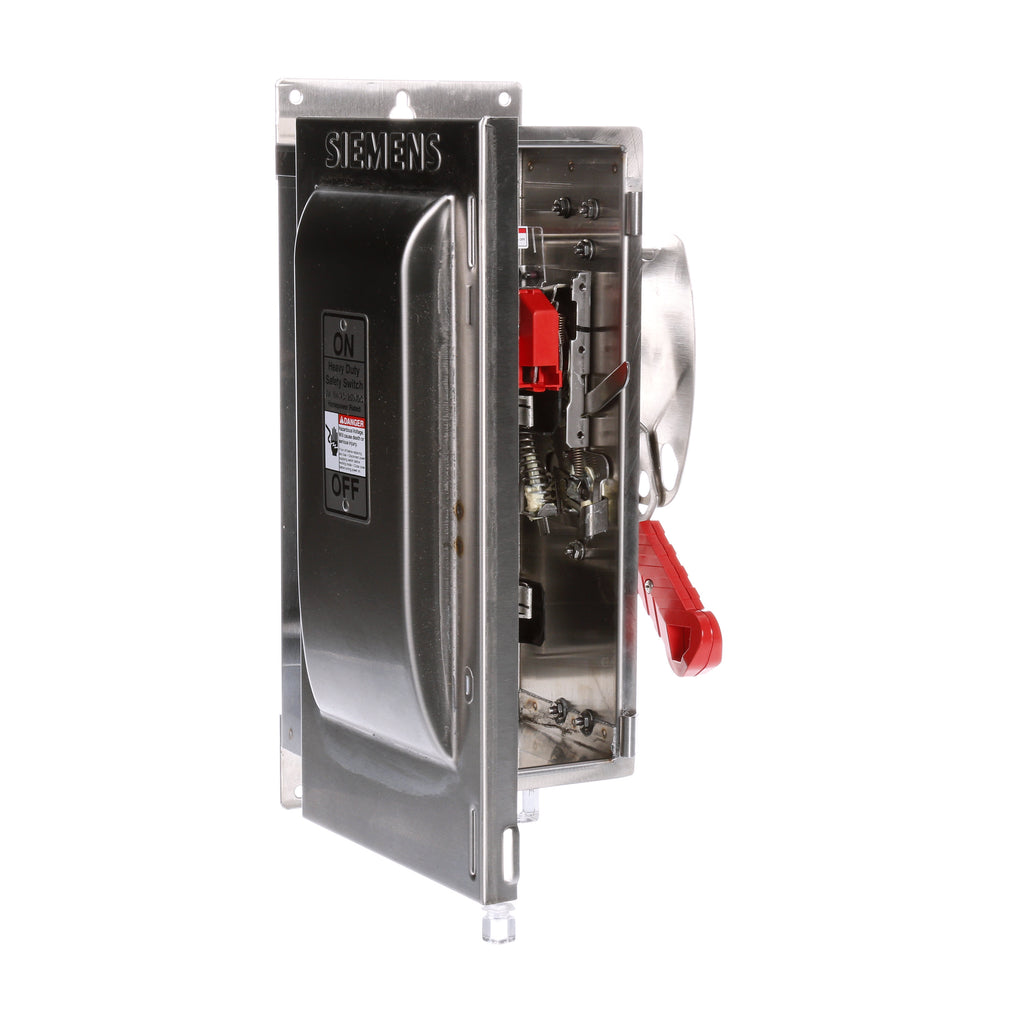

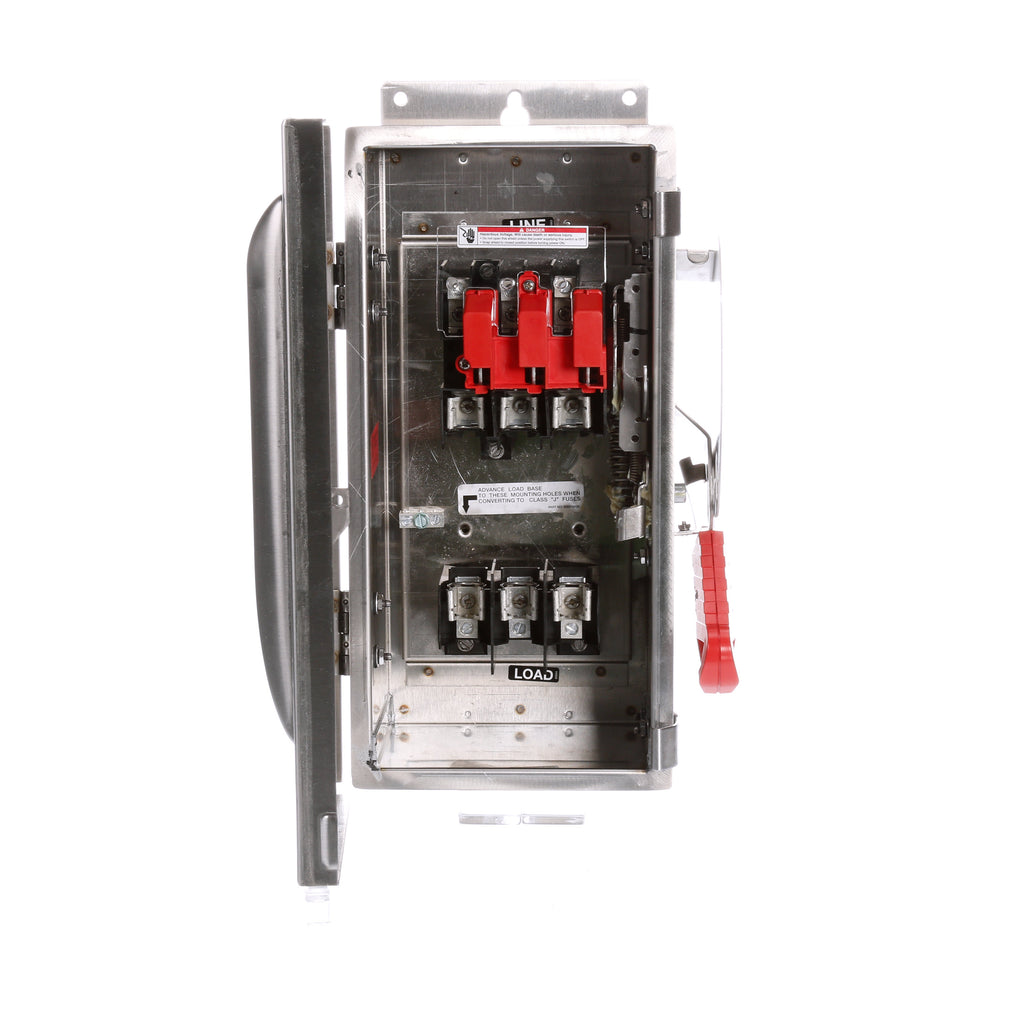

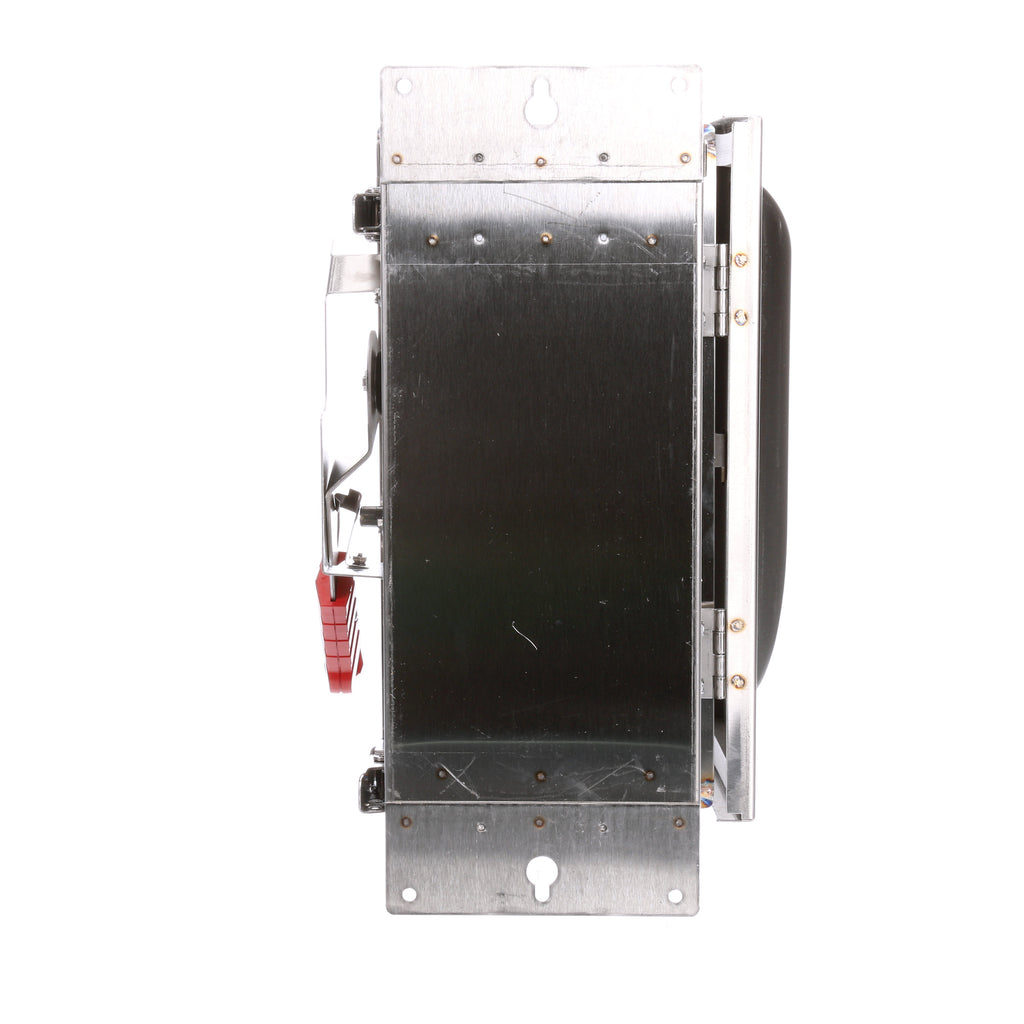

HF361S is a Siemens heavy duty safety switch designed for low voltage circuit protection with a 30 amp, 600 volt rating and 3-pole configuration.This Type 4X enclosed fusible safety switch features a 304 grade stainless steel enclosure, suitable for harsh environments, and is UL listed for safety and reliability. It supports 3-wire operation with a triple-pole single-throw (TPST) contact form and is rated for 10,000 AIC with Class H fuses or up to 200,000 AIC with Class R and J fuses, ensuring robust interrupting capacity. The switch includes a double break visible blade design for clear ON/OFF indication and is suitable for use as service entrance equipment.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Enclosed, Type 4X Stainless Steel
• Interrupt Rating: Up to 200,000 AIC with Class R/J fuses
• Contact Form: Triple-Pole Single-Throw (TPST)
• Enclosure Material: 304 Grade Stainless Steel
• UL Listed under file #E4776
• Meets UL98 and UL50 standards
• NEMA 4X rated enclosure
• Double br(more...)


  Specifications

  • Part Number: HF361S
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Section : Fusible Disconnect Switch
  • Family : VBII Series
  • Type : HF
  • Voltage : 600 AC AC
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : NEMA 4X
  • Compatible Frames : PAF



  Product Data

  • UPC : 783643151970
  • GTIN : 00783643151970
  • Country of Origin : Mexico
  • Dimensions : 20.079 x 11.417 x 7.874 inch
  • Weight : 17.637 lb
  • Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
  • Certification : UL listed
