Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HF361JW

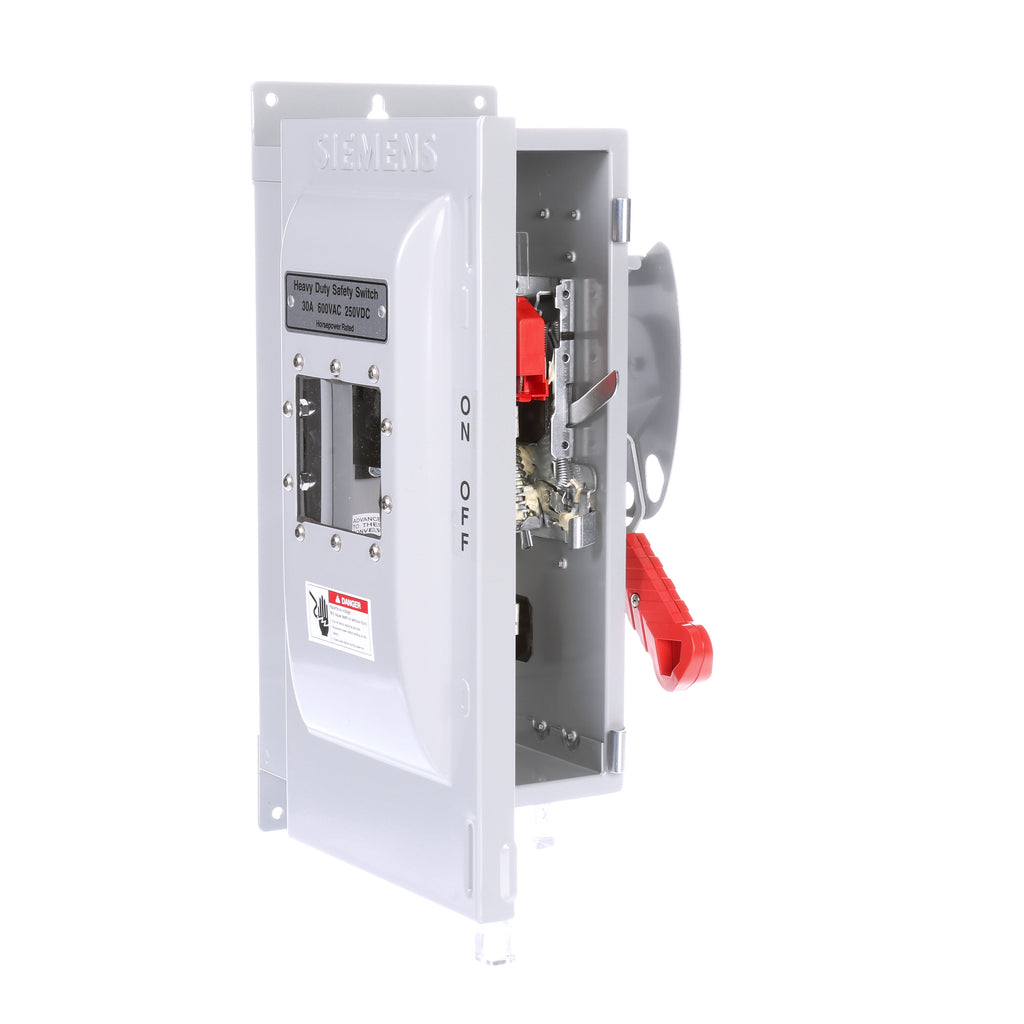

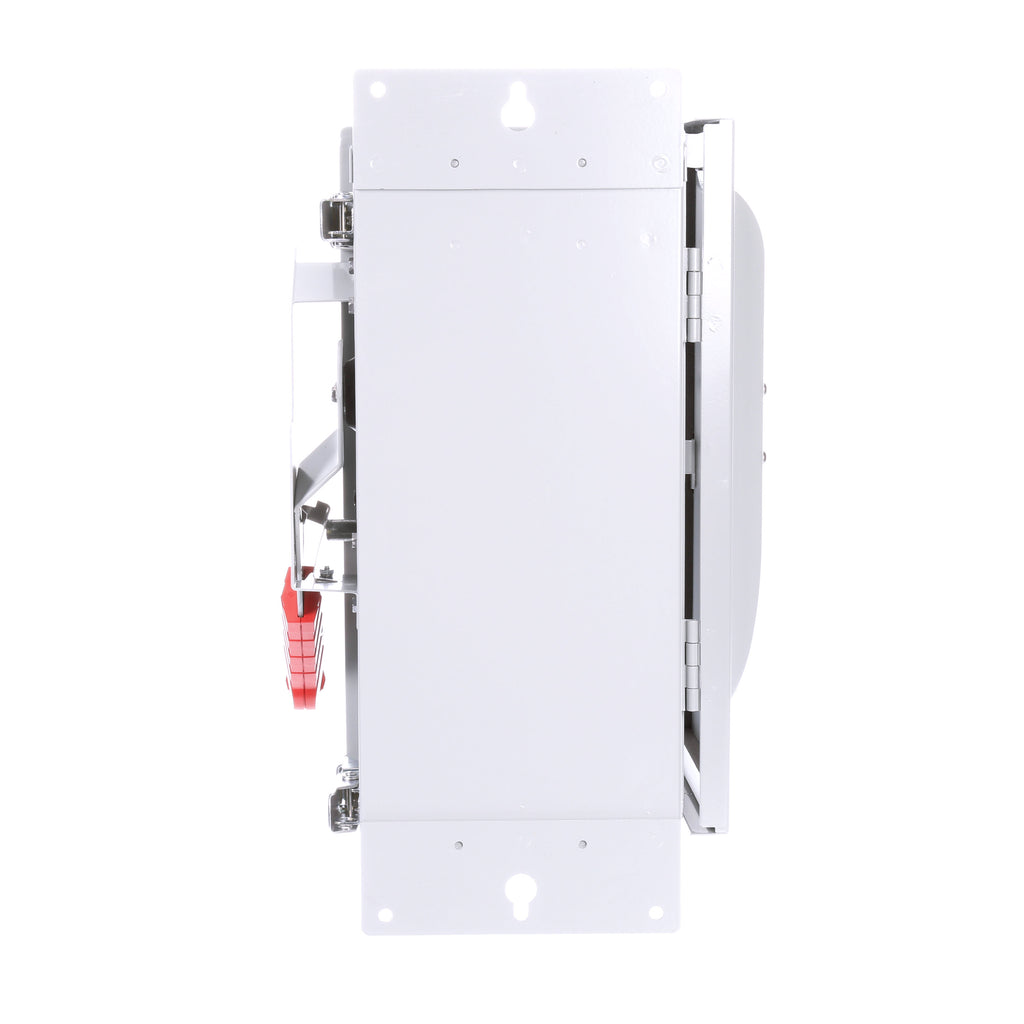

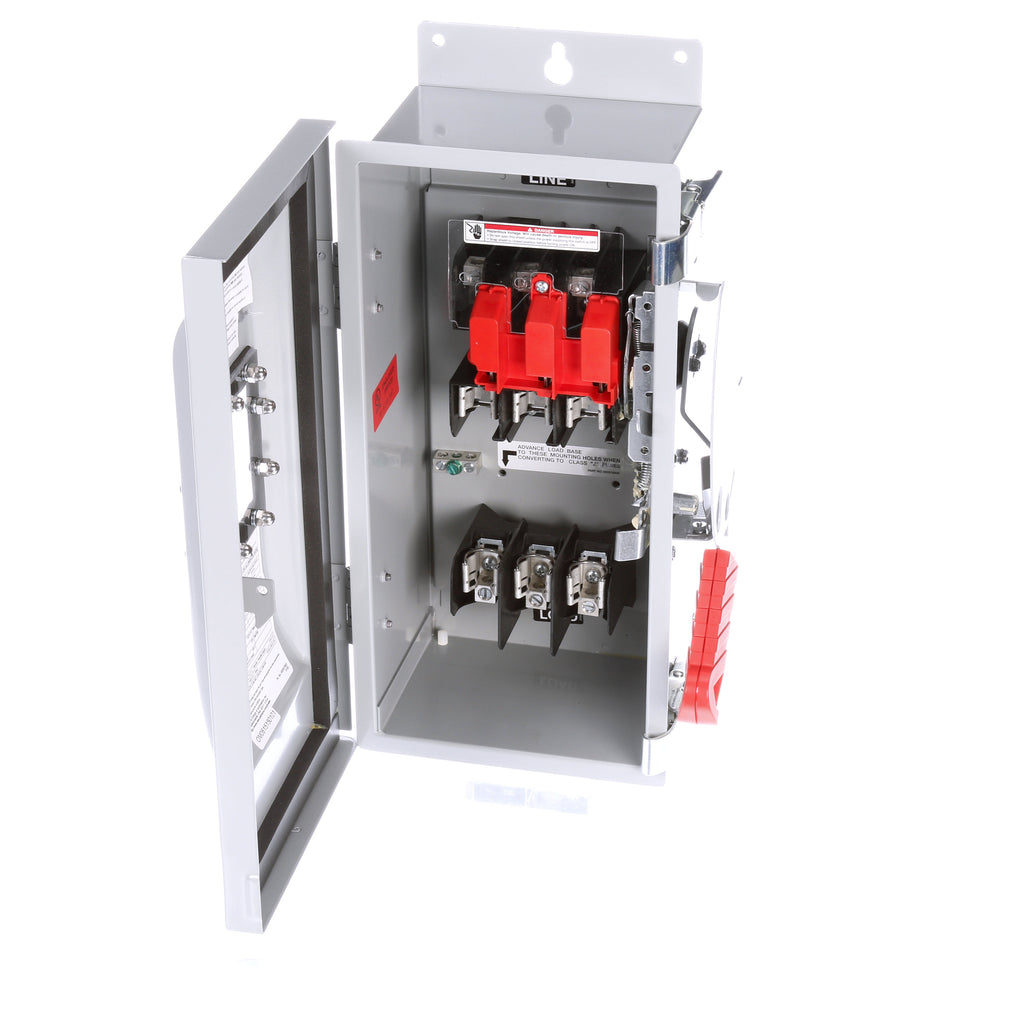

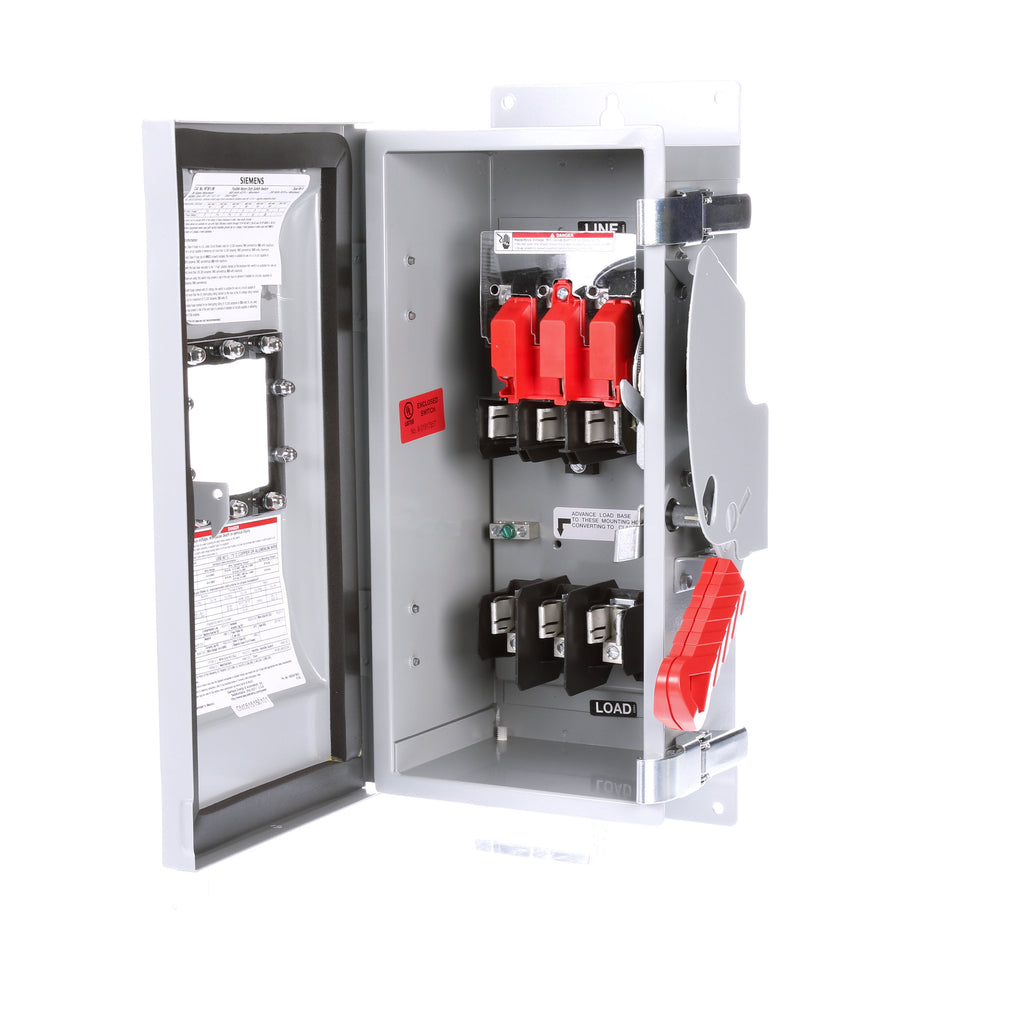

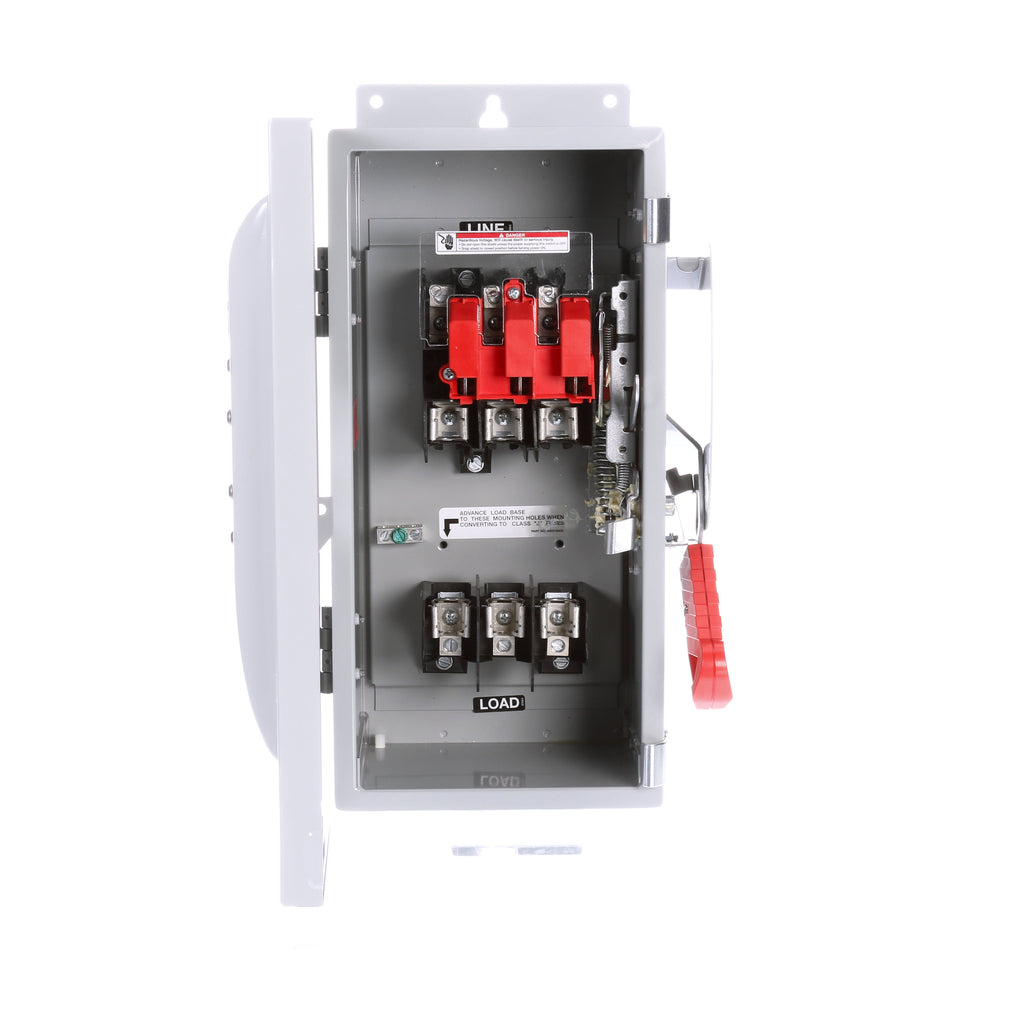

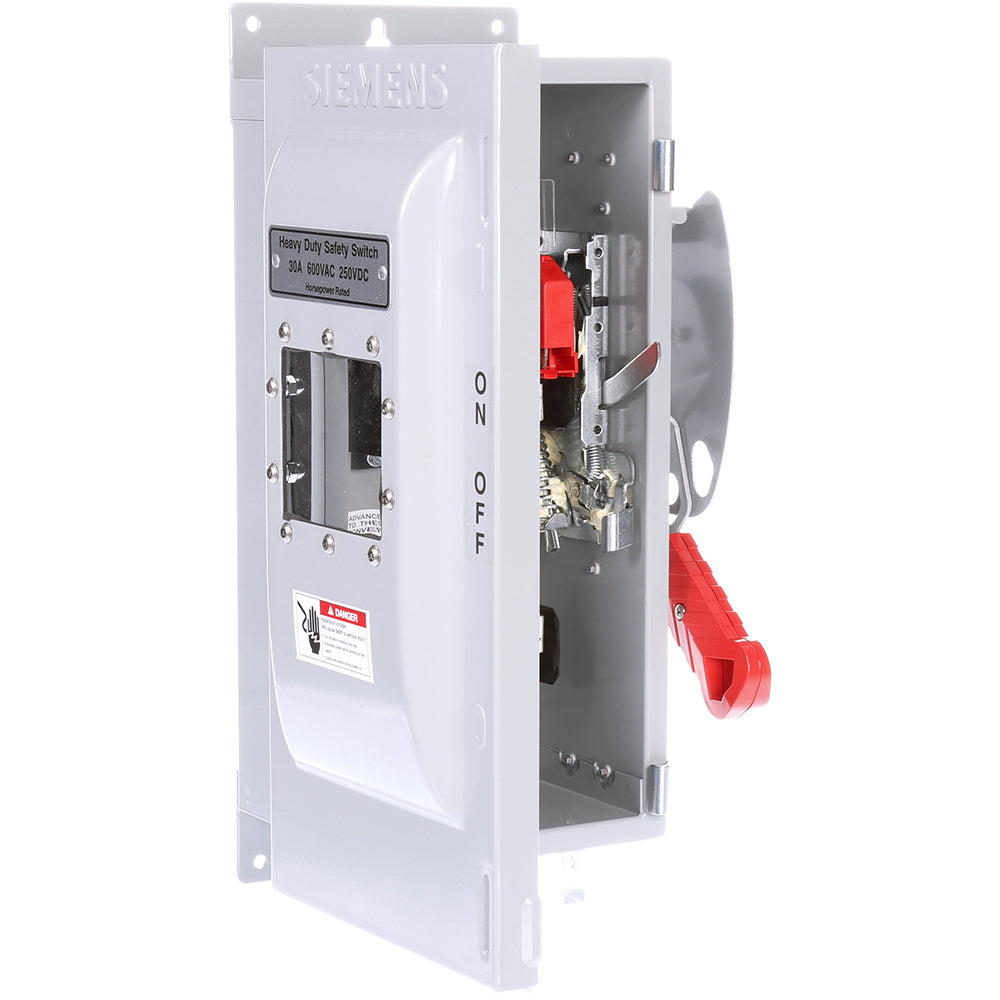

HF361JW is a Siemens heavy duty fusible safety switch rated for 30 amps and 600 volts AC with 3 poles.HF361JW features a Type VBII enclosed fusible design suitable for low voltage applications up to 600 VAC and 600 VDC. It supports three-phase power with a 3-wire configuration and is constructed for indoor use with galvanized steel housing. This switch is designed for reliable circuit protection and meets heavy duty industrial standards.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 600 VDC
- Poles: 3
- Phase: 3-Phase
- Mounting Type: Enclosed Fusible
- Interrupt Rating: Heavy Duty
- Series/Frame: Type VBII
- Construction: Galvanized Steel
- Application: Indoor Use
- Wiring: 3-Wire
Specifications
- Part Number: HF361JW
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible Disconnect Switch
- Family : VBII Series
- Type : HF
- Voltage : 600 AC AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Fuse Class : R
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- Compatible Frames : PAF
Product Data
- UPC : 078364322185
- GTIN : 00783643221857
- Country of Origin : Mexico
- Dimensions : 20.079 x 11.417 x 7.874 inch
- Weight : 16.336
- Temp Rating : -13ÁF - 158ÁF (-25ÁC - 70ÁC)
- Certification : UL listed
