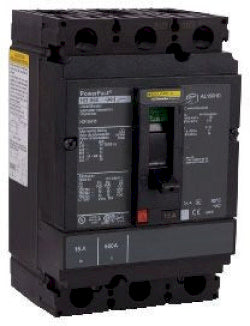

HDP36100 - Square D 100 Amp 600 VAC 3 Pole H Frame Molded Case Circuit Breaker

HDP36100

HDP36100 is a Square D 100 Amp, 3 Pole, H Frame molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a thermal magnetic trip unit, unit mount design, and is rated for up to 600 VAC or 250 VDC. It has a D interrupt rating with 18 kA at 480 V, 25 kA at 240 V, and 14 kA at 600 V, providing robust short-circuit protection. The breaker is UL 489 listed and meets CSA, NEMA, IEC, and CE certifications, ensuring compliance with multiple safety standards.

• Amperage: 100 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3 Pole
• Frame Type: H Frame
• Mounting Type: Unit Mount
• Interrupt Rating: D Code (18 kA @ 480 V, 25 kA @ 240 V, 14 kA @ 600 V)
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA, NEMA, IEC, CE
• Manufacturer: Square D by Schneider Electric
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDP36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDP
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901582052
• GTIN : 00785901582052
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.21
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
