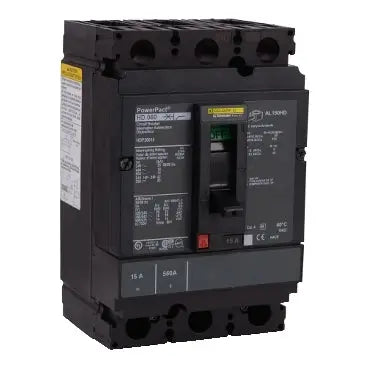

HDP36015 - Square D 15A 3-Pole 600VAC PowerPact H Circuit Breaker Thermal Magnetic 14kA

HDP36015

This PowerPact H series breaker operates at 600 volts AC and features a thermal magnetic trip unit for reliable protection. It has a 14kA interrupt rating at 600VAC and is equipped with lug-type terminal connections. The breaker is rated for 80% thermal capacity and complies with UL 489 standards, ensuring high performance and safety in heavy-duty environments.

Key Specifications
• Amperage: 15A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 14kA at 600VAC
• Trip Unit: Thermal Magnetic
• Terminal Connection: Lugs
• Series/Frame: PowerPact H
• Thermal Capacity: 80%
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HDP36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDP
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
