HDL36060U44X - Square D Powerpact H Frame 60 Amp 600V 3 Pole Molded Case Circuit Breaker

HDL36060U44X

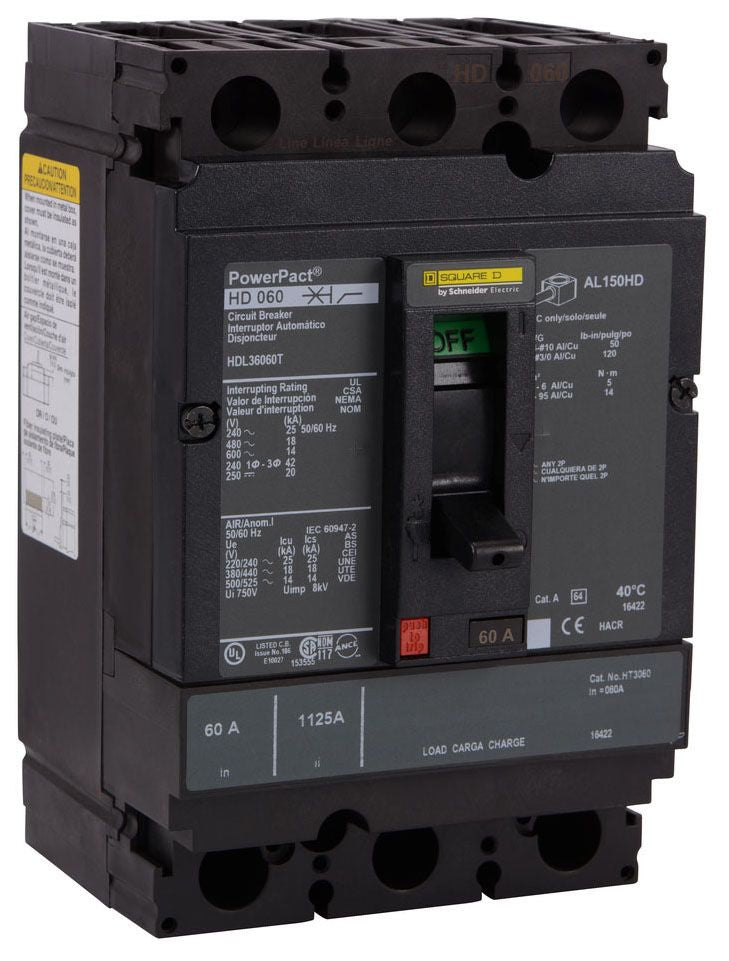

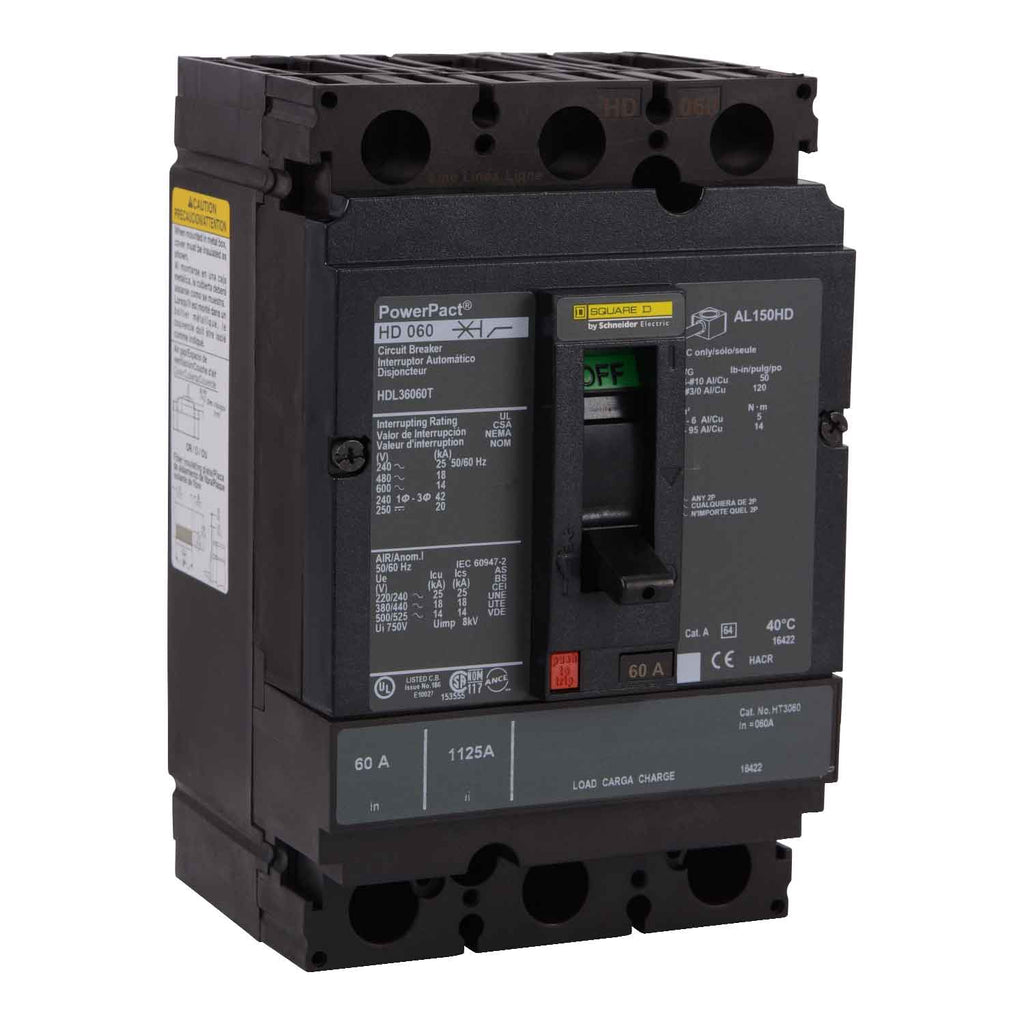

HDL36060U44X is a Square D Powerpact H Frame molded case circuit breaker rated for 60 amps, 600 volts, and three poles. It features a unit mount design and is UL 489 listed for safety and reliability. This breaker is designed for industrial and commercial electrical protection applications.This circuit breaker offers a D interrupt rating with an interrupt capacity of 18kA at 480 volts, 25kA at 240 volts, and 14kA at 600 volts. It includes a micrologic electronic trip unit with LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) trip functions. The breaker is suitable for feed-thru and reverse fed applications and comes with line and load side lug terminals.

Key Specifications
• Amperage: 60 Amp
• Voltage Rating: 600 VAC Maximum
• Poles: 3 Pole
• Frame Type: Powerpact H Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 480V, 25kA @ 240V, 14kA @ 600V
• Trip Unit: Micrologic Electronic Trip with LSIG
• UL Listing: UL 489
• Manufacturer: Square D (Schneider Electric)
• Application: Industrial and Commercial Electrical Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDL36060U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State



Product Data

• UPC : 785901458807
• GTIN : 00785901458807
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
