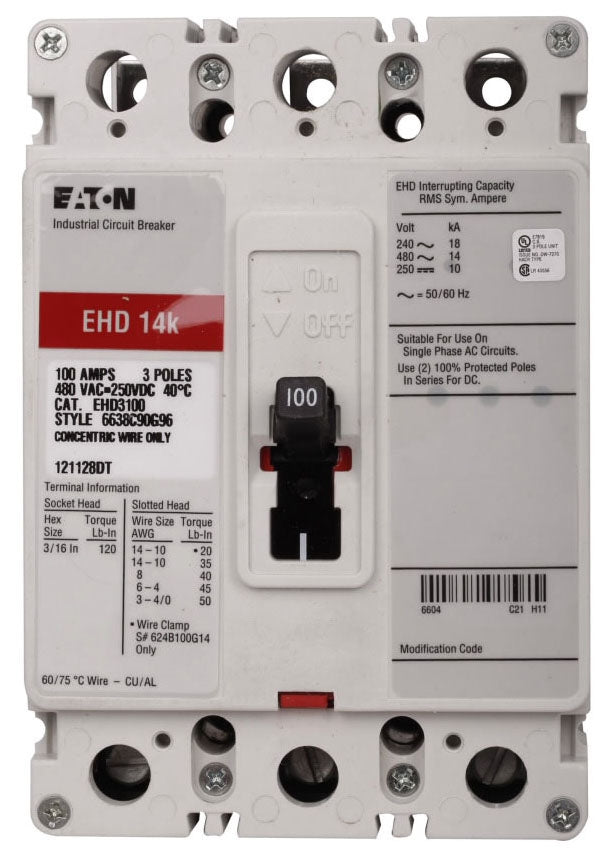

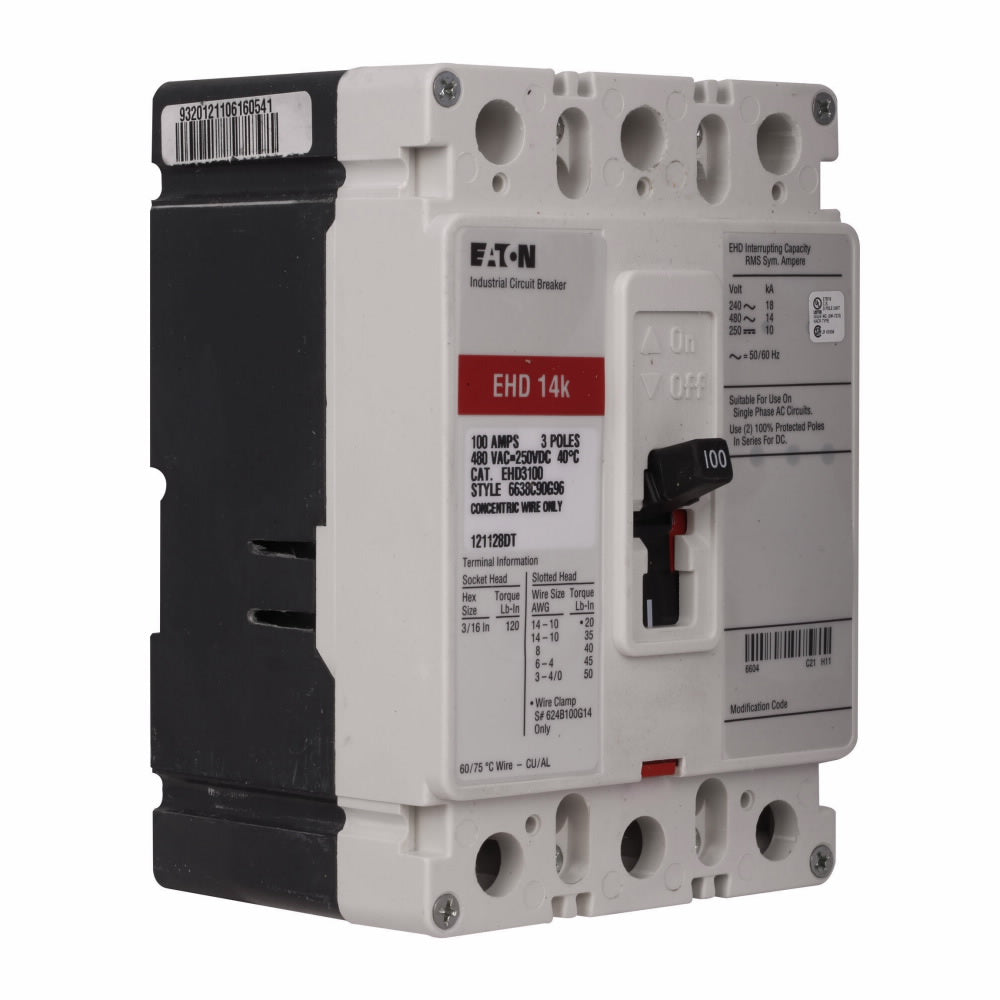

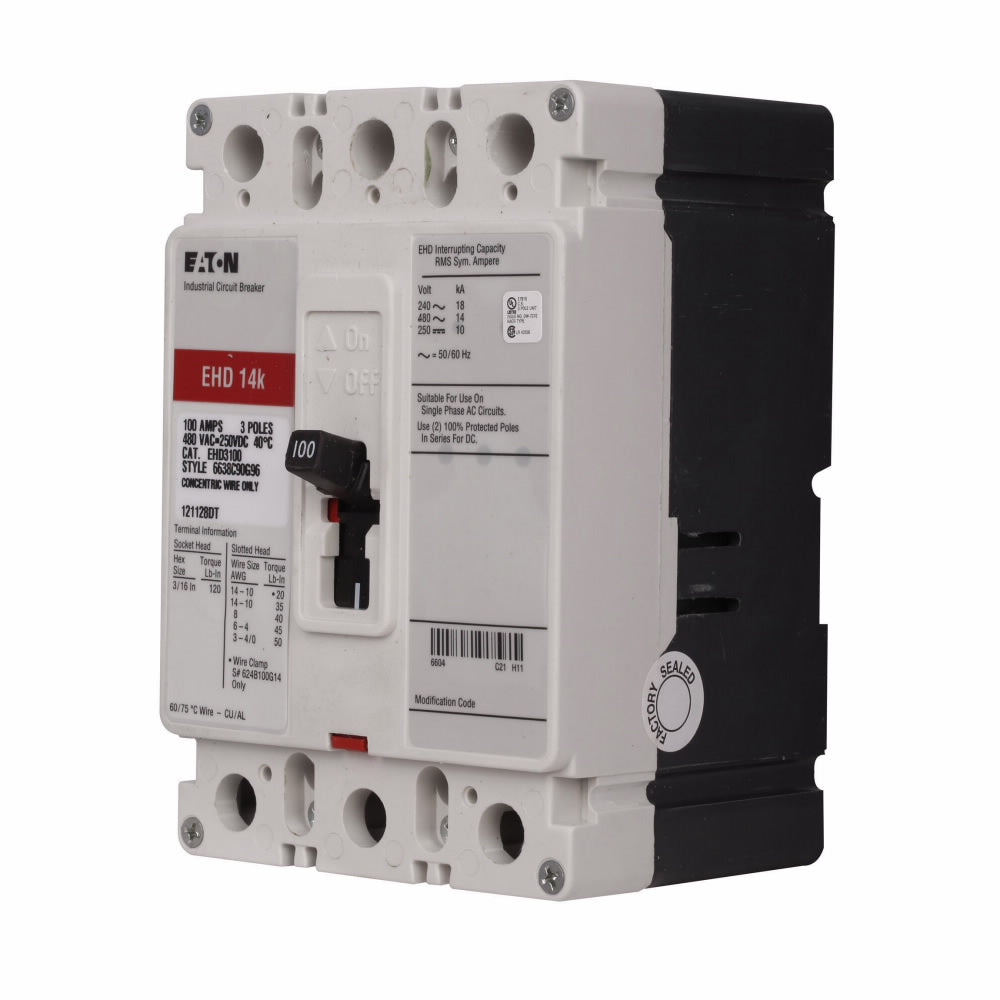

EHD3100 - Cutler Hammer 100A 3 Pole 480V F Frame Molded Case Circuit Breaker Series C

EHD3100

EHD3100 is a Cutler Hammer 100 Amp 3 Pole molded case circuit breaker designed for industrial applications.This Series C F Frame breaker features thermal magnetic trip units, 480 VAC voltage rating, and a 14kA interrupt rating at 480 VAC.

• Manufacturer: Cutler Hammer (Eaton)
• Series: C, Type EHD
• Amperage: 100A
• Poles: 3
• Voltage Rating: 480 VAC / 250 VDC
• Interrupt Rating: 14kA at 480 VAC, 18kA at 240 VAC, 10kA at 250 VDC
• Frame Type: F Frame
• Trip Unit: Thermal Magnetic, Fixed Trip
• Mounting Type: Bolt-On / Panel Mount
• Terminals: Line and Load Lug Terminals
• Approvals: UL Listed, CSA, CE
• Dimensions: 6" H x 4.13" W x 3.38" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EHD3100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EHD
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 100A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679317204
• GTIN : 00786679317204
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
