BDL36025AA - Schneider Electric PowerPacT B 25A 3 Pole 600Y/347VAC 14kA Lugs Thermal Magnetic 80% Circuit Breaker

Save $62.24
SKU: BDL36025AA-New
Condition: New
Price:
$1,213.76 $1,276.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

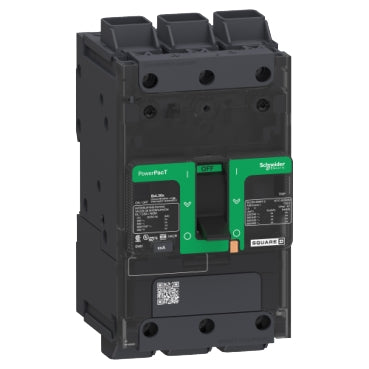

BDL36025AA - Schneider Electric circuit breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDL36025AA - Schneider Electric circuit breaker - Essential Electric Supply

Description

BDL36025AA


BDL36025AA is a Schneider Electric PowerPacT B series circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features a 25A continuous current rating, 600Y/347VAC voltage rating, and a 14kA interrupt rating, making it suitable for demanding electrical environments. The breaker is equipped with a thermal-magnetic trip unit and is rated for 80% continuous load. It includes lugs for secure mounting and is certified to UL 489 standards for safety and performance. This breaker is part of the PowerPacT B series, known for durability and ease of installation. It is suitable for use in panelboards and switchgear requiring robust protection. The breaker is designed for use in both AC and DC systems, providing flexibility in application.
  • Part Number: BDL36025AA
  • Manufacturer: Schneider Electric
  • Series/Frame: PowerPacT B
  • Amperage: 25A
  • Voltage: 600Y/347VAC
  • Poles: 3
  • Interrupt Rating: 14kA
  • Mounting Type: Lugs
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489
  • Continuous Load Rating: 80%
  • Application: Commercial, Industrial
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL36025AA
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Voltage : 600
  • Amperage : 25
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 606481153008
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 3.06
  • Standards : NEMA AB1, UL 489, NMX J-266, EN/IEC 60947-2, GB 14048.2, EN/IEC 60947-5-1, CSA C22.2 No 5
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded copper
    AWG 14...AWG 3/0 rigid or stranded copper
