2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BDL36015

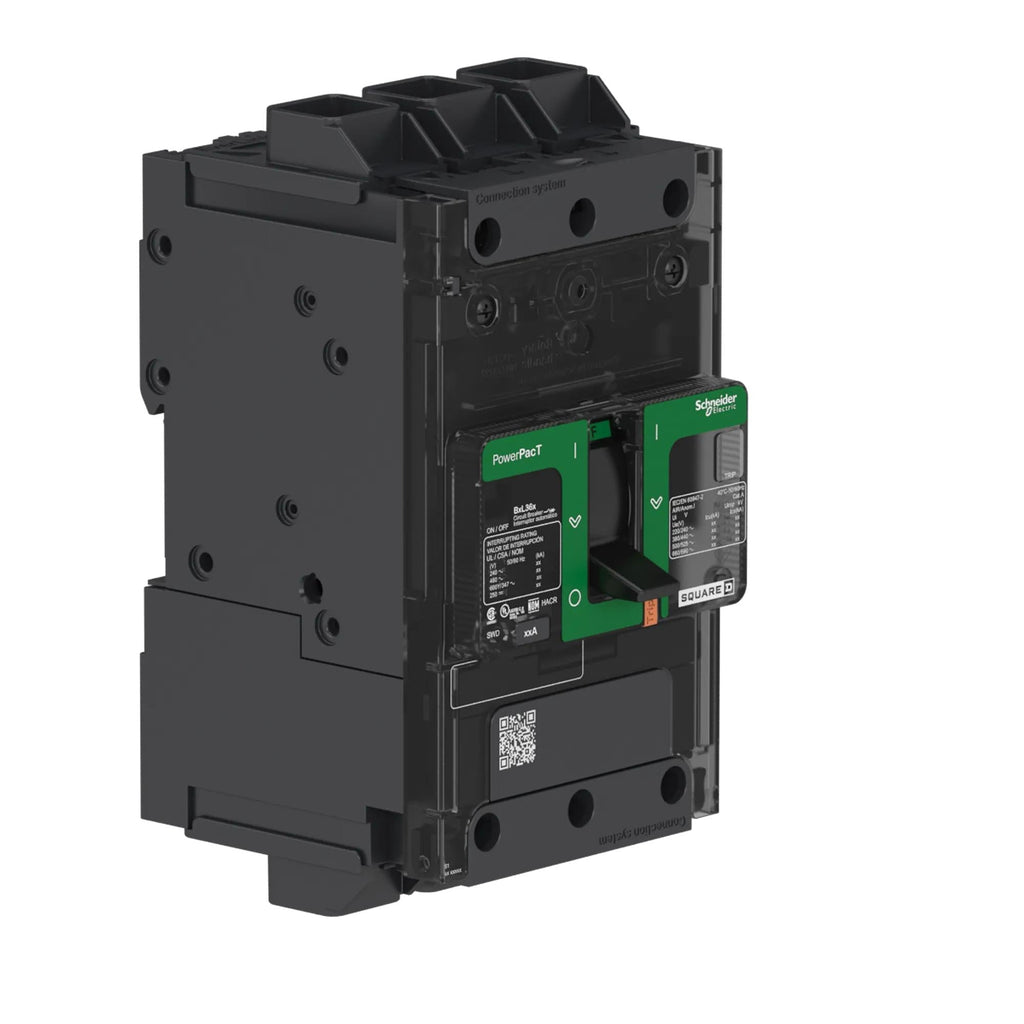

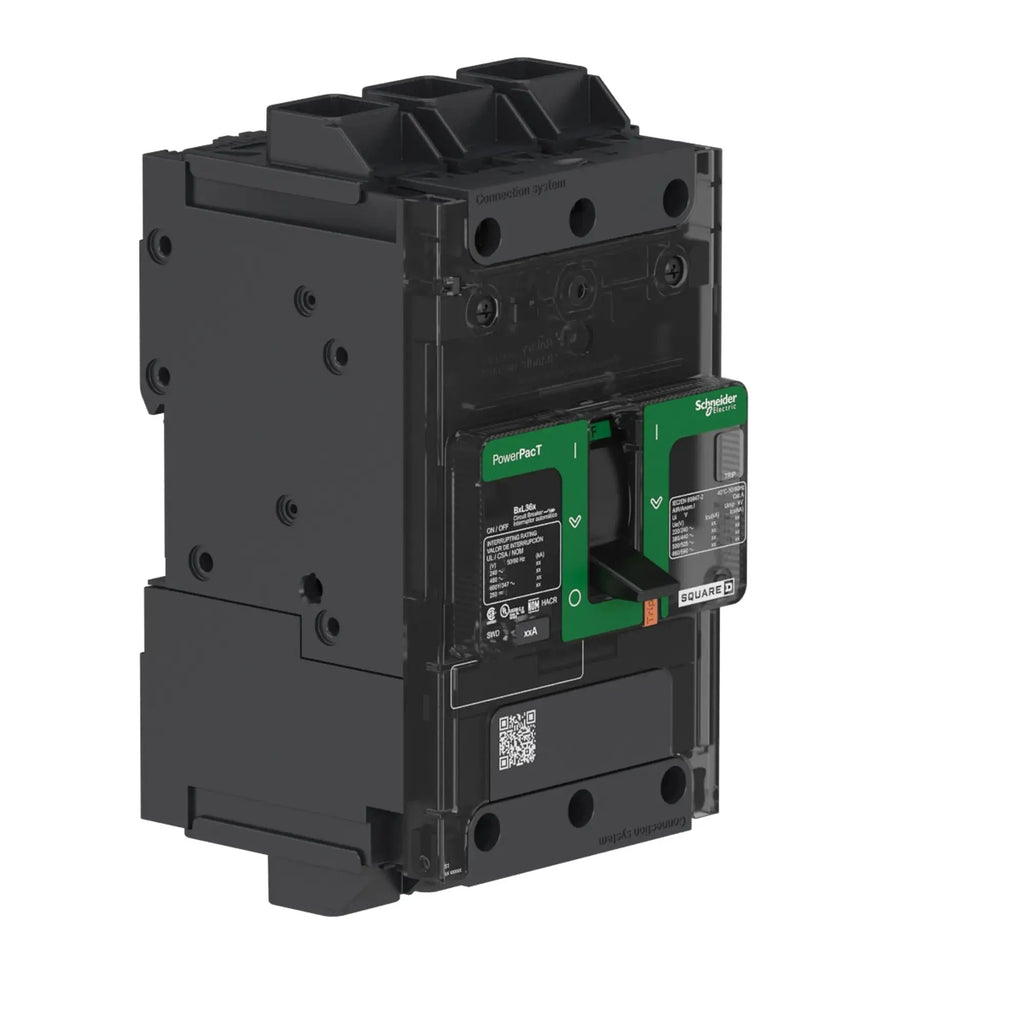

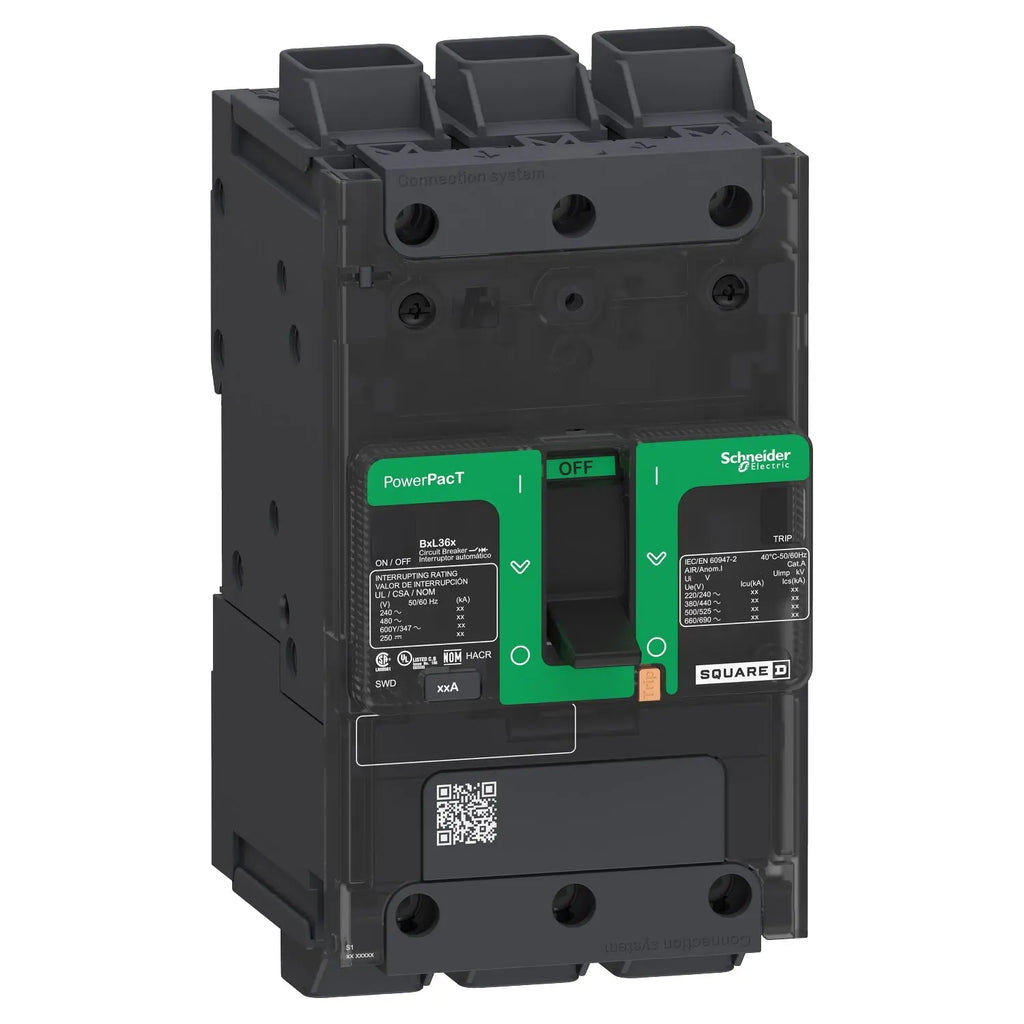

BDL36015 is a Square D PowerPacT B-Frame molded case circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications.
This 3-pole breaker features a 15A current rating, 600Y/347VAC voltage rating, and a high interrupting capacity of 14kA at 600Y/347VAC. It is unit mount compatible, with integrated DIN rail and back pan mounting options, and is dual rated for AC/DC applications. The BDL36015 is UL, CSA, NOM, IEC, CCC certified, and CE marked for global compliance and safety.
-
Key Specifications
- Part Number: BDL36015
- Manufacturer: Square D
- Amperage: 15A
- Voltage: 600Y/347VAC, 250VDC
- Poles: 3
- Mounting Type: Unit mount (DIN rail and back pan compatible)
- Interrupt Rating: 14kA at 600Y/347VAC
- Series/Frame: PowerPacT B-Frame
- Trip Unit: Thermal magnetic
- Certifications: UL, CSA, NOM, IEC, CCC, CE
- Connection: Feed-thru
- Dimensions: 3.19" W x 3.15" D x 5.39" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BDL36015
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDL
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901010500
- GTIN : 03606481152954
- Country of Origin : United States
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 3.1
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, UL 489
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
