Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BDL36020

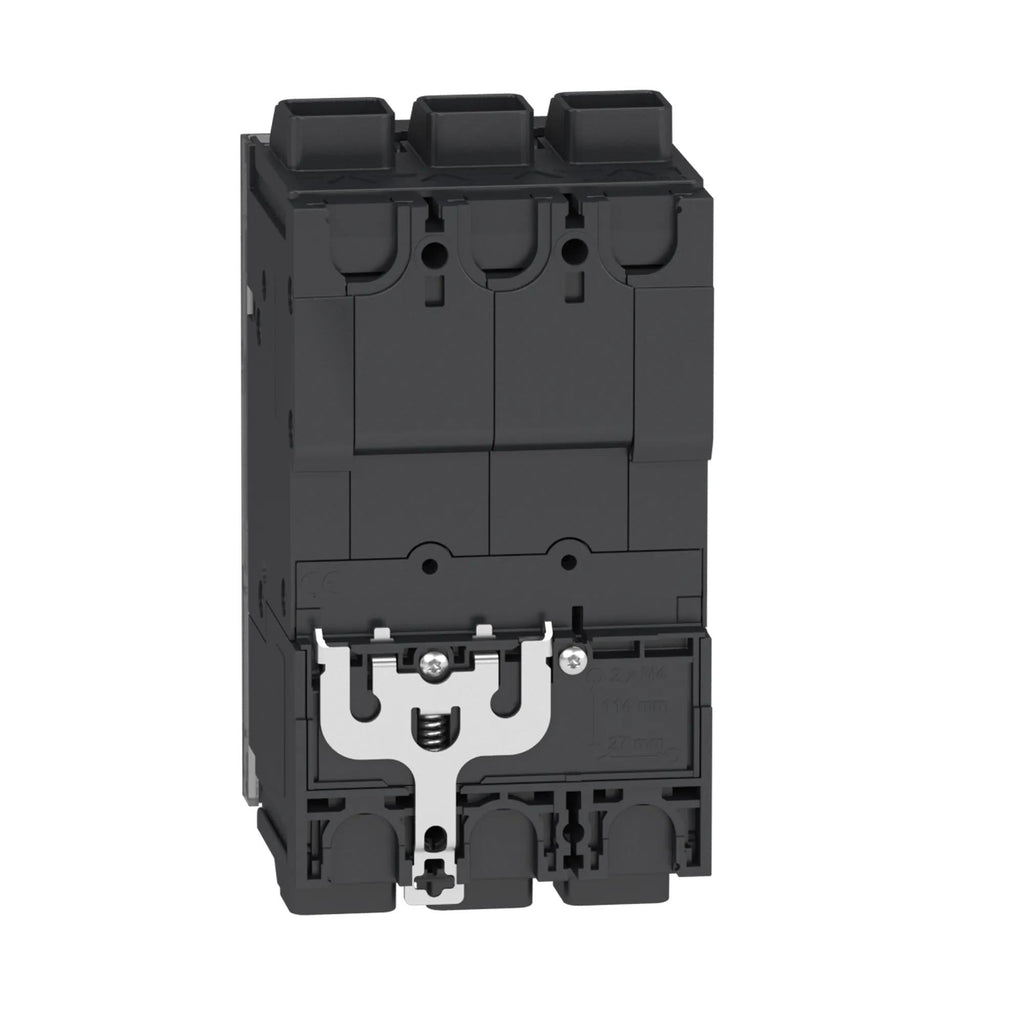

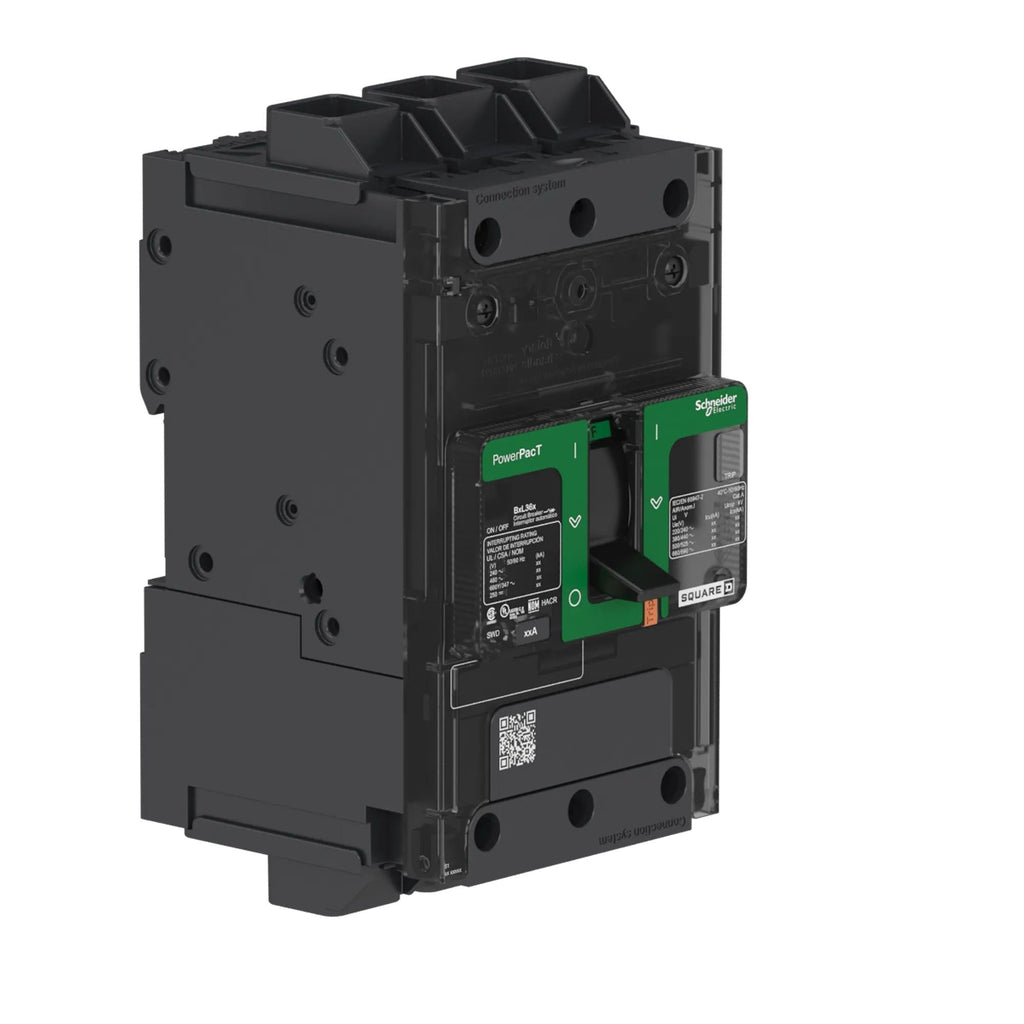

BDL36020 is a Square D PowerPact B series 3-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.
This thermal magnetic circuit breaker features a 20A continuous current rating, 525V AC voltage rating, and unit mounting. It is engineered for high interrupting capacity with ratings up to 25kA at 240V AC, 18kA at 480V AC, and 14kA at 600Y/347V AC. The compact design ensures easy installation in compatible enclosures.
Key Specifications
- Part Number: BDL36020
- Manufacturer: Square D
- Series/Frame: PowerPact B
- Amperage: 20A
- Voltage: 525V AC (600Y/347V AC max)
- Poles: 3
- Mounting Type: Unit
- Interrupt Rating: 25kA @ 240V AC, 18kA @ 480V AC, 14kA @ 600Y/347V AC
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed (typical for Square D PowerPact series)
- Dimensions: 3.19" W x 3.15" D x 5.39" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BDL36020
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDL
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901010760
- GTIN : 03606481152978
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 3.13
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : EN/IEC 60947-5-1, NEMA AB1, NMX J-266, CSA C22.2 No 5, UL 489, GB 14048.2, EN/IEC 60947-2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
