Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BDL36030

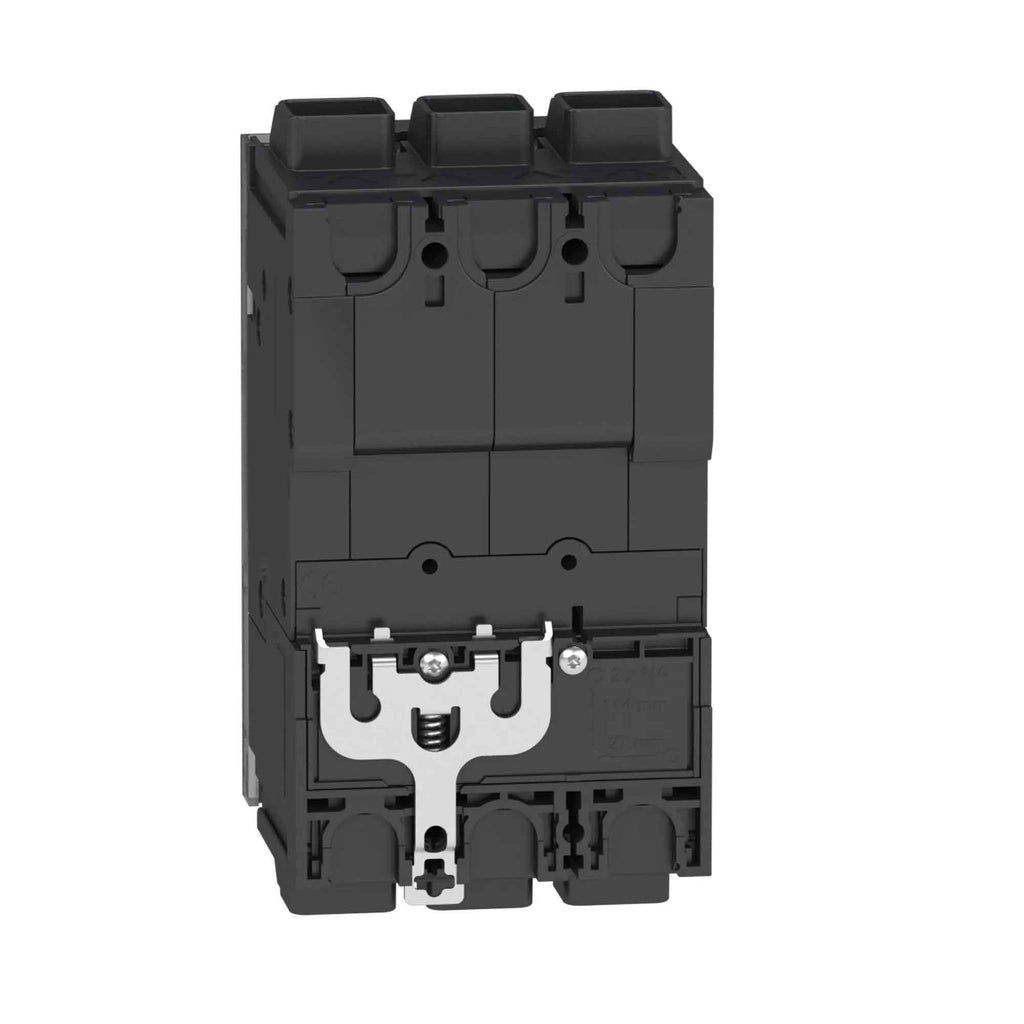

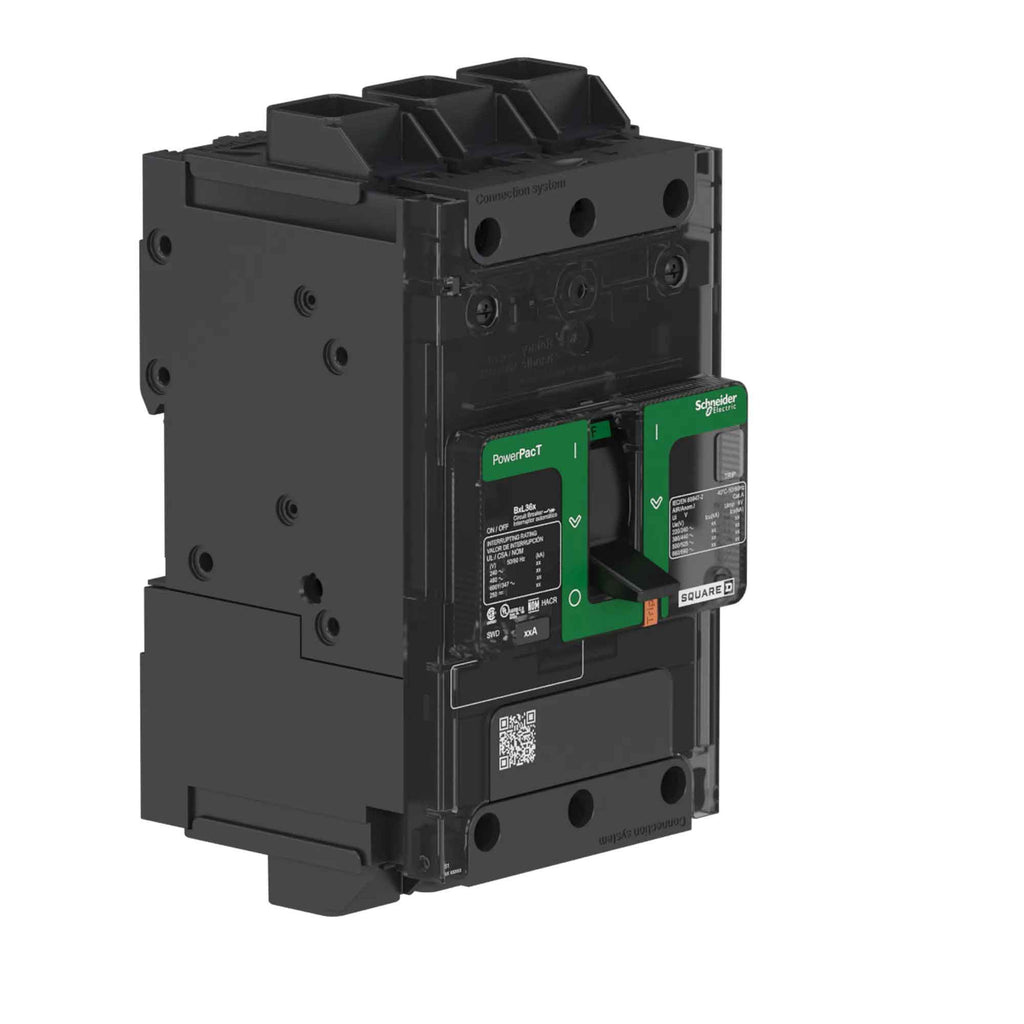

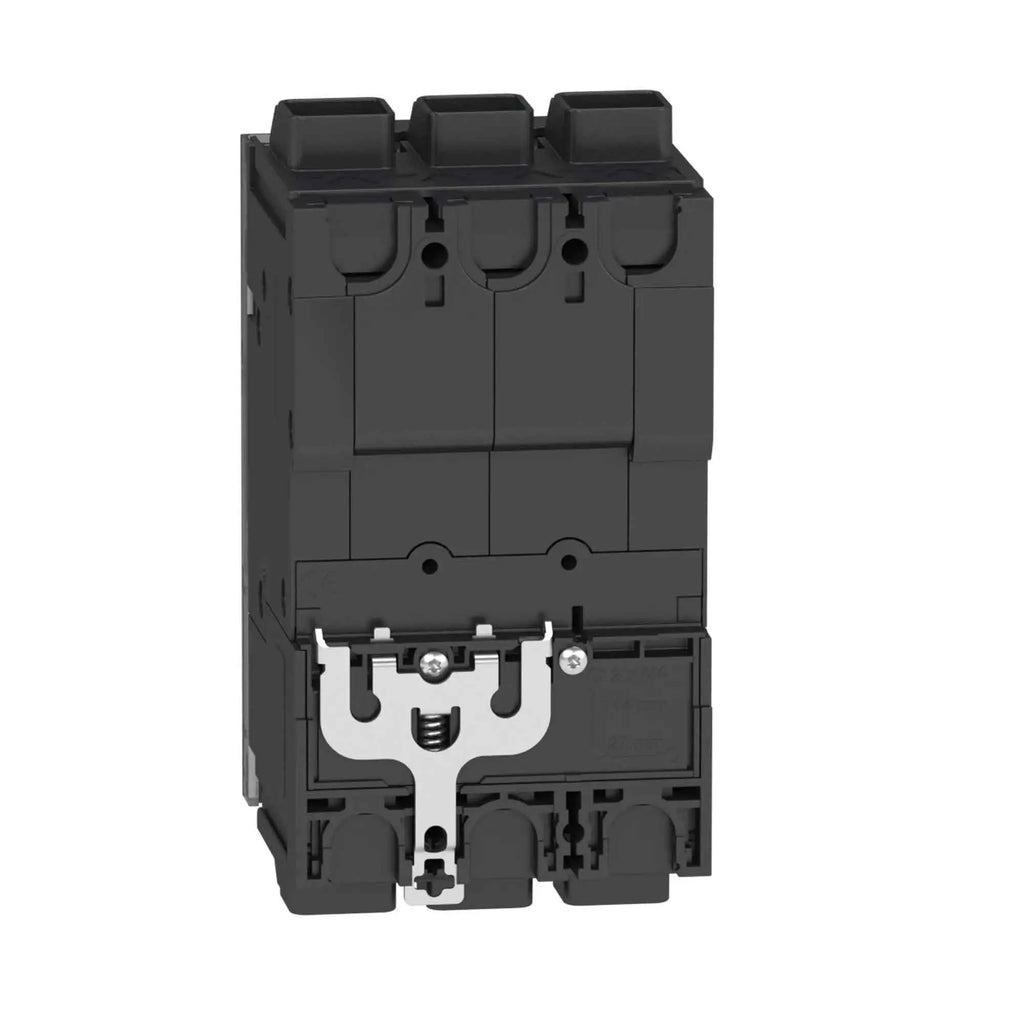

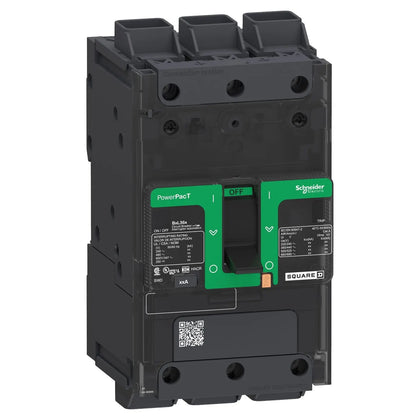

BDL36030 is a Square D 3-pole molded case circuit breaker rated for 30 amps and 600Y/347 volts AC. It features thermal magnetic trip protection and is part of the PowerPact B series.
This circuit breaker includes long-time and instantaneous trip units, feed-thru EverLink connectors, and line and load side lug terminals. It has an interrupt rating of 18kA at 480V and is designed for reliable protection in three-phase electrical systems. The breaker measures 3.15 x 3.19 x 5.39 inches and weighs approximately 2.37 pounds.
- Amperage: 30A
- Voltage Rating: 600Y/347 VAC
- Poles: 3
- Frame Type: PowerPact B
- Mounting Type: Unit Mount
- Interrupt Rating: 18kA @ 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Connection: Feed-Thru with EverLink connectors
- Certifications: Meets industry standards for molded case breakers
- Dimensions: 3.15 x 3.19 x 5.39 inches
- Weight: 2.37 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BDL36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDL
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901044543
- GTIN : 03606481153029
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 3.11
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : EN/IEC 60947-5-1, UL 489, NMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
