BDL36030LU - Schneider Electric PowerPact B 30A 3 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker

Save $485.53
SKU: BDL36030LU-New
Condition: New
Price:
$604.47 $1,090.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDL36030LU - Essential Electric Supply

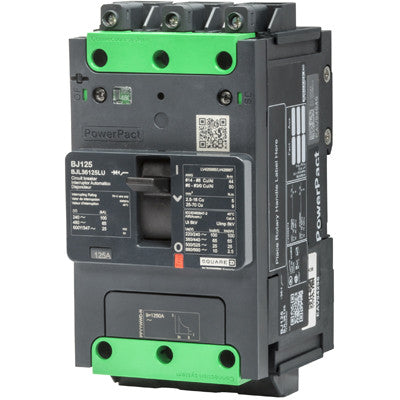

BDL36030LU - Schneider Electric Feed-Thru 600V 30A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDL36030LU - Essential Electric Supply

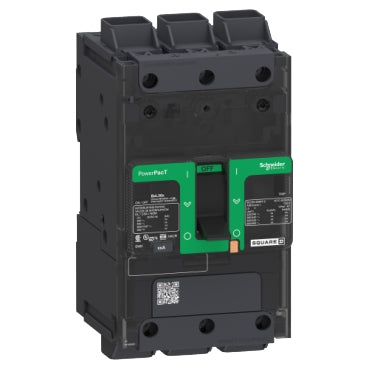

BDL36030LU - Schneider Electric Feed-Thru 600V 30A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL36030LU


BDL36030LU is a Schneider Electric PowerPact B-frame thermal magnetic molded case circuit breaker rated for 30 amps and 600Y/347 volts AC.This 3 pole circuit breaker features a breaking capacity of 14kA at 600Y/347VAC, with lug-type terminals and control wire on end. It is designed for reliable protection against overloads and short circuits in electrical distribution systems, with an 80% continuous current rating and compliance with industry standards.
    Key Specifications
    • Amperage Rating: 30 Amps
    • Voltage Rating: 600Y/347 VAC
    • Poles: 3
    • Interrupt Rating: 14kA at 600Y/347 VAC
    • Frame/Series: PowerPact B
    • Trip Unit: Thermal Magnetic
    • Mounting Type: Lug Terminals
    • Control Wire: On End
    • Continuous Current Rating: 80%
    • Certifications: Industry Standard Compliant
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BDL36030LU
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Voltage : 600
    • Amperage : 30
    • Phase : 3
    • Poles : 3
    • AIC rating : 18kA@480V
    • Connection : Feed-Thru
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : Everlink Lug Both Ends
    • Frame Size : 125A/BD
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
    • Breaker Type : Standard
    • Phase Connection : ABC

    Product Data

    • UPC : 785901094401
    • GTIN : 03606481149084
    • Country of Origin : United States
    • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
    • Weight : 2.599
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : NMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
      AWG 14...AWG 3/0 rigid or stranded aluminium/copper
