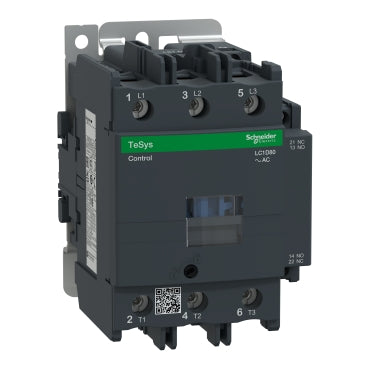

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 80
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 120 V
- Auxiliary contacts
- 1NO/1NC
- Country of origin
- Czechia
- Horse Power
- 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 120
- Full Load Amps
- Full Load Amps-Inductive 80A Full Load Amps-Resistive 125A
Show all specifications (6 more)
- Coil Voltage Minimum
- 120
- UPC
- 785901440864
- GTIN
- 03389110440867
- Dimensions
- 3.34 in x 5 in
- Weight
- 3.435
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D80G7
LC1D80G7 is a Square D 3-pole motor contactor designed for reliable motor control with an 80 amp rating and 600VAC maximum voltage.This TeSys D Series contactor features a 120V AC coil, supports up to 60 HP at 480VAC, and includes 1 NO and 1 NC auxiliary contact. It is suitable for panel mounting with IP20 finger-safe terminals and offers flexible installation options. The contactor is UL and CSA certified, rated for AC-3 utilization category, and built for high durability and efficient motor protection.
- Key Specifications
- Amperage: 80A (AC-3), 125A (AC-1)
- Voltage: 600VAC max, 120VAC coil
- Poles: 3
- Mounting Type: Panel mount, DIN rail compatible
- Interrupt Rating: Up to 100kA SCCR
- Series/Frame: TeSys D
- Auxiliary Contacts: 1 NO + 1 NC base mounted
- Trip Unit: Magnetic contactor (non-reversing)
- Certifications: UL, CSA, IEC, CCC, EAC
- Horsepower Ratings: 30HP @ 240V, 60HP @ 480V, 60HP @ 600V
- Enclosure: IP20 finger-safe terminals
Specifications
- Part Number: LC1D80G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 80A Full Load Amps-Resistive 125A
- Coil Voltage Minimum : 120
Product Data
- UPC : 785901440864
- GTIN : 03389110440867
- Country of Origin : Czechia
- Dimensions : 3.34 in x 5 in
- Weight : 3.435
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
