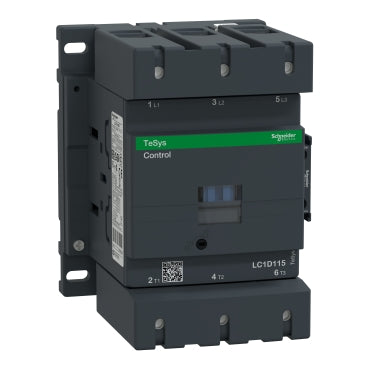

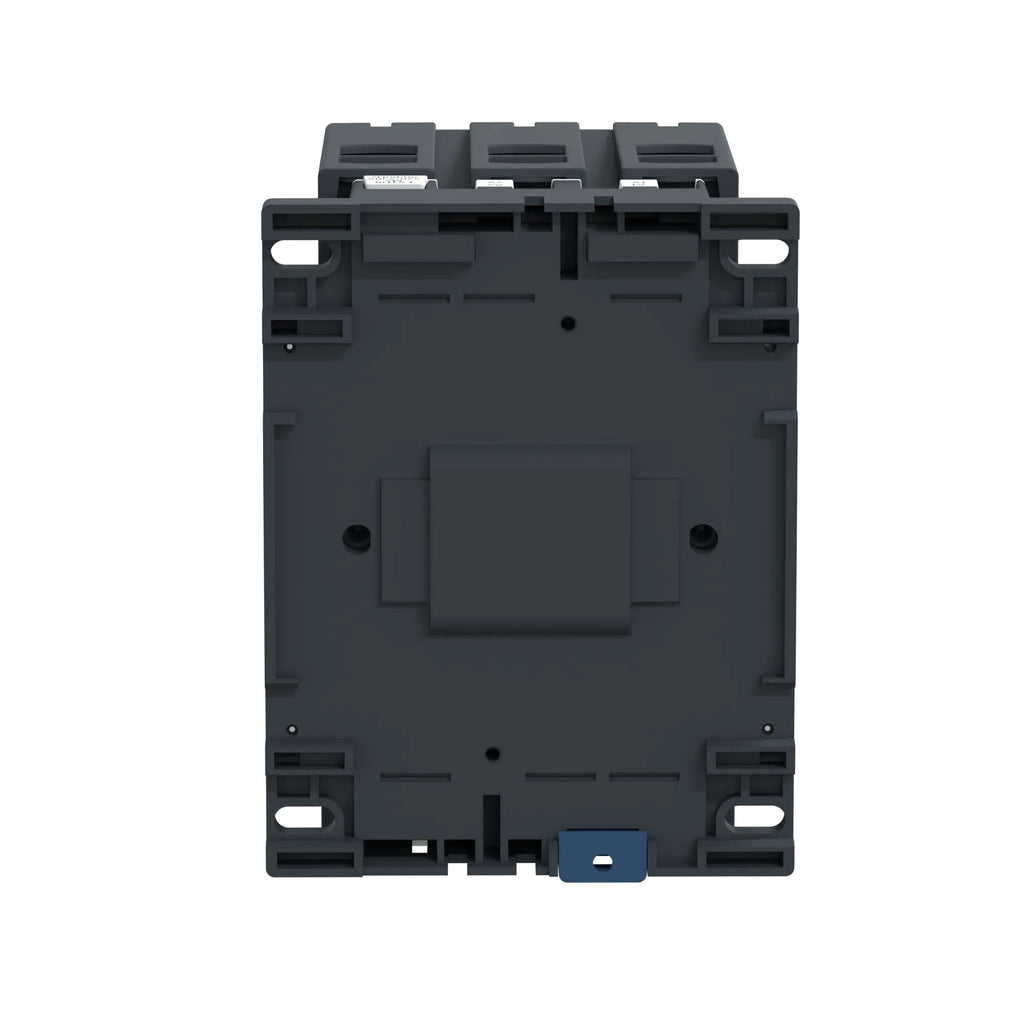

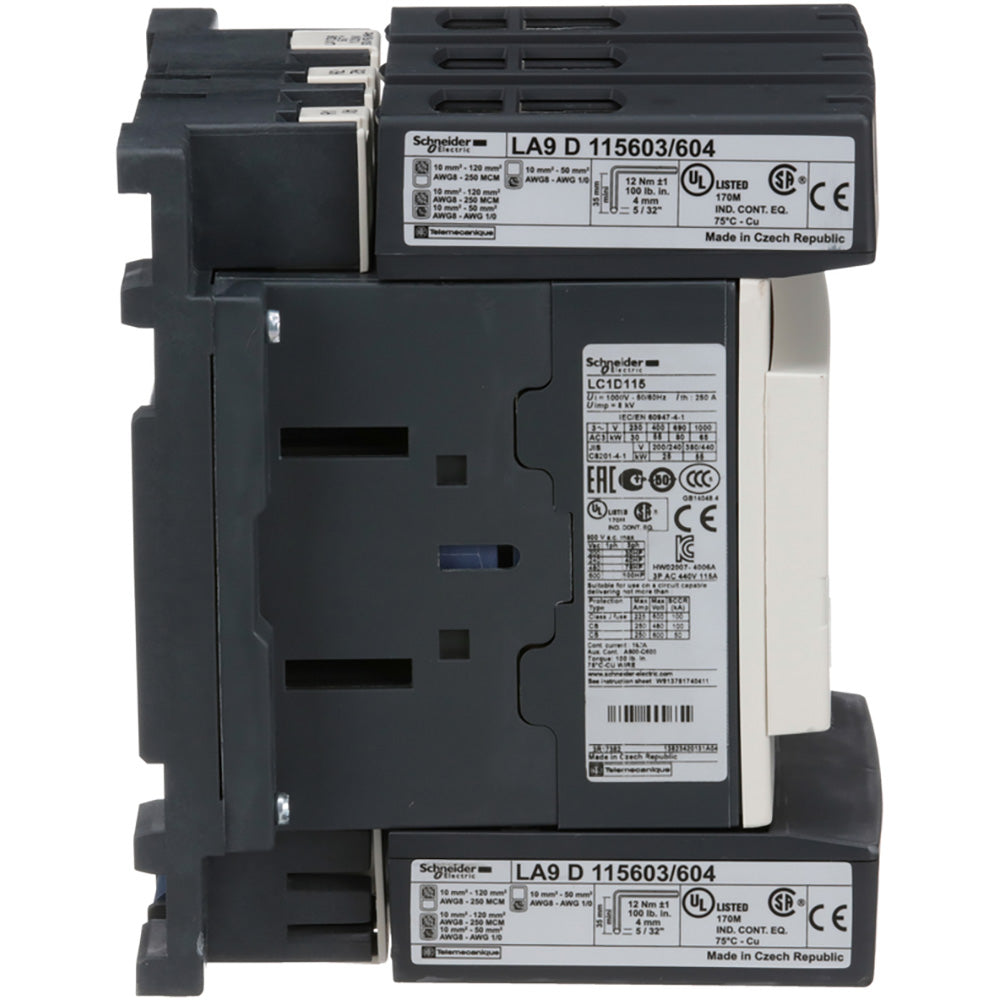

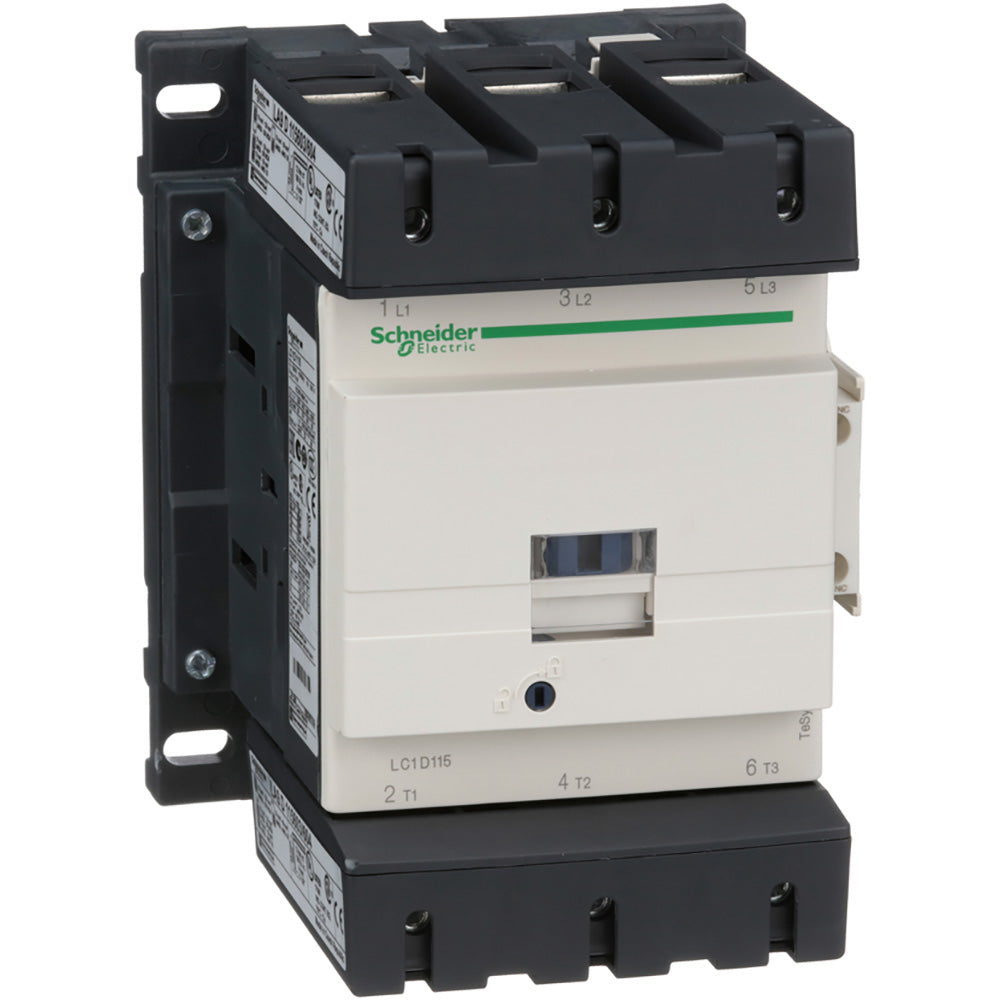

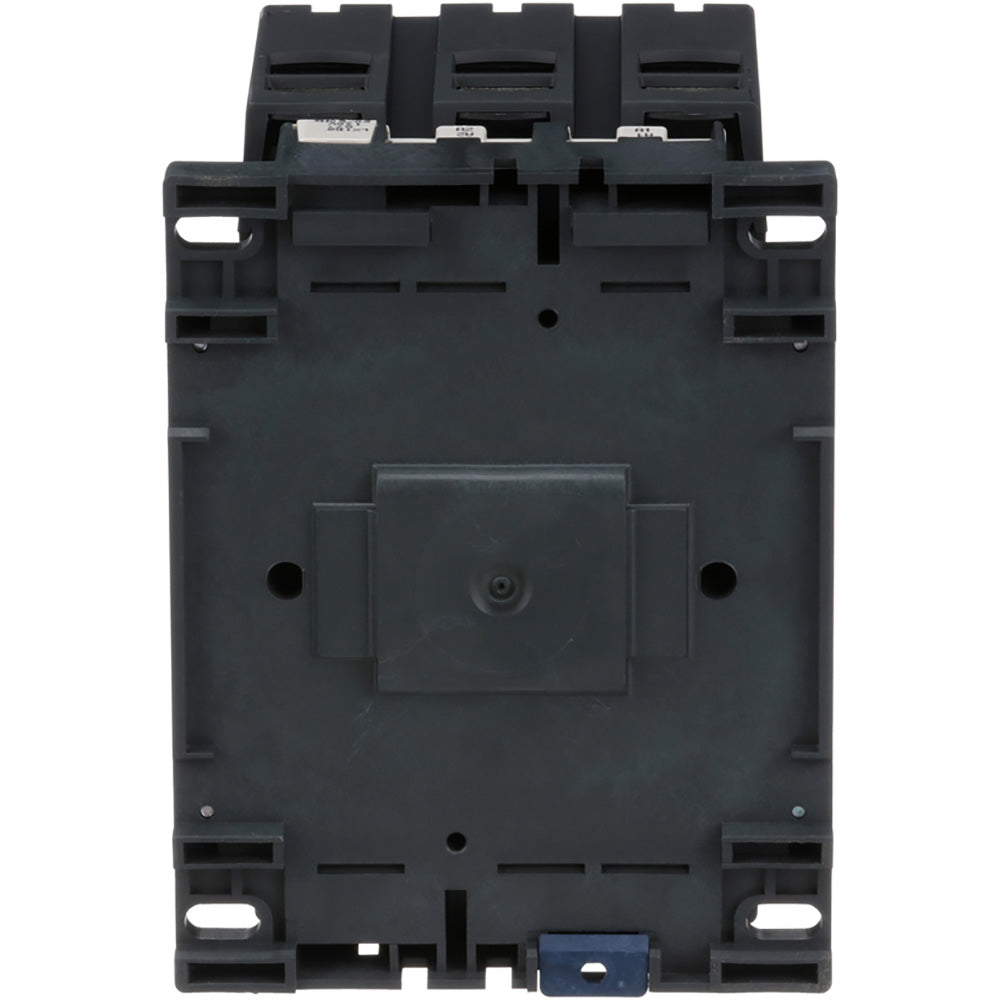

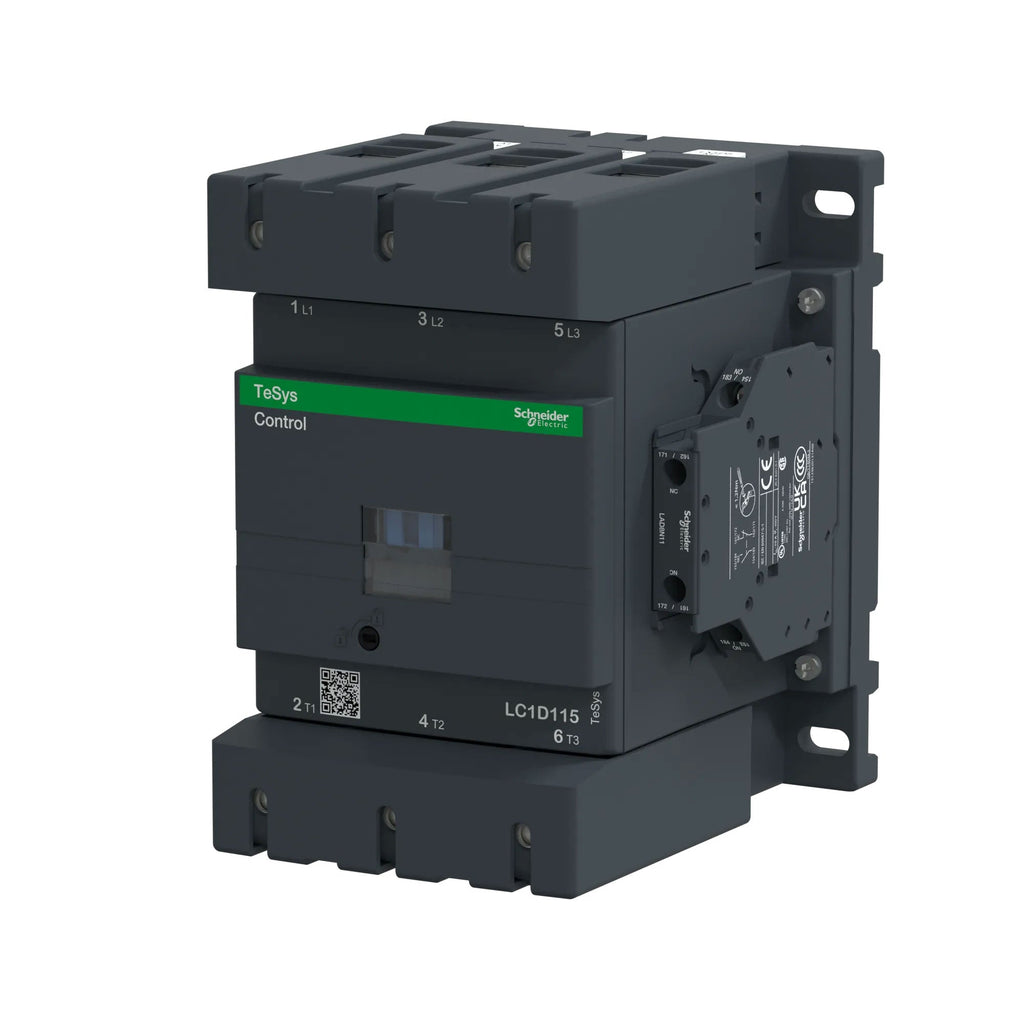

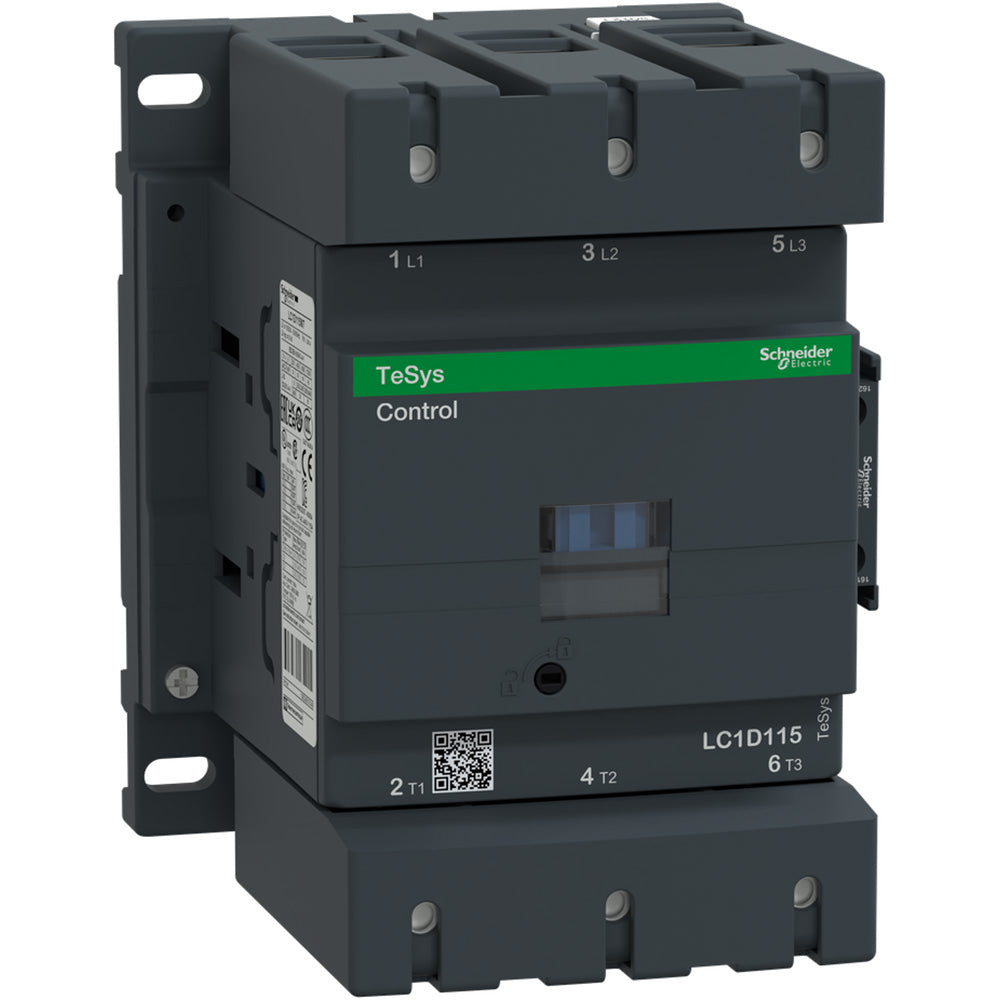

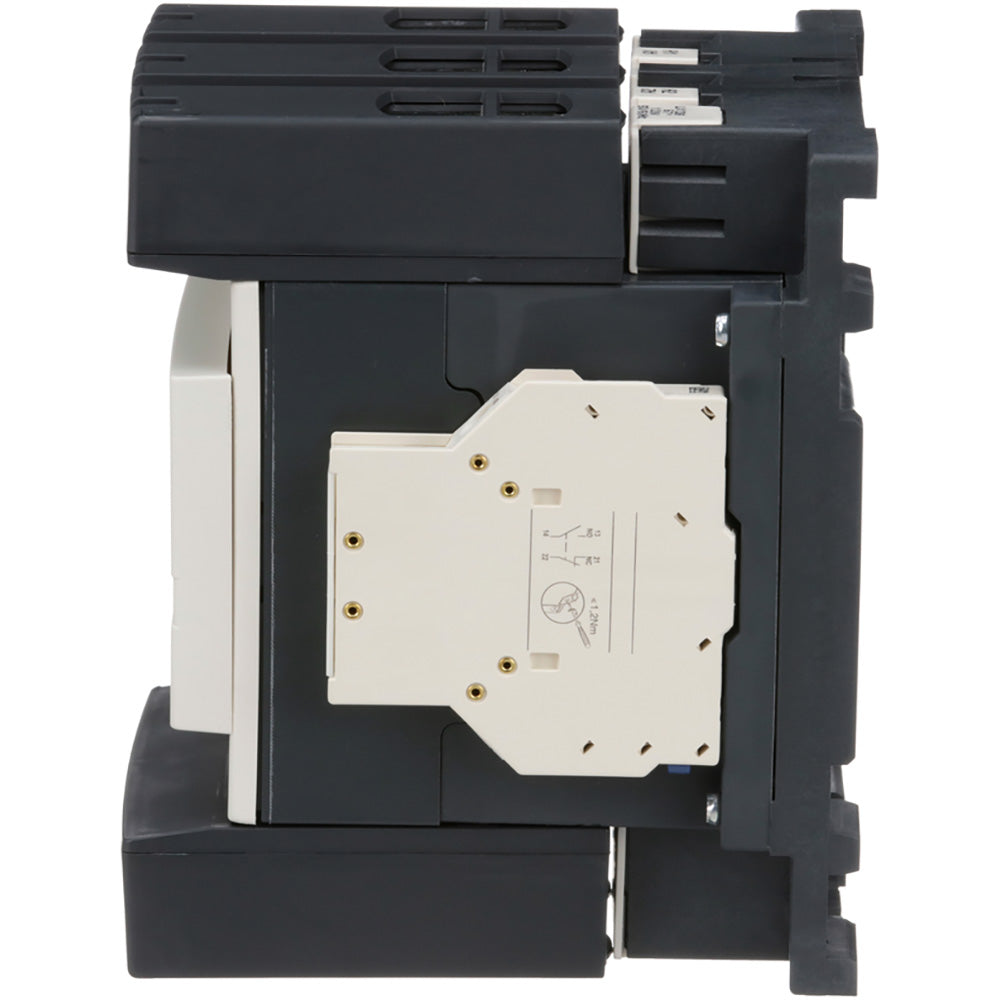

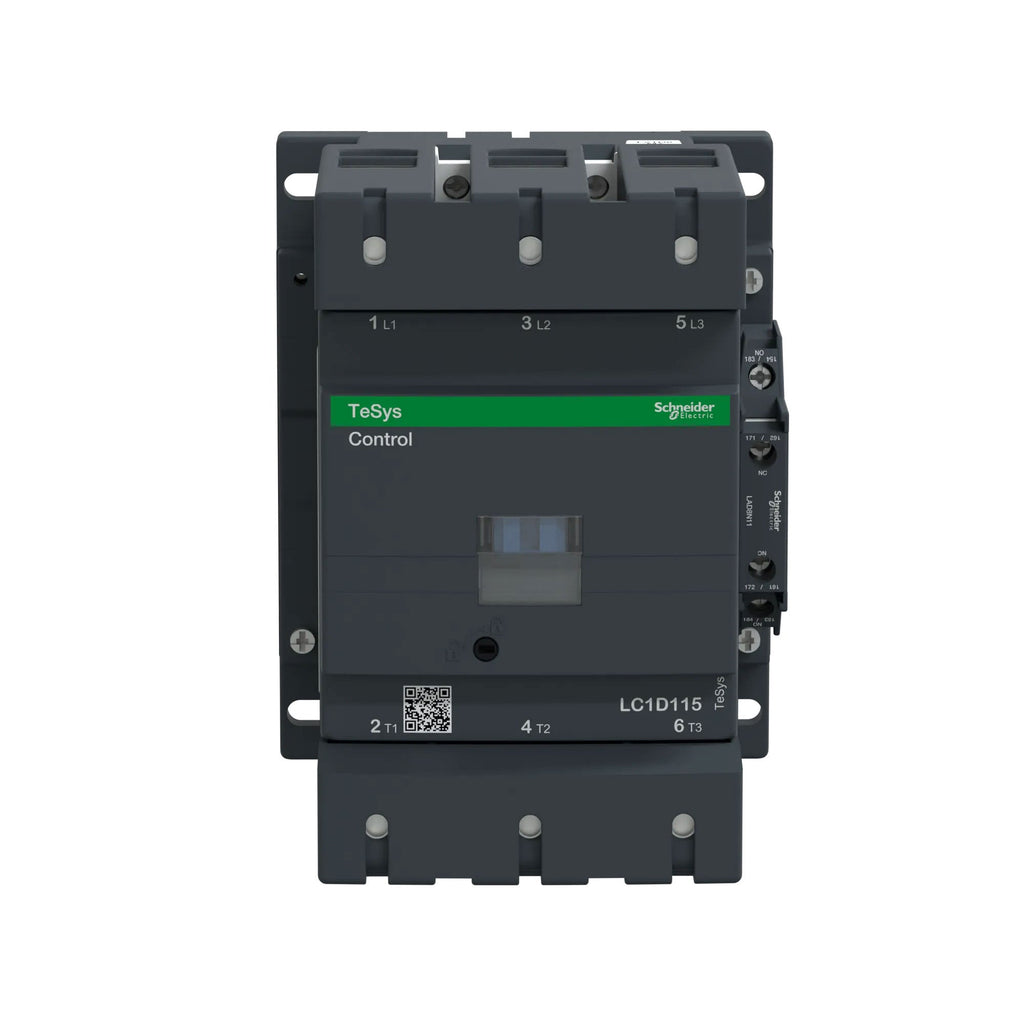

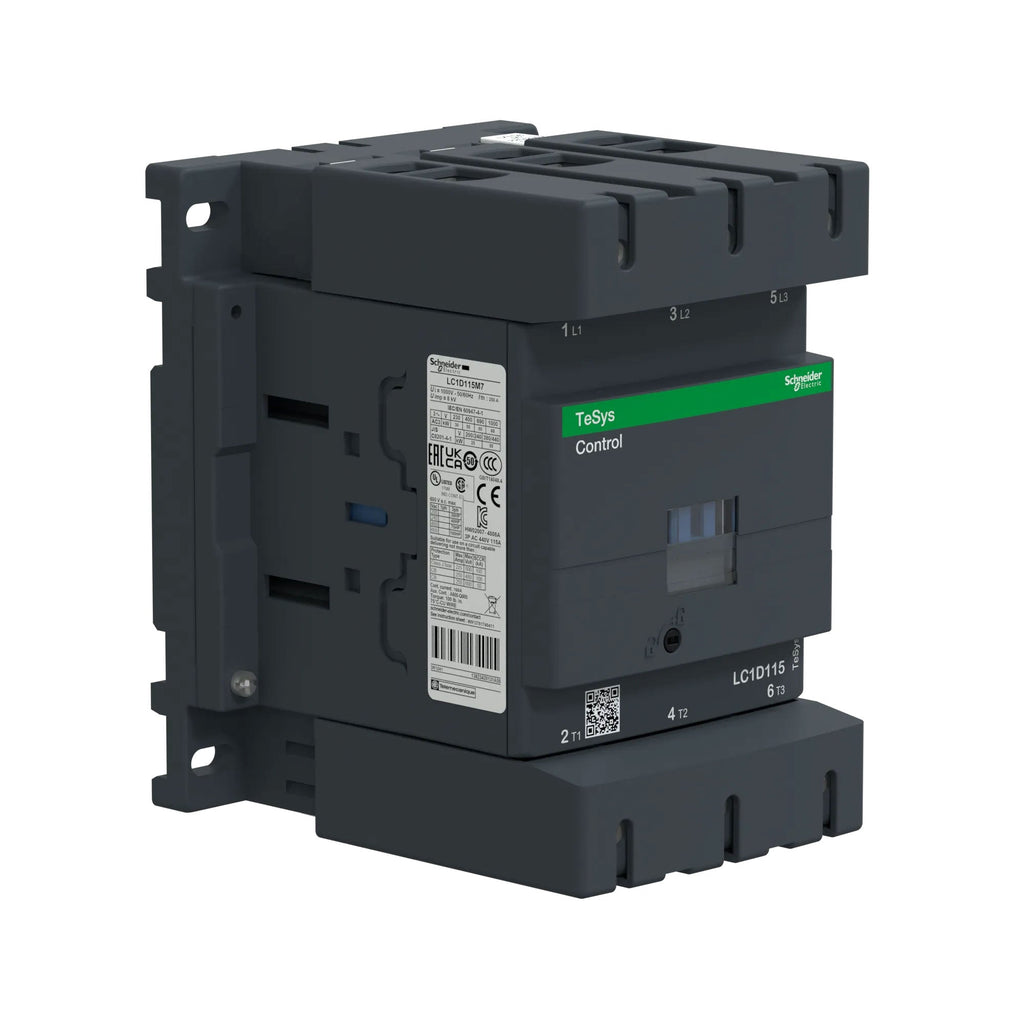

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 115
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 120 V
- Auxiliary contacts
- 1NO, 1NC
- Country of origin
- Czechia
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 120
Show all specifications (8 more)
- Full Load Amps
- Full Load Amps-Inductive 115A Full Load Amps-Resistive 200A
- Coil Voltage Minimum
- 120
- Frequency
- 50/60 Hz
- UPC
- 785901213499
- GTIN
- 03389110377101
- Dimensions
- 4.33 in x 4.33 in
- Weight
- 5.512
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D115G7
LC1D115G7 is a Schneider Electric TeSys D series 3-pole motor control contactor rated for 115A and 120V coil voltage. It is designed for reliable motor control and resistive load applications.This IEC contactor features 3 normally open poles, supports AC-3 utilization category, and is suitable for voltages up to 1000V AC and 300V DC. It has a rated operational current of 115A at 440V AC (AC-3) and can control motors up to 75 kW at 500V AC. The coil operates at 120V AC 50/60 Hz. It supports multiple mounting options including DIN rail and plate mounting, and offers a high interrupt rating up to 100kA SCCR. The product is RoHS compliant and carries multiple certifications for wide application.
- Key Specifications
- Amperage: 115A (AC-3, 440V)
- Coil Voltage: 120V AC 50/60 Hz
- Poles: 3 (3 NO contacts)
- Mounting Type: DIN rail or plate
- Interrupt Rating: Up to 100kA SCCR
- Series/Frame: TeSys D
- Utilization Category: AC-3, AC-1, AC-4
- Motor Power: Up to 75 kW at 500V AC
- Certifications: RoHS compliant, multi-standard certified
- Rated Operational Voltage: Up to 1000V AC, 300V(more...)
Additional Information
This TeSys D IEC Contactor includes a 120 VAC coil.
Specifications
- Part Number: LC1D115G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 115
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO, 1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 115A Full Load Amps-Resistive 200A
- Coil Voltage Minimum : 120
- Frequency : 50/60 Hz
Product Data
- UPC : 785901213499
- GTIN : 03389110377101
- Country of Origin : Czechia
- Dimensions : 4.33 in x 4.33 in
- Weight : 5.512
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
