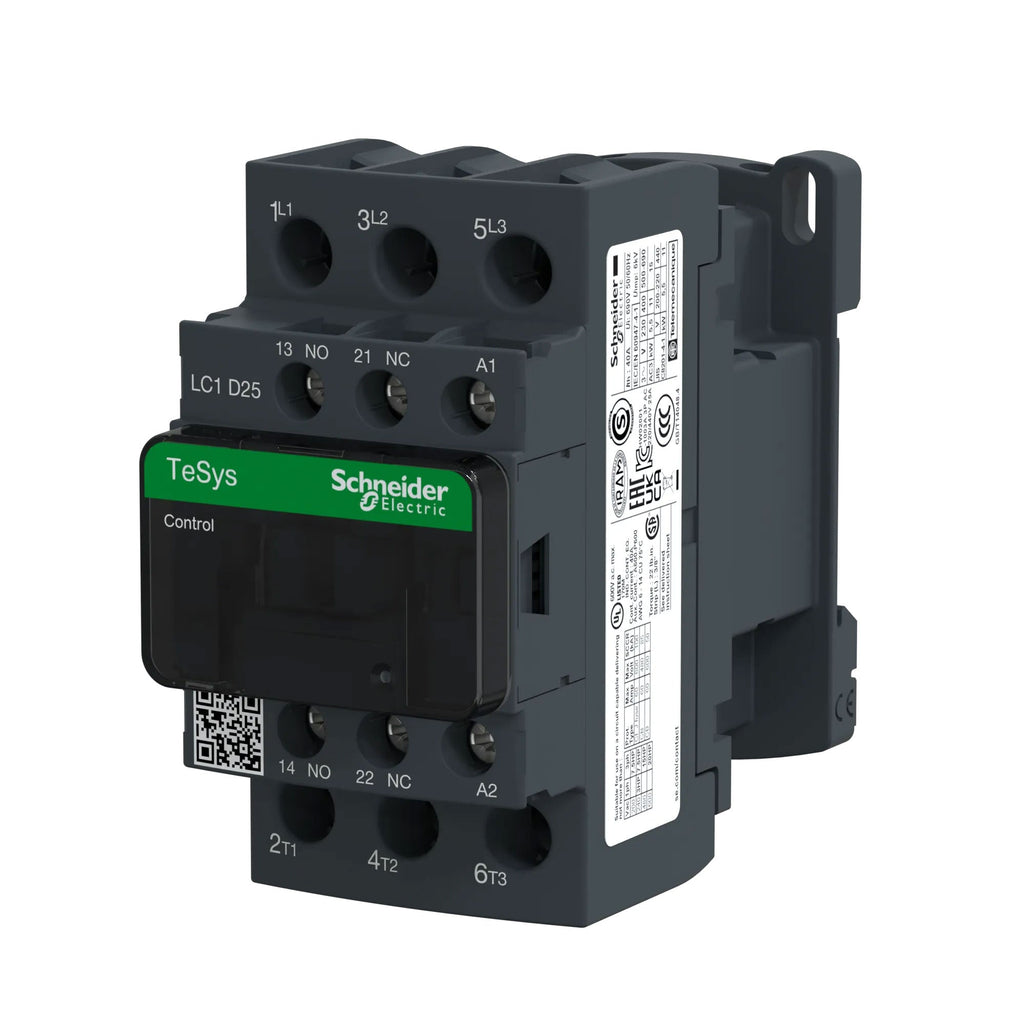

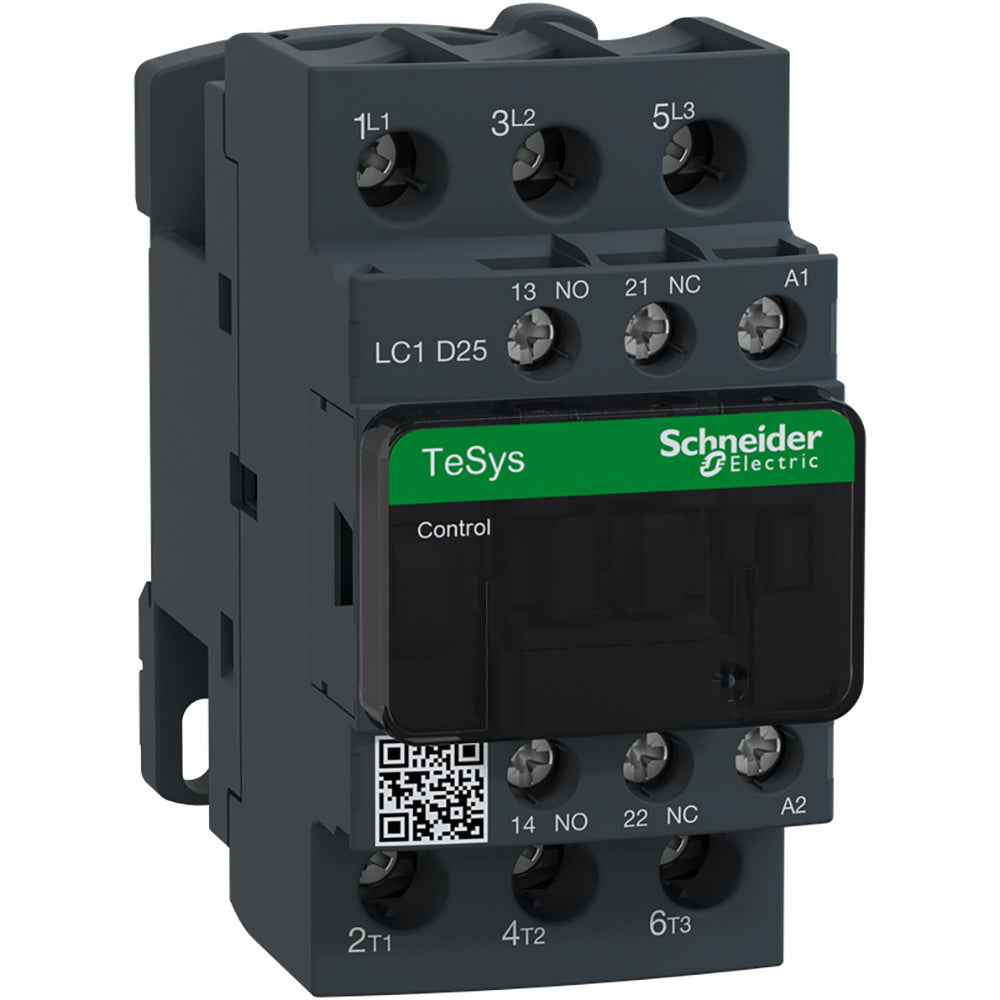

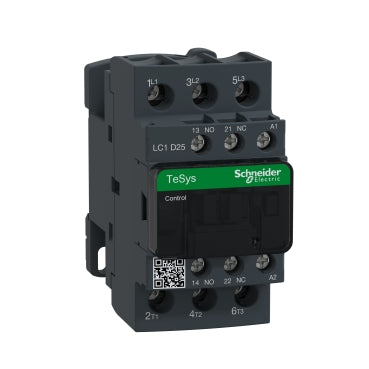

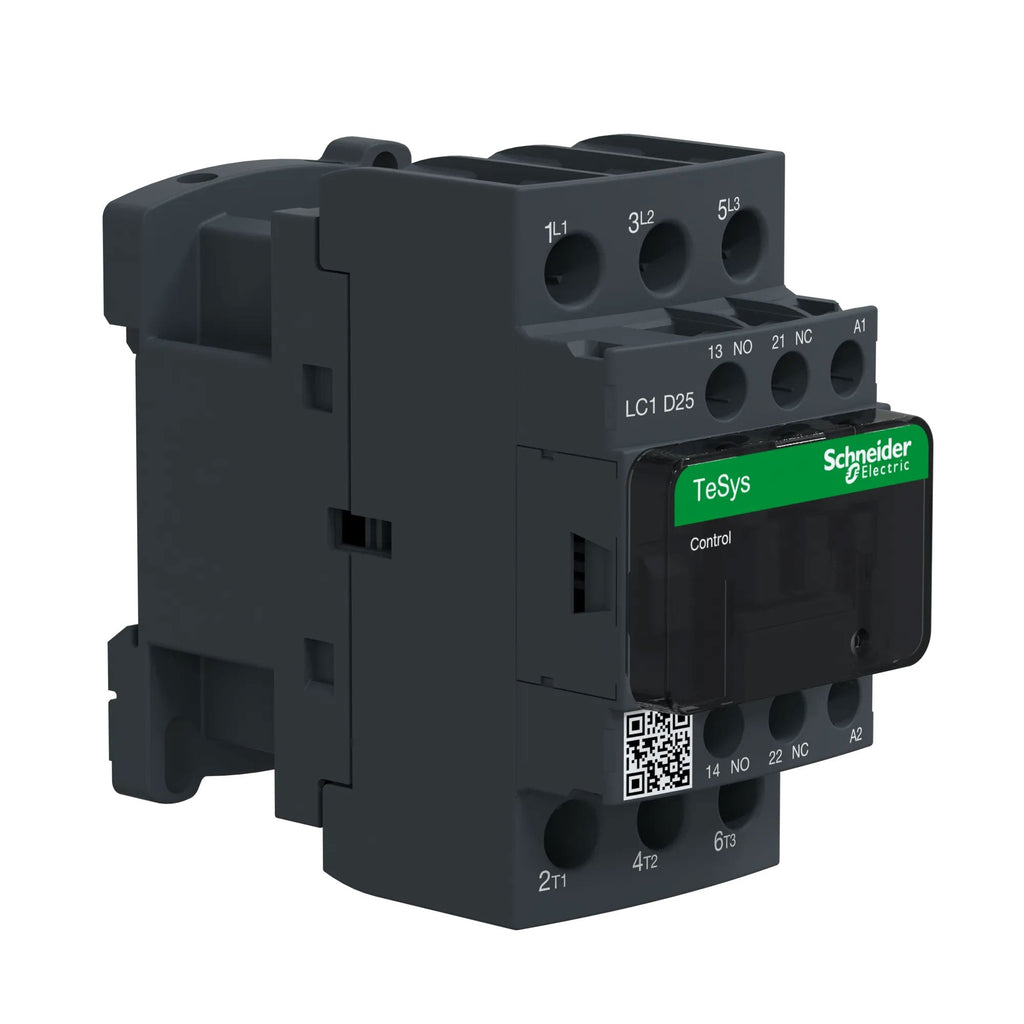

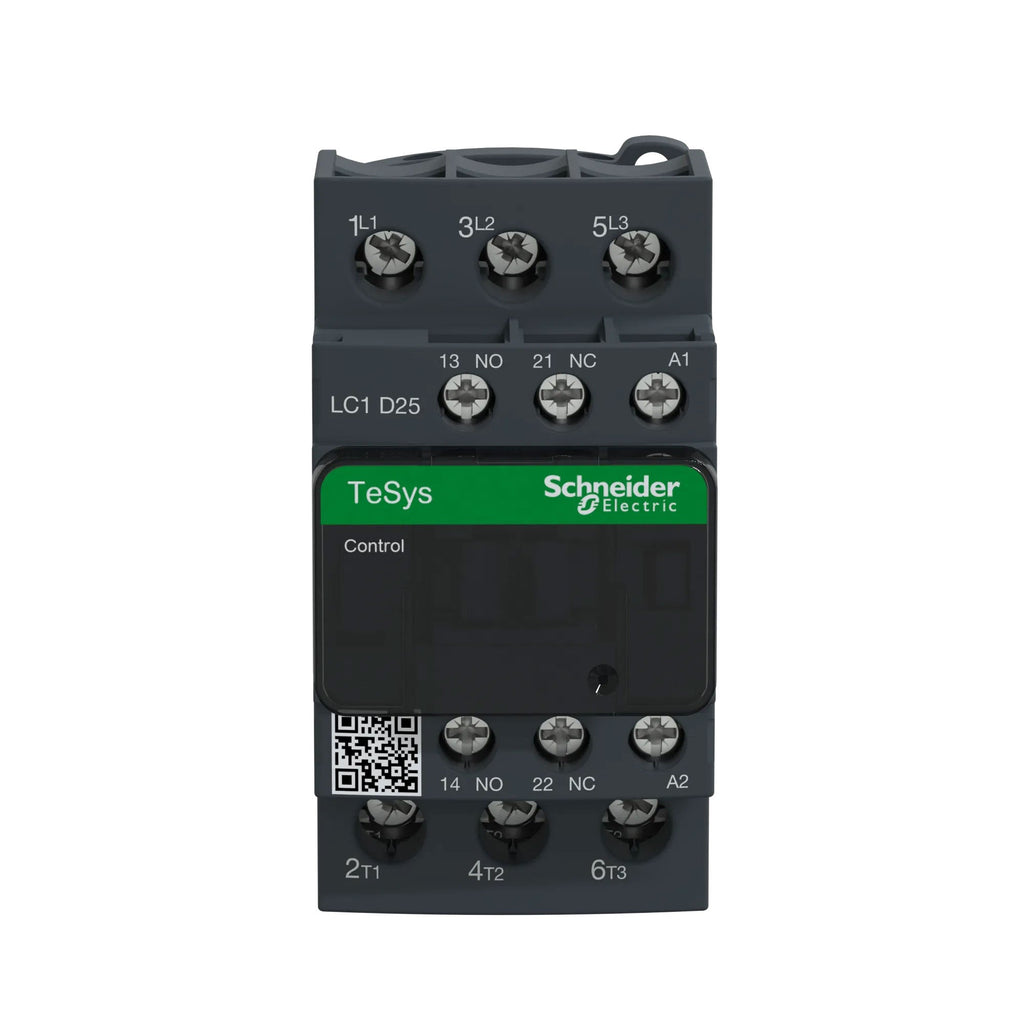

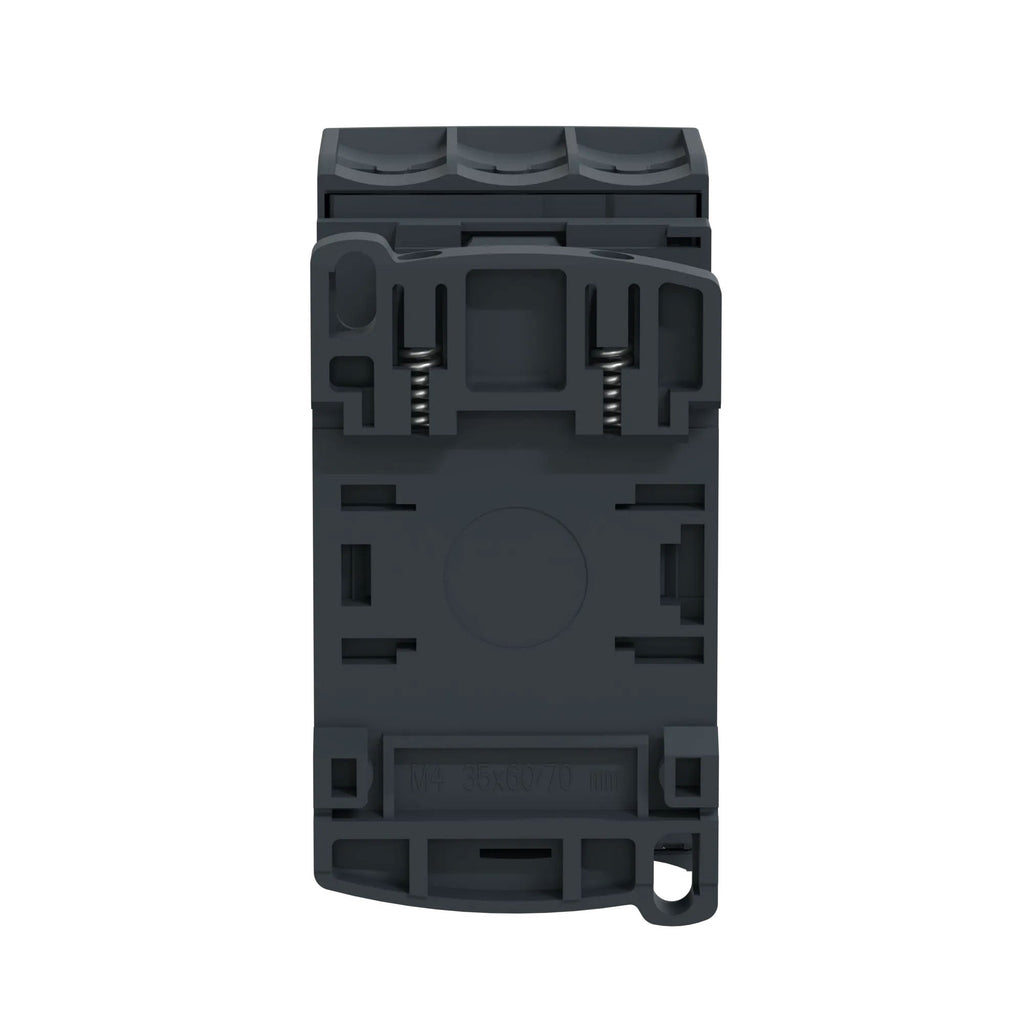

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 25
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 110–120 V
- Auxiliary contacts
- 1NO/1NC
- Country of origin
- Indonesia
- Horse Power
- 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 120
- Full Load Amps
- Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
Show all specifications (7 more)
- Coil Voltage Minimum
- 110
- Mounting
- Rail
- UPC
- 785901207153
- GTIN
- 03389110349733
- Dimensions
- 1.77 in (45 mm) x 3.35 in (85 mm)
- Weight
- 0.911 lb
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D25G7
LC1D25G7 is a Schneider Electric TeSys D 3-pole motor contactor designed for motor control applications with a 25A rated operational current and 120V AC coil voltage.LC1D25G7 supports up to 690V AC power circuits and is suitable for AC-1, AC-3, and AC-4 utilization categories. It features 3 normally open (3NO) power poles, a 3-phase configuration, and can handle motor power ratings up to 15 HP at 460V AC. The contactor is DIN rail mountable and complies with IEC standards including IEC 60946 and IEC 60335-1 for fire resistance.
- Key Specifications
- Rated operational current: 25A AC-3 at ²440V
- Rated operational current: 40A AC-1 at ²440V
- Poles: 3 poles (3NO)
- Coil voltage: 120V AC, 50/60 Hz
- Rated voltage: up to 690V AC power circuit
- Motor power rating: 15 HP at 460V AC
- Mounting type: DIN rail
- Utilization categories: AC-1, AC-3, AC-4
- Contact configuration: 3PST-NO
- Standards: IEC 60946, IEC 60335-1 fire resistance certified
- Operating temperature: up to 60 °C
Specifications
- Part Number: LC1D25G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Horse Power : 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 110
- Mounting : Rail
Product Data
- UPC : 785901207153
- GTIN : 03389110349733
- Country of Origin : Indonesia
- Dimensions : 1.77 in (45 mm) x 3.35 in (85 mm)
- Weight : 0.911 lb
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
