Description
LC1D32G7

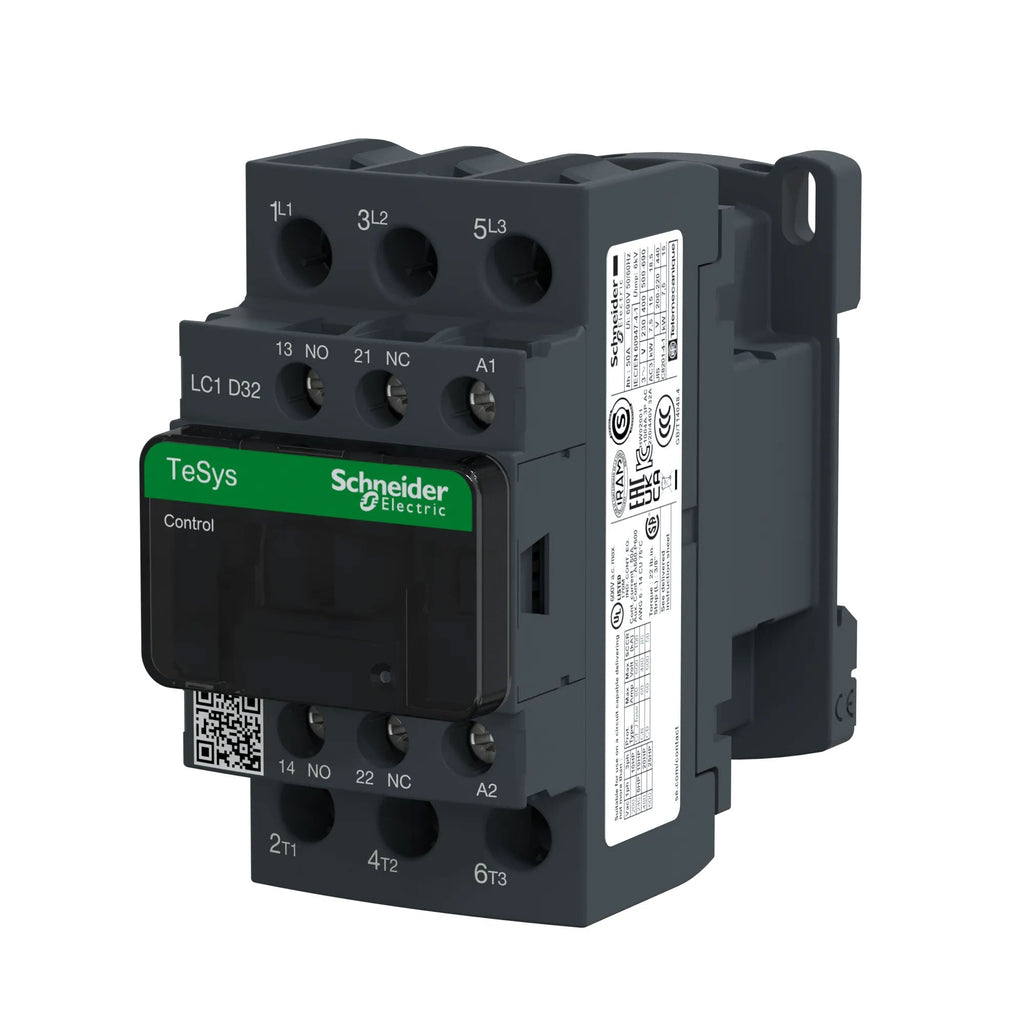

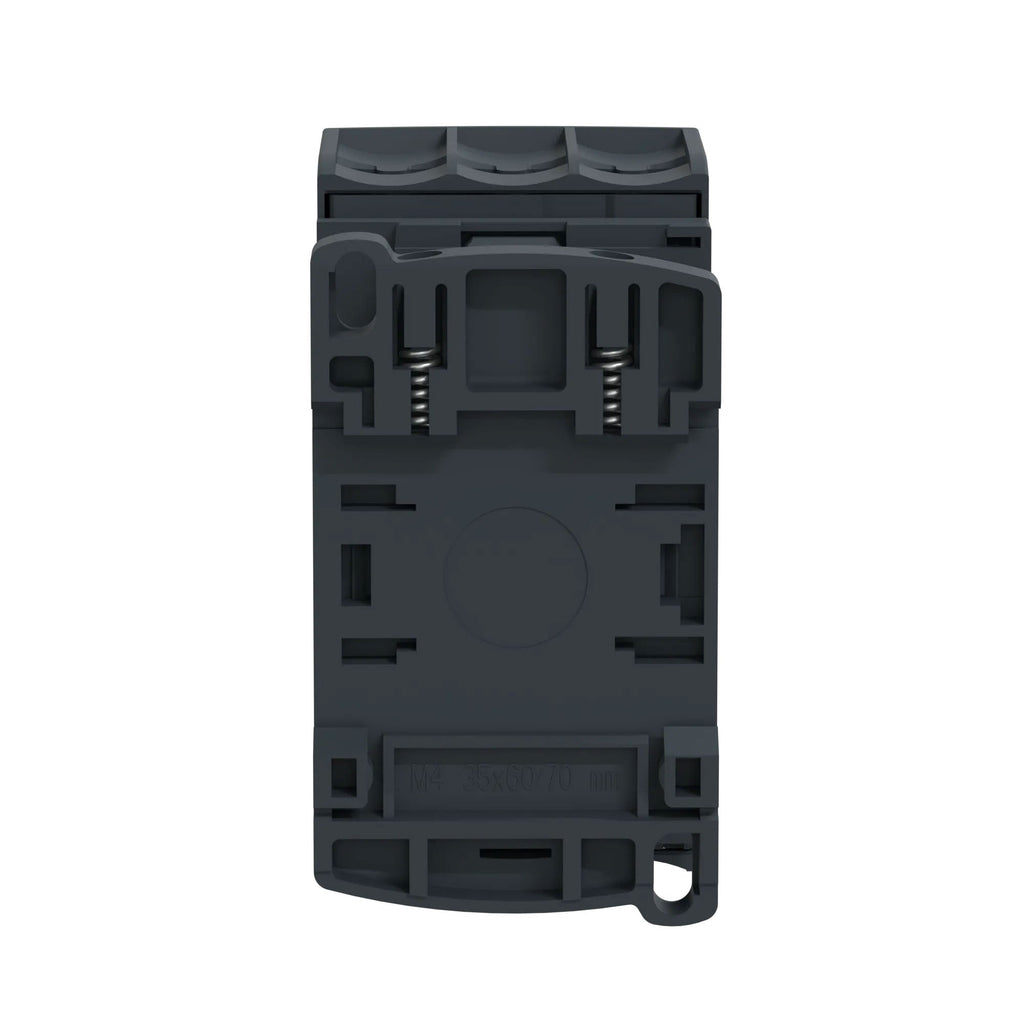

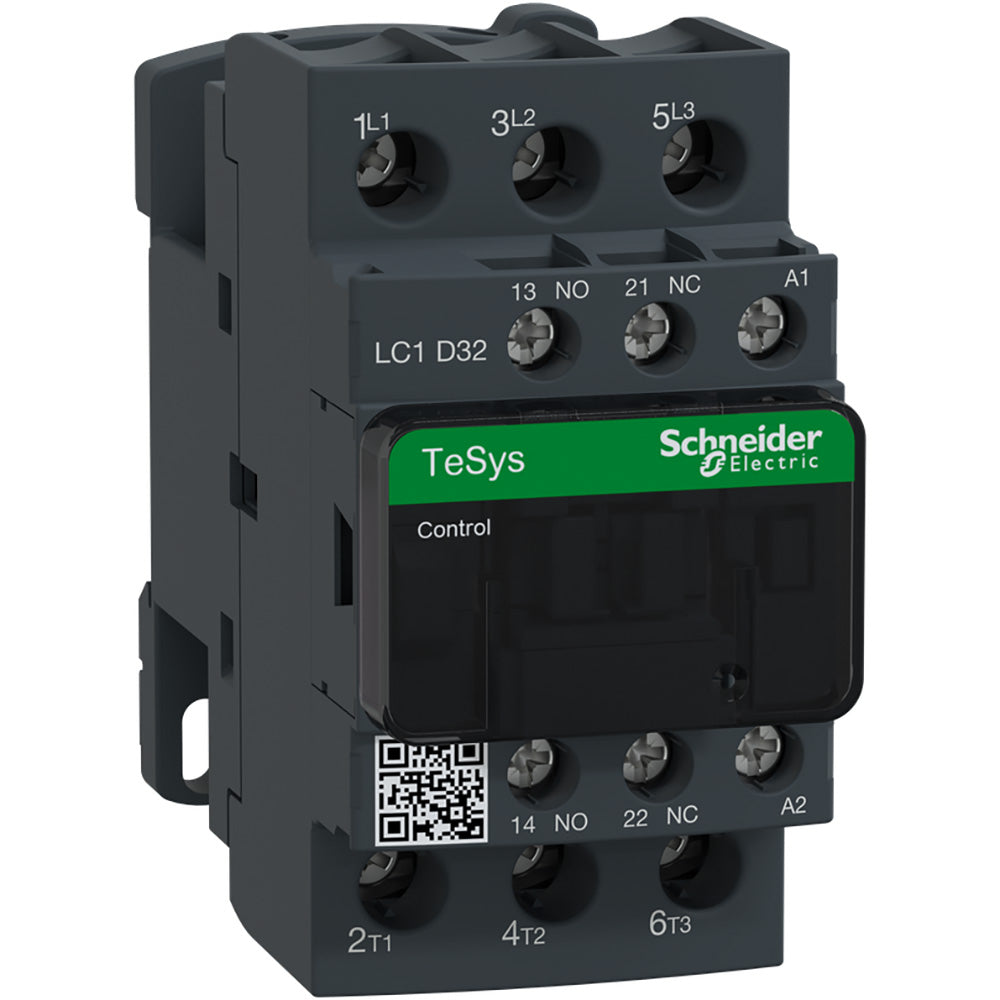

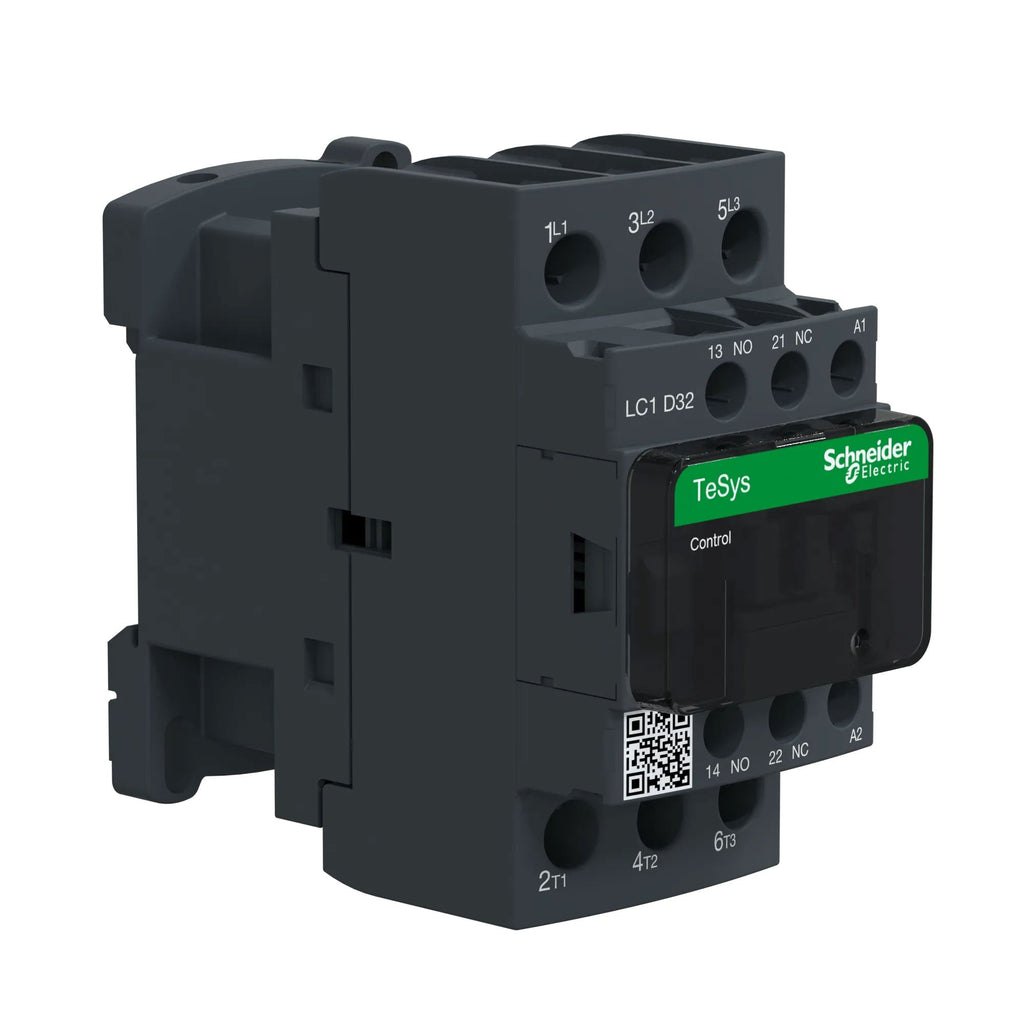

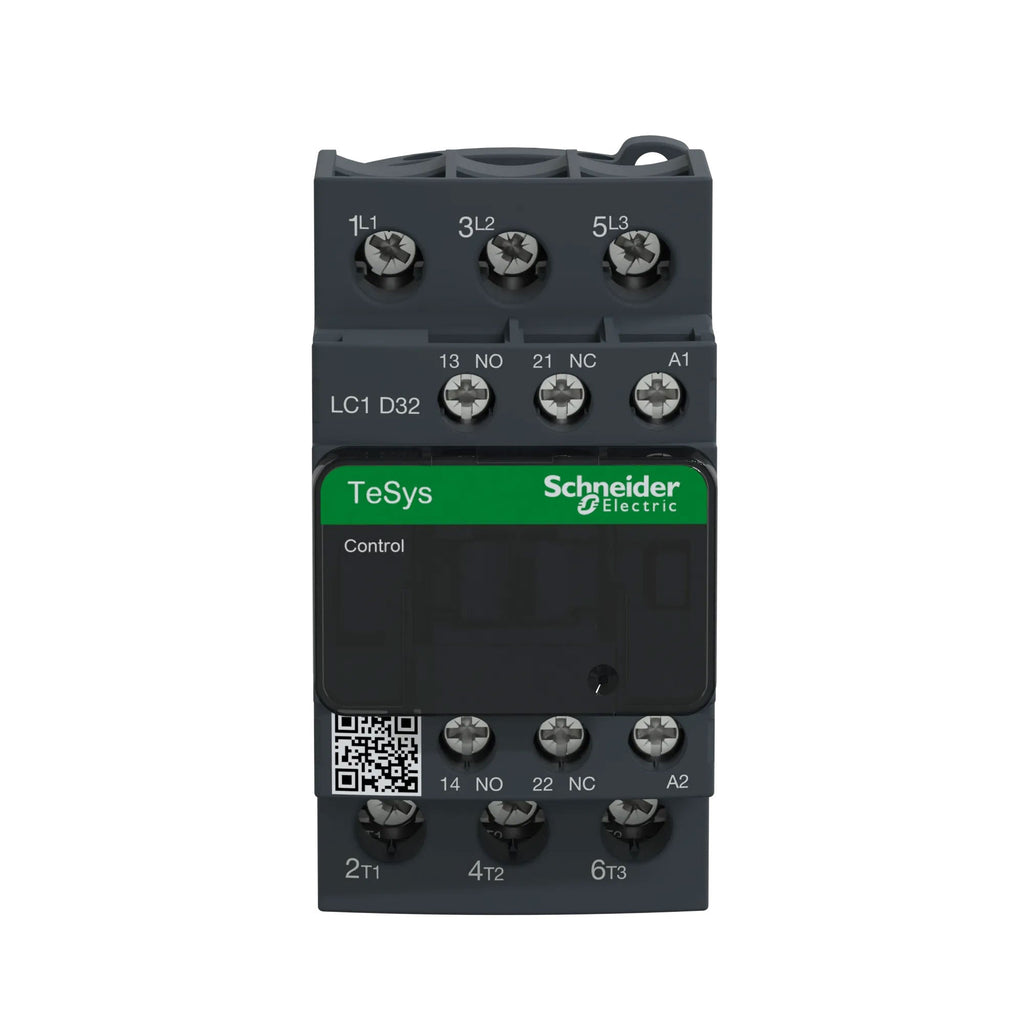

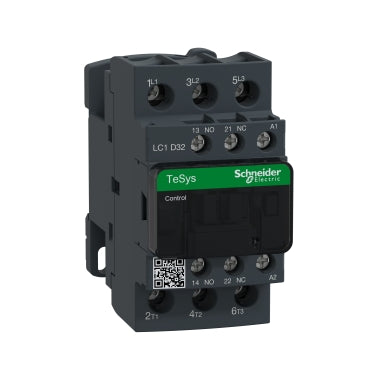

LC1D32G7 is a 3-pole motor contactor from Square D's TeSys D series designed for motor control applications with a 32 amp rating and 120V AC coil.This contactor supports AC-3 utilization category up to 440V with a rated operational current of 32A and can handle motor loads up to 20 HP at 480V AC. It features a non-reversing, mechanically linked contact design with 3 normally open poles, screw clamp terminals, and is suitable for rail or surface mounting. The device includes 1 normally open and 1 normally closed auxiliary contact, an IP20 enclosure rating, and complies with IEC standards including IEC 60335-1 for fire resistance. It is UL and CSA approved with a short-circuit current rating (SCCR) up to 100kA when used with appropriate fuses.
- Key Specifications
- Manufacturer: Square D
- Part Number: LC1D32G7
- Amperage: 32 A (AC-3 at 440 V)
- Voltage Rating: Up to 690 V AC, 120 V AC coil voltage
- Poles: 3 (3 NO contacts)
- Mounting Type: Rail or surface mount
- Interrupt Rating: Up to 100 kA SCCR with fuses
- Series/Frame: TeSys D
- Trip Unit: Non-reversing contactor
- Certif(more...)
Specifications
- Part Number: LC1D32G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 32
- Phase : 3
- Poles : 3
- Horse Power : 2 hp at 115 V AC 50/60 Hz for 1 phase motors-5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-20 hp at 460/480 V AC 50/60 Hz for 3 phases motors-25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 32A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 110
- Mounting : Rail
Product Data
- UPC : 785901207207
- GTIN : 03389110350814
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.36 in
- Weight : 0.926
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
