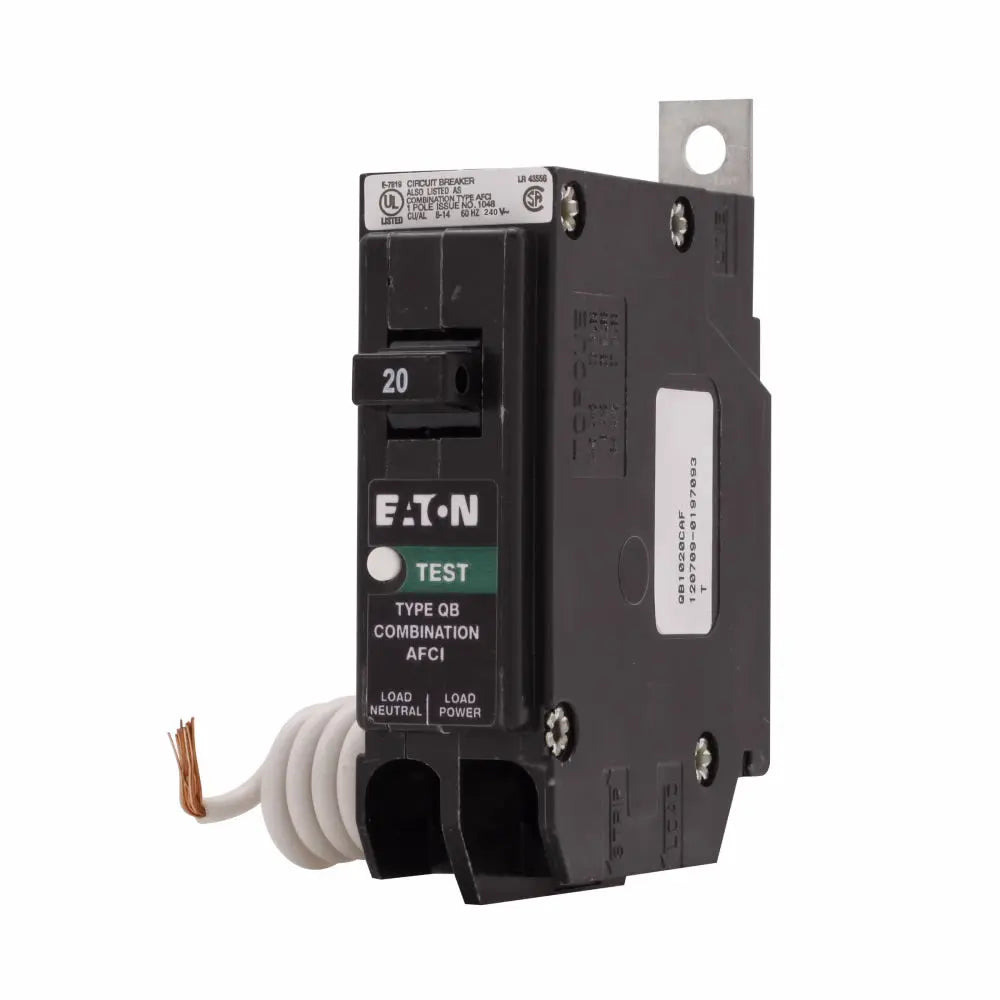

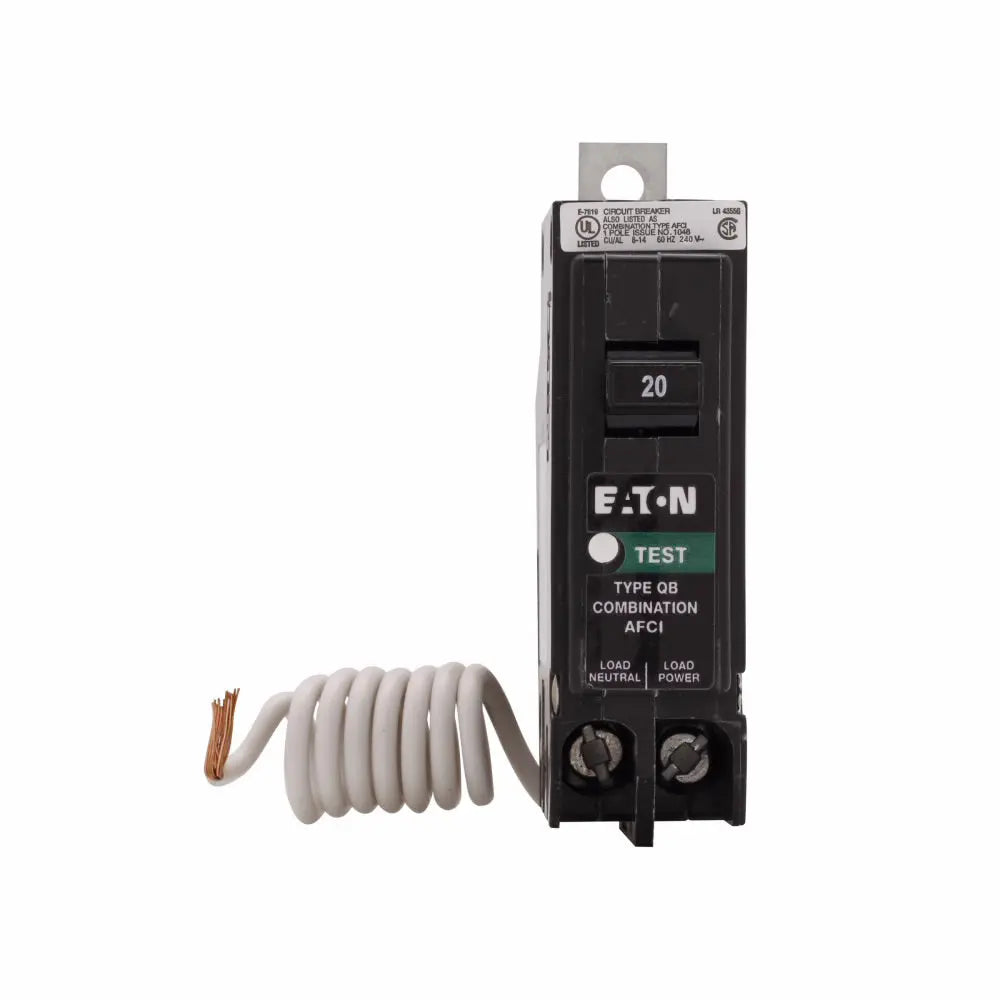

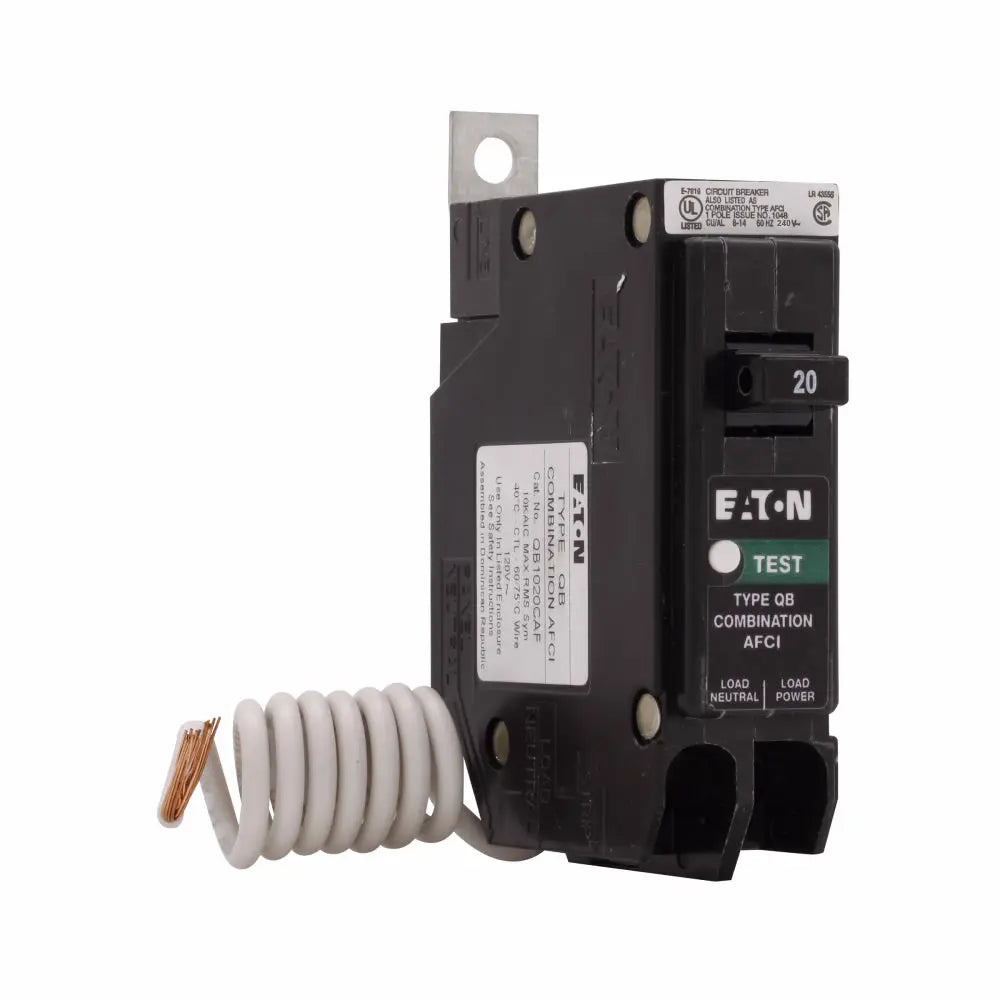

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- QUICKLAG
- Frame
- QBCAF
- Rated current
- 20
- Voltage
- 240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Breaker type
- AFCI
- Country of origin
- Dominican Republic
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 786685514437
- GTIN
- 00786685514437
- Dimensions
- 6 in x 1 in x 3.5 in (Length/Depth x Height x Width)
- Weight
- 0.426
Product description & additional details
QB1020CAF
QB1020CAF is a Cutler Hammer 1 pole, 20A arc fault circuit breaker designed for reliable protection in commercial and industrial applications.
This bolt-on molded case circuit breaker features a thermal magnetic trip unit, providing both long-time and instantaneous overcurrent protection. It is part of the QBCAF series within the QUICKLAG family, offering robust performance with a 10kA interrupting rating. Suitable for use in environments with temperatures from -31 to 66°C, this breaker is engineered for safety and durability in demanding electrical systems.
-
Key Specifications
- Part Number: QB1020CAF
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 20A
- Voltage: 70-160VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC
- Series/Frame: QBCAF / BAB
- Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
- Certifications: Contact manufacturer
- Temperature Rating: -31 to 66°C
- Connection Type: Bolt-On
- Product Type: Arc Fault Circuit Breaker (AFCI)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QB1020CAF
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBCAF
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786685514437
- GTIN : 00786685514437
- Country of Origin : Dominican Republic
- Dimensions : 6 in x 1 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.426
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
