Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 15
- Voltage
- 240V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Breaker type
- AFCI
Show all specifications (5 more)
- UPC
- 783164652864
- GTIN
- 00783164652864
- Dimensions
- Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight
- 2
- Certification
- UL, CSA
Product description & additional details

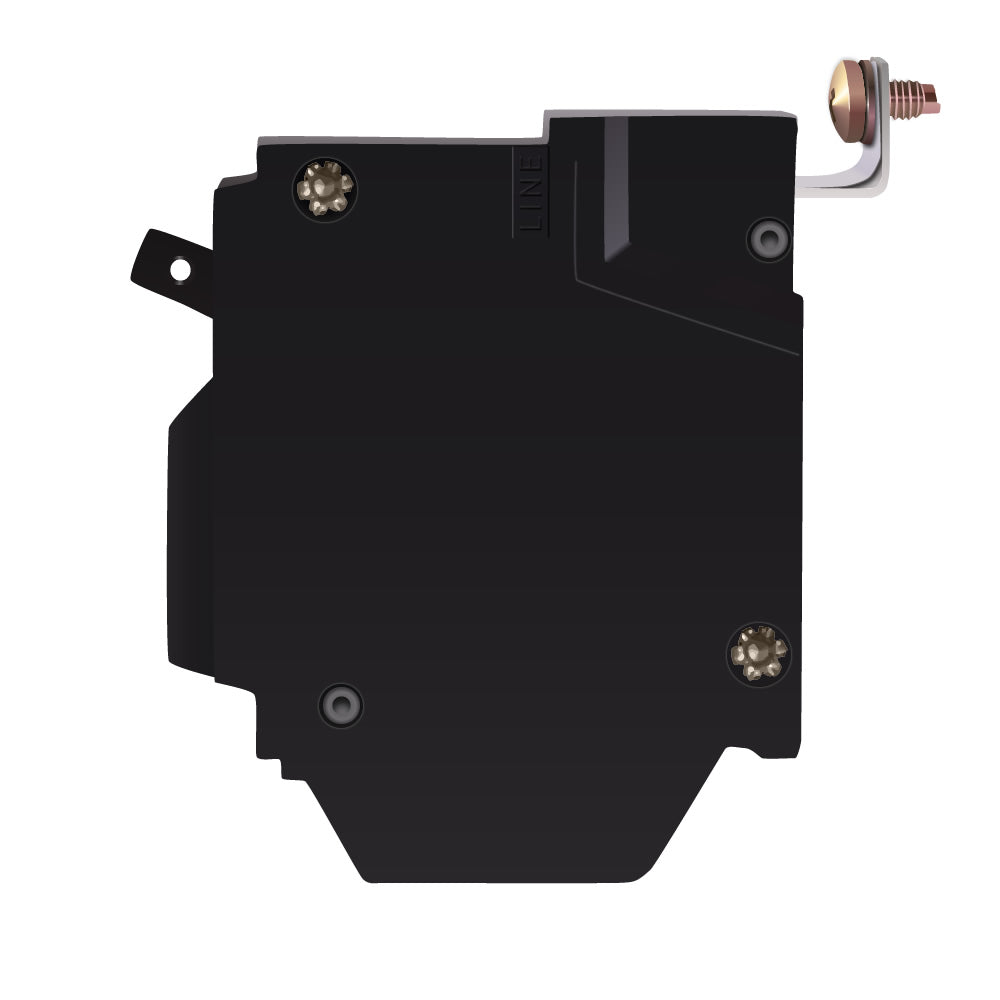

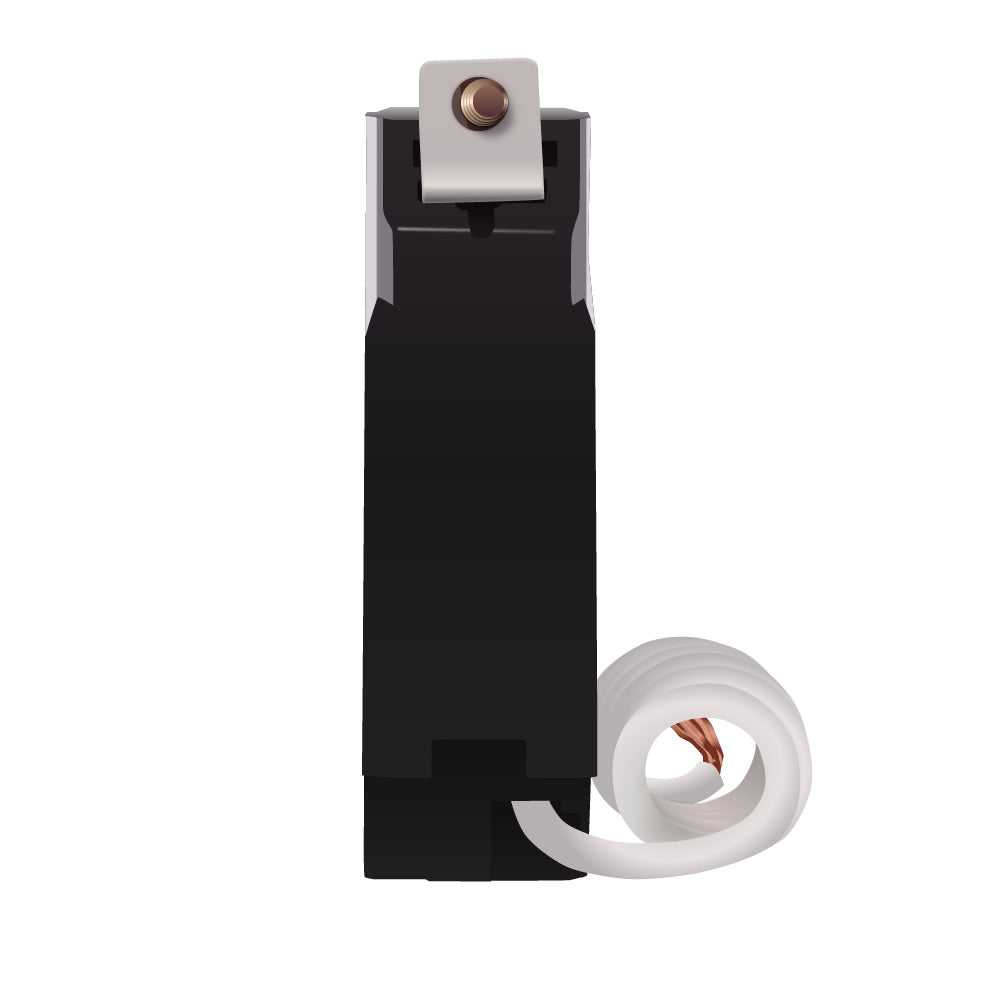

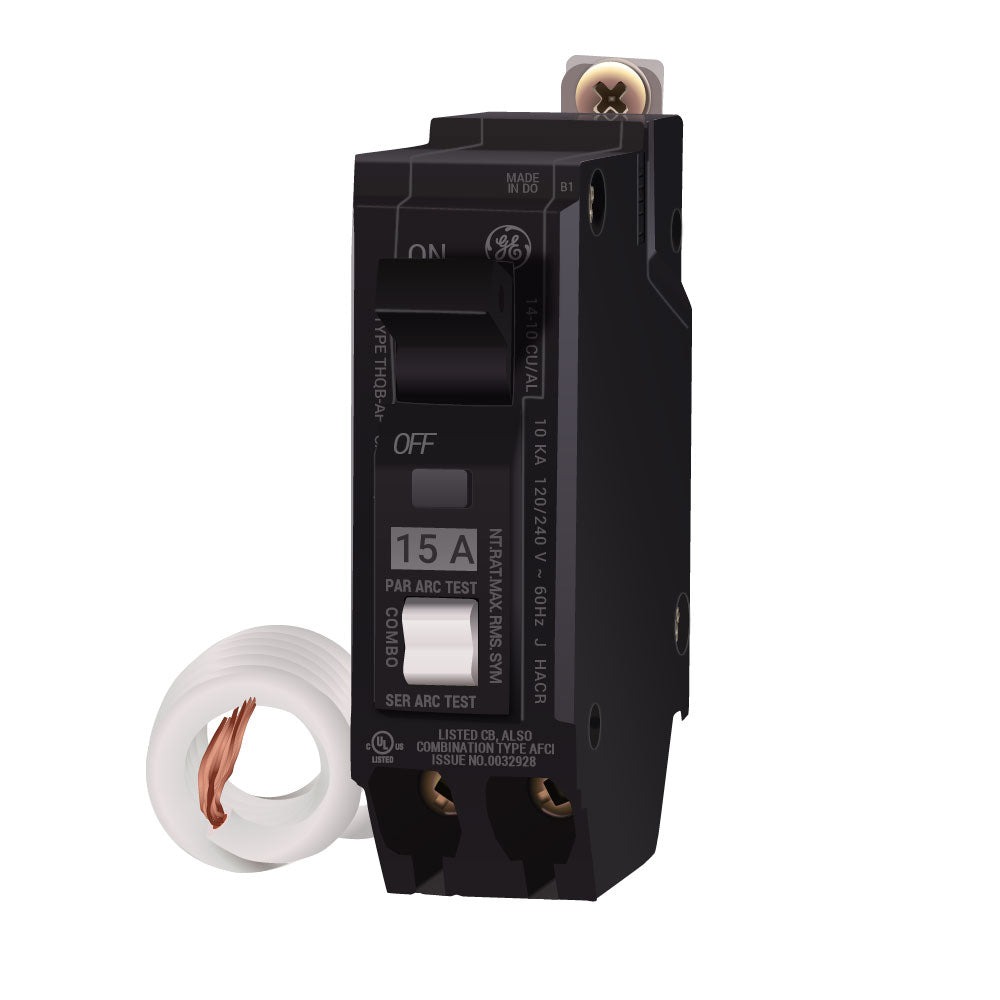

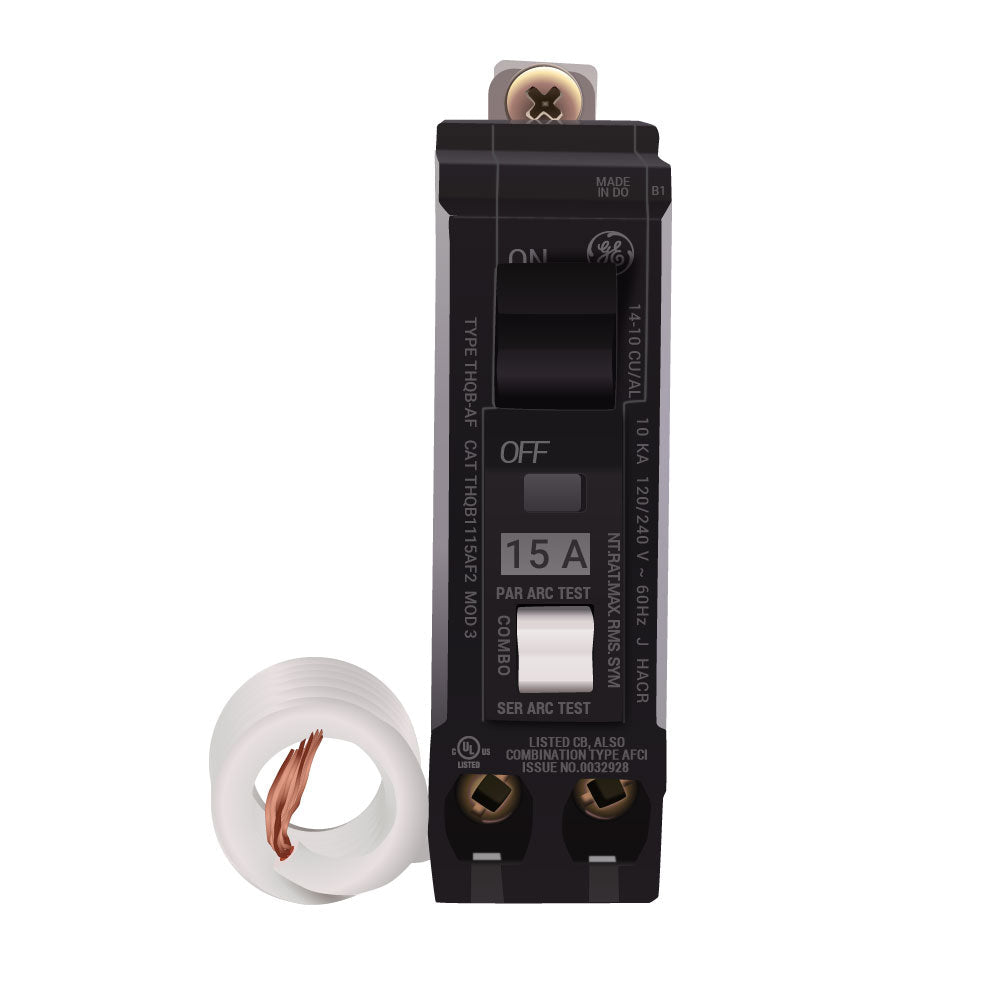

THQB1115AF2
THQB1115AF2 is a 15 Amp, 1 Pole arc fault circuit breaker from General Electric designed for residential and light commercial use.THQB1115AF2 features a 120/240 VAC voltage rating, 10kA interrupting capacity, and thermal magnetic protection with long-time and instantaneous trip functions. It is a plug-in type breaker compatible with Q-Line load centers, providing reliable arc fault detection to enhance electrical safety.
- Manufacturer: General Electric
- Part Number: THQB1115AF2
- Amperage: 15 A
- Voltage: 120/240 VAC
- Poles: 1
- Interrupting Rating: 10kA at 240V
- Frame/Series: Q-Line (THQL)
- Mounting Type: Plug-In
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Protection Type: Arc Fault Circuit Interrupter (AFCI)
- Certifications: UL Listed, HACR Rated
- Compatible with Power Mark Gold Load Centers and AQ Lighting Panels
Specifications
- Part Number: THQB1115AF2
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164652864
- GTIN : 00783164652864
- Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 1 in
- Weight : 2
- Certification : UL, CSA
