Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Molded Case
- Series
- Q-Line
- Frame
- THQB
- Rated current
- 15
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Lugs
- Included
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
Show all specifications (3 more)
- UPC
- 783164034141
- Weight
- 2
- Wire Size
- AWG 14 to 8 AWG, AWG 12 to 8 AWG, Copper/Aluminum
Product description & additional details
THQB1115ST1

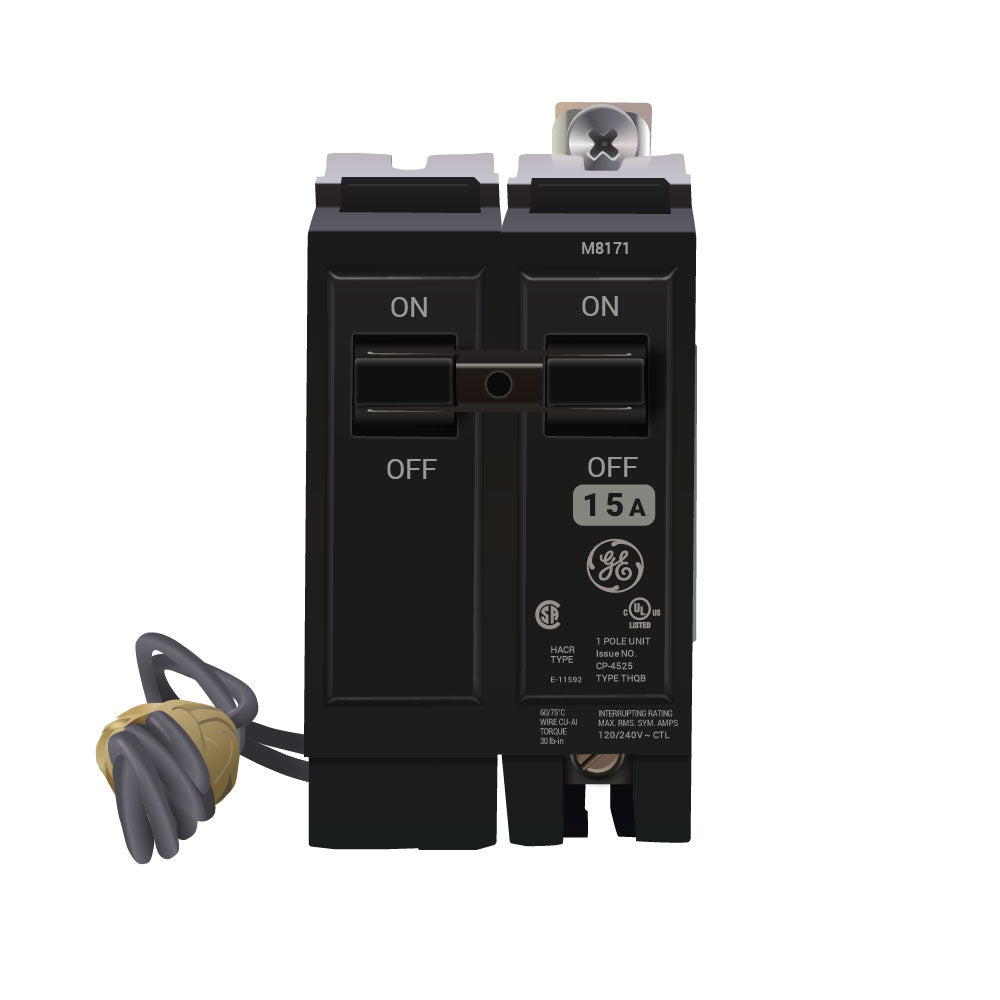

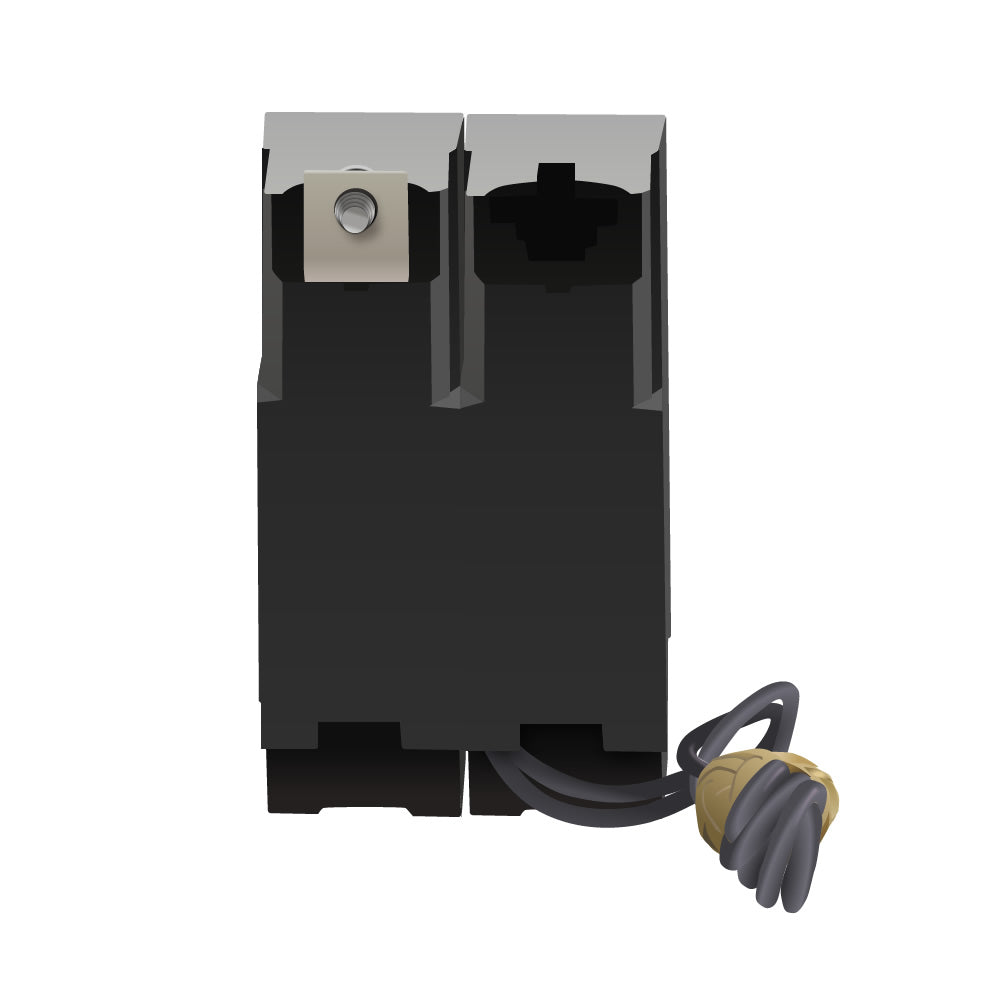

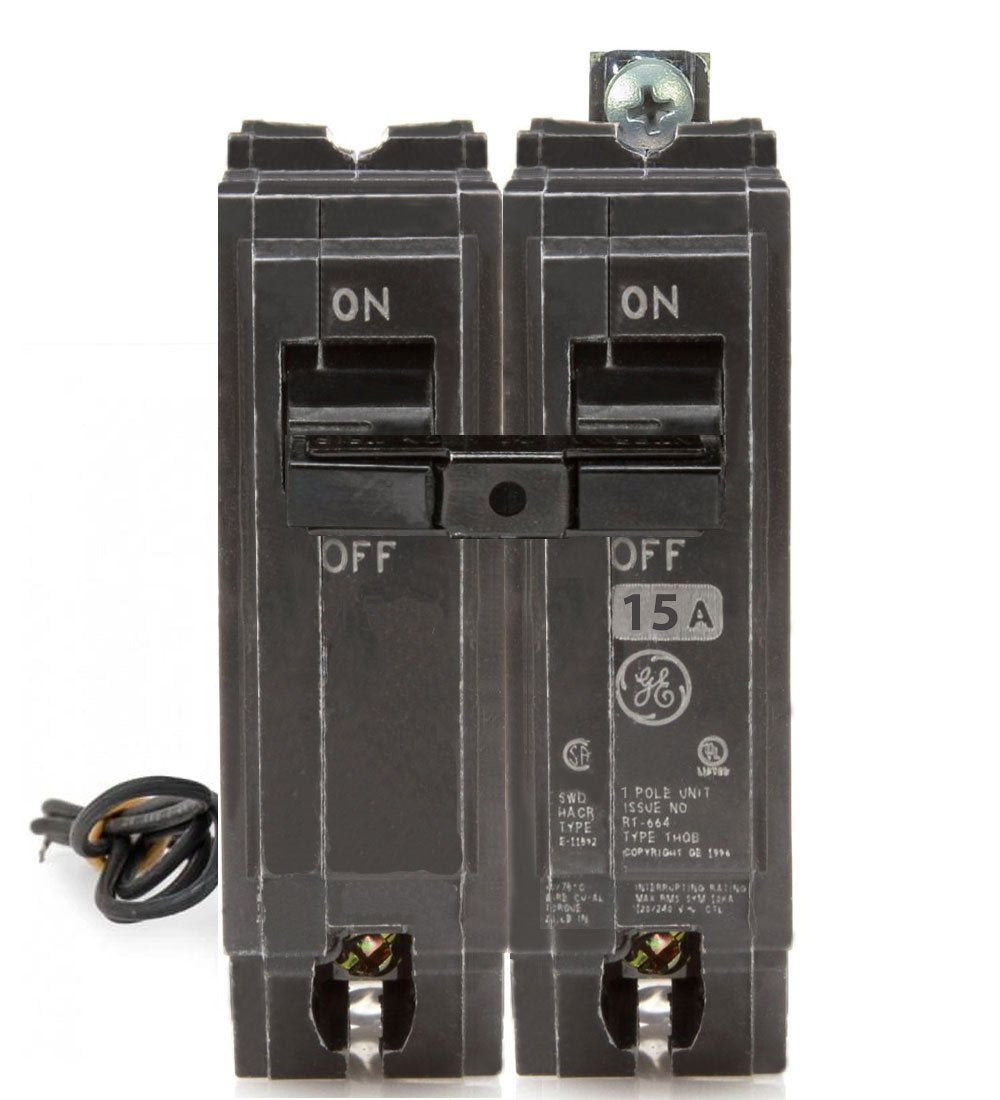

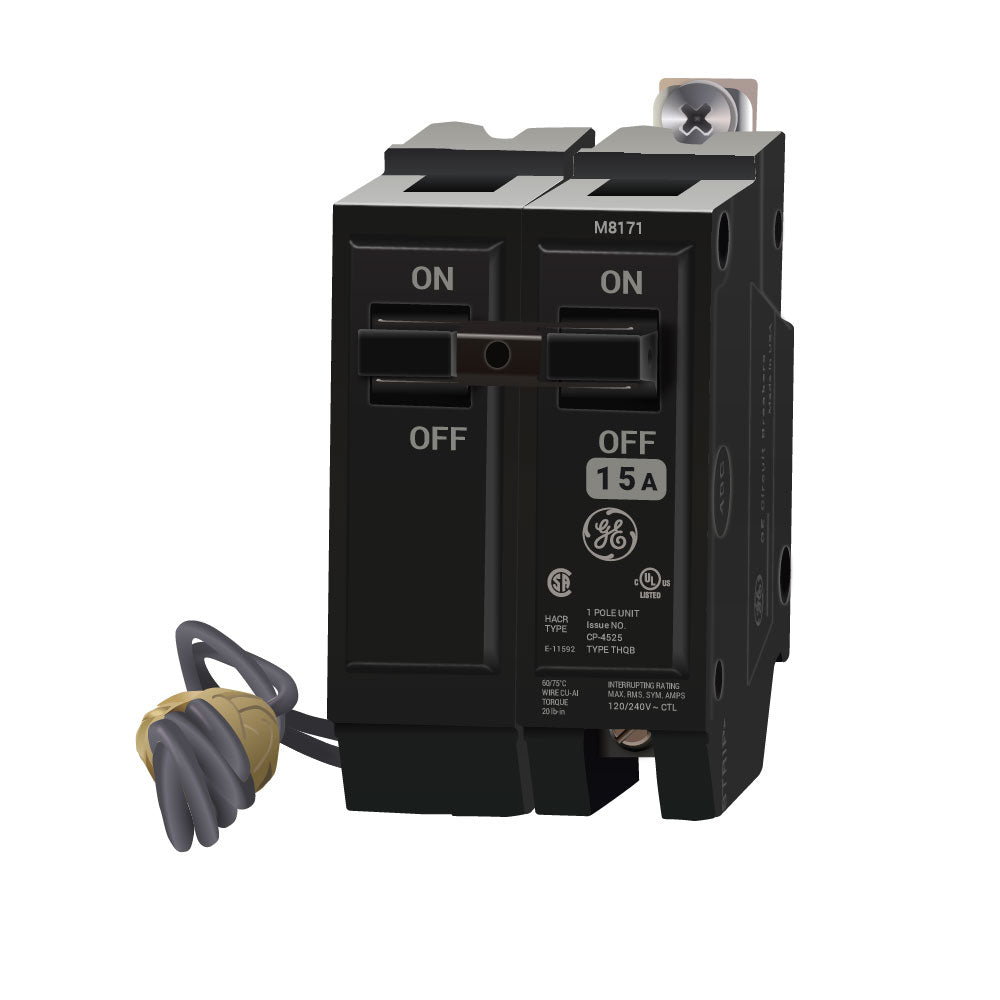

THQB1115ST1 is a 1-pole, 120-volt, 15-amp molded case circuit breaker manufactured by General Electric with factory-installed shunt trip capability.
This thermal magnetic circuit breaker features bolt-on connection and is designed for reliable overcurrent protection in single-phase applications. The breaker includes a 120Vac shunt trip mechanism for remote tripping functionality and accommodates copper wire sizes 14-8 AWG and aluminum wire sizes 12-8 AWG.
- Amperage: 15 Amp
- Voltage: 120V AC
- Poles: 1
- Frame Type: THQB
- Connection: Bolt-On
- Interrupt Rating: 10 kA @ 120V
- Trip Unit: Thermal Magnetic with Shunt Trip
- Shunt Trip Voltage: 120V AC
- Operating Temperature: 40 Degree C
- UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: THQB1115ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164034141
- Weight : 2
- Wire Size : AWG 14 to 8 AWG, AWG 12 to 8 AWG, Copper/Aluminum
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
