QO115CAFIC - Square D QO 15A 1-Pole Combination Arc Fault Circuit Breaker 120/240V Plug-In 10kAIC

QO115CAFIC

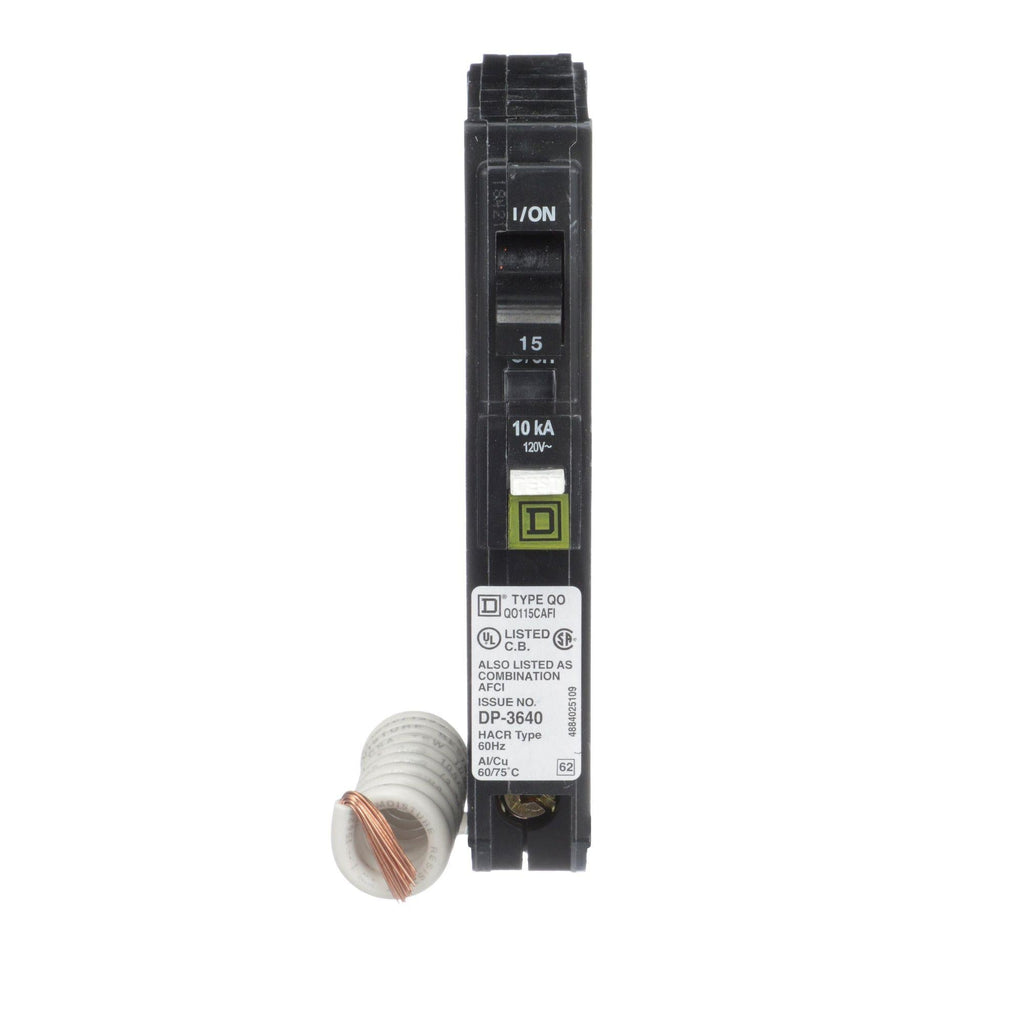

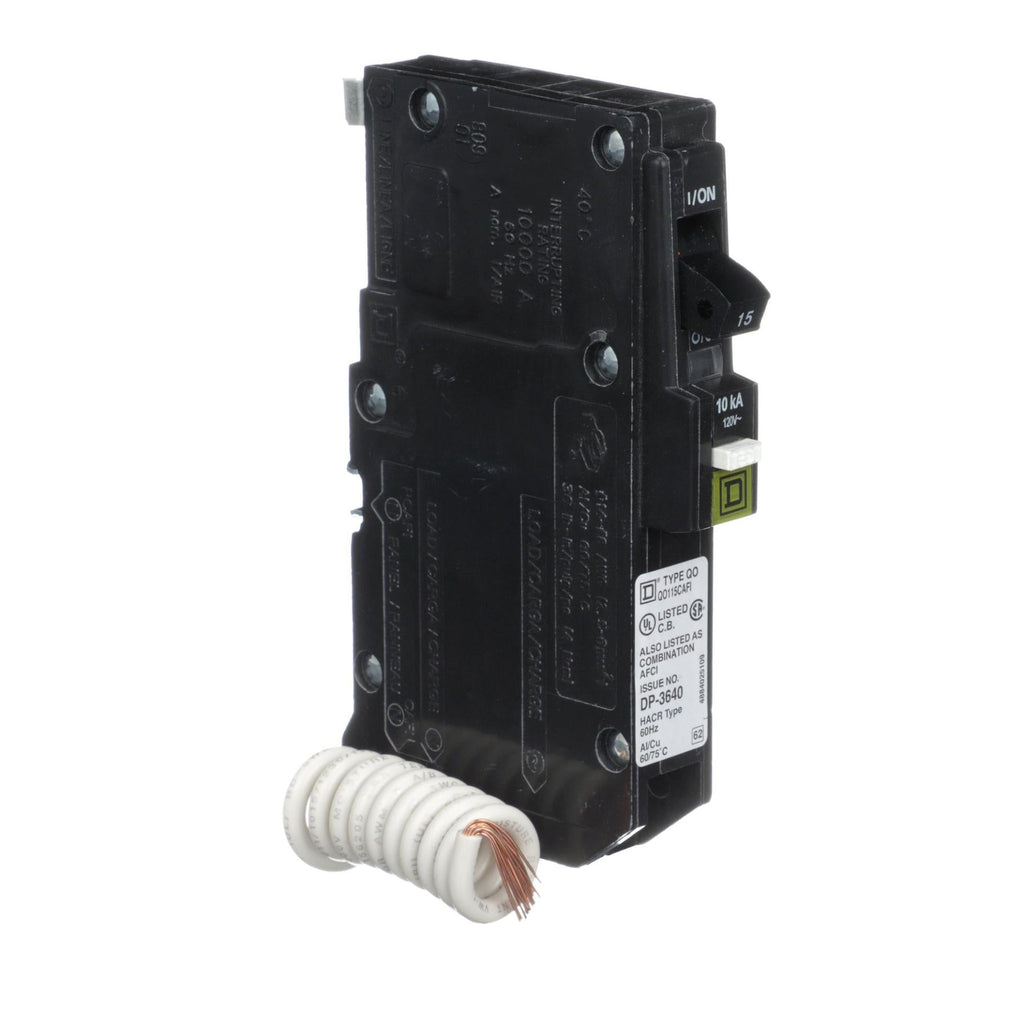

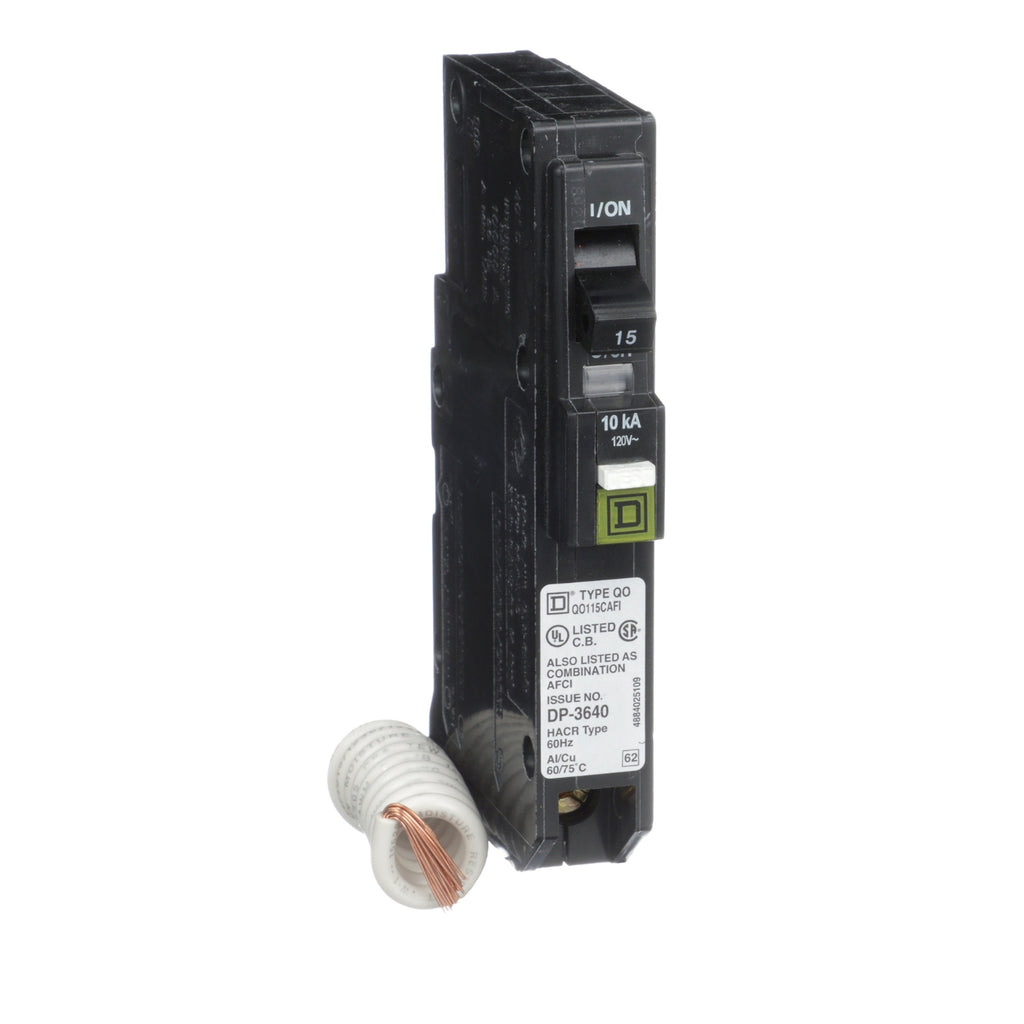

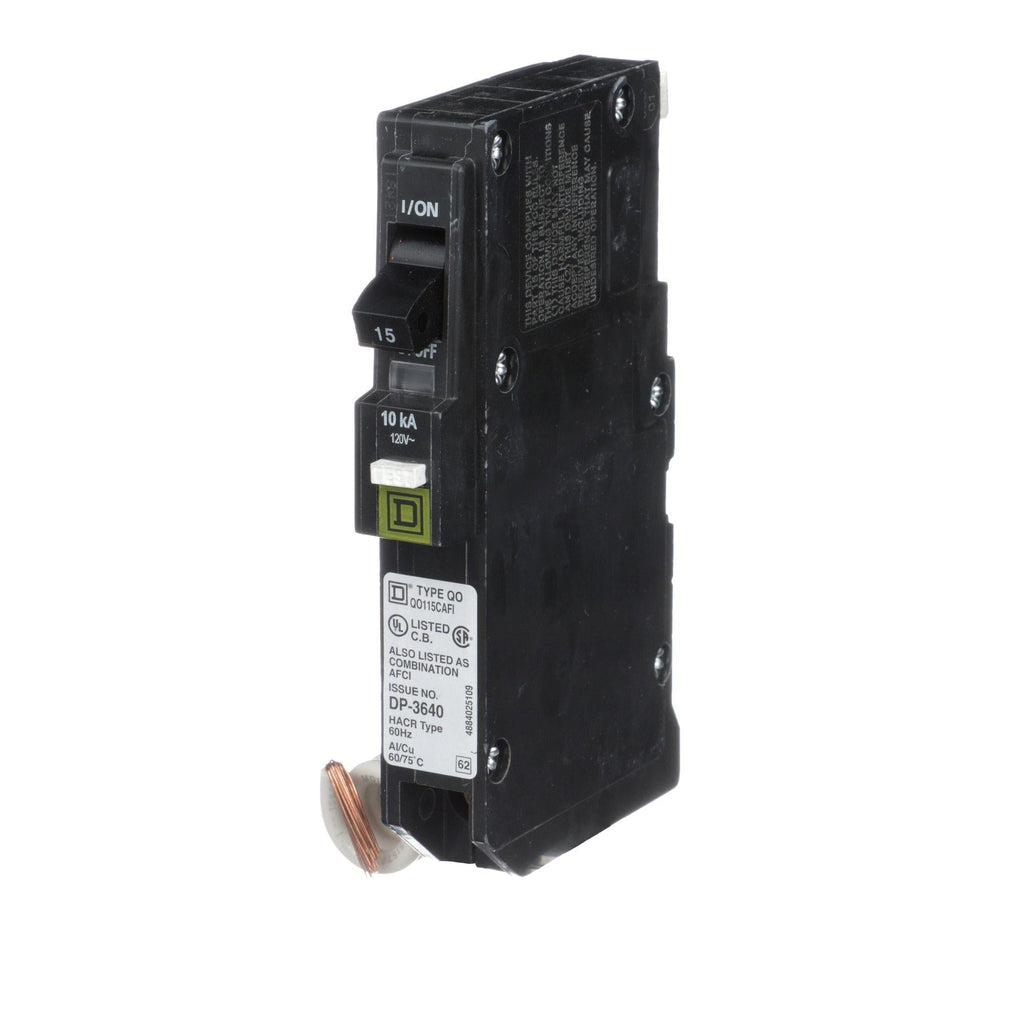

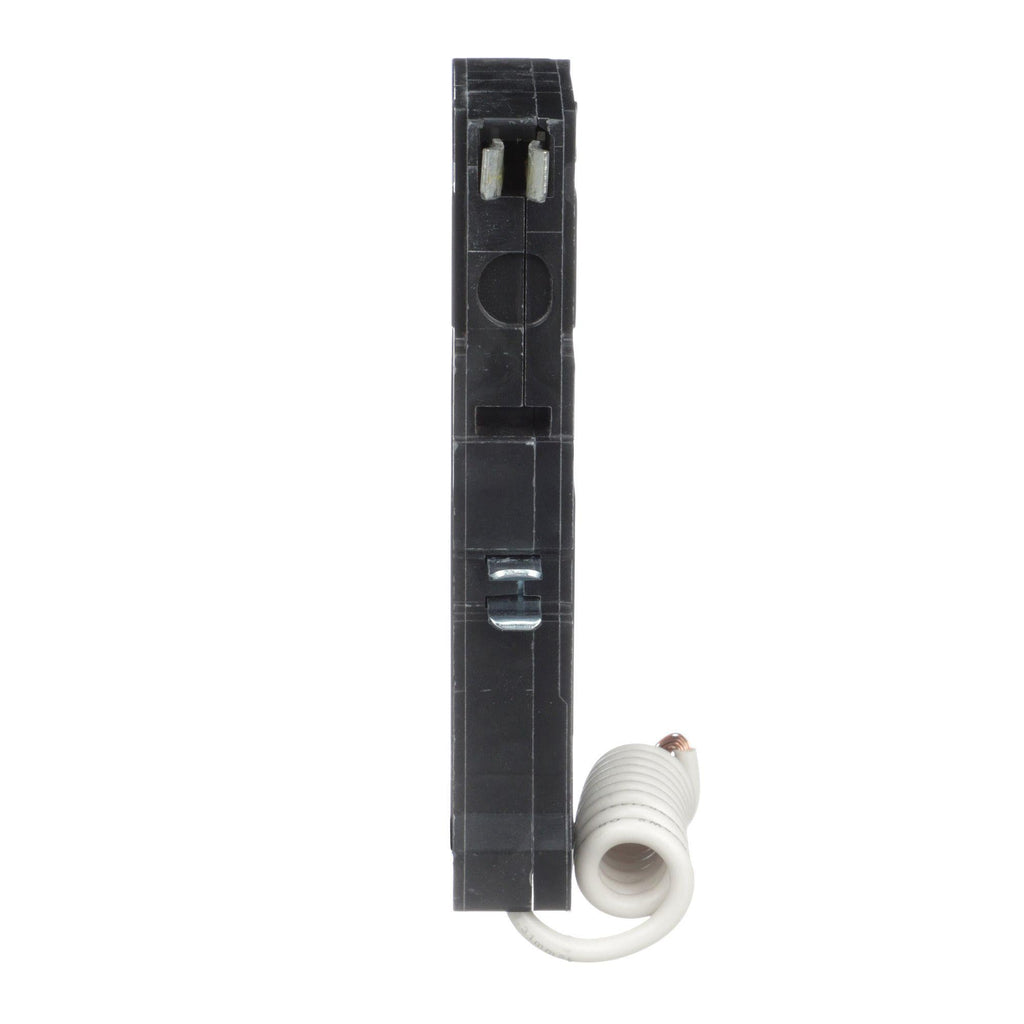

QO115CAFIC is a Square D QO series 15A 1-pole combination arc fault circuit breaker designed for reliable overload and arc fault protection in residential and commercial distribution panels. This breaker features plug-in mounting, a 10kA interrupting rating at 120/240VAC, and is built for use in QO load centers. It provides advanced protection against both series and parallel arc faults, helping to prevent electrical fires. The unit is compatible with copper and aluminum conductors and meets UL, CSA, RoHS, and REACh standards.

• Part Number: QO115CAFIC
• Manufacturer: Square D
• Series: QO
• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC at 120/240VAC
• Trip Unit: Combination Arc Fault (CAFCI)
• Connection Type: Pressure Plate
• Wire Gauge: AWG 14-8 Copper/Aluminum
• Certifications: UL, CSA, RoHS, REACh

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO115CAFIC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 8 AWG (Cu), 8 AWG (Al)
• Breaker Type : Combination Arc-Fault
• Protection : Thermal Magnetic

Product Data

• UPC : 785901610441
• GTIN : 00785901438236
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.57 lb
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
