Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

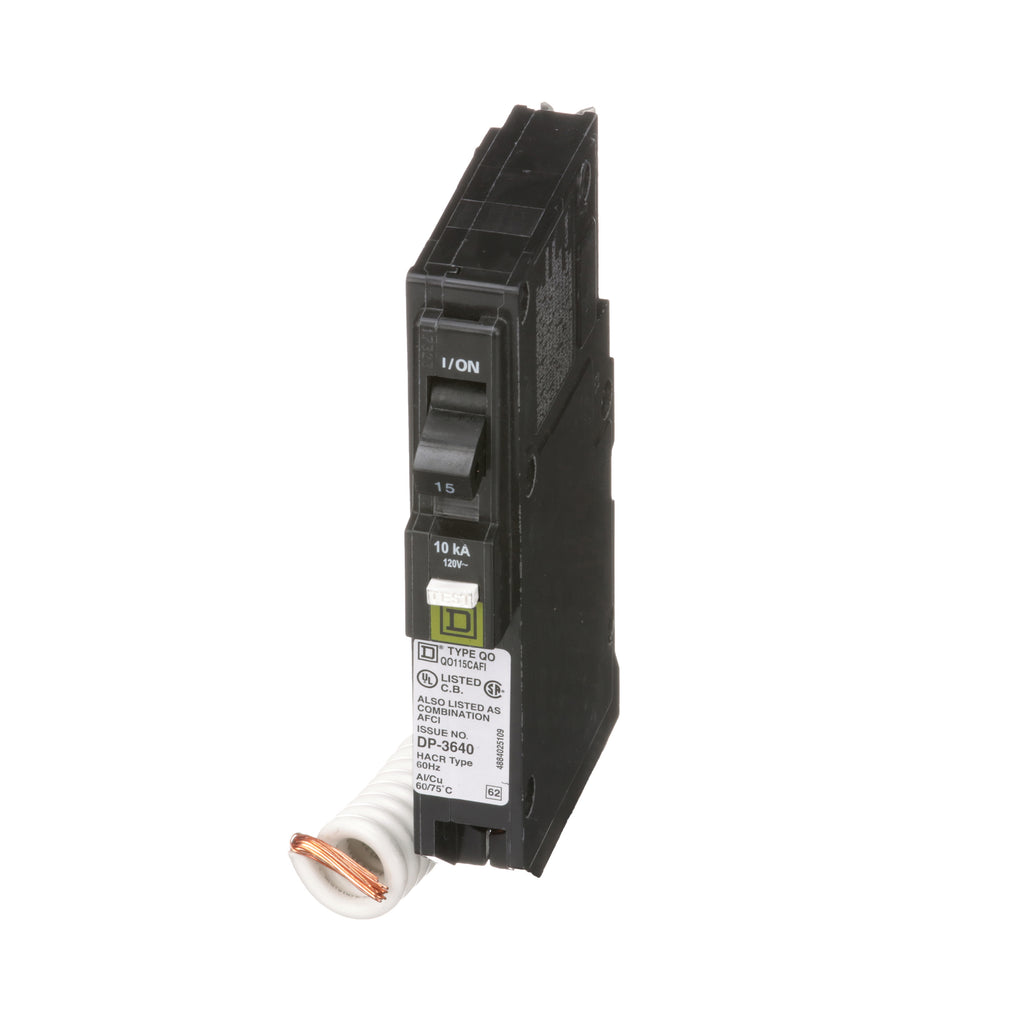

QO115CAFI

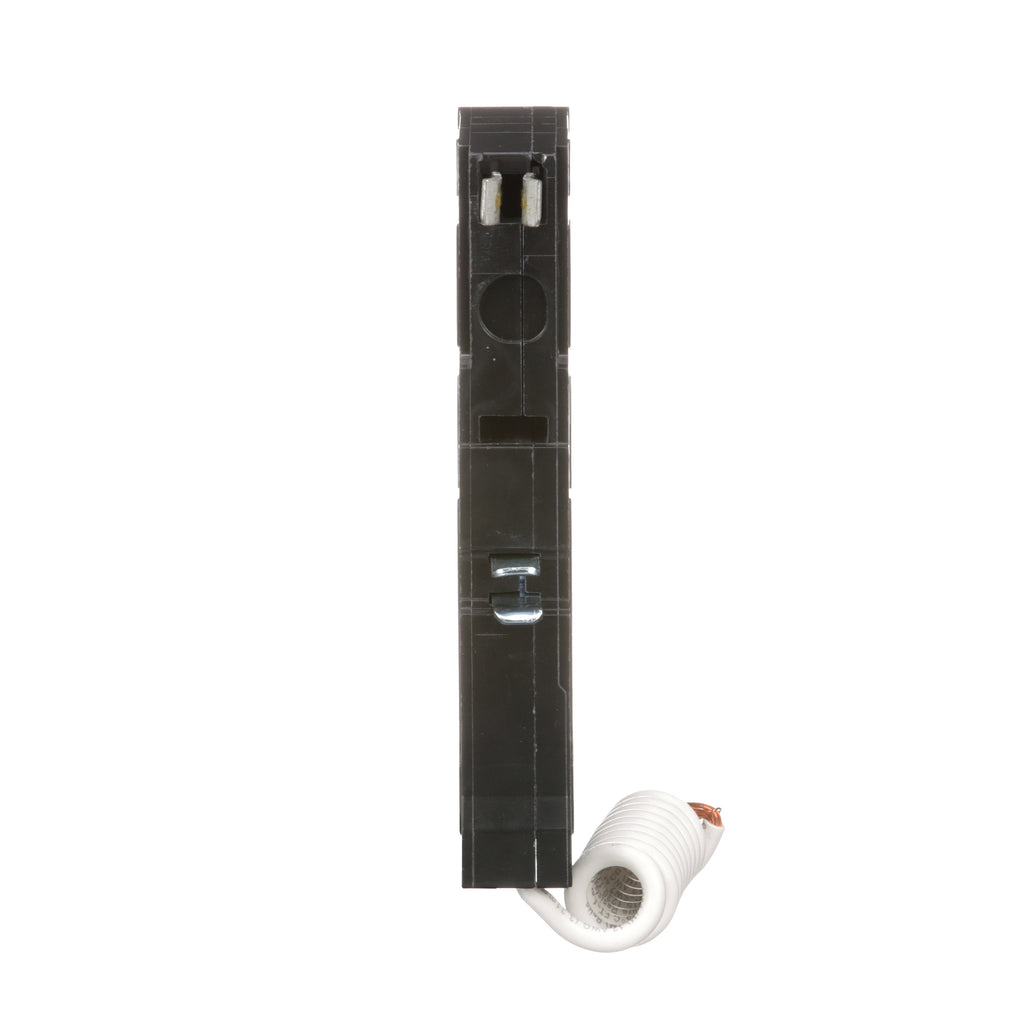

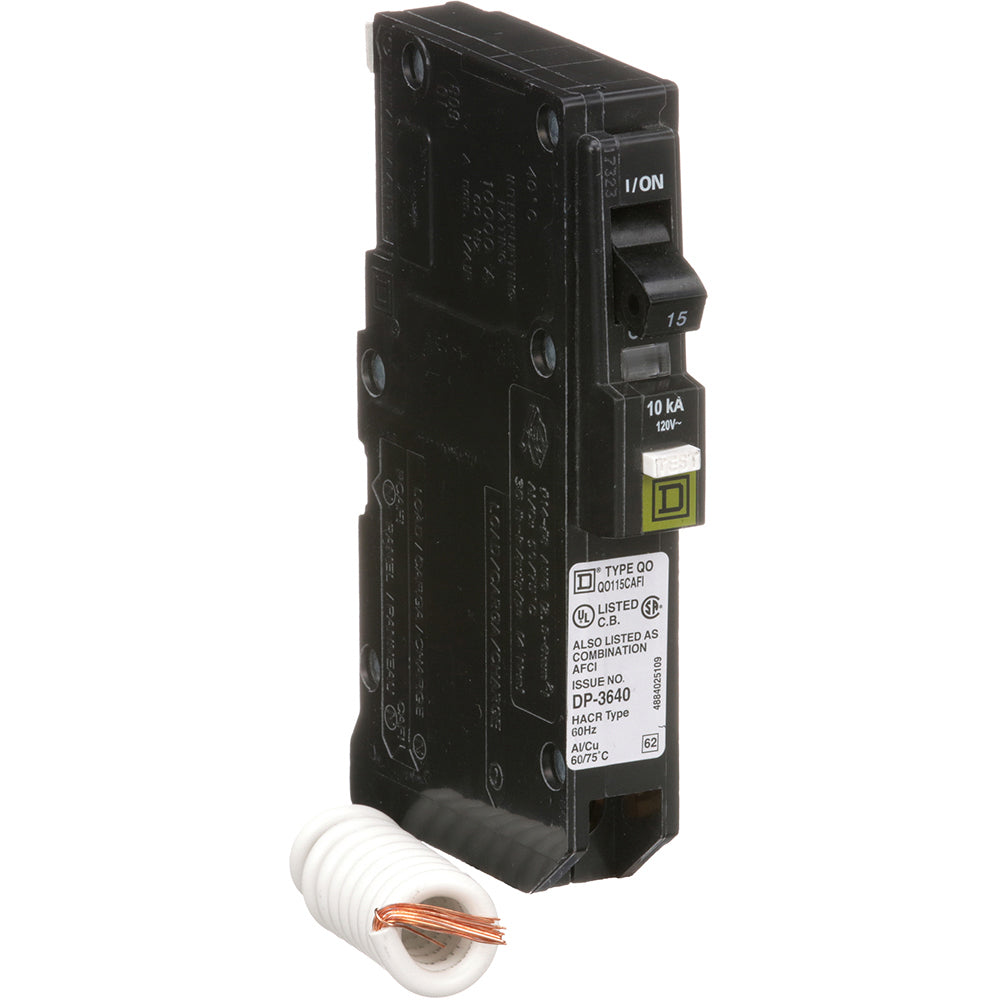

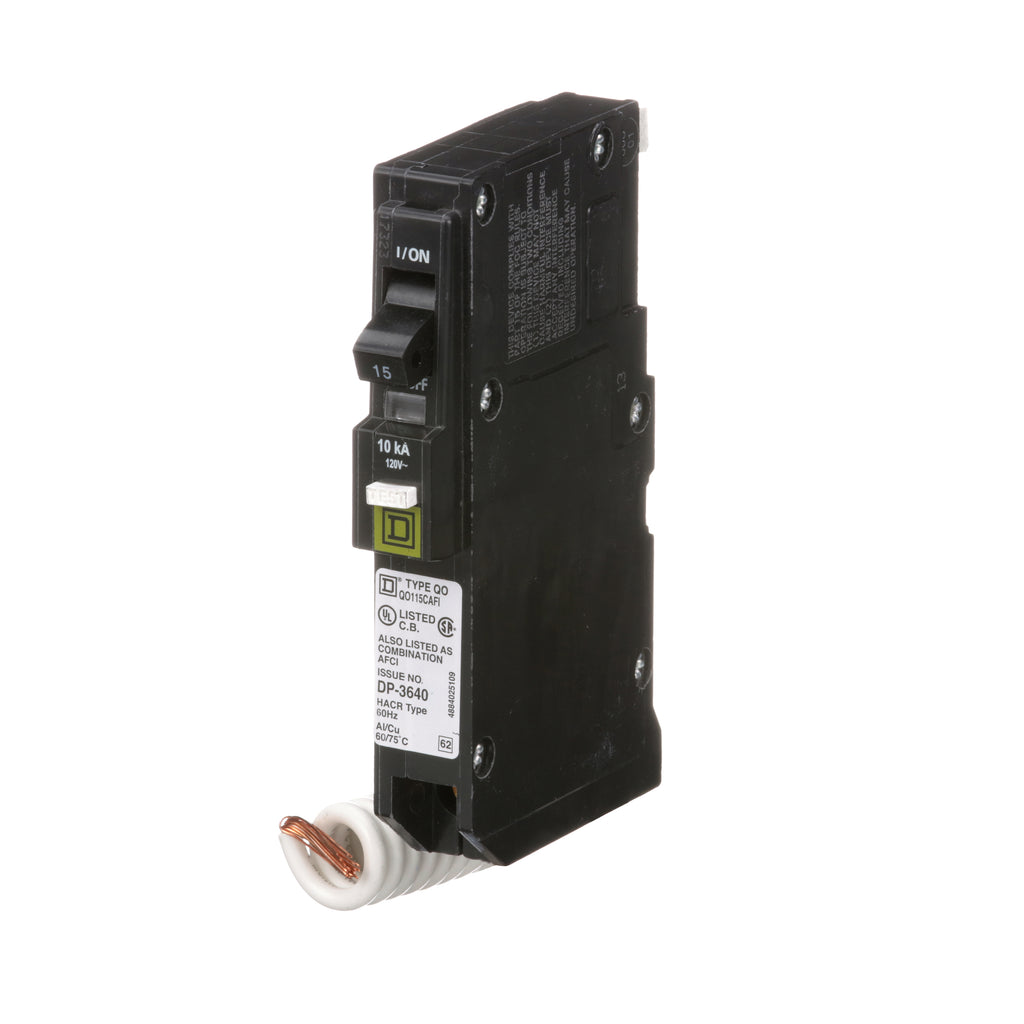

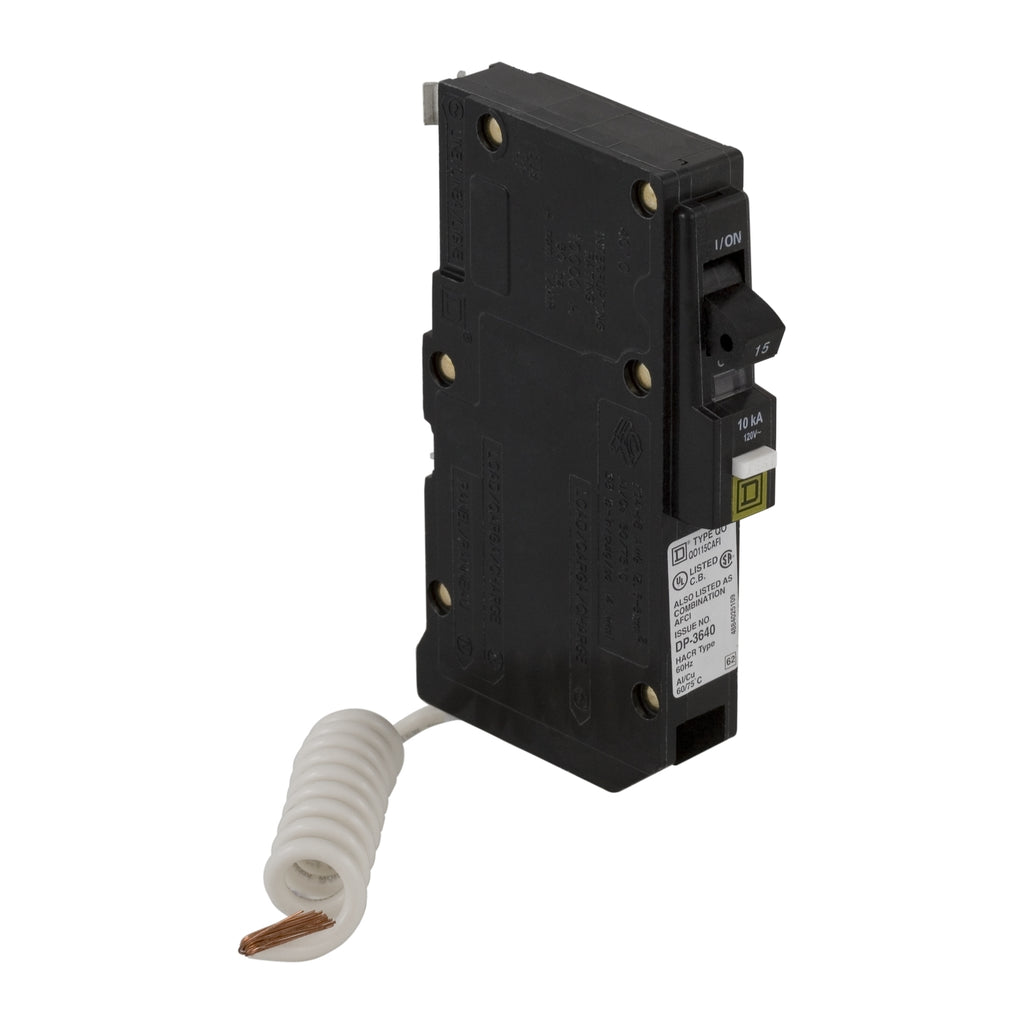

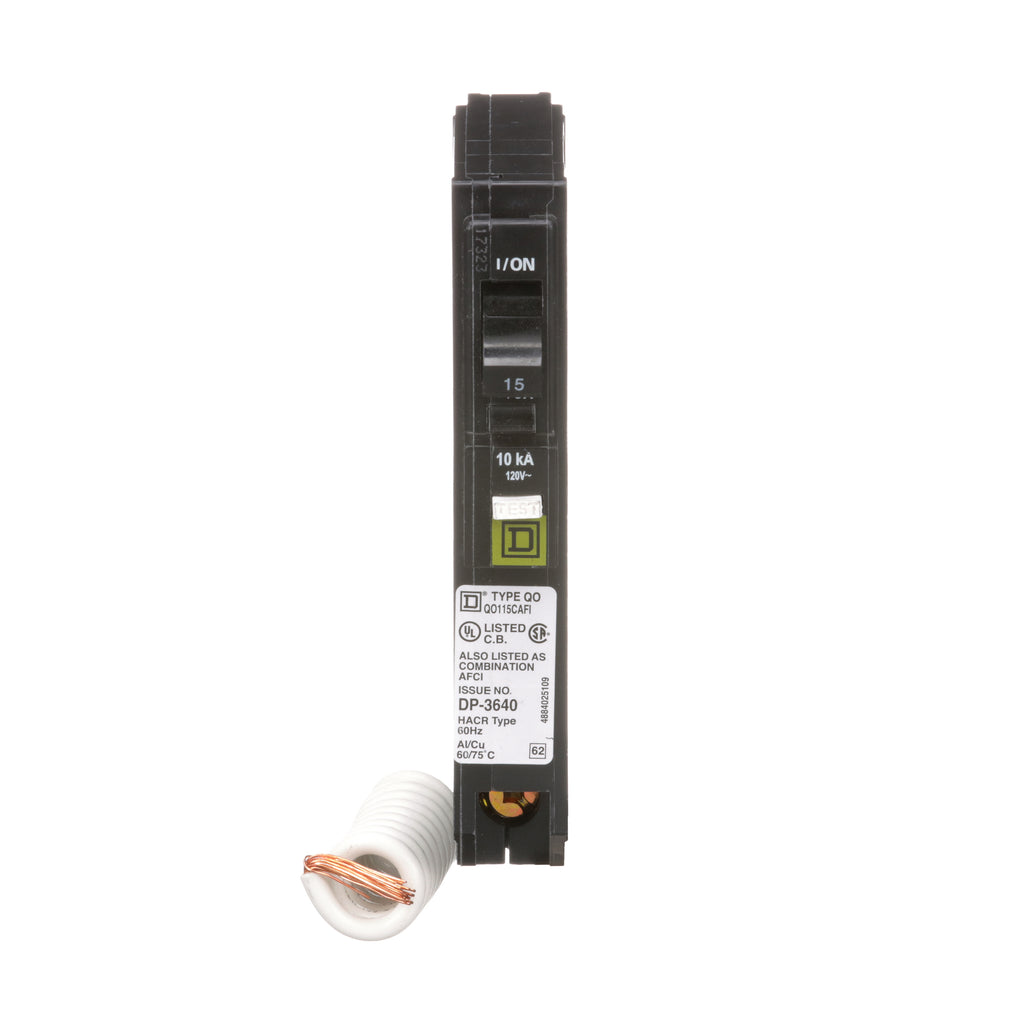

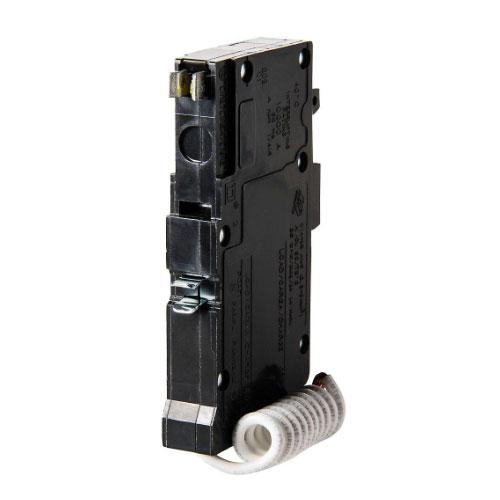

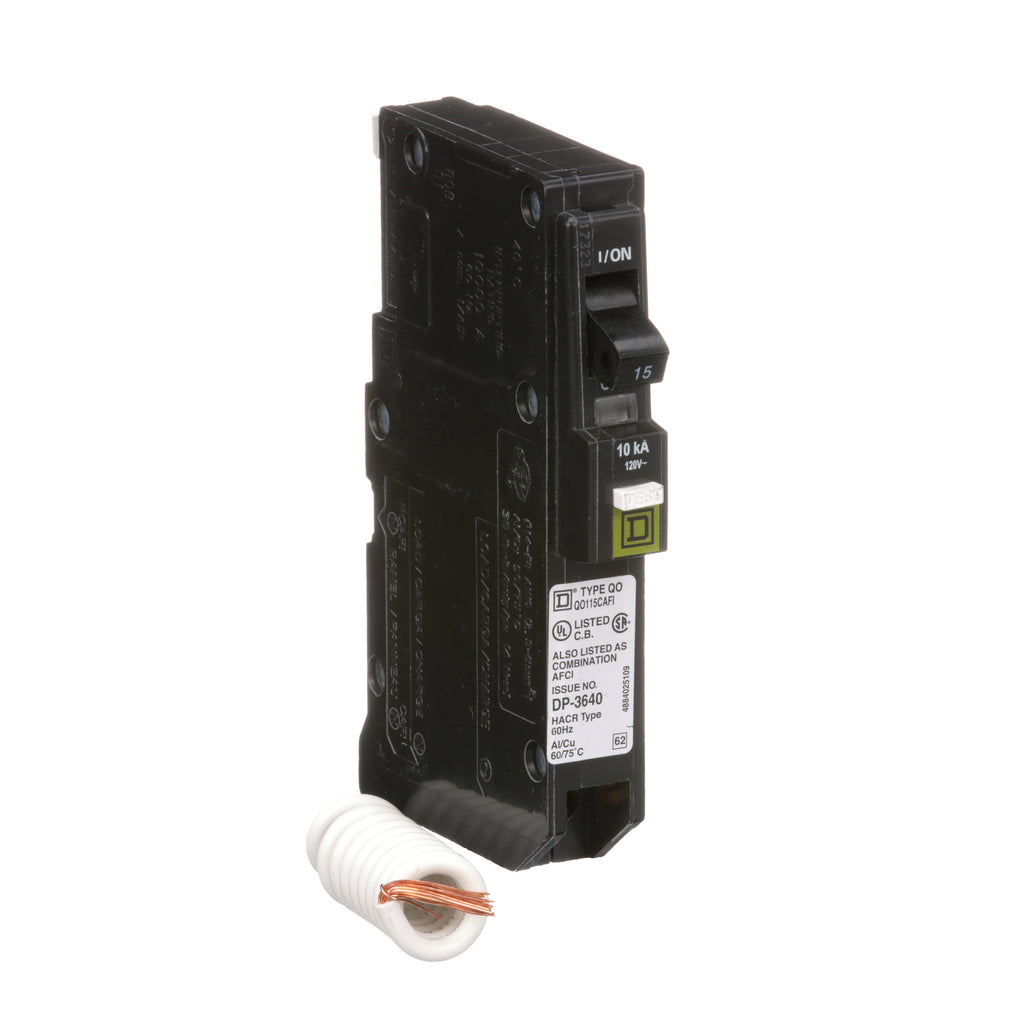

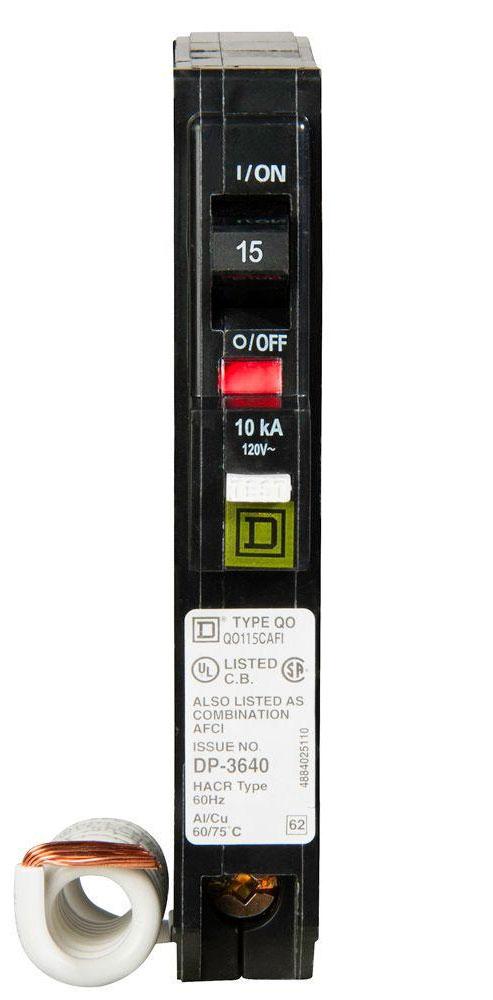

QO115CAFI is a 15A, 120V, 1 Pole combination arc fault circuit breaker designed for QO load centers and NQ panelboards. This Square D QO series breaker features plug-in mounting, thermal magnetic protection, and long time and instantaneous trip functions for reliable circuit protection. The QO115CAFI breaker includes a VISI-TRIP indicator and mercury-free construction, meeting UL, CSA, and IEC standards. It is suitable for use in residential and commercial applications requiring arc fault protection and is rated for copper or aluminum wire from 14 AWG to 8 AWG.
- Part Number: QO115CAFI
- Manufacturer: Square D
- Series: QO
- Amperage: 15A
- Voltage: 120VAC
- Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC at 120VAC
- Protection Type: Thermal Magnetic
- Trip Functions: Long Time and Instantaneous
- Wire Size: 14 AWG to 8 AWG (Copper/Aluminum)
- Certifications: UL, CSA, IEC
- Standards: RoHS, REACh, HACR
- Temperature Rating: 40°C
- Actuator Type: Toggle
- Breaker Feature: Mercury Free, VISI-TRIP Indicator
- For Use With: QO Load Centers, NQ Panelboards
Specifications
- Part Number: QO115CAFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QO SEries
- Type : QO
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp
- Frame Size : 100A/QO
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Combination Arc Fault Circuit Interrupter
- Protection : Thermal Magnetic
Product Data
- UPC : 785901438236
- GTIN : 00785901438236
- Country of Origin : Mexico
- Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.55
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA, IEC, UL listed
- Certification : IEC, UL listed
- Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
