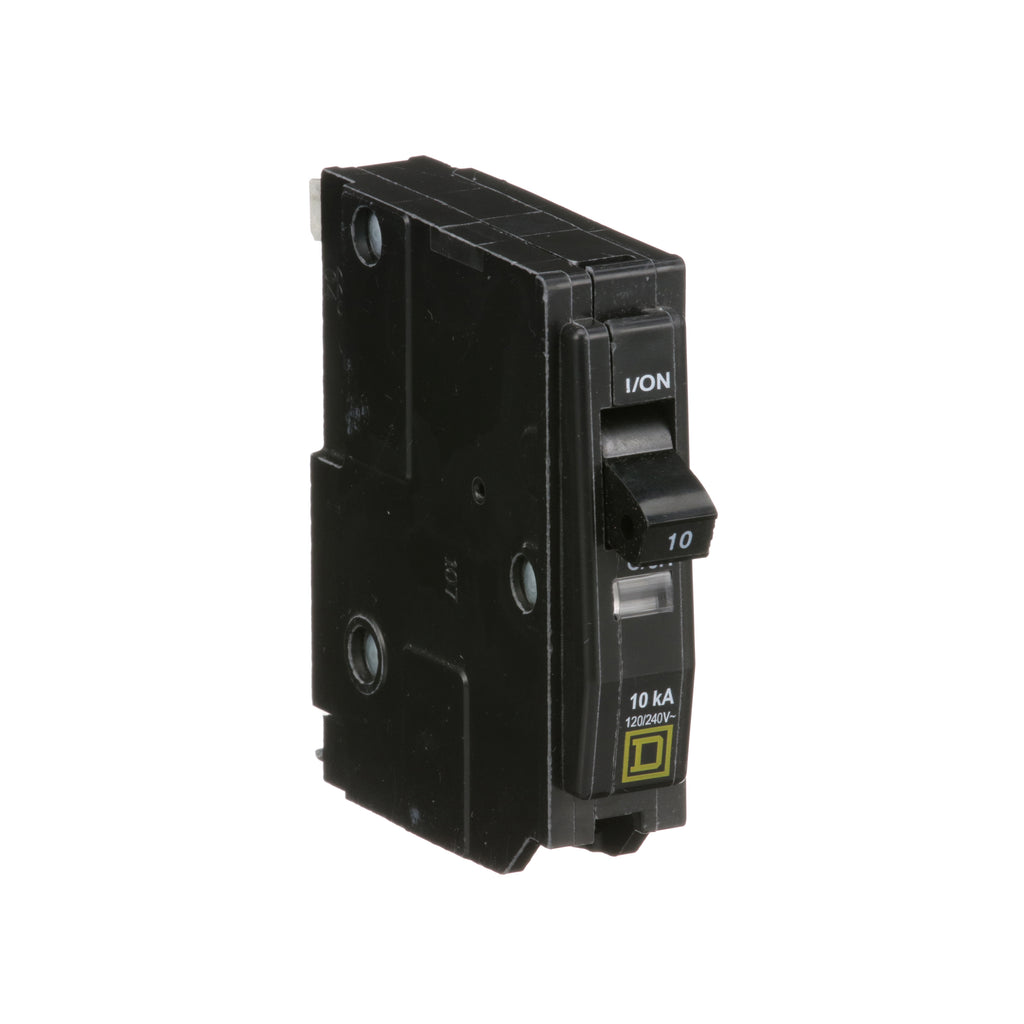

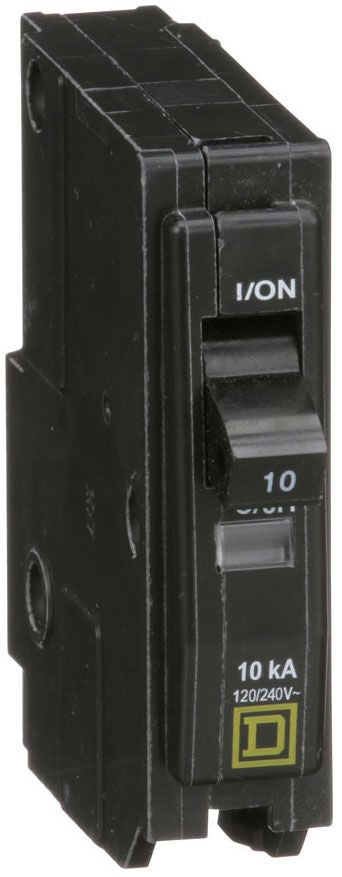

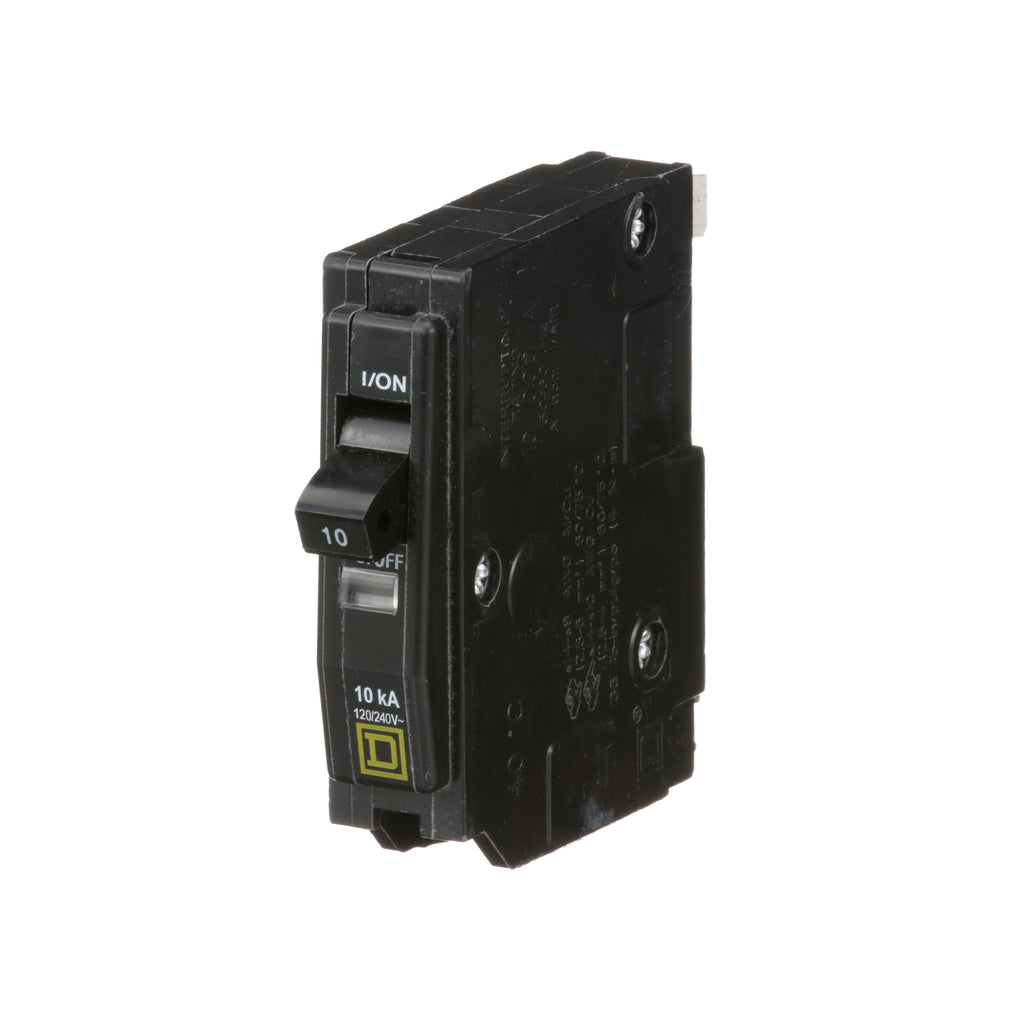

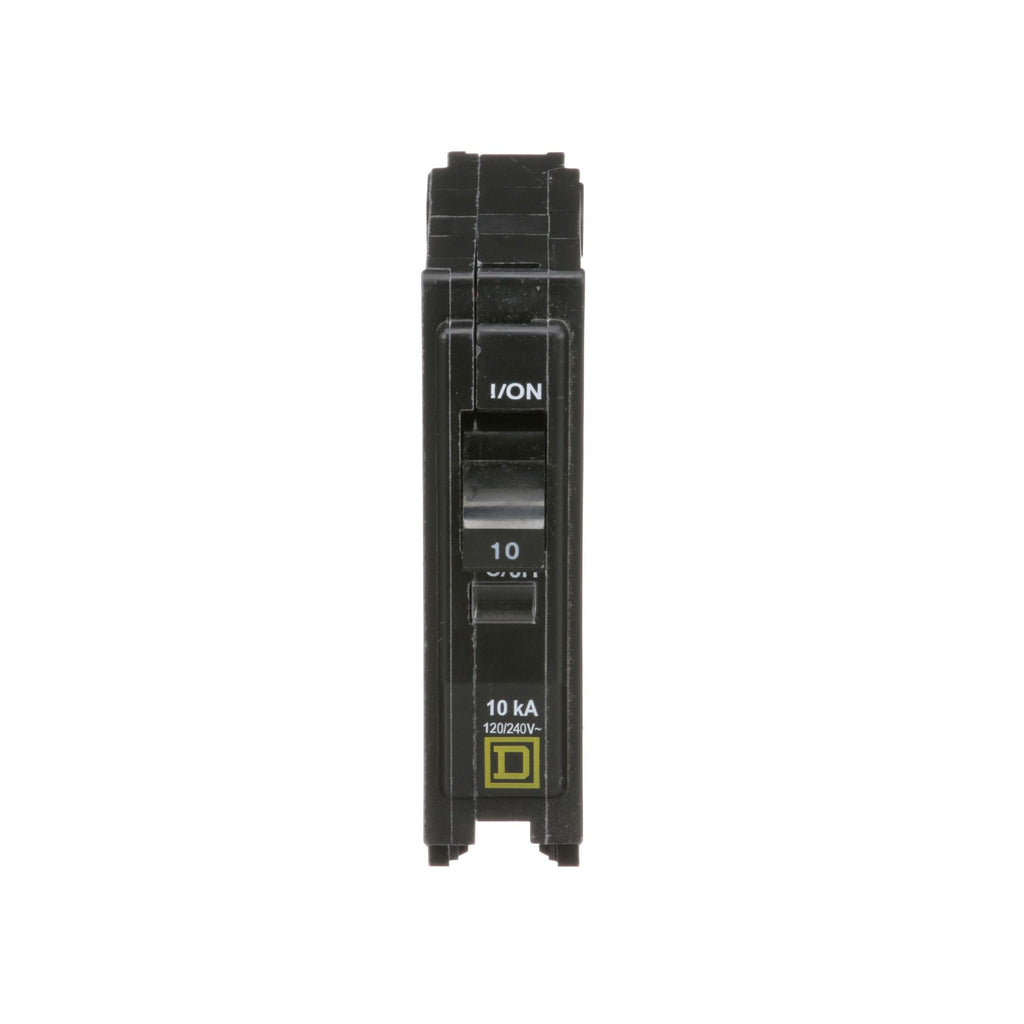

QO110 - Square D 10 Amp 1 Pole 120/240 VAC Circuit Breaker QO Series 10kA Interrupt

QO110

QO110 is a Square D 10 Amp 1 Pole circuit breaker designed for residential and commercial electrical protection.This QO Series miniature circuit breaker features a 10 Amp current rating, 120/240 VAC voltage rating, and a 1 Pole configuration. It has a thermal magnetic trip unit for reliable overcurrent protection and a 10kA interrupt rating ensuring safe interruption of fault currents. The breaker is plug-in mounted for easy installation and is UL and CSA certified.

• Amperage: 10 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Interrupt Rating: 10kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Mounting Type: Plug-in
• Certifications: UL Listed, CSA Certified
• Frequency: 50/60 Hz
• Dimensions: Approx. 3.0 in H x 0.7 in W x 2.9 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 10
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901205593
• GTIN : 00785901205593
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.26
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : 14 To 8 Awg (Aluminum/Copper) (2) 14 To 10 Awg (Copper)
